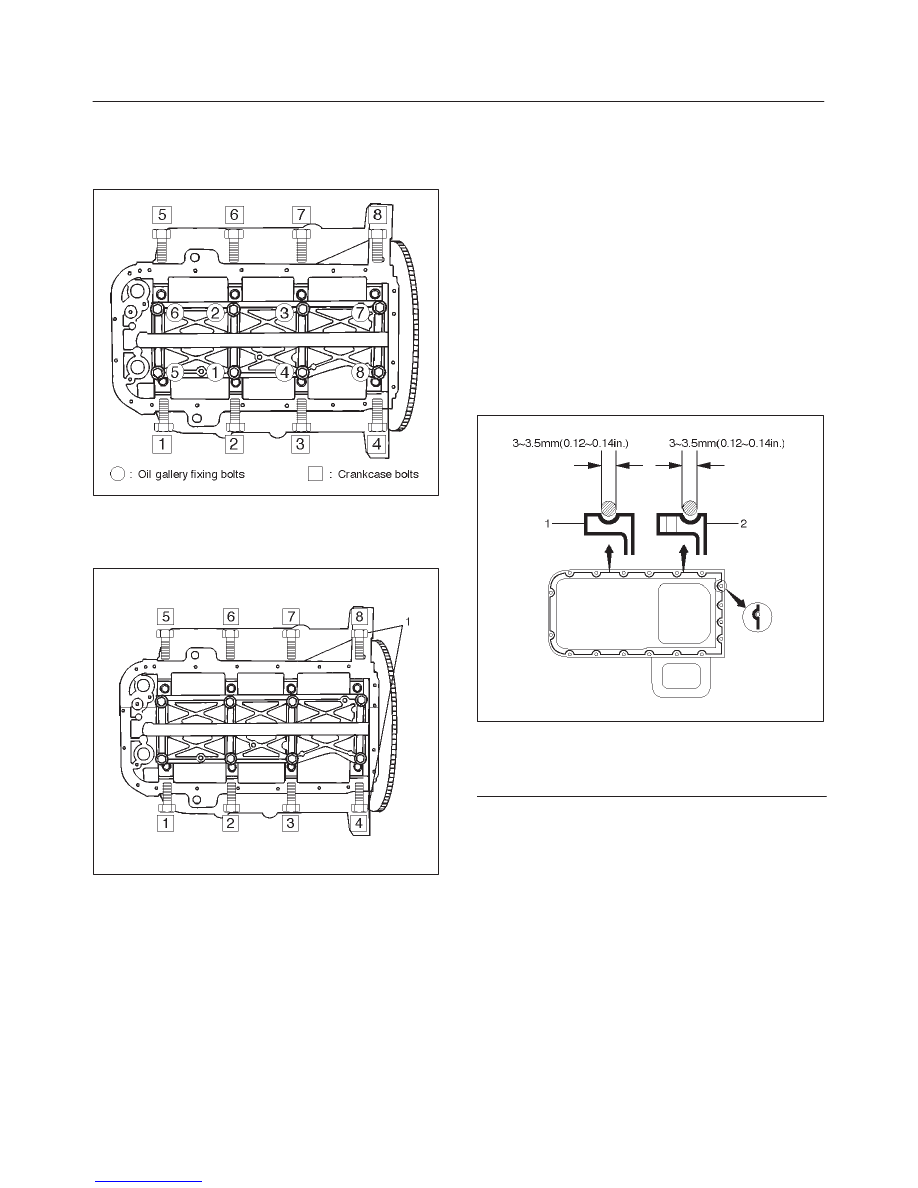

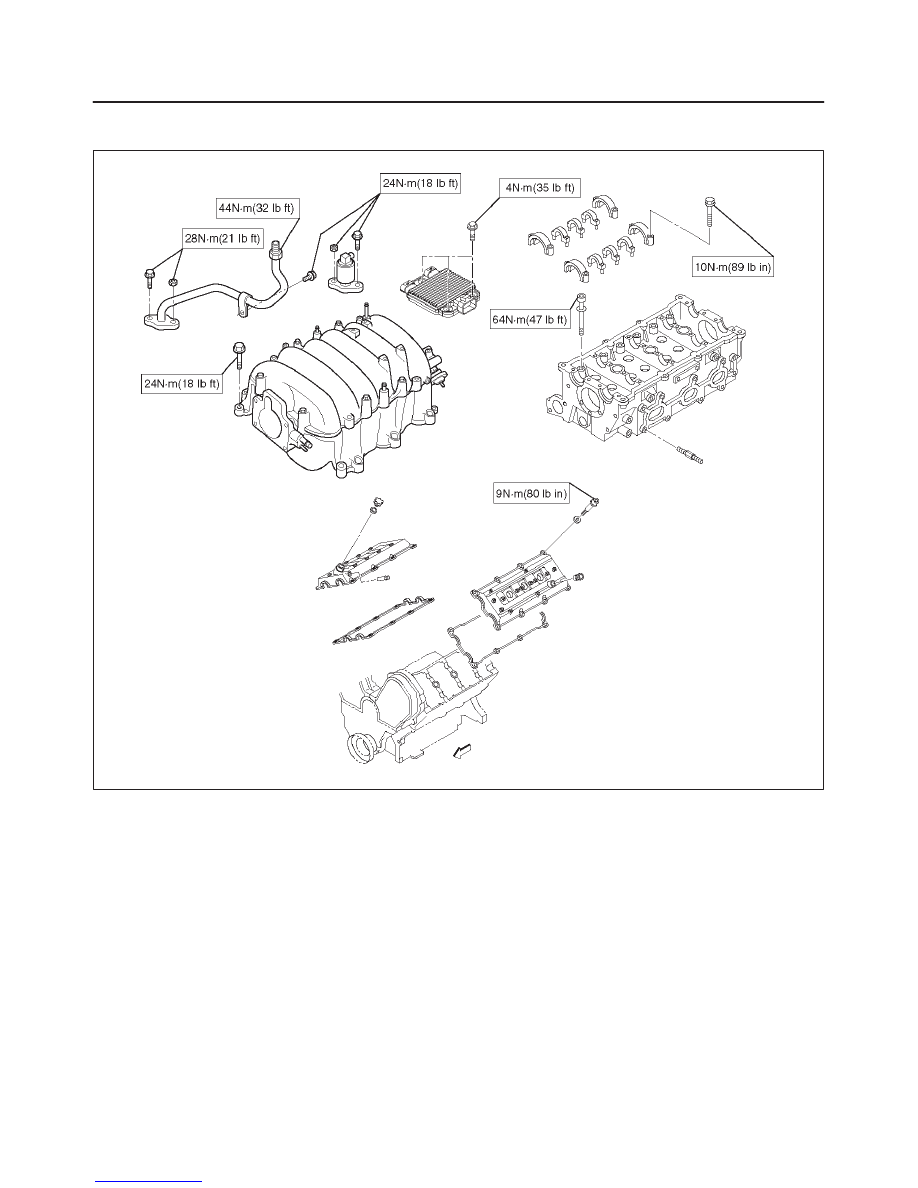

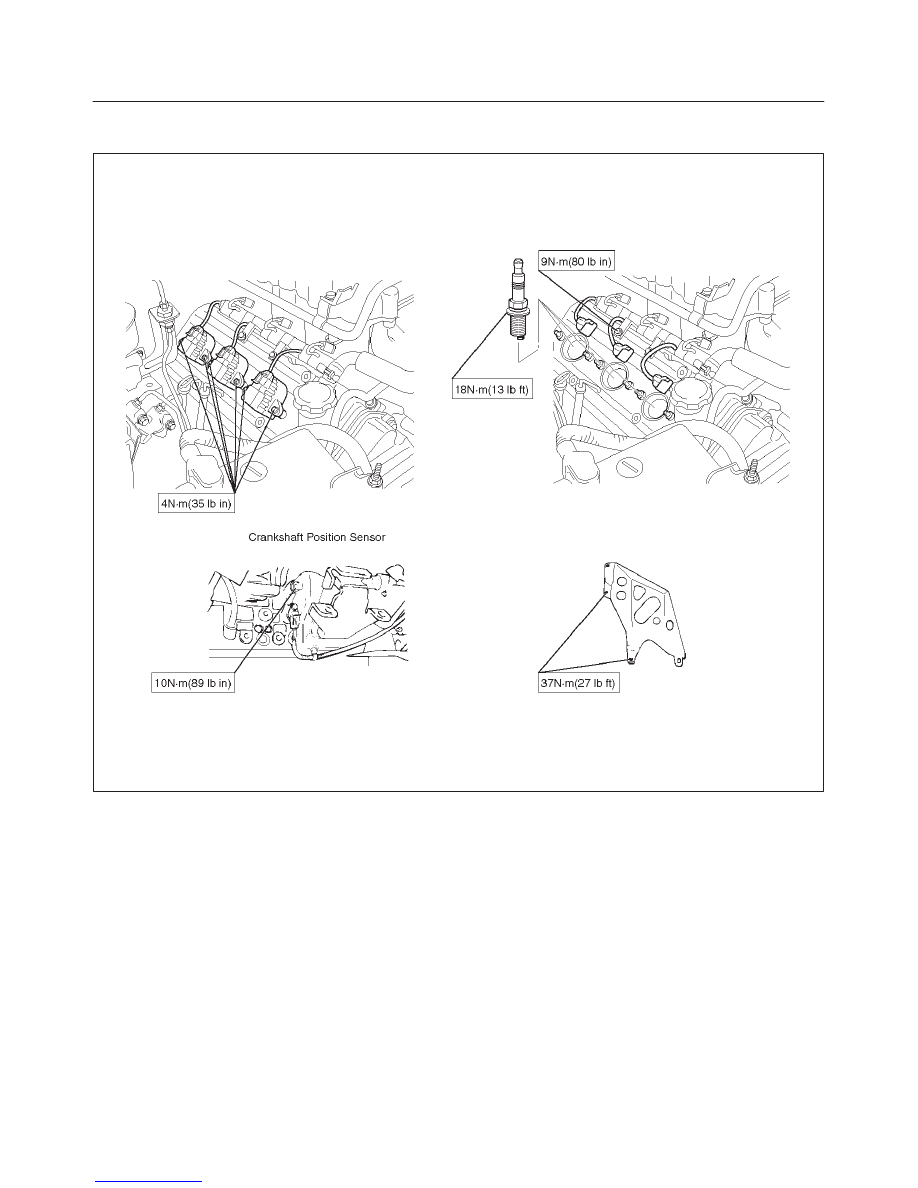

6A–85 ENGINE MECHANICAL 6. Install oil gallery and tighten the bolts in 2 steps in the order shown. 1st step : 29 N·m (22 lb ft) ° ∼ 65 ° 012RS007 7. Install cylinder block side bolts (1) and tighten crankcase bolts in sequence shown in the illustration. Torque : 39 N·m (29 lb ft) 012RW005 8. Install oil pump assembly. Refer to “Oil Pump” in this manual. 9. Install oil strainer and O-ring. 10. Install oil pipe and O-ring. 11. Install crankcase with oil pan. 1. Completely remove all residual sealant, lubricant and moisture from the sealing surfaces. The 2. Apply a correct width bead of sealant (TB– 1207C or its equivalent) to the contact surfaces of the 3. The oil pan must be installed within 5 minutes after sealant application to prevent premature 4. Tighten the bolts and nuts to the specified torque. Torque : 10 N·m (89 lb in) 013RW010 Legend (1) Portion Between Both Holes 12. Install cylinder head gasket. Head” in this manual. |
