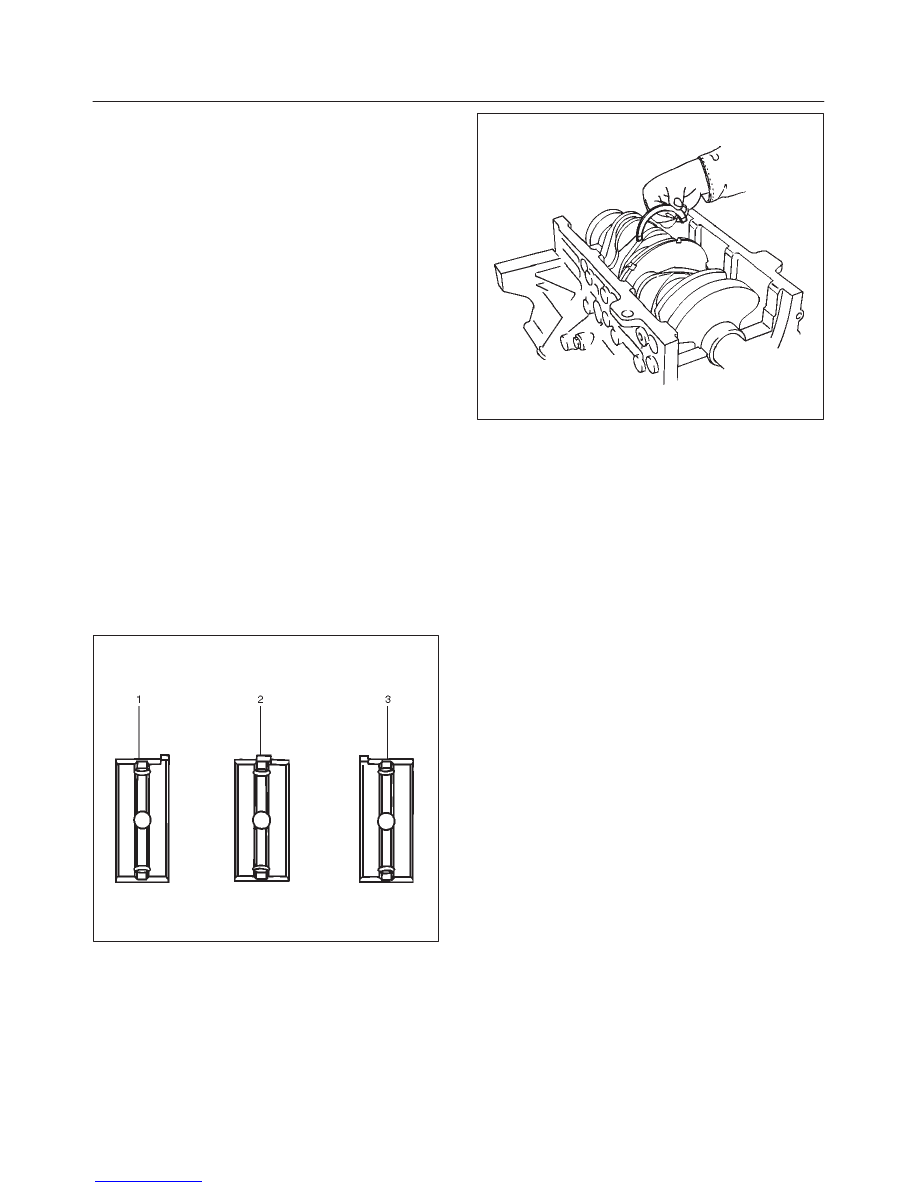

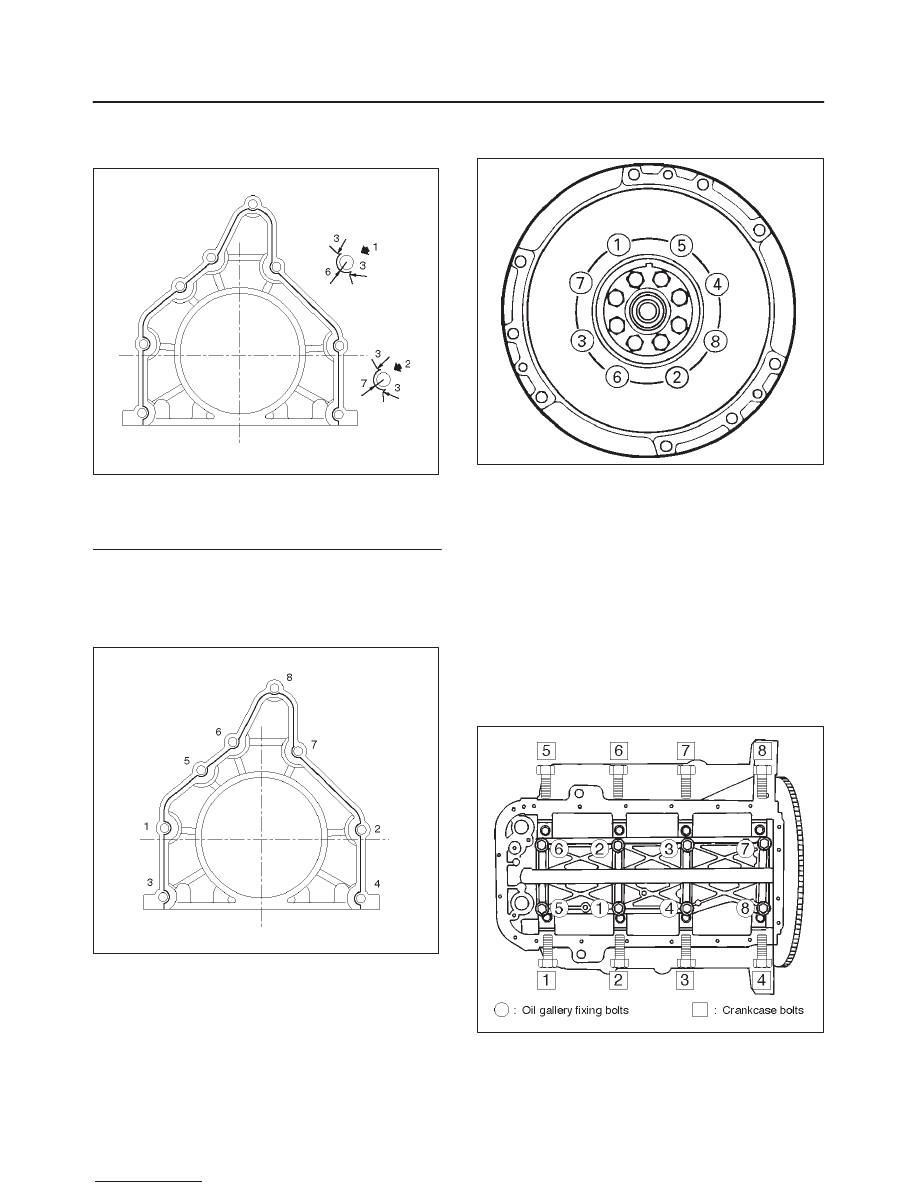

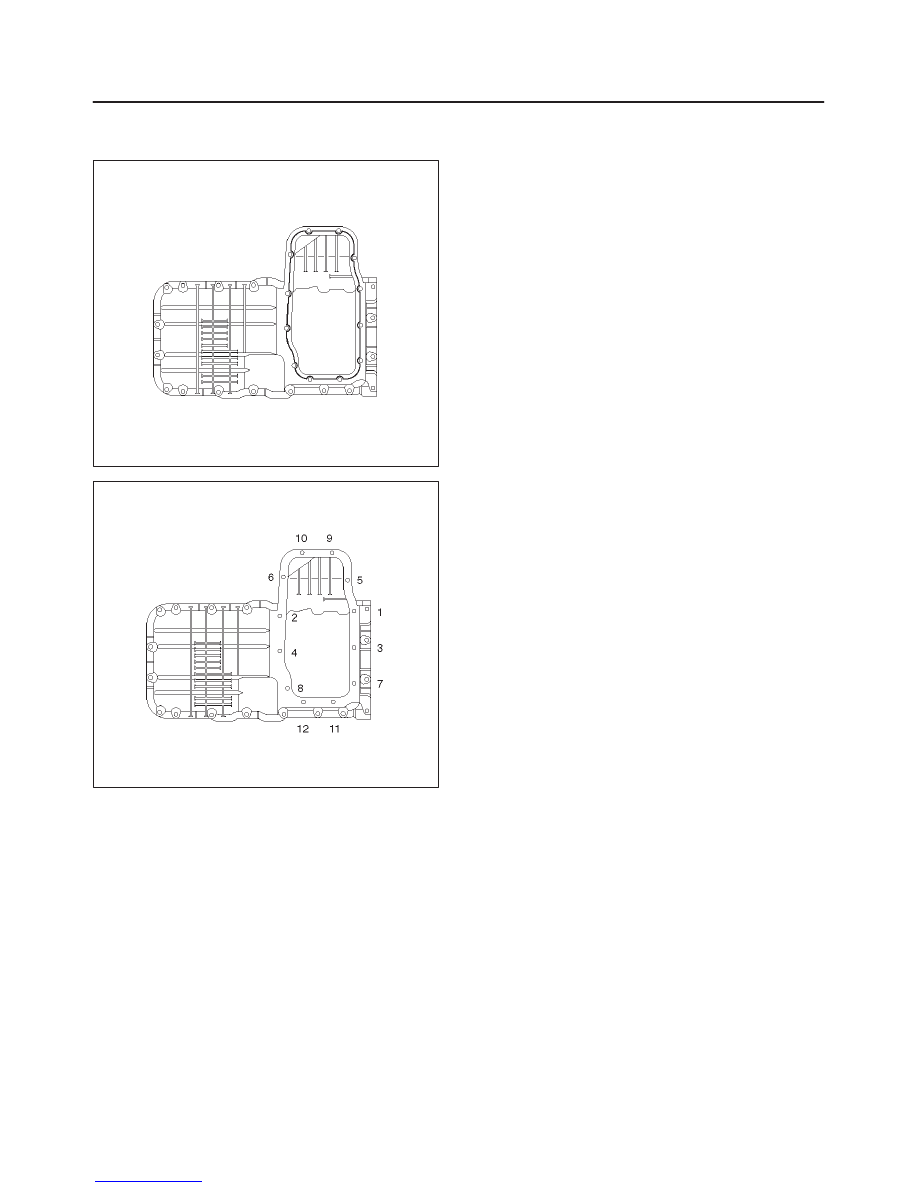

6A–41 ENGINE MECHANICAL 6. Remove oil pump assembly. D Refer to removal procedure for Oil Pump in this 7. Remove cylinder body side bolts. 10. Remove rear oil seal retainer. D Refer to removal procedure for Rear Oil Seal in this 11. Remove connecting rod caps. 12. Remove crankshaft main bearing caps. Installation 1. Install crankshaft and main bearings. D Install main bearing in the cylinder block and main NOTE: D Do not apply engine oil to the bearing back faces. D Make sure that main bearings are in correct position. D Install crankshaft with care. D Apply engine oil to the thrust washer. D Install thrust washer on No.3 journal. D Oil grooves in thrust washer must face the 015RS012 015RS013 2. Install crankshaft main bearing caps. D Apply engine oil to the thread and seating surface of NOTE: D Do not apply engine oil to the bearing back faces. D Install bearing caps, starting with cylinder block front D Tighten main bearing fixing bolts to the specified Torque : 39 N·m (29 lb ft) D After tightening the bolts, make sure that the 3. Install connecting rod caps. D The cap number must be same as connecting rod D Apply engine oil to the thread and seating surface of D Tighten nuts to the specified torque. Torque : 54 N·m (40 lb ft) D After tightening the nuts, make sure that the 4. Install rear oil seal retainer. D Remove oil on cylinder block and retainer fitting D Apply sealant (TB1207B or equivalent) to retainer |
