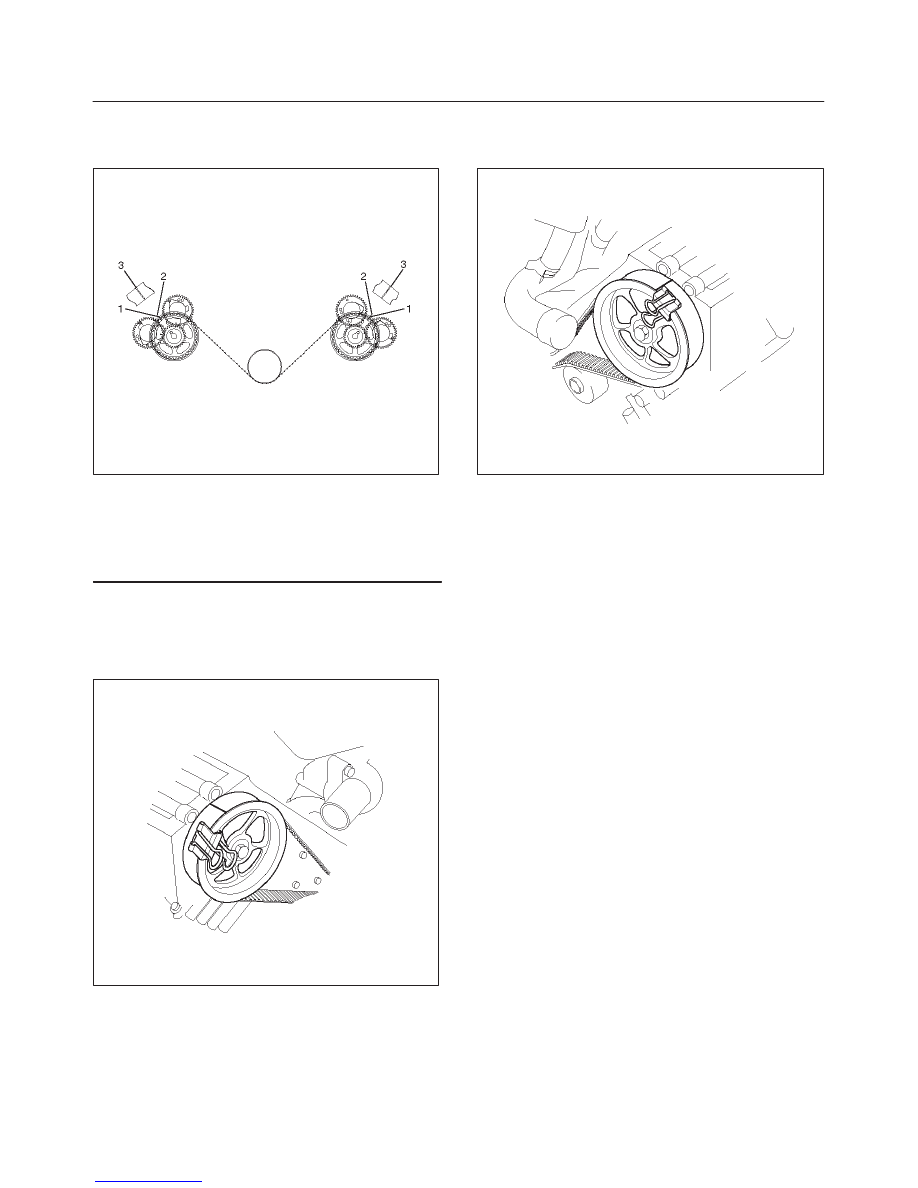

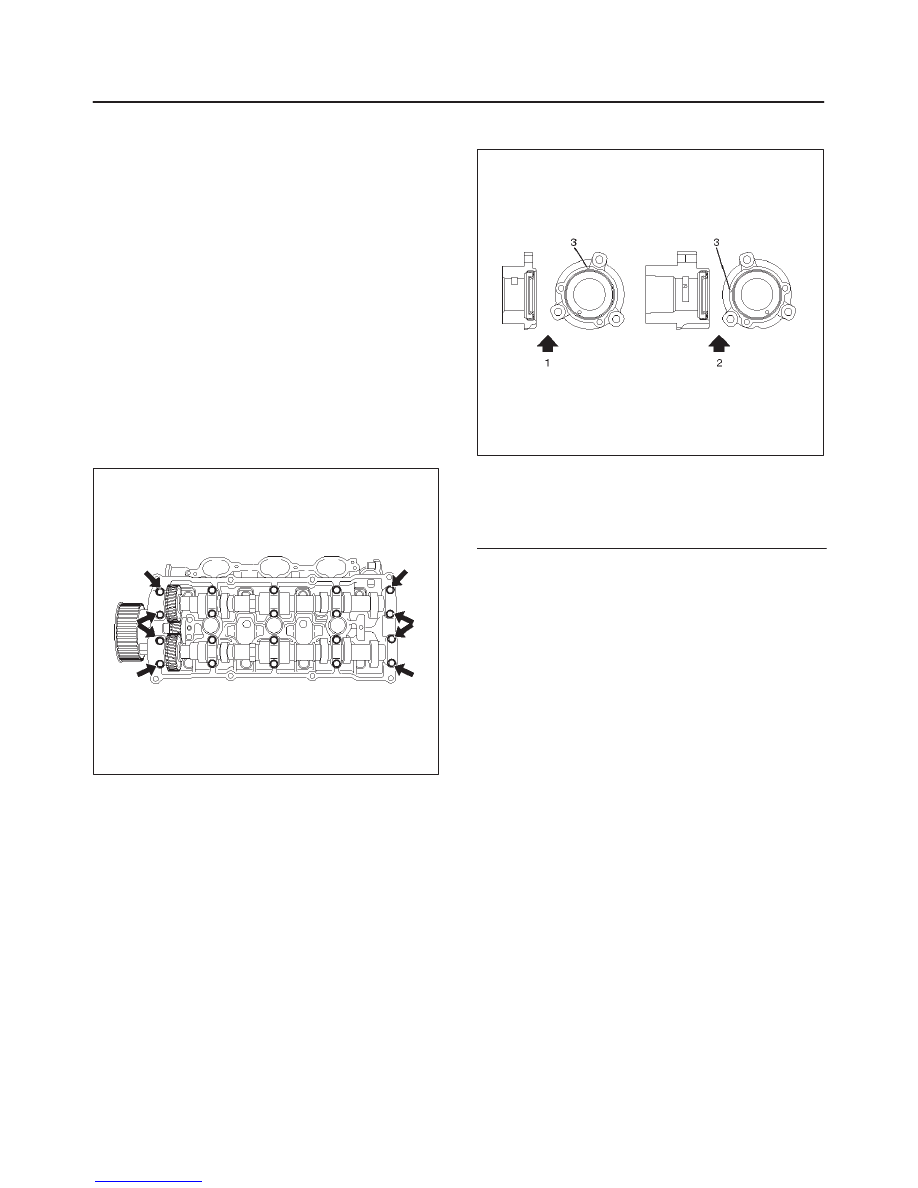

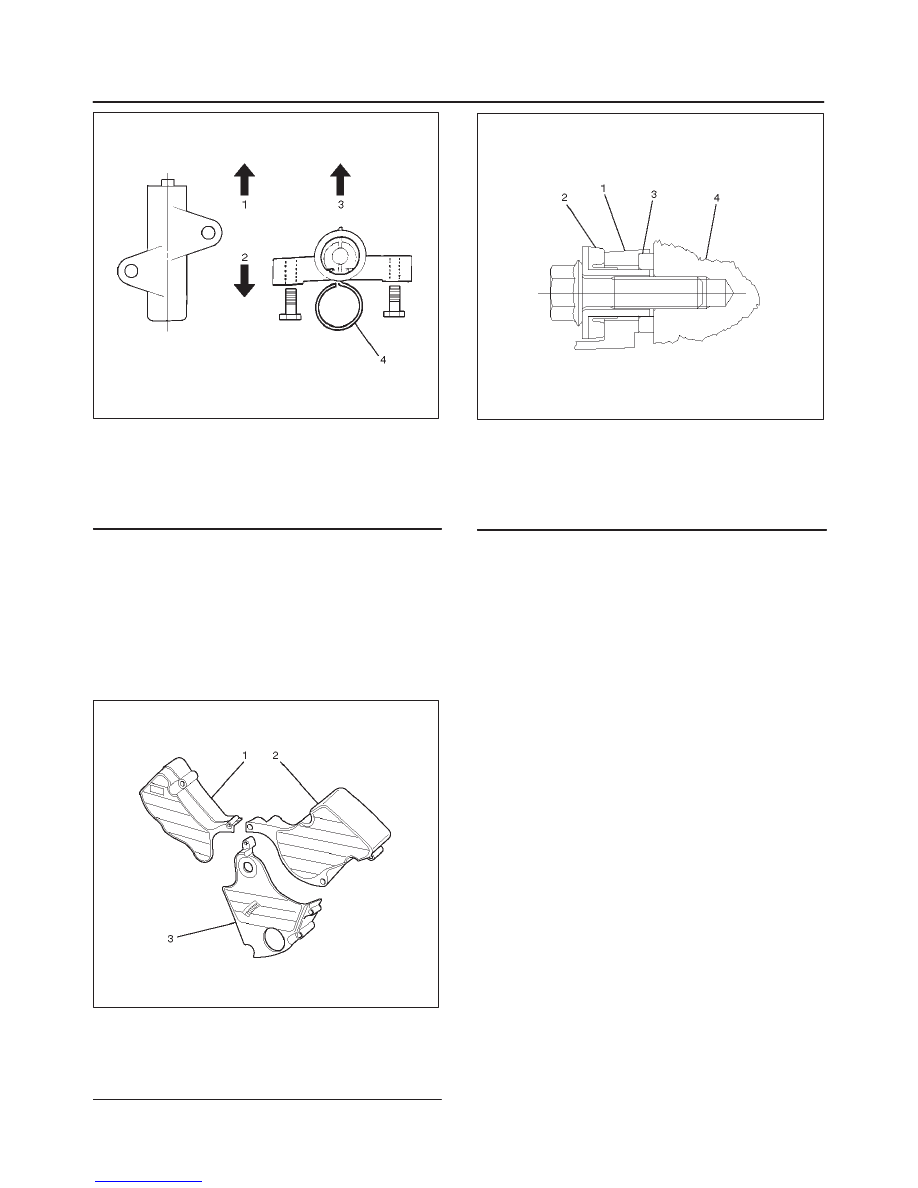

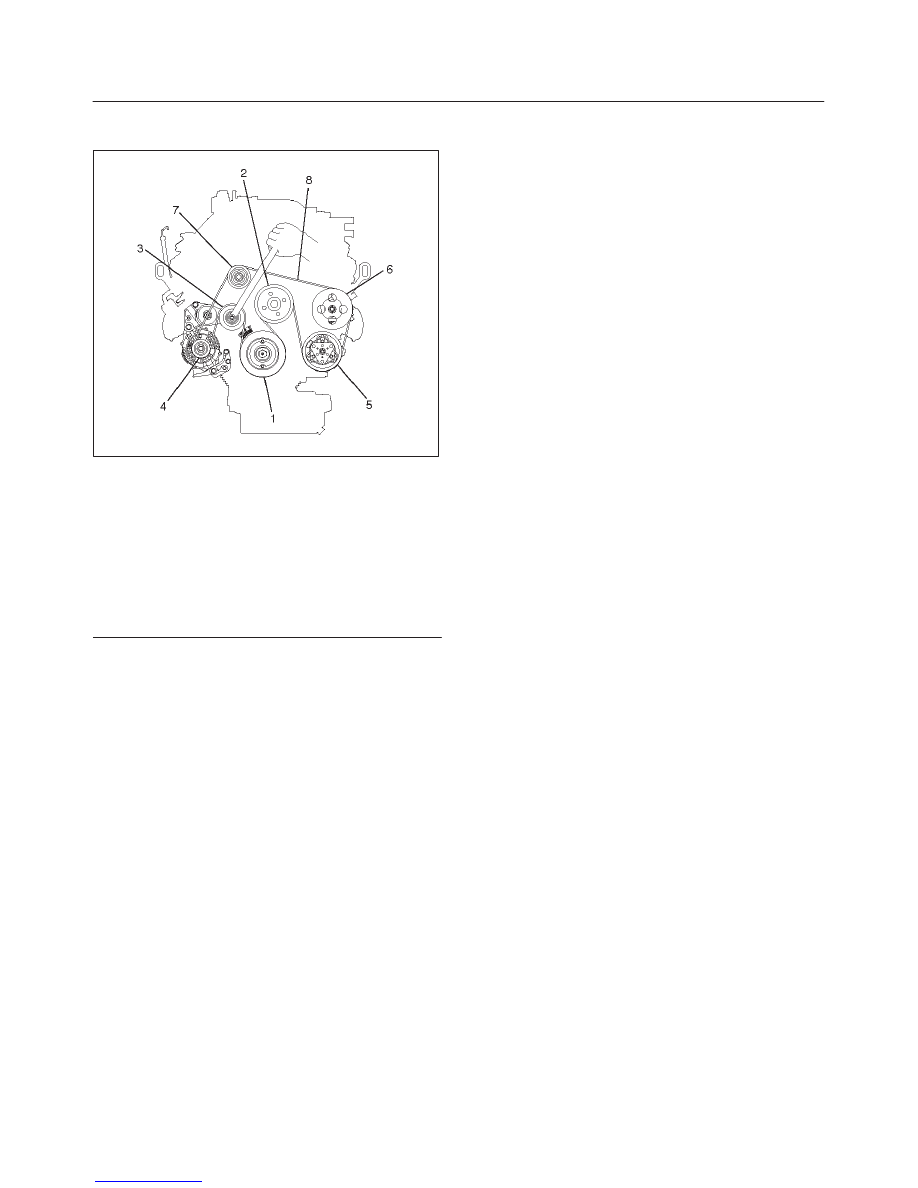

6A–29 ENGINE MECHANICAL 2. Align the marks on the camshaft drive gear pulleys with the corresponding alignment marks 014RW004 Legend (1) Alignment Mark on Camshaft Drive Gear Pulley (2) Alignment Mark on Cylinder Head Cover. 3. Align the alignment mark (white line) on the timing belt with alignment mark on the RH bank 014RW008 4. Align the alignment mark (white line) on the timing belt with the alignment mark on the LH bank NOTE: It is recommended for easy installation that the 014RW009 5. Install crankshaft pulley temporarily and tighten center bolt by hand (do not use a wrench). 2. Install pusher and tighten bolt to the specified torque. 1. Install the pusher while pushing the tension pulley to the belt. 2. Pull out pin from the pusher. NOTE: When reusing the pusher, press the pusher with |
