5D–5

PARKING BRAKE

Parking Brake Rear Cable

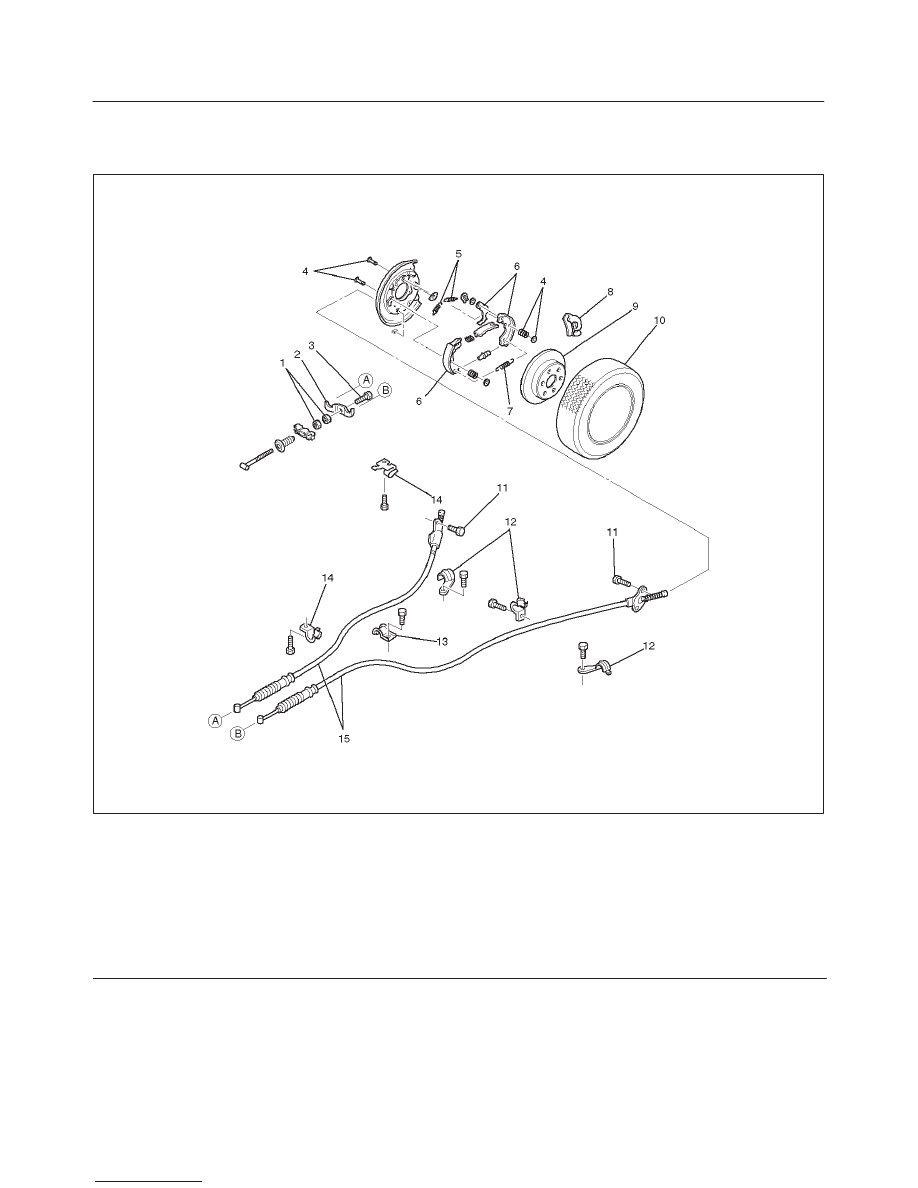

Parking Brake Rear Cable and Associated Parts

311RW003

Legend

(1) Adjust Nut
(2) Back Plate
(3) Bolt
(4) Holding Spring
(5) Return Spring; Upper
(6) Shoe Assembly
(7) Return Spring; Lower

(8) Caliper Assembly
(9) Rotor (Drum)

(10) Rear Wheels

(11) Cable Fixing Bolt

(12) Clip
(13) Clip
(14) Clip
(15) Rear Cable

Removal

1. Remove adjusting nut.
2. Remove rear wheels.

3. Remove caliper assembly, remove two bolts to

remove the caliper assembly from the support
bracket. (Refer to “Rear Disc Brakes in Disc Brakes”
in Section 5C). Temporarily hang the caliper with a
wire in order to avoid stretching the brake hose.

4. Remove rotor (drum).
5. Remove clip (floor side).

5D–6 PARKING BRAKE

6. Remove bolt.
7. Remove back plate.
8. Remove clip (frame side).
9. Remove clip (suspension side).

10. Remove holding spring.

11. Remove return spring; upper.

12. Remove return spring; lower.

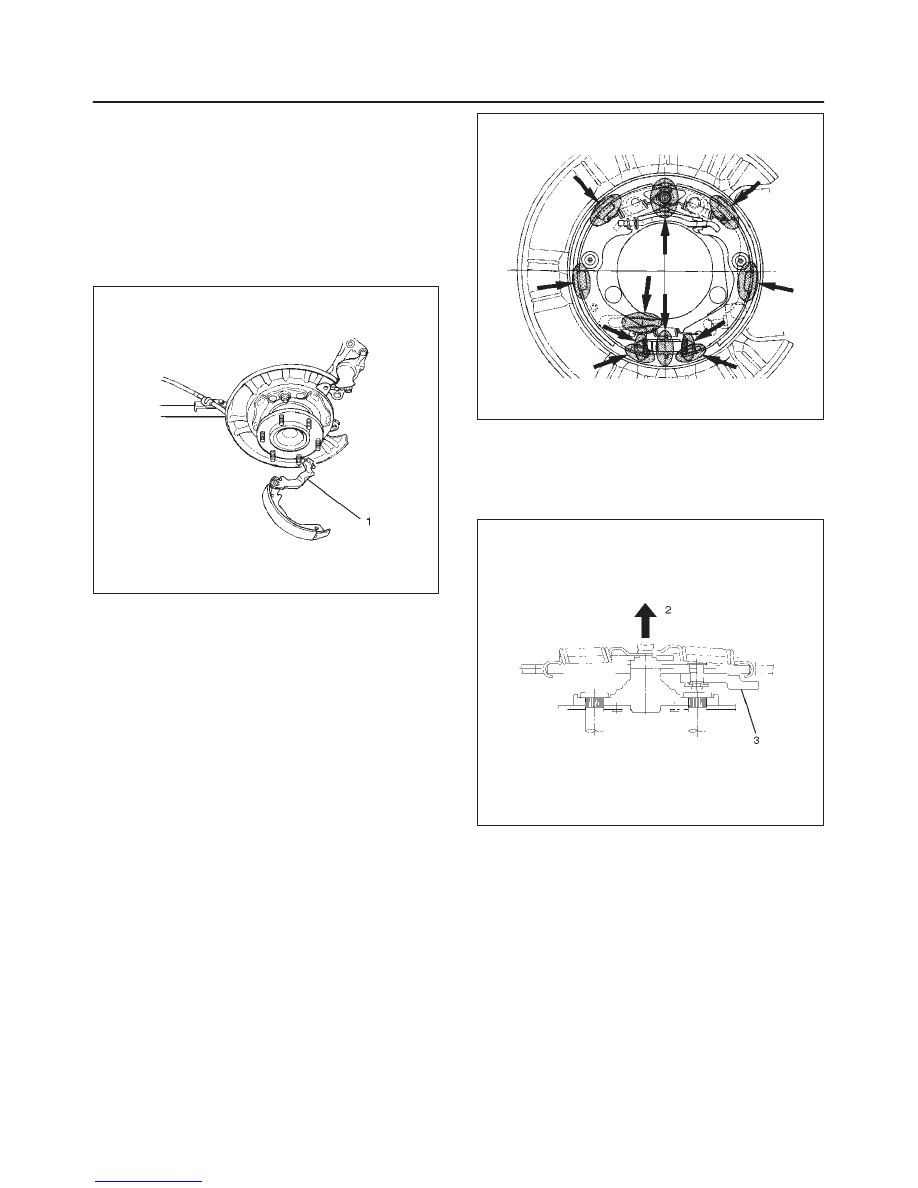

13. Remove the brake shoe assembly. Then remove the

parking brake cable from the parking brake lever (1).

308RW001

14. Remove cable fixing bolt.
15. Remove rear cable.

Installation

1. Install rear cable and apply grease (BESCO L–2 or

equivalent) to the connecting portion of the rear cable
and the equalizer.

2. Install cable fixing bolt and tighten the cable fixing bolt

to the specified torque.

Torque: 6 N·m (52 lb in)

3. Install shoe assembly and after installation of the

shoe and cable assembly, apply the special grease
included in the repair kit to the portions indicated in the
illustration.

308RS002

4. Install return spring; lower.
5. Install return spring; upper and the parking brake

lever (3) side (secondary side) return spring must be
installed on the outer side (2) of the primary side
return spring.

308RW002

6. Install holding spring.
7. Install clip (suspension side) and tighten the bolt to

the specified torque.

Torque: 7.8 N·m (68 lb in)

8. Install clip (frame side) and tighten the bolt to the

specified torque.

Torque: 15 N·m (11 lb in)

9. Install back plate.

10. Install bolt and tighten the bolt to the specified torque.

Torque: 6 N·m (52 lb in)

11. Install clip (floor side) and tighten the bolt to the

specified torque.

Torque: 15 N·m (11 lb in)

12. Install rotor.

5D–7

PARKING BRAKE

13. Install caliper assembly.
14. Install rear wheels.
15. Install adjusting nut and apply grease (BESCO L–2 or

equivalent) to front cable contact point.

16. Tighten the adjusting nut to the specified torque and

to adjust the parking brake, refer to “Parking Brake
Adjustment” in this section.

Torque: 6 N·m (52 lb in)

Inspection and Repair

Parking Brake Lining Inspection

Check the shoe assemblies for wear by removing the
brake drum rotor.
Replace the shoe assemblies if the lining thickness is less
than 1.0 mm (0.039 in).

Minimum limit: 1.0 m (0.039 in)

308RW003

Parking Brake Rotor (Drum) Inspection

Refer to “Rear Disc Brakes” in Section 5A2 for the
inspection procedure of the rotor (drum).

Parking Brake Adjustment

1. Adjustment of parking brake assembly

D

Prior to lever stroke adjustment, adjust the rear
brake shoe/rotor (drum) gap. Perform this
procedure by loosening the adjusting nut of the
equalizer.

a. Remove the adjusting hole plug (rubber) and turn

the shoe adjusting screw downward using a small
screwdriver so that the shoes will expand until they
get into close contact with the rotor. (Turn down the
adjusting screw notch by notch until the rotor does
not turn.)

b. Turn the adjusting screw in the opposite direction

(upward) until the rotor can be turned lightly.
Standard number of notches to turn upward: 7 or 8.

Turn the rotor in order to ensure that there is no
brake dragging.

2. Adjustment of parking brake cable

a. Turn the equalizer nut so that the parking brake

lever travels 6 or 7 notches when pulled up with a
force of 30 kg (66 lb).

b. Make sure that there is no brake dragging and

tighten the cable lock nut.

Torque : 6 N·m (52 lb in)

3. Break–in of parking brake shoe

D

When poor braking  is felt, or just after replacement
of parking brake shoes, be sure to conduct the
break–in procedure by driving the vehicle as
follows:

a. Forward 50 km/h (30 mph)

×

 400 m (about 30

seconds) with a lever pull force of 15 kg (33 lb).

b. Backward 10 km/h (6 mph)

×

 50 m (about 18

seconds) with a lever pull force of 15 kg (33 lb).

NOTE: Break–in procedures must be performed under
safe conditions and traffic rules.

D

If the braking effect remains poor after the break–in,
wait for some time until parking brake shoe cools
down and repeat procedures a. and b. noted above.

D

On completion of break–in, inspect the parking
brake lever stroke, and if the lever does not come
within the specified number of notches when pulled
up, readjust.

D

Excessive break–in may cause premature wear of
the parking brake lining.

5D–8 PARKING BRAKE

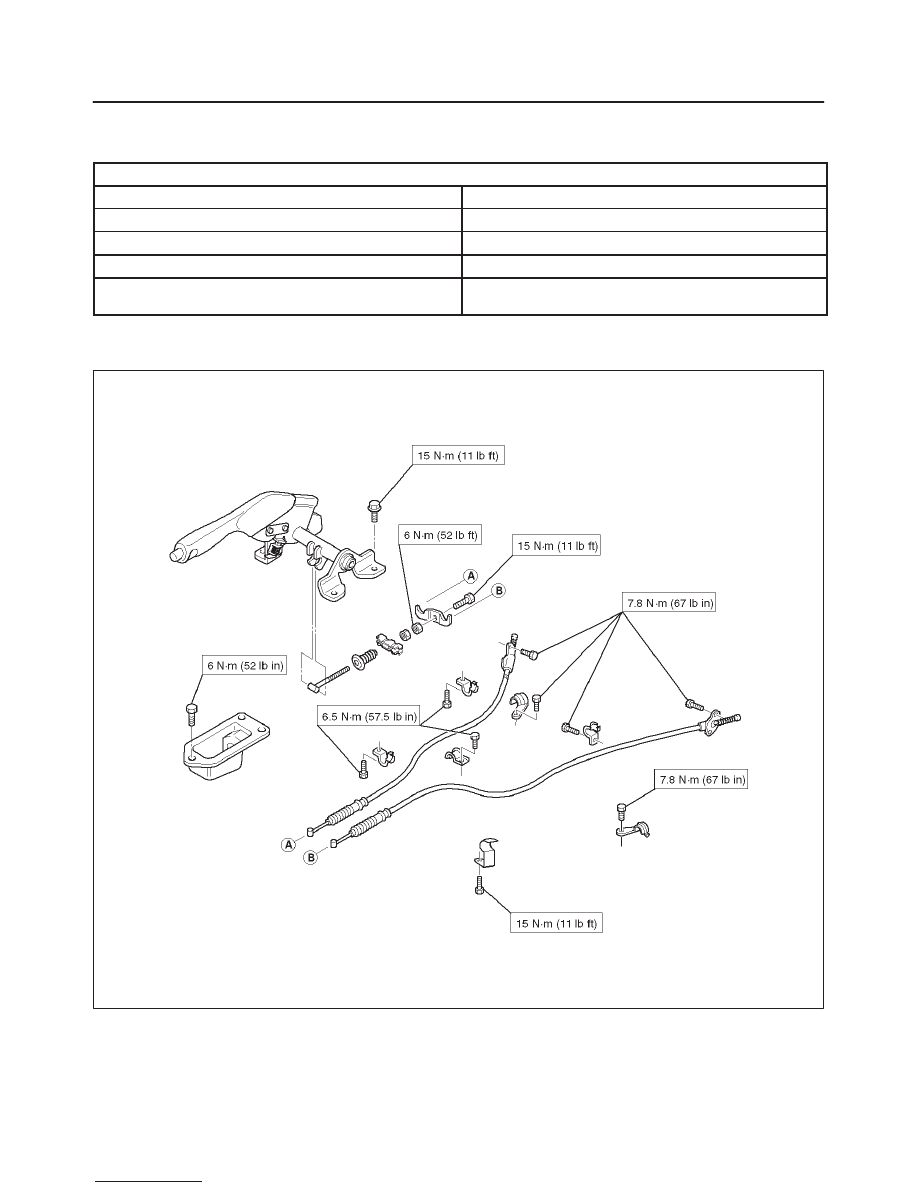

Main Data and Specifications

General Specifications

Rear parking brake

Type

Duo–servo

Lining Dimension

121.2 cm

@

 (18.79 in

@

)

Adjusting Method

Manual adjusting

Rotor (Drum) Inside Diameter

210 mm (8.27 in)

Parking Brake Lever Stroke

6–7 notches

When pulled with a force of 30 kg (66 lb)

Torque Specifications

E05RW006
