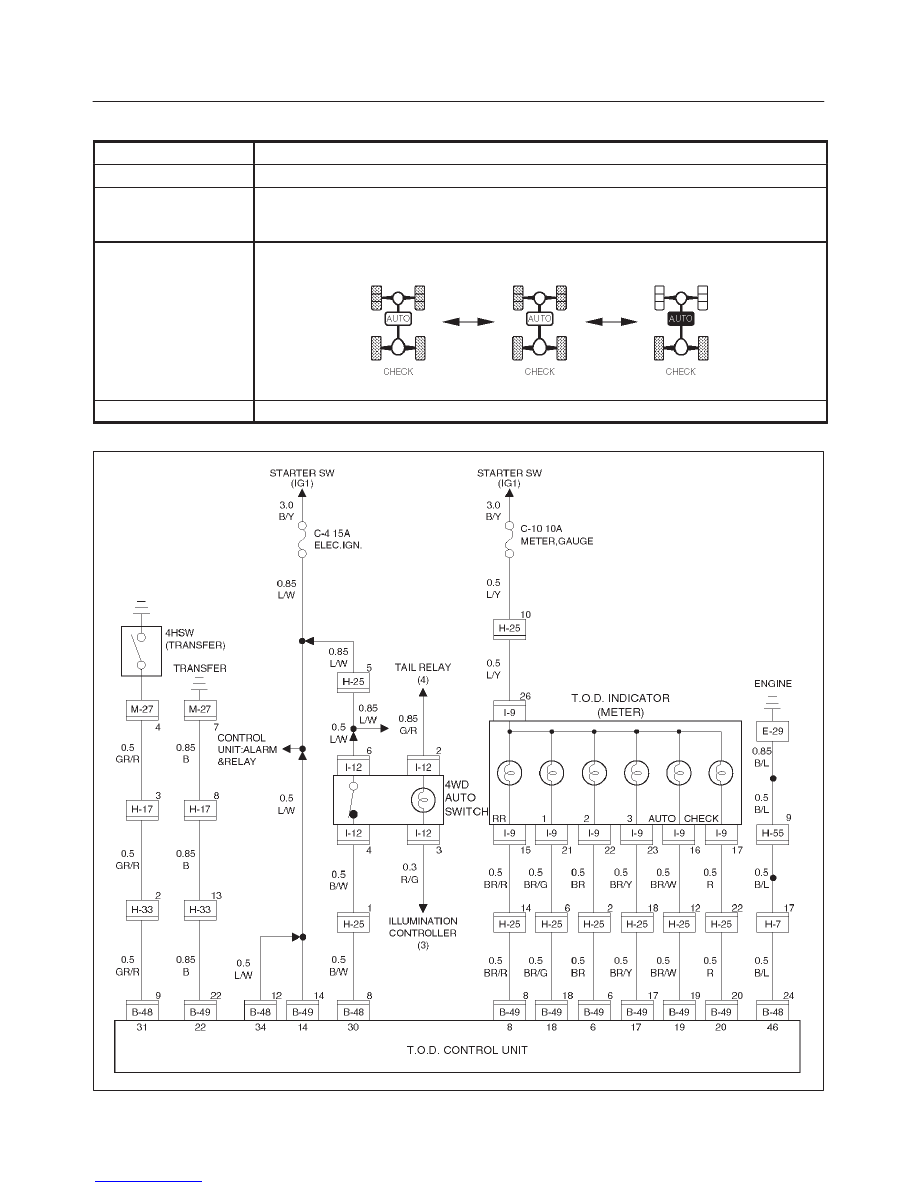

DRIVE LINE CONTROL SYSTEM (TOD) 4B2–60 Step Action Yes No 1 When the 4WD Auto Switch is select to the 4WD position, is 0 V Go to Step 2 Repair the 4WD Auto Switch circuit. Go to Step 7 2 When the 4WD Auto Switch is select to the 2WD position, is 12 V Go to Step 3 Repair the 4WD Auto Switch circuit. Go to Step 7 3 1. Disconnect the ECU connector. Is the continuity established between terminals (B–49)14 and Go to Step 4 Replace TOD indicator lamp bulb. Go to Step 7 4 Is the continuity established between terminals (B–49)14 and Go to Step 5 Replace TOD indicator lamp bulb. Go to Step 7 5 Is the continuity established between terminals (B–49)14 and Go to Step 6 Replace TOD indicator lamp bulb. Go to Step 7 6 Is the continuity established between terminals (B–49)14 and Replace ECU. Go to Step 7 Replace TOD indicator lamp bulb. Go to Step 7 7 Check that all the parts are mounted. Is this step complete? Repeat the “Diagnosis Flow”. Return to Step 7 |
