DRIVE LINE CONTROL SYSTEM (TOD)

4B2–44

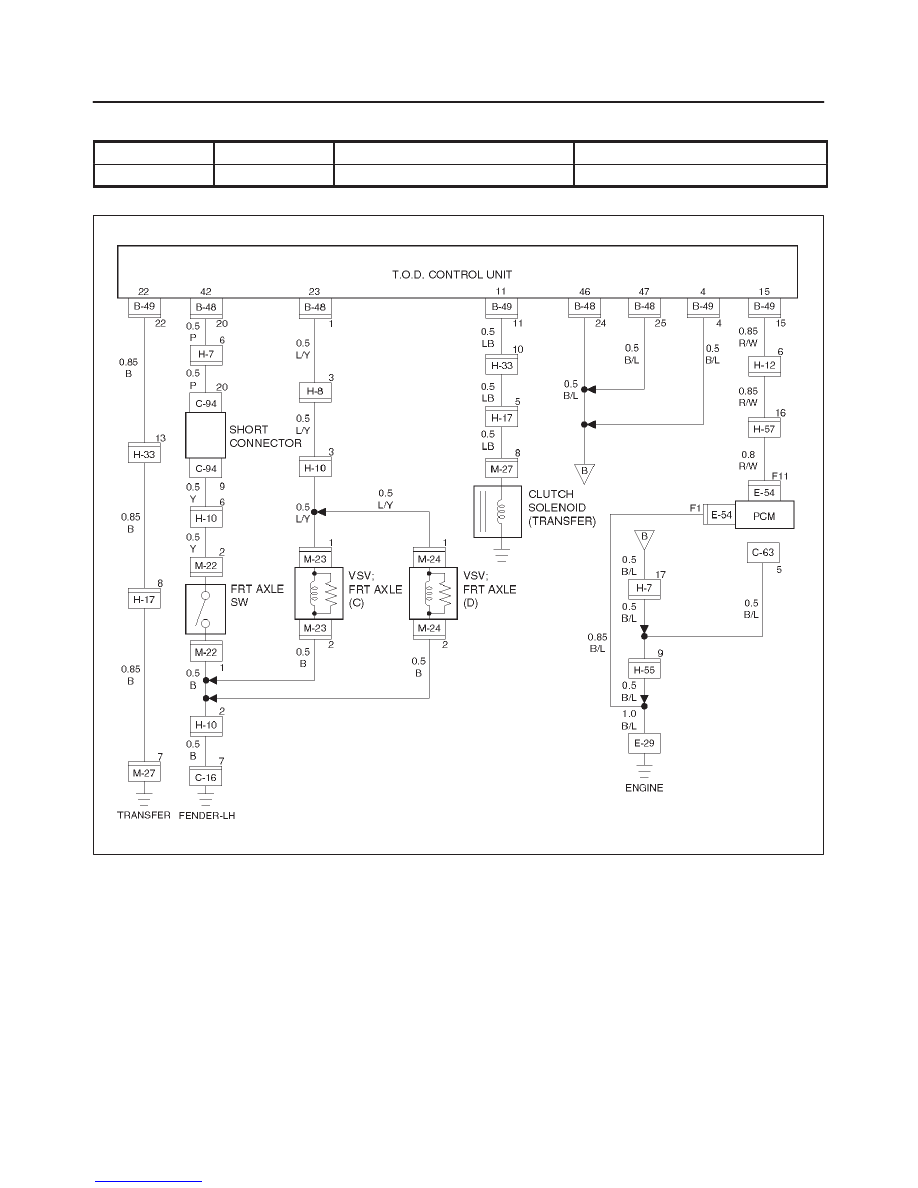

Check flow

Trouble code

Phenomenon

Standard

9

31

The electromagnetic coil is broken.

—

D04RY00008

4B2–45

DRIVE LINE CONTROL SYSTEM (TOD)

Step

Action

Yes

No

1

1. Turn off the starter switch.
2. Disconnect the ECU connector from ECU.

Is the continuity established between terminals (B–49)11 and
(B–49)22?

Go to Step 2

Go to Step 4

2

1. Connect the ECU connector.
2. Start the engine.
3. Set the TOD mode.

Does the voltage between terminals 11 and 22 indicate at least
0.4V?

Go to Step 3

The ECU has

failed. Replace

the ECU.

Go to Step 5

3

Is the battery voltage always observed between terminals 11 and
22?

The harness is

short–circuited on

the battery.

Repair the circuit.

Go to Step 5

The phenomenon

is not

reproduced.

Refer to

“Troubles

intermittently

observed”.

Go to Step 4

4

1. Disconnect the M–27 connector.

Is the continuity established between transfer connector
terminals (M–27)8 and (M–27)7?

The harness is
broken. Repair

the circuit.

Go to Step 5

Replace the

transfer

electromagnetic

coil (solenoid

clutch).

Go to Step 5

5

1. Check that all the parts are mounted.
2. Clear the trouble code.

Is this step complete?

Repeat the

“Diagnosis Flow”.

Return to Step 5

DRIVE LINE CONTROL SYSTEM (TOD)

4B2–46

Check flow

Trouble code

Phenomenon

Standard

10

26

The electromagnetic coil GND is

short-circuited.

Resistance: 1.0 to 5.0 ohm (at ordi-

nary temperature)

D04RY00008

4B2–47

DRIVE LINE CONTROL SYSTEM (TOD)

Step

Action

Yes

No

1

1. Turn off the starter switch.
2. Disconnect the ECU connector from ECU.

Does the resistance between terminals (B–49)11 and (B–49)22
indicate 1.0 to 5.0 ohm?

Go to Step 2

Go to Step 3

2

1. Connect the ECU connector.
2. Start the engine.
3. Set the TOD mode.

When the throttle is operated between full close and full open
positions, does the voltage between terminals 11 and 22 indicate
at least 0.1 to 1.0 V?

The phenomenon

is not

reproduced.

Refer to

“Troubles

intermittently

observed”.

Go to Step 4

The ECU has

failed. Replace

the ECU.

Go to Step 4

3

Does the resistance between transfer connector terminals
(M–27)8 and (M–27)7 indicate 1.0 to 5.0ohm?

The harness is
broken. Repair

the circuit.

Go to Step 4

Replace the

transfer

electromagnetic

coil.

Go to Step 4

4

1. Check that all the parts are mounted.
2. Clear the trouble code.

Is this step complete?

Repeat the

“Diagnosis Flow”.

Return to Step 4
