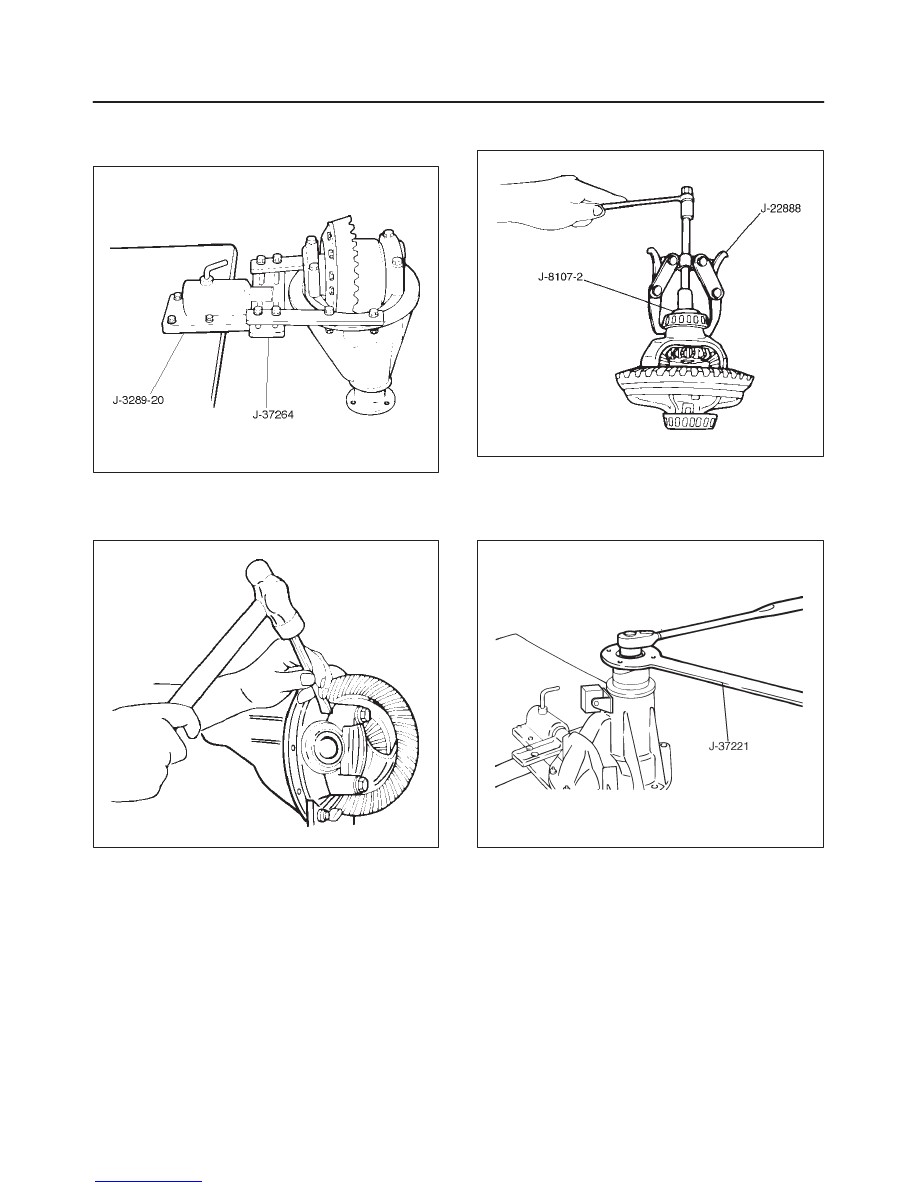

DIFFERENTIAL (FRONT) 4A1–10 3. Using holding fixture J–37264 and holding fixture base J–3289–20, fix the differential assembly to the 425RS008 4. Remove bearing cap bolt. differential carrier then remove bearing cap. 425RS009 6. Remove differential cage assembly. the right and left hand side bearing assemblies 8. Remove side bearing, using remover J–22888 and adapter J–8107–2. 415RS005 9. Remove adjust shim, note the thickness and position of the shims removed. 10. Remove the flange nut using holding wrench J–37221 after raising up its staked parts completely. 425RW040 11. Remove flange. 12. Remove dust cover. |
