3D–14

REAR SUSPENSION

Main Data and Specifications

General Specifications

Rear suspension

Type

4–Link, coil spring type with stabilizer bar.

Coil spring

Free length

402mm (15.83in)

Spring diameter

12.7mm (0.5in)

Coil diameter (inner)

105mm (4.13in)

Effective No. of turns

5.32

Total No. of turns

6.82

Shock absorber

Type

Hydraulic, double acting, telescopic

Piston diameter

25.0mm (0.98in)

Stroke

175mm (6.89in)

Extended length

489mm (19.25in)

Compressed length

314mm (12.36in)

Stabilizer bar

Diameter

19.0mm (0.75in)

3D–15

REAR SUSPENSION

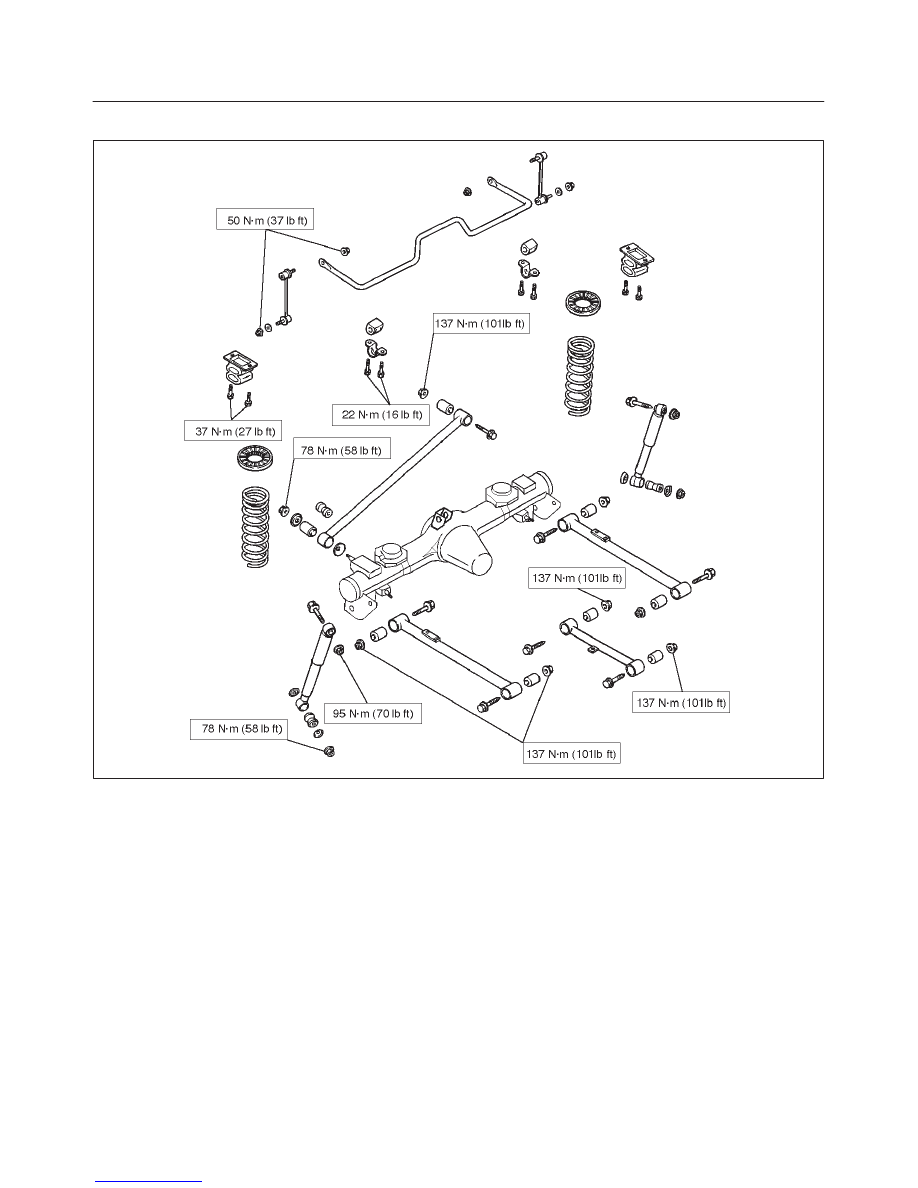

Torque Specifications

E03RW006

3D–16

REAR SUSPENSION

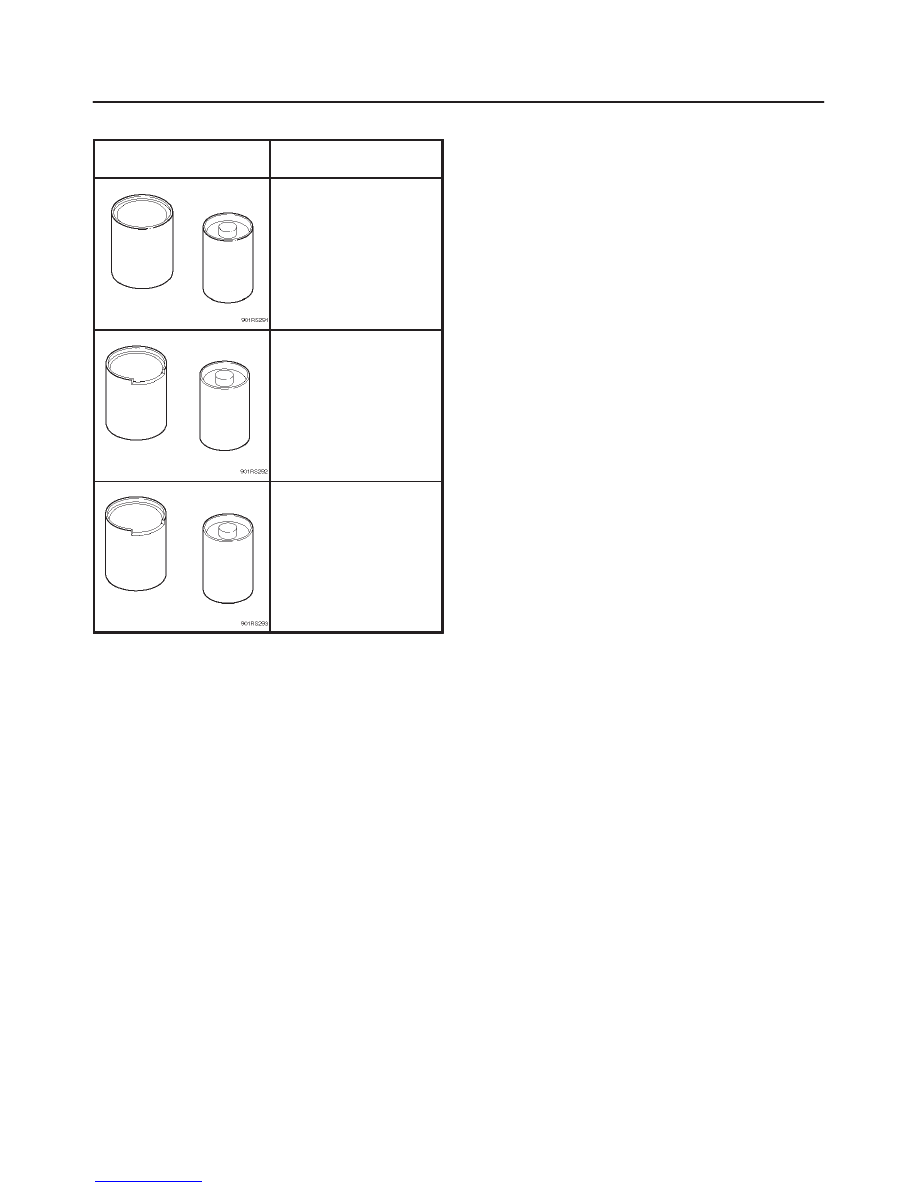

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–39214

Remover and Installer;

Trailing center link

bushing

J–39792

Remover and Installer;

Lateral rod bushing (axle

side)

J–39215

Remover and Installer;

Lateral rod bushing

3E–1

WHEEL AND TIRE SYSTEM

TROOPER

SUSPENSION

WHEEL AND TIRE SYSTEM

CONTENTS

Service Precaution

3E–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

3E–2

. . . . . . . . . . . . . . . . . . . . .

Diagnosis

3E–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wheel

3E–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Wheel and Associated Parts

3E–9

. . . . . . . . . . . .

Removal

3E–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

3E–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tire

3E–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Tire Replacement

3E–10

. . . . . . . . . . . . . . . . . . . . . .

General Balance Procedure

3E–10

. . . . . . . . . . . . . .

Balancing Wheel and Tire

3E–11

. . . . . . . . . . . . . . . .

Main Data and Specifications

3E–12

. . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).  REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION.  FAILURE TO
FOLLOW WARNING COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal.  ISUZU will also call out
the fasteners that require thread lockers or thread
sealant.  UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces.  Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.  When
you install fasteners, use the correct tightening
sequence and specifications.  Following these
instructions can help you avoid damage to parts and
systems.
