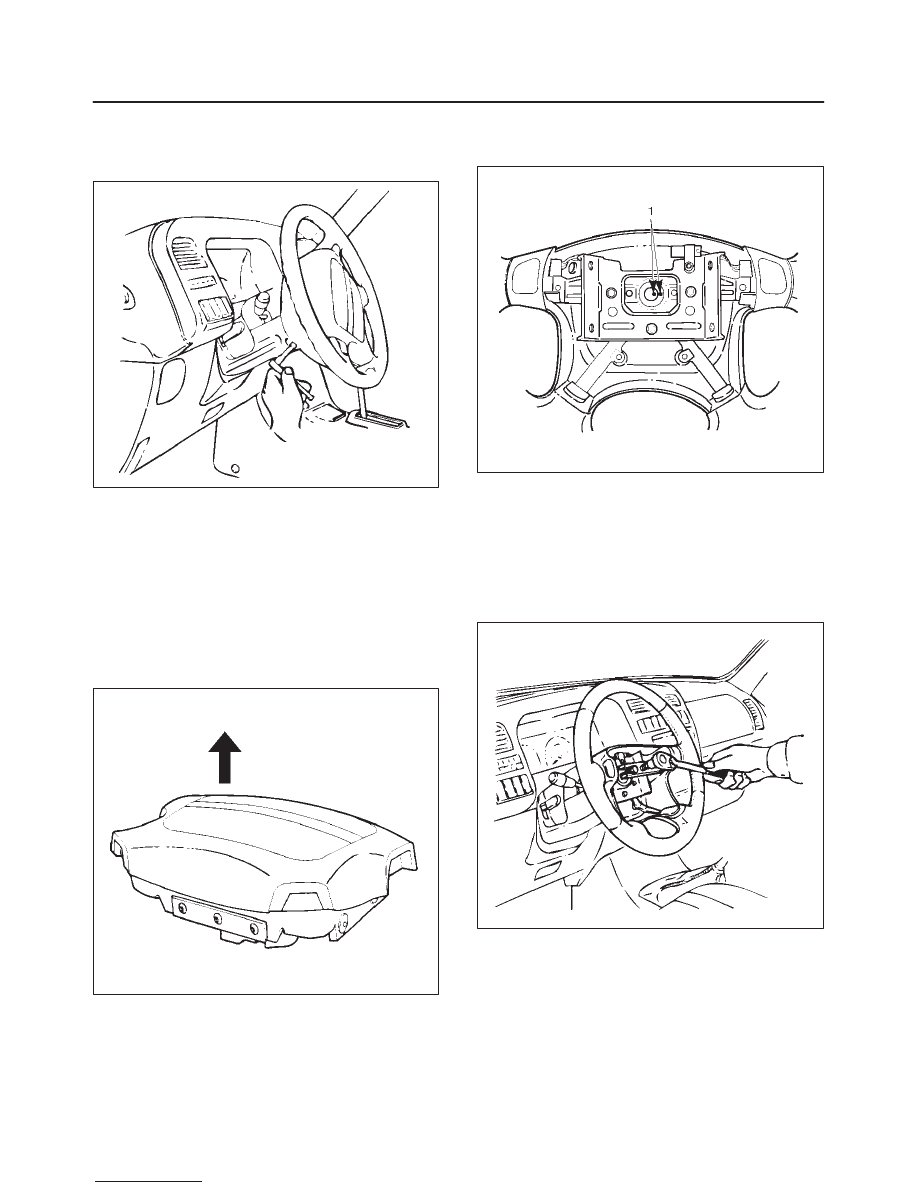

2A–46 POWER ASSISTED SYSTEM 6. Disconnect the yellow 2-way SRS connector located behind the inflator module. 827RW002 7. Remove inflator module. Inspection and Repair WARNING: THE INFLATOR MODULE SHOULD 827RS016 The inflator module consists of a cover, air bag, inflator, D Check for holes, cracks, severe blemishes and D Check that the retainer is not deformed. D Check for defects such as damage and breakage in If an abnormality is found as the result of the inspection, Installation 1. Install inflator module. CAUTION: D Never use the air bag assembly from another D The driver’s air bag assembly (Inflator module) 2. Support the module and carefully connect the module connector. NOTE: Pass the lead wire through the tabs on the plastic 3. Secure the module with one bolt to relieve weight on the wire connector and tighten bolts to specified Torque: 8 N·m (69 lb in) 827RW003 4. Connect the yellow 2-way SRS connector located under the steering column. 5. Connect the battery “–” terminal cable. Light should flash 7 times and then go off. If lamp |
