GENERAL INFORMATION

CONTENTS

General Repair Instruction

0A–1

. . . . . . . . . . . . . . . .

Illustration Arrows

0A–2

. . . . . . . . . . . . . . . . . . . . . . .

Identification

0A–3

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Theft Prevention Standard

0A–5

. . . . . . . . . . . . . . . .

Lifting Instructions

0A–10

. . . . . . . . . . . . . . . . . . . . . . .

Standard Bolts Torque Specifications

0A–13

. . . . . .

Abbreviations Charts

0A–14

. . . . . . . . . . . . . . . . . . . .

Service Parts Identification Plate

0A–15

. . . . . . . . . .

General Repair Instruction

1. If a floor jack is used, the following precautions are

recommended.
Park vehicle on level ground, “block” front or rear
wheels, set jack against the recommended lifting
points (see “Lifting Instructions” in this section), raise
vehicle and support with chassis stands and then
perform the service operations.

2. Before performing service operations, disconnect

ground cable from the battery to reduce the chance of
cable damage and burning due to short circuiting.

3. Use a cover on body, seats and floor to protect them

against damage and contamination.

4. Brake fluid and anti–freeze solution must be handled

with reasonable care, as they can cause paint
damage.

5. The use of proper tools and recommended essential

and available tools, where specified, is important for
efficient and reliable performance of service repairs.

6. Use genuine Isuzu parts.
7. Used cotter pins, plastic clips, gaskets, O–rings, oil

seals, lock washers and self–locking nuts should be
discarded and new ones should be installed, as
normal function of the parts cannot be maintained if
these parts are reused.

8. To facilitate proper and smooth reassembly

operation, keep disassembled parts neatly in groups.
Keeping fixing bolts and nuts separate is very
important, as they vary in hardness and design
depending on position of installation.

9. Clean the parts before inspection or reassembly. Also

clean oil ports, etc. using compressed air, and make
certain they are free from restrictions.

10. Lubricate rotating and sliding faces of the parts with

oil or grease before installation.

11. When necessary, use a sealer on gaskets to prevent

leakage.

12. Carefully observe all specifications for bolt and nut

torques.

13. When removing or replacing parts that require

refrigerant to be discharged from the air conditioning
system, be sure to use the Vehicle Refrigerant
Recovery and Recycling Equipment (VRRRE) to
recover and recycle Refrigerant–134a.

14. When a service operation is completed, make a final

check to be sure the service has been done properly
and the problem has been corrected.

15. SUPPLEMENTAL RESTRAINT SYSTEM

The vehicle is equipped with a Supplemental
Restraint System.  (SRS)—Air Bag.
This system is not to be serviced without consulting
the appropriate service information.
Consult Sections 9J1 and 9J “SRS System” if work is
to be done on the front of the vehicle such as bumper,
sheet metal, seats, wiring, steering wheel or column.
Also review SRS system information if any arc
welding is to be done on the vehicle.
The SRS system equipped vehicle can be identified
by:

1. “AIR BAG” warning light on the instrument panel.

2. A Code “J” or “K” for fifth digit of vehicle

Identification Number.

0A–2

GENERAL INFORMATION

Illustration Arrows

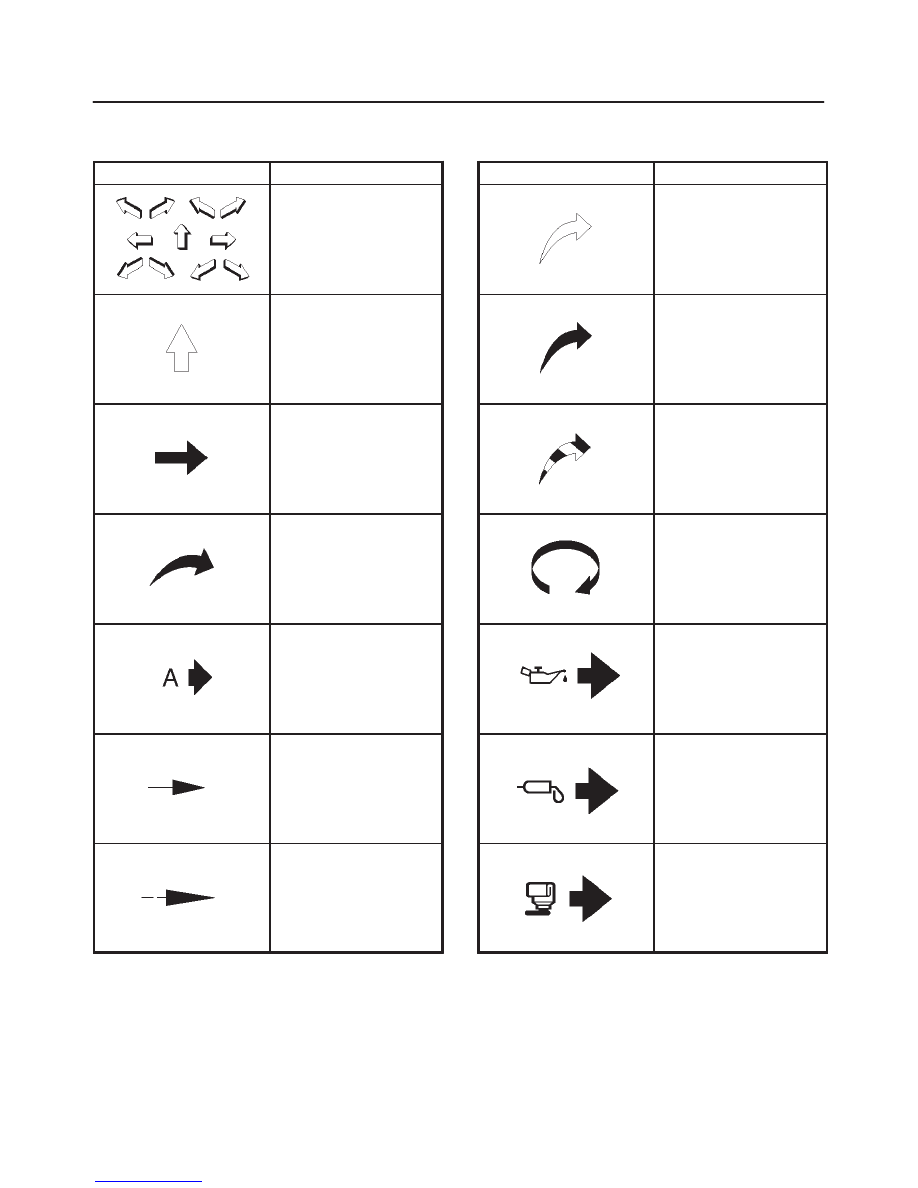

Arrows are designed for specific purposes to aid your understanding of technical illustrations.

Arrow Type

Application

Front of vehicle

Up Side

Task Related

View Detall

View Angle

Dimension (1:2)

Sectioning (1:3)

Arrow Type

Application

D

Ambient/Clean air
flow

D

Cool air flow

D

Gas other than
ambient air

D

Hot air flow

D

Ambient air mixed
with another gas

D

Can indicate
temperature change

Motion or direction

Lubrication point oil or
fluid

Lubrication point grease

Lubrication point jelly

0A–3

GENERAL INFORMATION

Identification

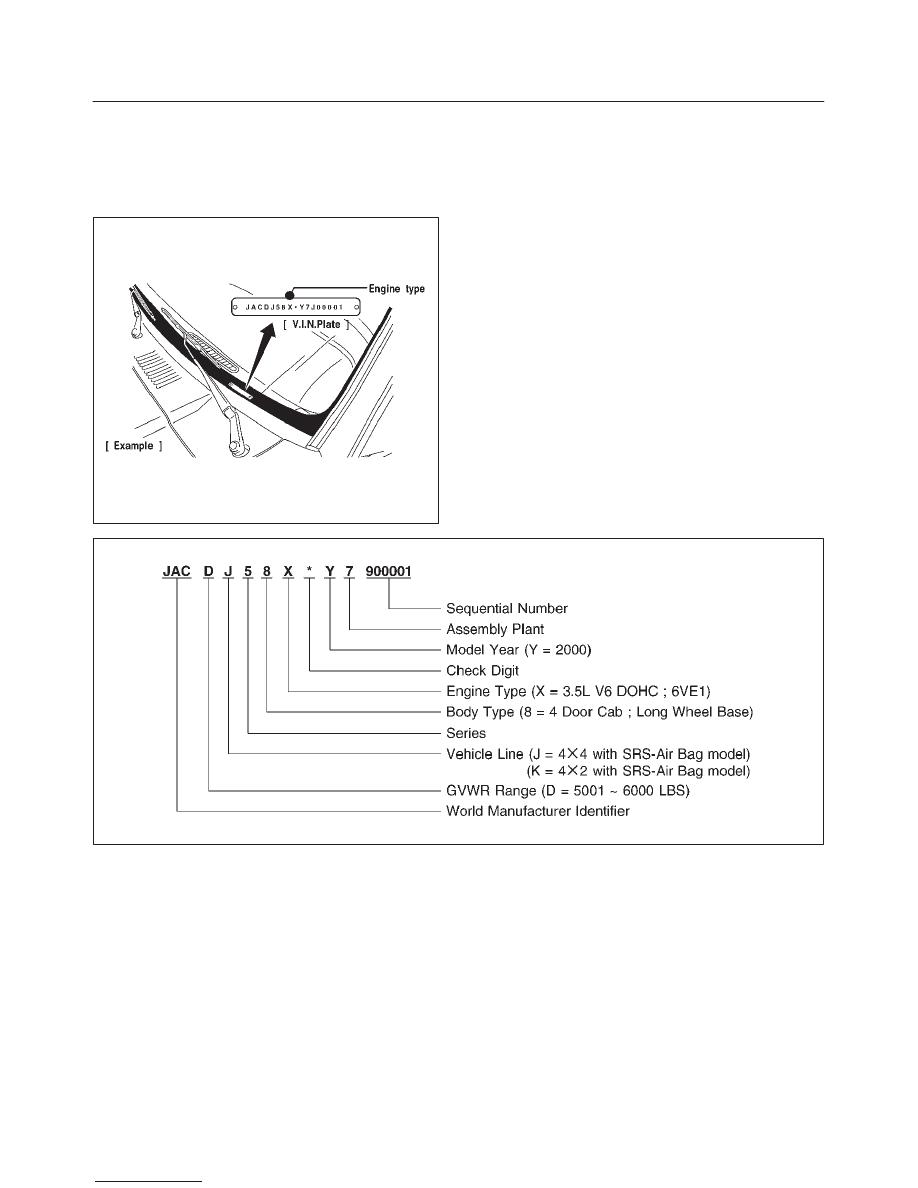

Vehicle Identification Number (VIN)

This is the legal identification of the vehicle. it is located on
the left bottom of the windshield. It can be easily seen
through the windshield from outside the vehicle.

905RY00002

F00RY00002

0A–4

GENERAL INFORMATION

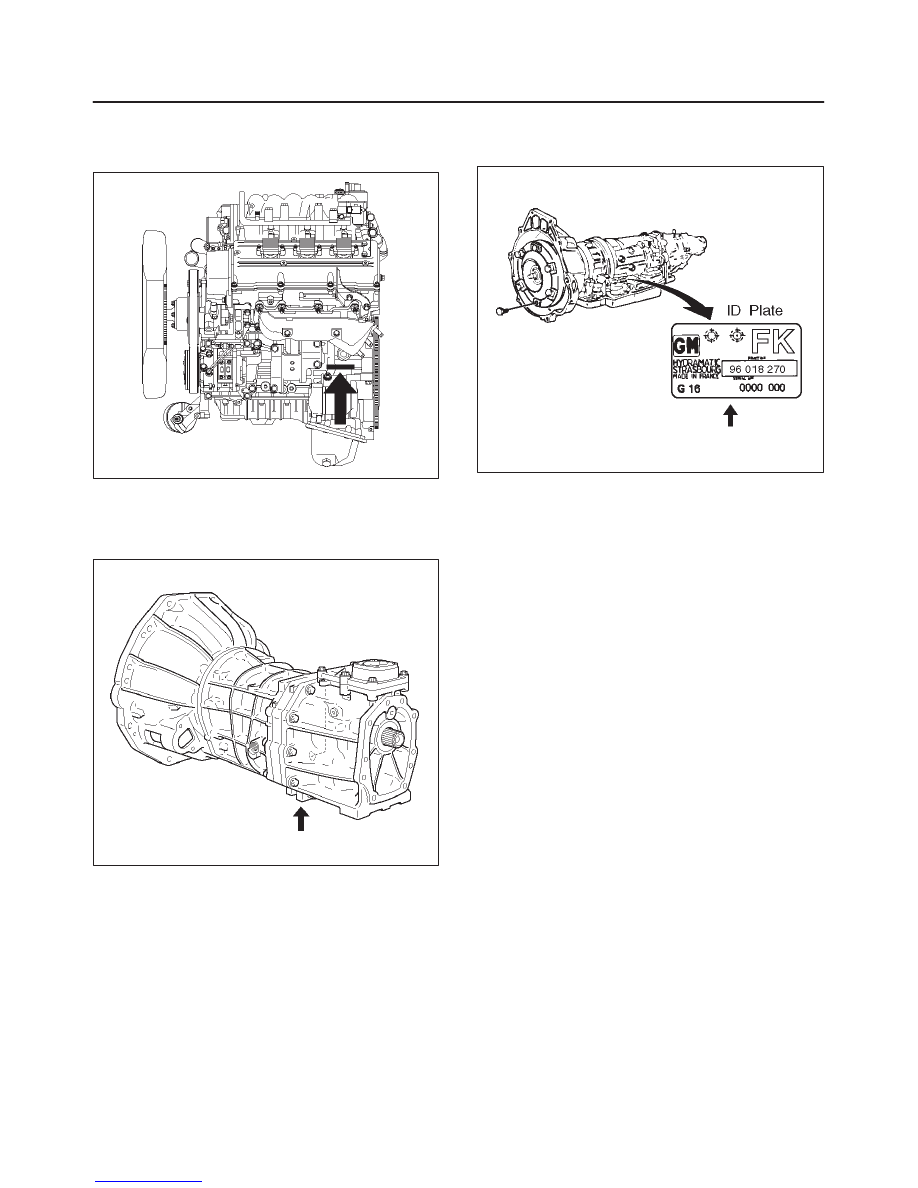

Engine Serial Number

The gasoline engine serial number is stamped on the left
rear lower area of the cylinder block above the starter.

F06RW001

Transmission Serial Number

Manual : Stamped on the left side of the transmission
intermediate plate.

220RW084

Automatic : Stamped on the identification plate, located
on the left side of the transmission above the mode
switch.

240RW012
