8F–37

BODY STRUCTURE

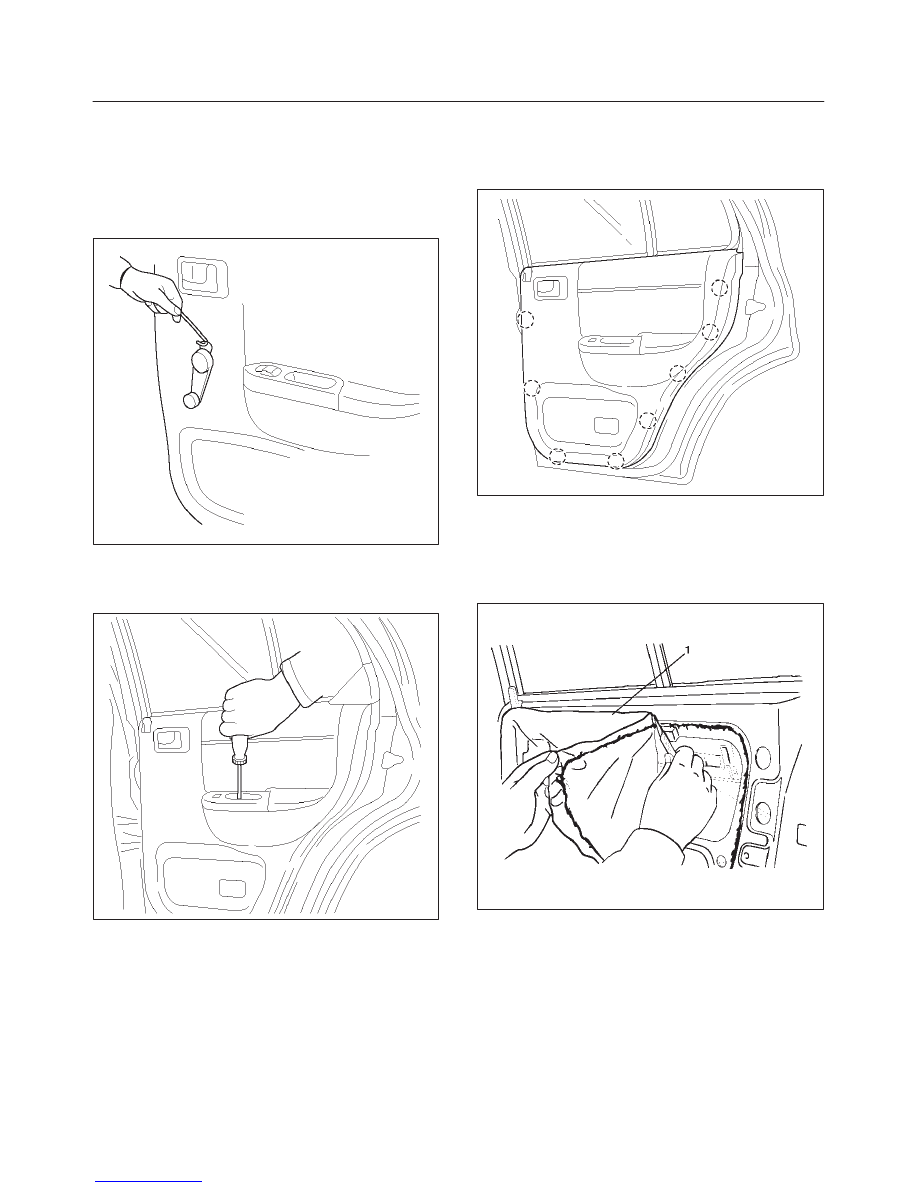

Removal

1. Disconnect the battery ground cable.
2. Remove rear corner garnish.
3. Remove window regulator handle.

f

Remove the clip on the rear side of the regulator
handle using a wire.

651RW003

4. Remove the screw while pulling the inside lever

toward you and then remove the inside handle.

5. Remove the 1 screws at the pull case.

655RW003

6. Remove rear corner garnish.
7. Pull out the trim panel at the 8 clip positions.

f

Disconnect the power window switch connector
and courtesy light connector.

655RW002

8. Remove power window switch, if equipped.
9. Remove bracket.

10. Remove waterproof sheet (1).

f

Taking notice of the door harness, peel the
waterproof sheet off the door panel carefully.

651RS002

8F–38

BODY STRUCTURE

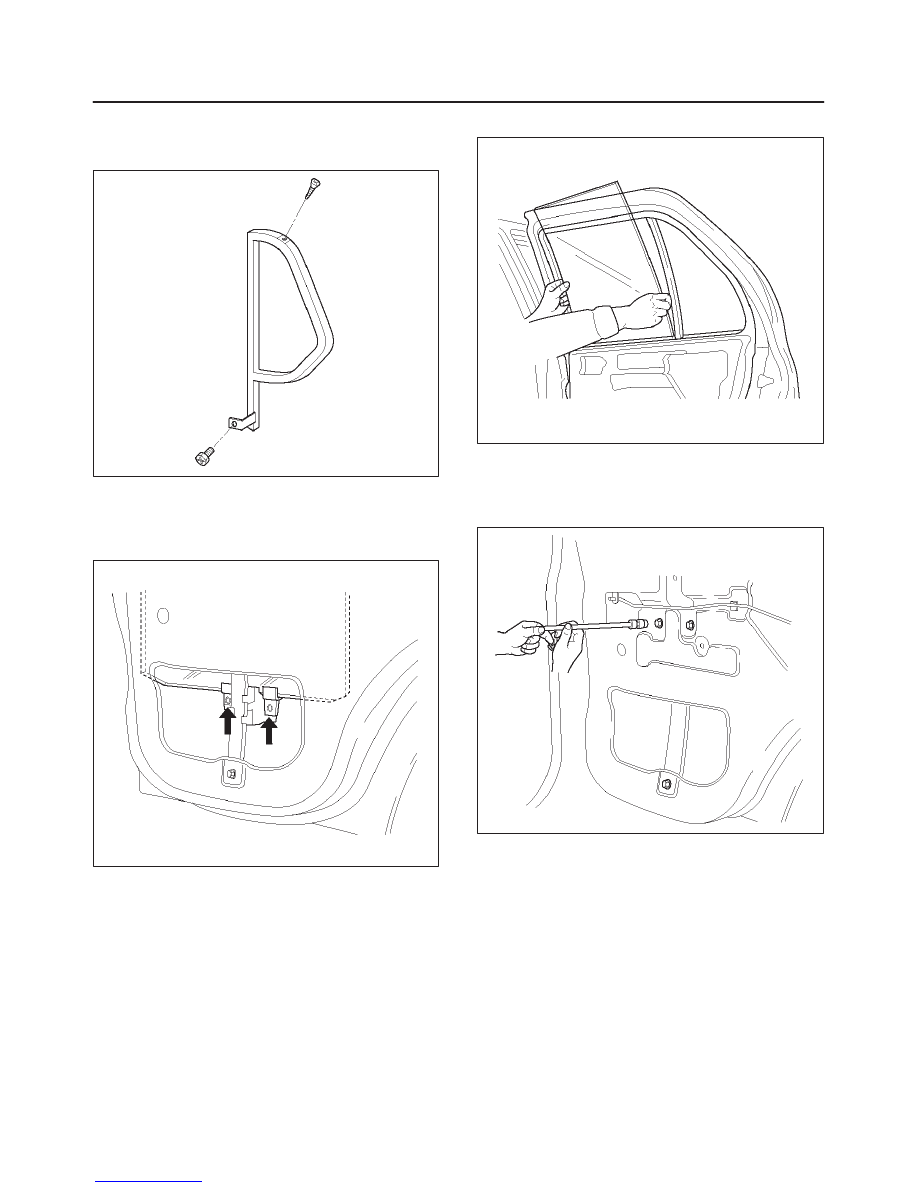

11. Remove fixed glass.

f

Remove one bolt and screw as shown in the figure,
then pull it upward.

651RW002

12. Remove glass.

f

First, align the height of regulator to the access
hole. Remove 2 screws attaching bottom channel
and regulator, then remove the glass.

651RW006

f

Remove the window glass by tilting it as necessary.

651RW007

13. Remove window regulator.

f

Remove the window regulator fixing bolts and pull
the regulator out from the lower hole of the door
panel.

651RW005

14. Remove glass run.

f

Pull the glass run out from the door frame.

8F–39

BODY STRUCTURE

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

1. Install the regulator handle as shown in the

illustration, if equipped without power windows.

631RW005

2. Check to see that the window regulator operates

smoothly and the glass opens and closes properly.
Install the waterproof sheet with no clearance
between the door panel and the waterproof sheet.

8F–40

BODY STRUCTURE

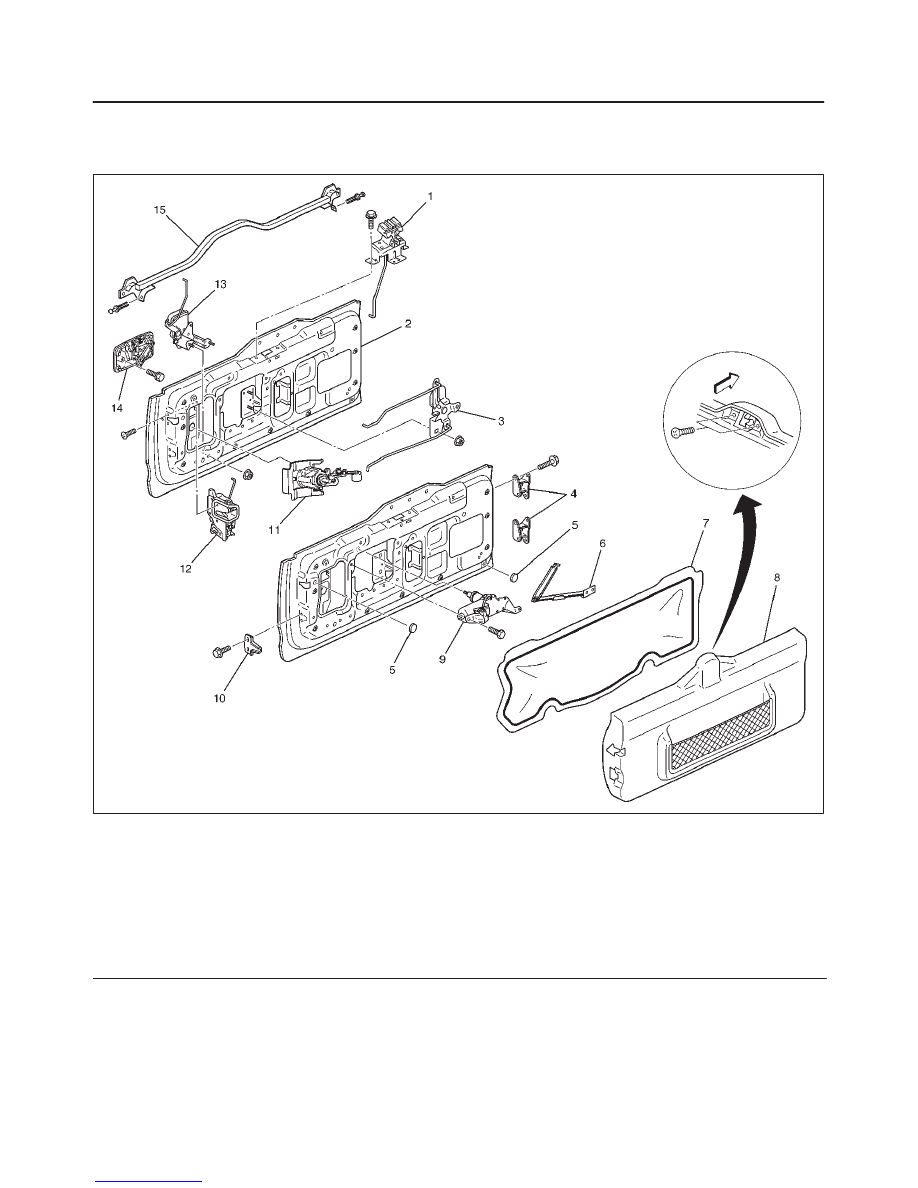

Rear Tailgate (Lower Side)

Parts Location

681RW001

Legend

(1) Hatchgate Lock Assembly
(2) Tailgate Assembly
(3) Tailgate Bell Crank
(4) Hinges
(5) Plug
(6) Tailgate Stopper Link
(7) Waterproof Sheet

(8) Trim Cover Assembly
(9) Rear Wiper Motor

(10) Dove Tail

(11) Key Cylinder

(12) Tailgate Lock Assembly
(13) Hatchgate Lock Actuator Assembly
(14) Outside Handle
(15) Tailgate Waist Seal
