Isuzu Rodeo UE. Manual - part 591





8D–212

WIRING SYSTEM

Answer Back (Anti–theft Horn Operation) Change Mode

Anti–theft horn, as an answer back function for the
transmitter operation, chages from available into
unavailing or from unavailing into available by this
procedure.

Step

Action

Value(s)

Yes

No

1

Open the driver’s side door.

Is the action complete?

Go to Step 2

2

Lock the door and then unlock it three times within ten
seconds after step 1.

Is the action complete within five seconds?

Go to Step 3

Finished

3

Close the door and then open it two times within ten
seconds after step 2.

Is the action complete within ten seconds?

Go to Step 4

Finished

4

1. Lock the door and unlock it three times.
2. Close the door and then open it.

NOTE: This  step must be performed within ten
seconds after step 3.

Is the action complete?

Go to Step 5

Finished

5

Answer back mode changes.

Is this step complete?

Go to Step 6

Go to Step 7

6

The control unit makes lock/unlock response once with
interval of one second.

Is the response complete?

Finished

7

The control unit makes lock/unlock response three
times with interval of one second.

Is the response complete?

Finished

8D–213

WIRING SYSTEM

Meter and Warning/Indicator Light

General Description

The circuit consists of the starter switch, meter assembly,
vehicle speed sensor, transmission switch, lighting
switch, turn signal switch, thermo unit, oil pressure unit,
Powertrain Control Module, fuel tank unit, 4WD SW, oil
pressure switch, parking brake switch, brake fluid switch,
seat belt switch, illumination controller.
The meter ASM contains the speedometer, tachometer,
voltmeter, engine coolant temperature gauge, oil
pressure gauge, fuel gauge and warning/indicator lights.
The meter warning/indicator lights and their bulb sockets
are a unit, they are installed from the back of the
speedometer assembly.

8D–214

WIRING SYSTEM

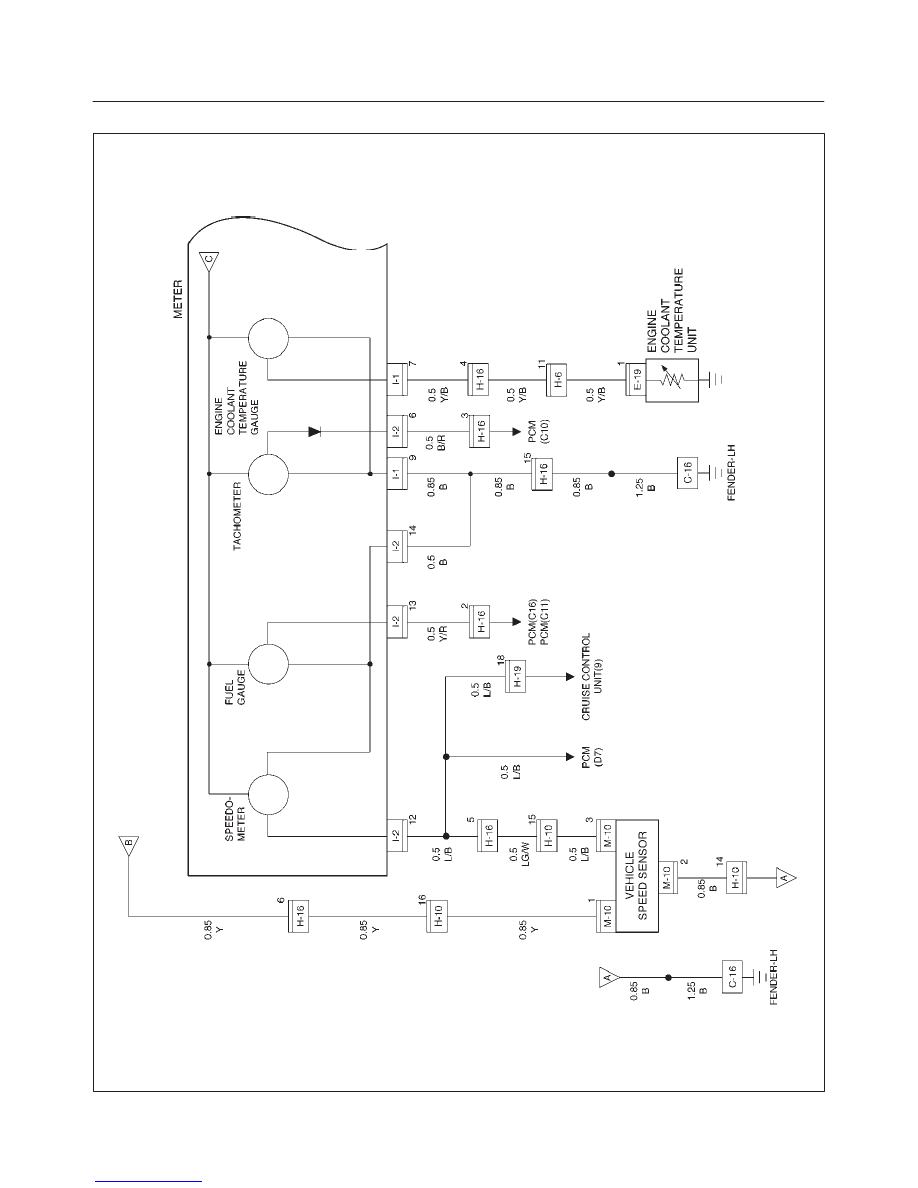

Circuit Diagram – 1 (M/T)

D08RX132

8D–215

WIRING SYSTEM

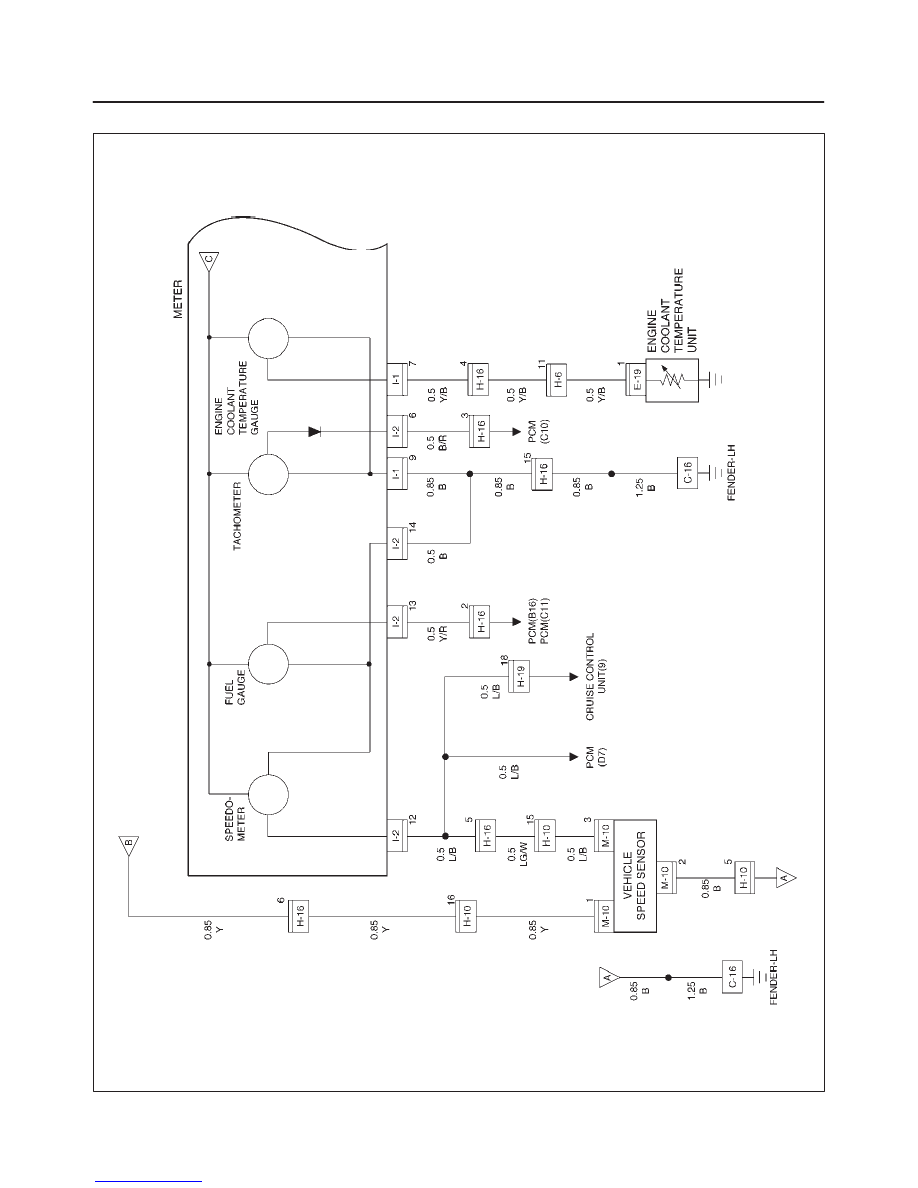

Circuit Diagram – 1 (A/T)

D08RX126
