Isuzu Rodeo UE. Manual - part 557





8D–76

WIRING SYSTEM

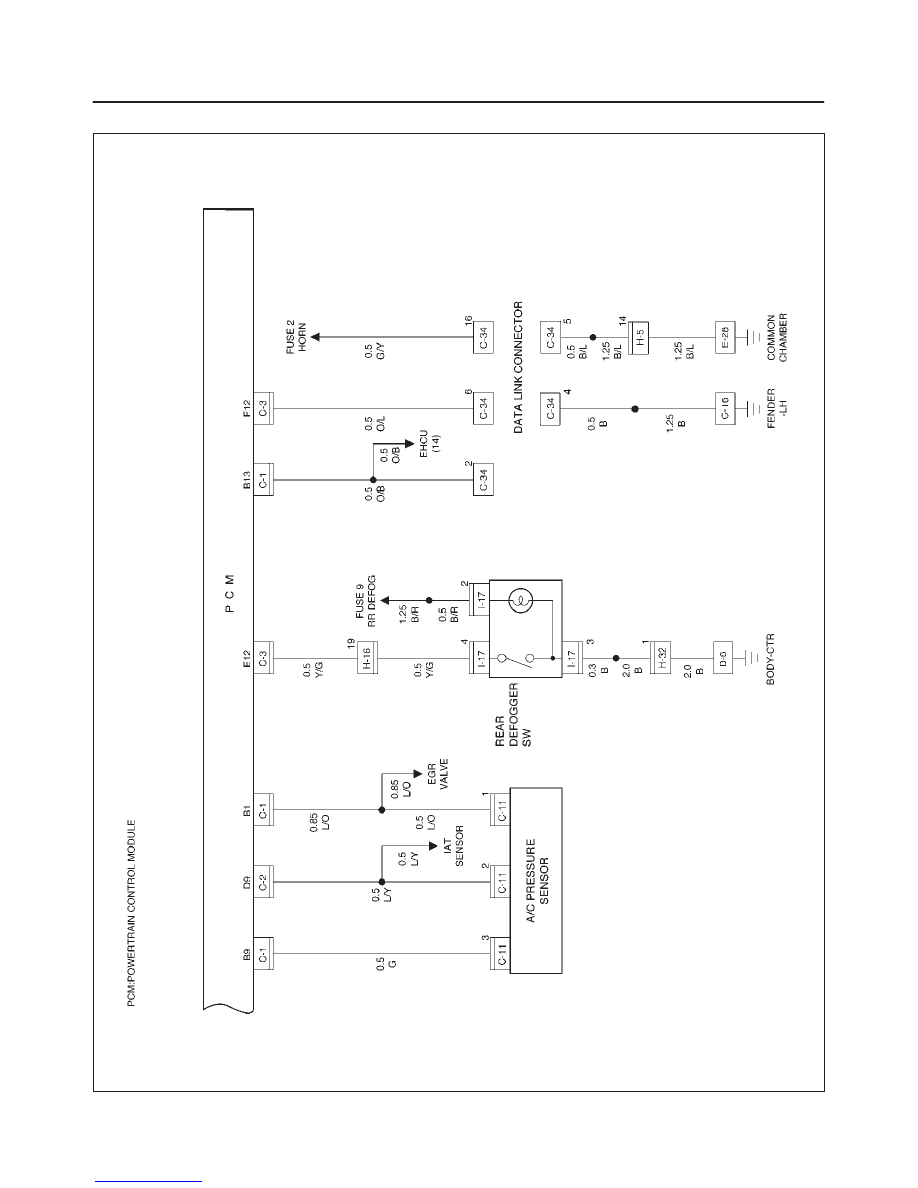

Circuit Diagram–10 (X22SE)

D08RX042

8D–77

WIRING SYSTEM

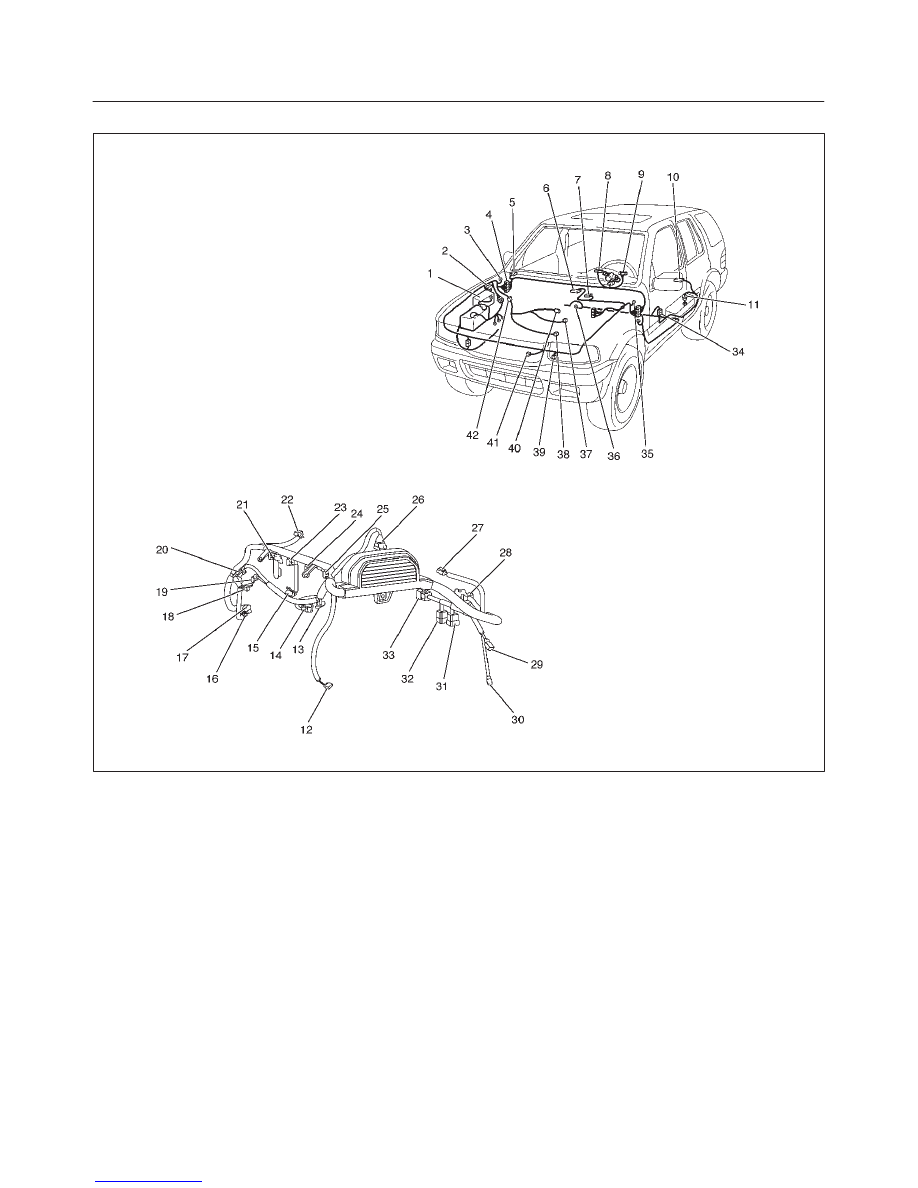

Parts Location

D08RX043

Legend

(1) X–7, X–8
(2) X–11, X–12
(3) C–36
(4) H–13, H–14, H–19
(5) I–41, I–42
(6) C–1, C–2, C–3 (PCM)
(7) C–37
(8) I–1
(9) I–2, I–9

(10) F–3

(11) F–1

(12) E–1
(13) E–14
(14) E–27
(15) E–7
(16) E–28, E–30
(17) E–37
(18) E–8

(19) E–5
(20) E–6
(21) E–12
(22) E–33
(23) E–25
(24) E–11
(25) E–26
(26) E–32
(27) E–43
(28) E–9
(29) E–4
(30) E–3
(31) H–6
(32) H–5
(33) H–4
(34) H–25
(35) C–16
(36) B–8
(37) M–14

8D–78

WIRING SYSTEM

(38) M–13
(39) C–11
(40) M–10

(41) C–35
(42) H–8

8D–79

WIRING SYSTEM

Headlight and Fog Light

General Description

The circuit consists of headlight, fog light, lighting switch,
dimmer·passing switch, fog light switch, high beam
indicator, lighting relay and fog light relay. When lighting
switch is turned on by setting it at headlight position,
lighting relay is activated to turn on headlight. Optical axis
of headlight can be turned up or down by operating
dimmer switch while headlight is on. Passing switch is
independent of lighting switch, and optical axis of passing
light can be turned up only while switch lever is pulled up
and held in this state.
When fog light switch is turned on while headlight on at
low–beam, fog light relay is activated to turn on fog light.
