7B–88

MANUAL TRANSMISSION

Reassembly

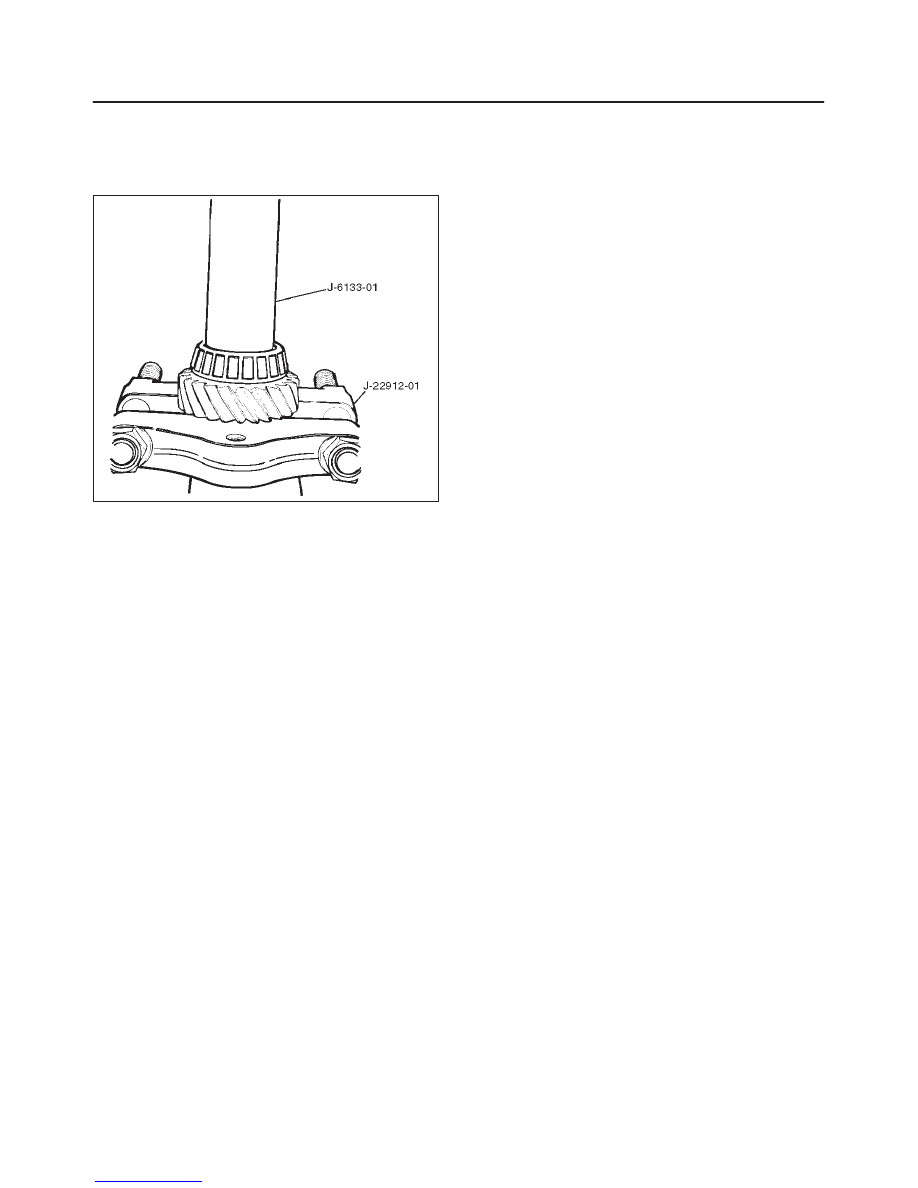

1. Use a hydraulic press, installer J–6133–1 and bearing

and gear puller J–22912–01 to install the input shaft
bearing(1) onto the input shaft(1).

226RS157

2. Using petroleum jelly, install the 15 rollers(3) and

spacer(4) into the rear of the input shaft(2).  Also
install the mainshaft thrust bearing(5) and its race(6)
in the rear of the input shaft(2).

MANUAL TRANSMISSION

7B–89

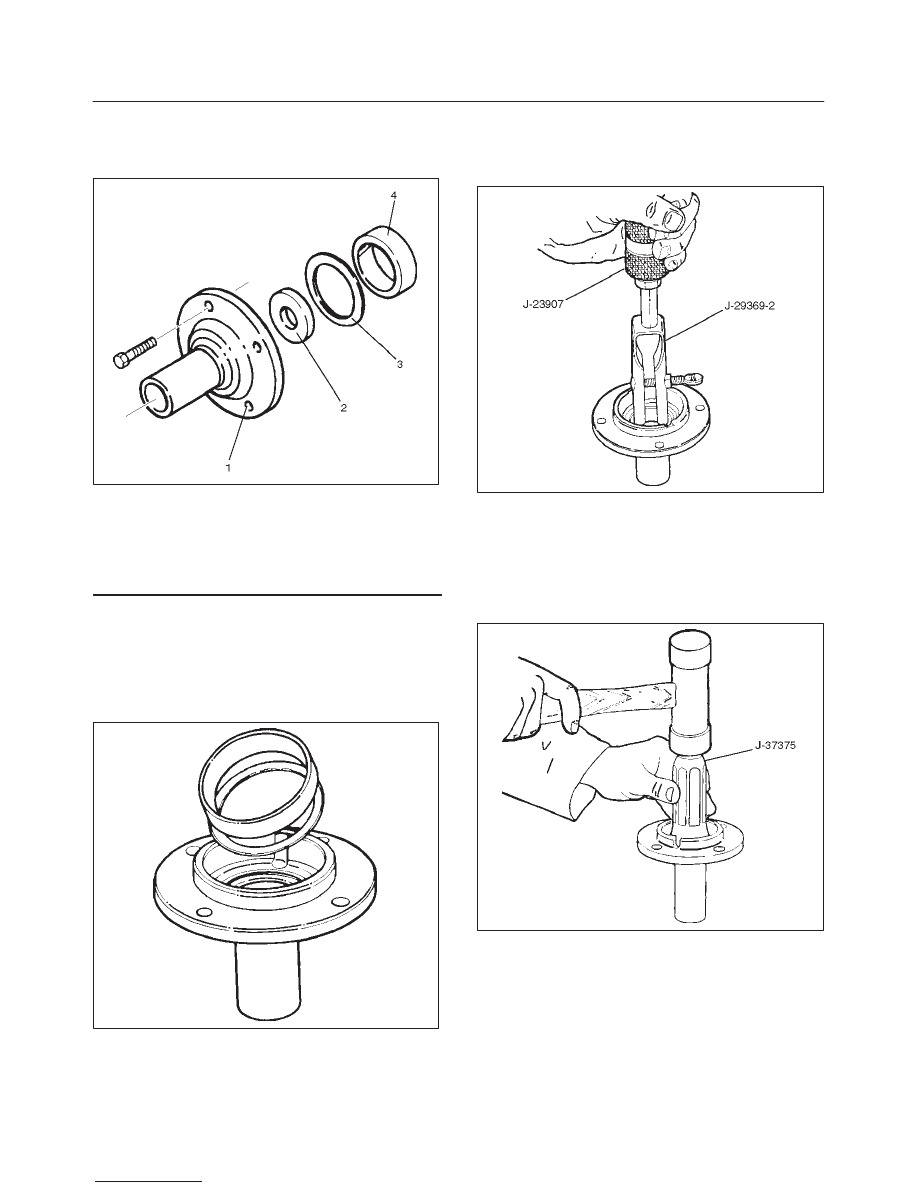

Input Bearing Retainer (TREMEC T5R)

Disassembled View

226RS158

Legend

(1) Input Bearing Retainer
(2) Input Shaft Seal
(3) Shim
(4) Bearing Outer Race

Disassembly

If you have not done so previously, remove these parts
from the input bearing retainer(1):

f

Bearing outer race(4)

f

Shim(s) (3)

226RS159

1. Remove the input shaft seal(2), using Input seal

remover J–29369–2 and slide hammer J–23907.

226RS160

Reassembly

1. Install the input shaft seal(2) in the retainer(1), using

the installer J–37375 and a soft-faced hammer.

2. Install the input bearing outer race(4) in the

retainer(1) without the shim(3) behind it.

226RS161

7B–90

MANUAL TRANSMISSION

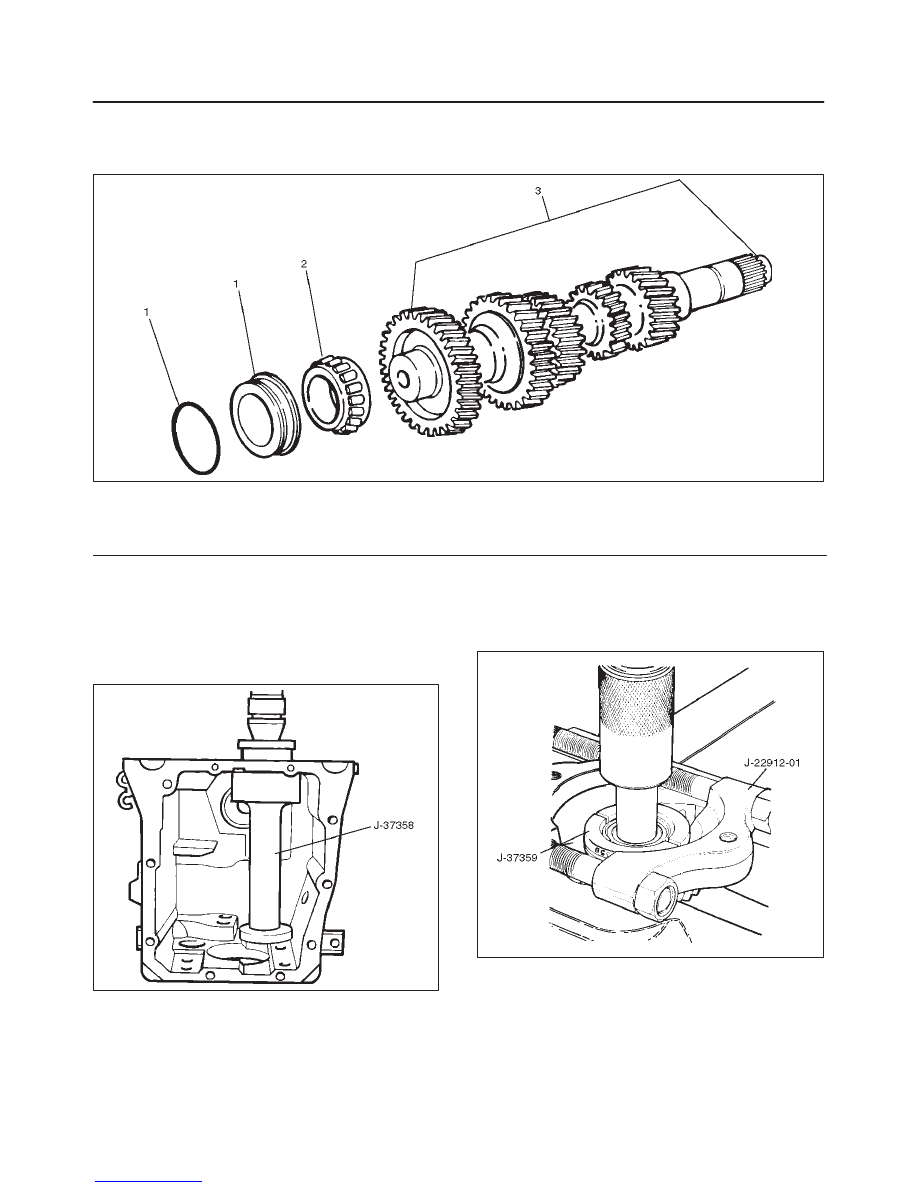

Counter Shaft (TREMEC T5R)

Disassembled View

226RS162

Legend

(1) Counter Shaft Front Bearing Outer Race and

O–ring

(2) Counter Shaft Front Bearing
(3) Counter Shaft

Disassembly

1. Using a hydraulic press and bearing race receiver and

case support J–37358, remove the counter shaft front
bearing outer race(1).
Remove the O-ring(1).

226RS163

2. Remove the counter shaft front bearing(2) from the

counter shaft(3).  Use a hydraulic press, couter shaft
front bearing remover J–37359 and bearing and gear
puller J–22912–01.

226RS164

MANUAL TRANSMISSION

7B–91

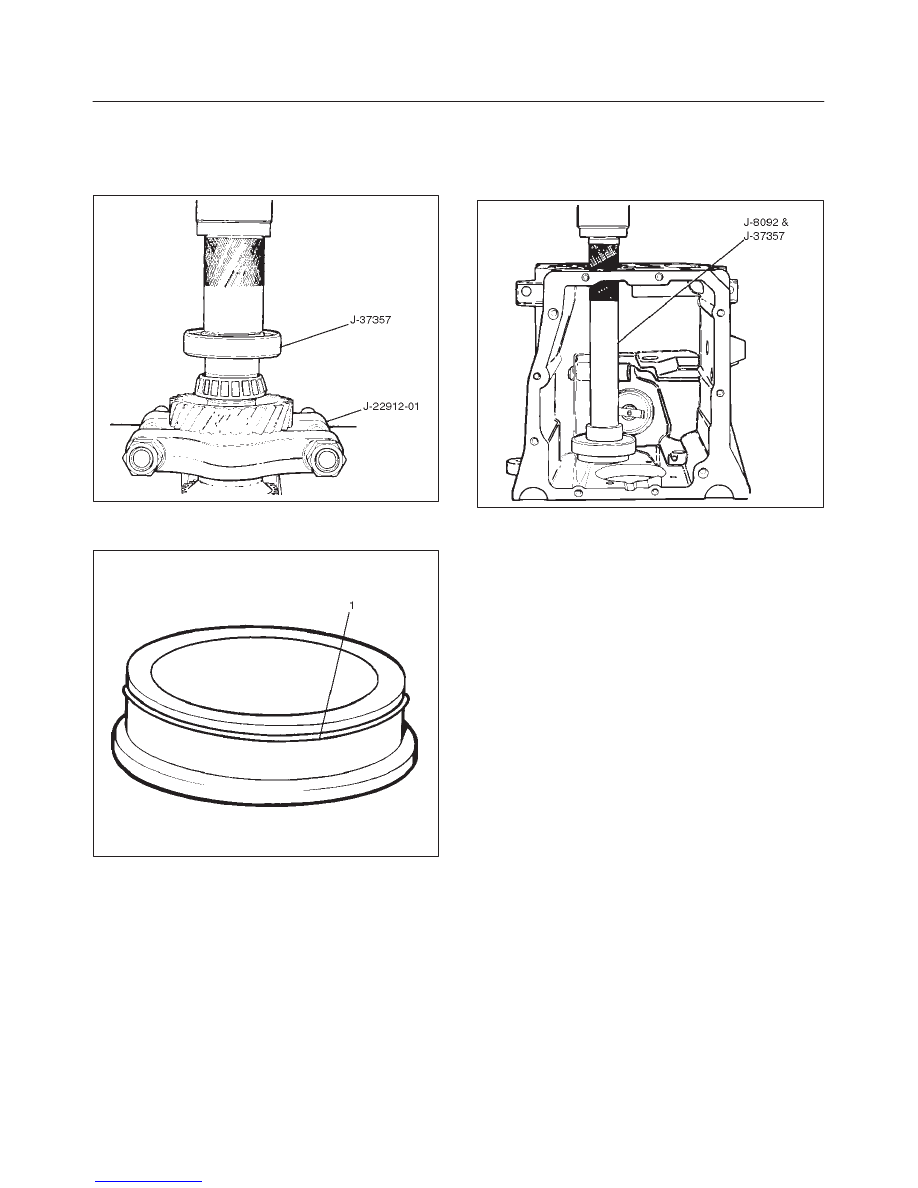

Reassembly

1. Install the counter shaft front bearing(2) onto the

counter shaft(3), using a hydraulic press, installer
J–37357 and bearing and gear puller J–22912–01.

226RS165

2. Install a new O-ring(1) on the counter shaft outer

race(1) and lubricate it.

226RS166

3. Using installer and driver handle, lightly tap the outer

race(1) into its bore until the O-ring is compressed.

4. Using a hydraulic press, installer J–37357 and driver

handle J–8092, install the outer race(1) until its
shoulder rests on the inside of the case.

226RS167
