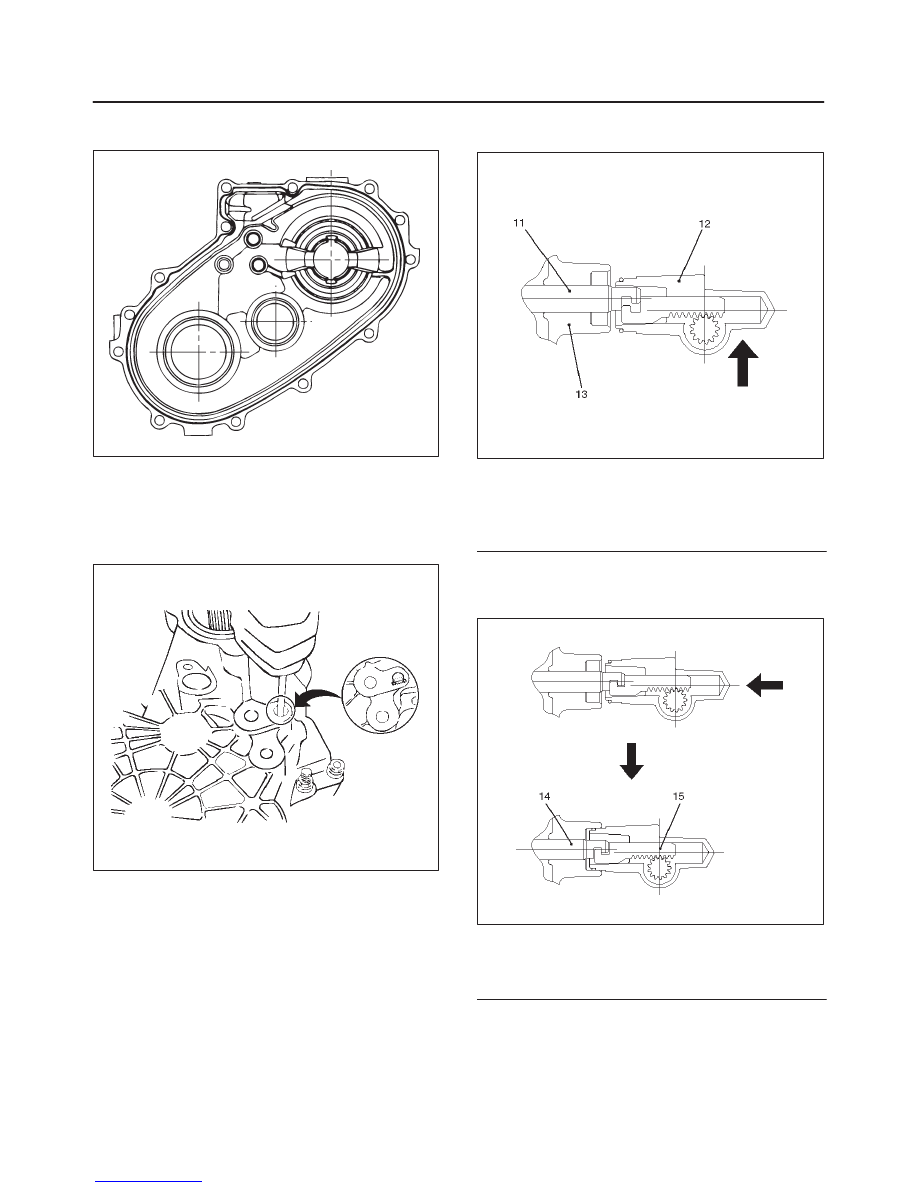

7B–36 MANUAL TRANSMISSION 16. Apply recommended liquid gasket (LOCTITE 17430) or its equivalent to the transfer rear case fitting faces. 220RS017 17. Perform the following steps before fitting the transfer rear case(12): 2. The cut-away portion of select rod head should align with the rear case hole’s stopper. 230RS002 18. Tighten the eleven transfer rear case bolts to the specified torque. Torque: 37 N·m (27 lb ft) 19. Install 2WD–4WD actuator assembly(11) by performing the following steps. 2. Join the rod grooves of 2WD–4WD actuator assembly and shift rod. 220RW030 Legend (11) Shift Rod: 2WD–4WD (Position: 4WD) (12) 2WD–4WD Actuator Assembly (Mode: 2WD) 3. Push the 2WD–4WD actuator assembly with 2WD–4WD shift rod till the shift rod reaches the 220RW031 Legend (14) Position: 2WD 4. Tighten the 2WD–4WD actuator bolts to the specified torque. Torque: 19 N·m (14 lb ft) 5. Connect the actuator breather hose to actuator. |
