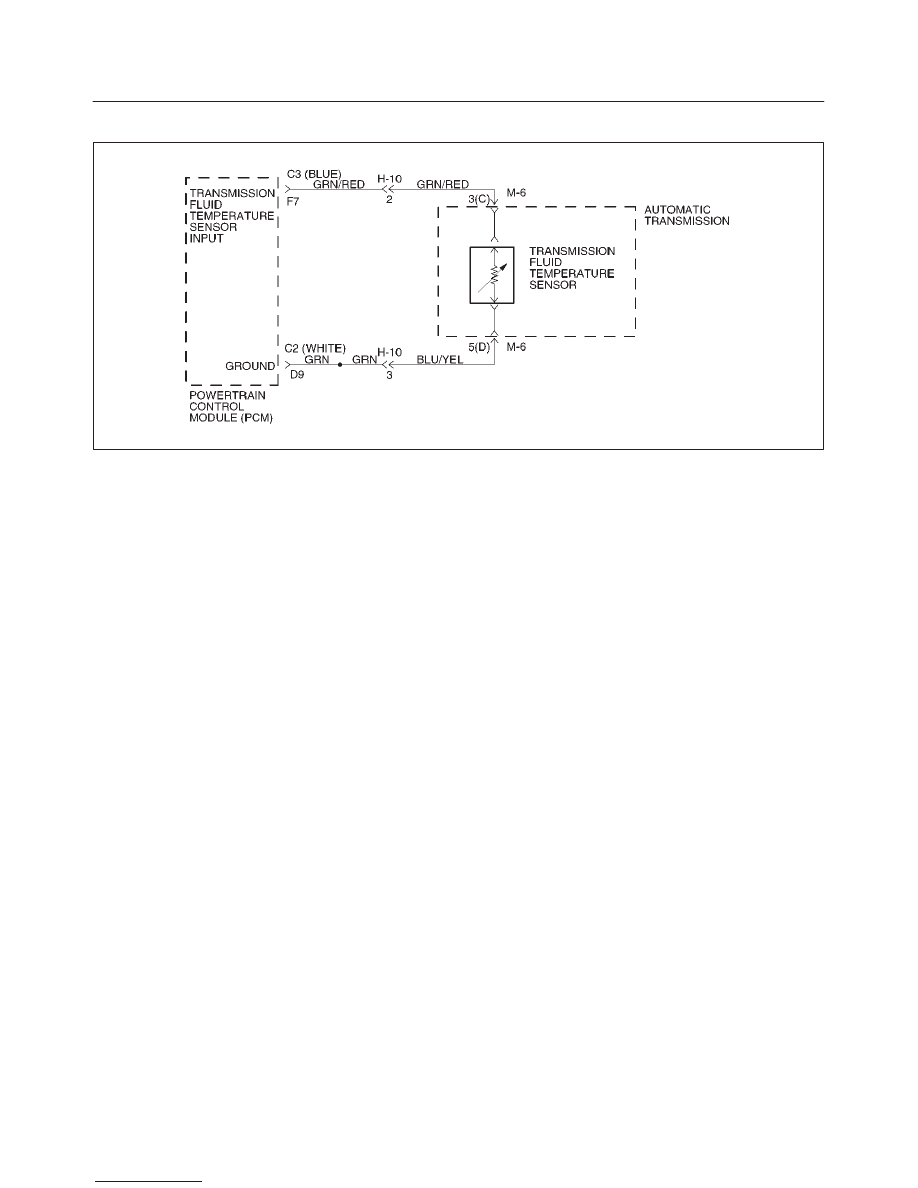

TRANSMISSION CONTROL SYSTEM (4L30–E) 7A1–43 DTC P0713 Transmission Fluid Temperature (TFT) Sensor Circuit High Input D07RW018 Circuit Description The TFT sensor is a thermistor that controls the signal ° C (212 ° F), the sensor resistance becomes less and the voltage decreases to Conditions For Setting The DTC f Battery voltage is between 10 and 16 volts. f Ignition is “on”. f TFT sensor indicating a voltage greater than 4.86 f All conditions met for 20 seconds. Action Taken When The DTC Sets f Transmission default temperature will be: 80 ° C (176 ° F) if engine temperature code is set. 100 ° C (212 ° F) if engine temperature is warm. 80 ° C (176 ° F) if engine run time is greater than 5 minutes. 21 ° C (69.8 ° F) if engine run time is less than 5 minutes. f The PCM will not illuminate the Malfunction Indicator Conditions For Clearing The DTC f The DTC can be cleared from the PCM history by f The DTC will be cleared from history when the vehicle f The PCM will cancel the DTC default actions when Diagnostic Aids f Inspect the wiring for poor electrical connection at the f When diagnosing for a possible intermittent short or f Scan tool displays transmission fluid temperature in ° C (212 ° F), then stabilize. f The temperature to resistance value scale may be A “skewed” sensor could result in hard shifts or TCC |
