6E2–47

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

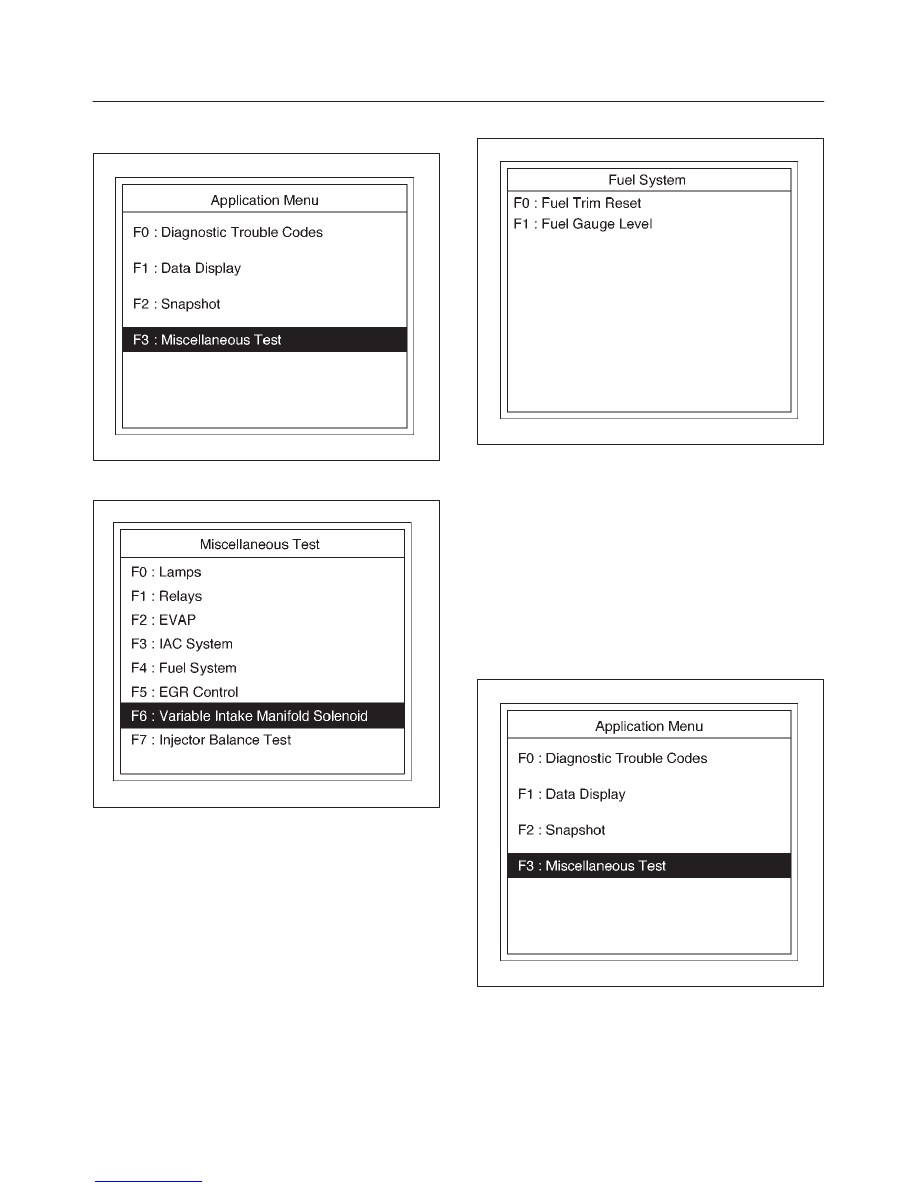

3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

4. Select F6: Variable Intake Manifold Solenoid Test.

060RX033

5. Push “On” or “Off” soft key.

060RX028

6. Control VIM Solenoid and check data list.
7. If data list changes, the VIM Solenoid is normal.

Injector Balance Test

This test is conducted to make sure the appropriate
electric signals are being sent to injectors Nos. 1–6.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.
3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

6E2–48

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

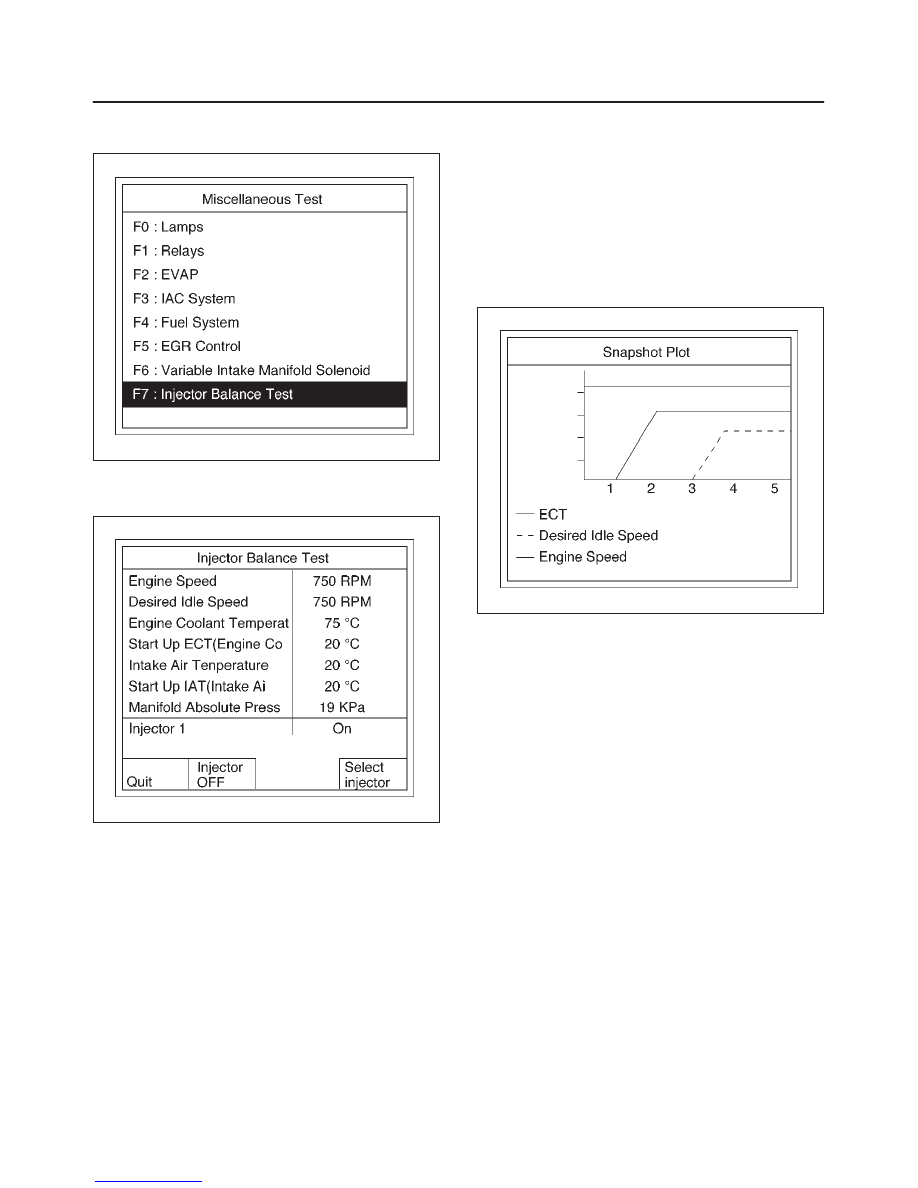

4. Select F7: Injector Balance Test in the Miscellaneous

Test.

060RX006

5. Select injector number and push “injector off” of soft

key.

060RW230–1

6. Make sure of engine speed change.
7. If engine speed changes, the injector electric circuit is

normal.
If engine speed does not changes, the injector electric
circuit or the injector itself is not normal.

Plotting Snapshot Graph

This test selects several necessary items from the data
list to plot graphs and makes data comparison on a long
term basis. It is an effective test particularly in emission
related evaluations.

060RX037

For trouble diagnosis, you can collect graphic data (snap
shot) directly from the vehicle. You can replay the
snapshot data as needed. Therefore, accurate diagnosis
is possible, even though the vehicle is not available.

6E2–49

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

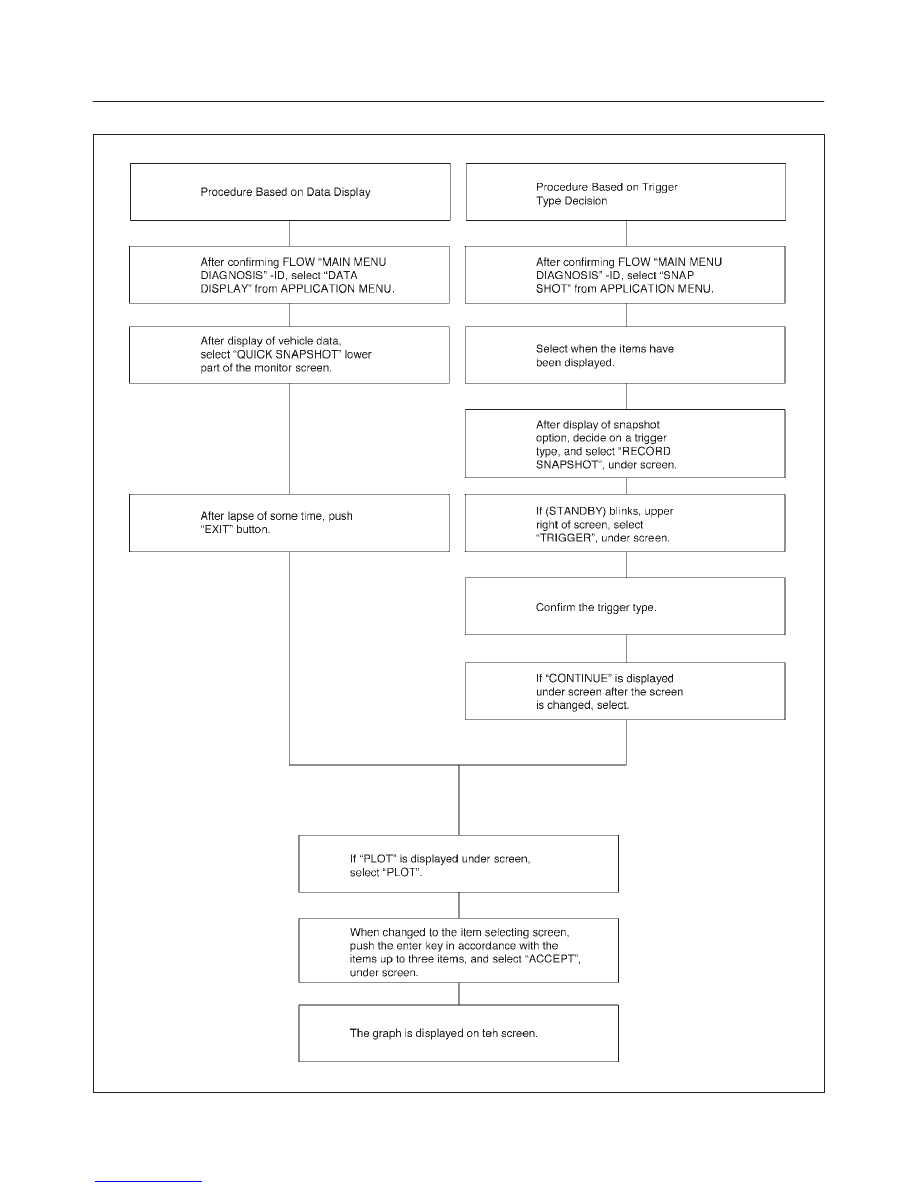

Plotting Graph Flow Chart (Plotting graph after obtaining vehicle information)

060RX041

6E2–50

RODEO 6VD1 3.2L ENGINE DRIVEABILITY AND EMISSIONS

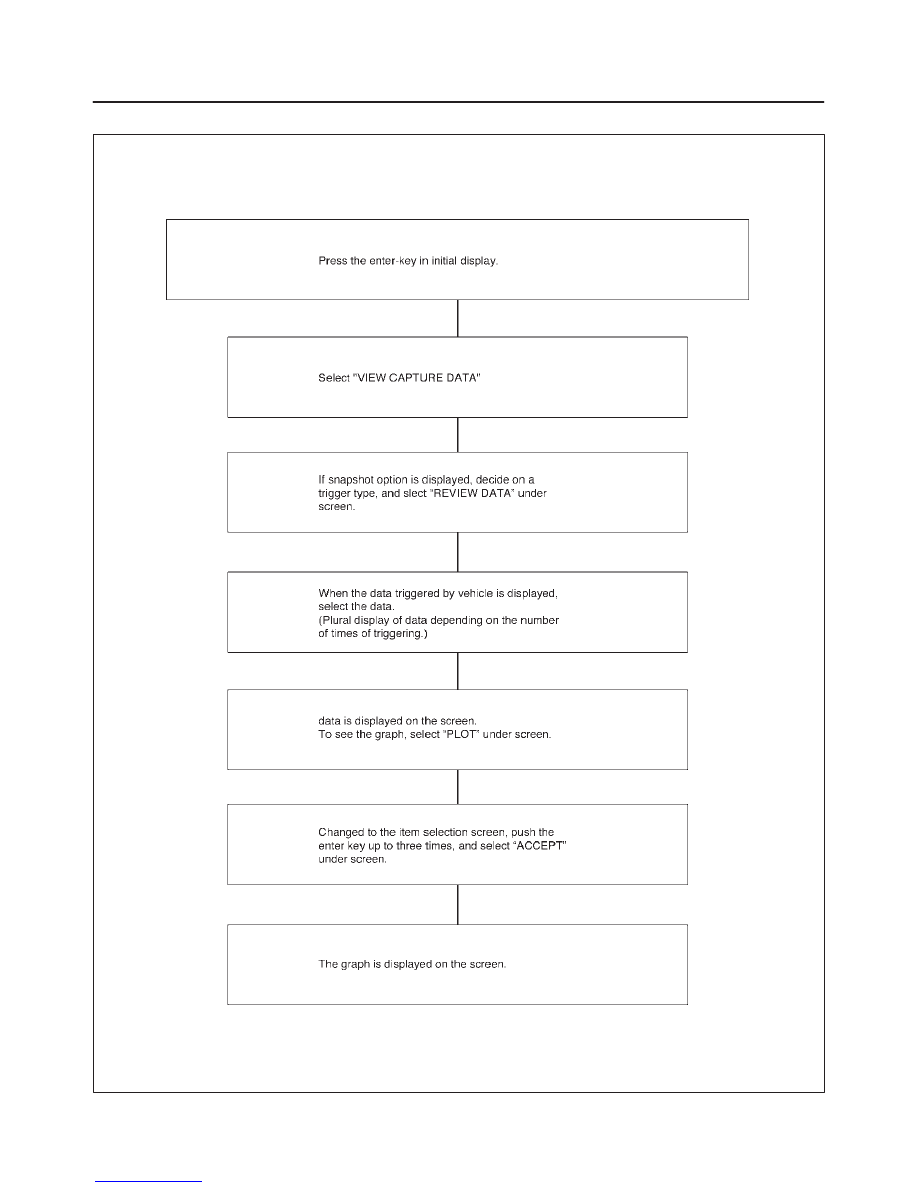

Flow Chart for Snapshot Replay (Plotting Graph)

060RX040
