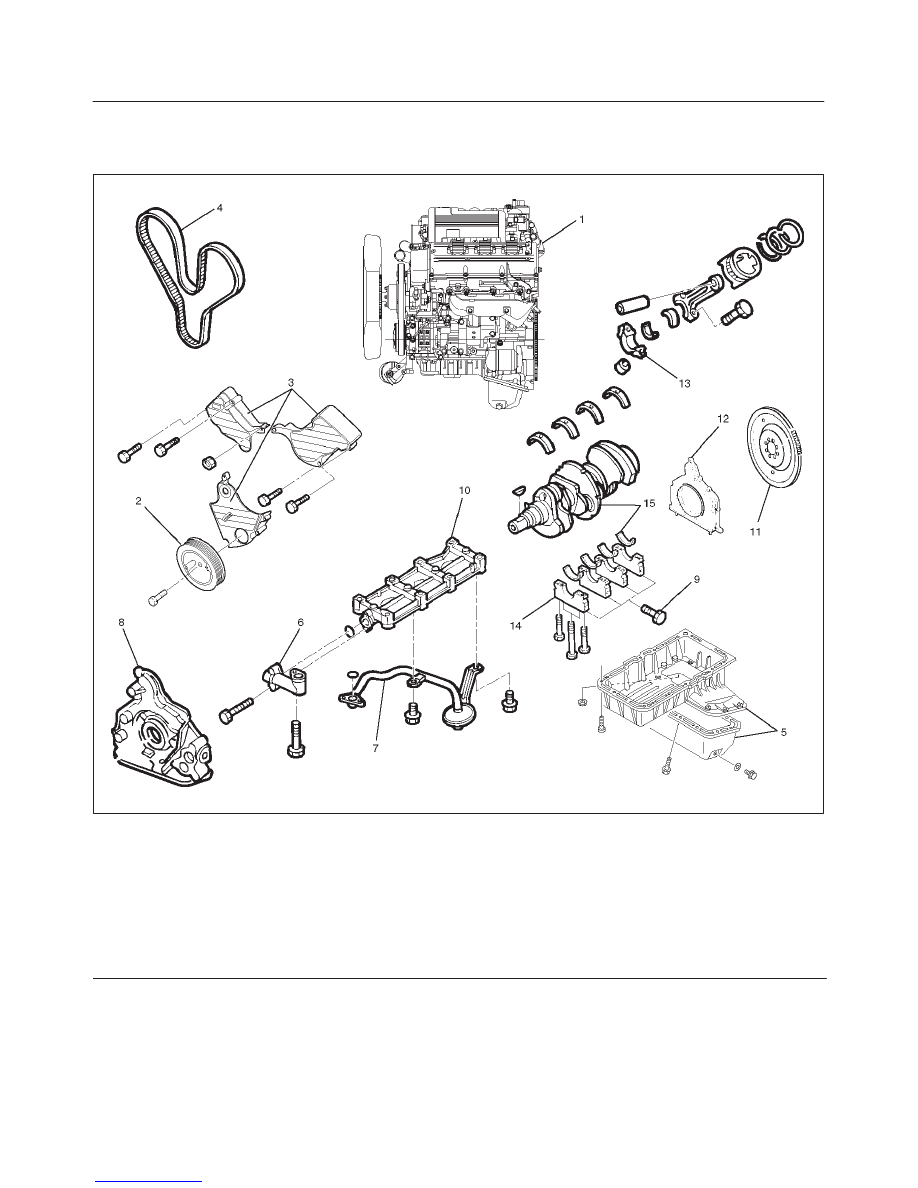

6A–41 ENGINE MECHANICAL (6VD1 3.2L) Crankshaft and Main Bearings Removal F06RW010 Legend (1) Engine Assembly (8) Oil Pump Assembly (10) Oil Gallery (11) Flywheel (12) Rear Oil Seal Retainer 1. Remove engine assembly. f Refer to removal procedure for Engine Assembly in 2. Remove timing belt. f Refer to removal procedure for Timing Belt in this 3. Remove oil pan and crankcase. f Refer to removal procedure for Oil Pan and 4. Remove oil pipe with O-ring. |
