6A–21

ENGINE MECHANICAL (6VD1 3.2L)

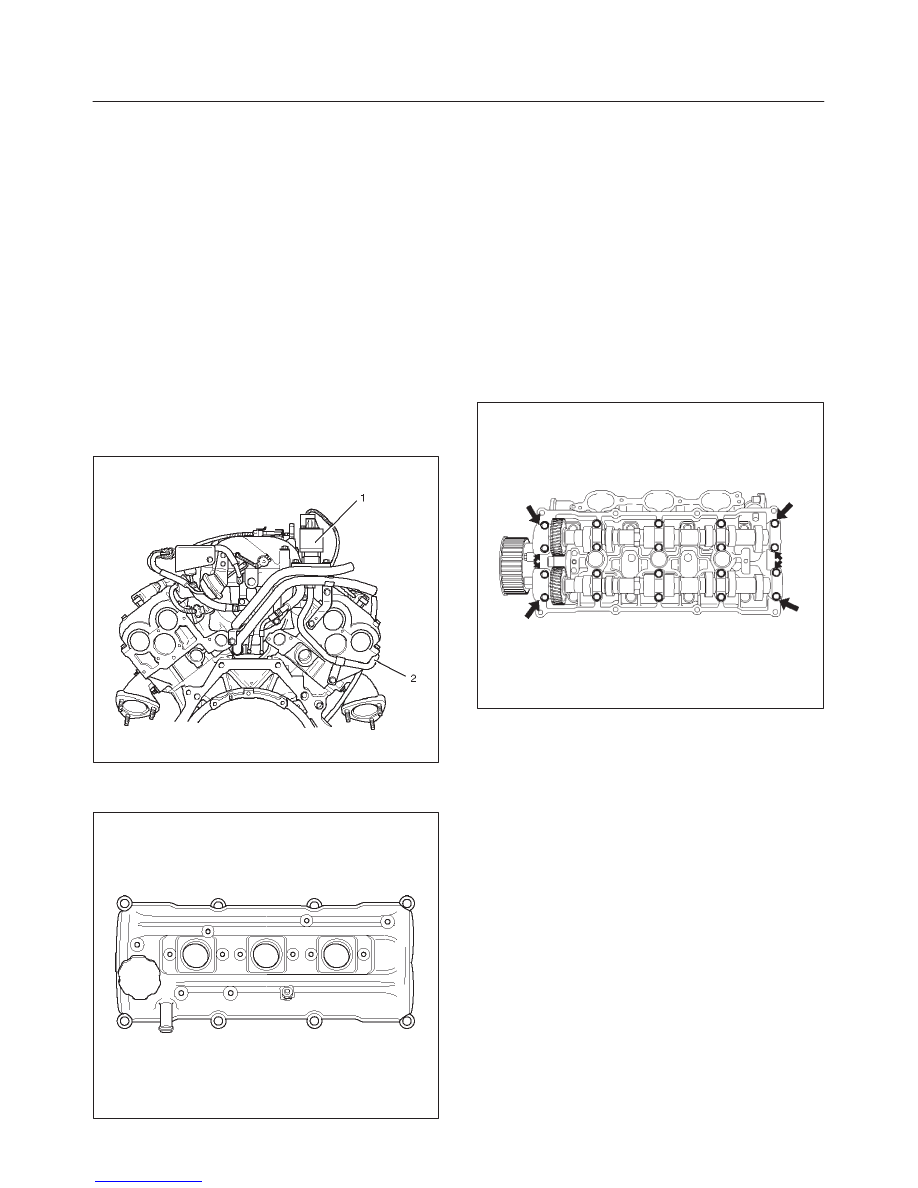

Cylinder Head Cover RH

Removal

1. Disconnect battery ground cable.
2. Disconnect ventilation hose from cylinder head cover.
3. Disconnect three ignition coil connectors from ignition

coils and remove harness bracket bolts on cylinder
head cover then remove ignition coil fixing bolts on
ignition coils and remove ignition coils.

4. Remove heater pipe fixing bolts from the bracket.
5. Disconnect fuel injector harness connector then

remove fuel injector harness bracket bolt.

6. Remove exhaust gas recirculation (EGR) pipe.

Remove flare nut from EGR valve.

Remove fixing bolt of EGR pipe bracket on rear end
cylinder head.

Remove two fixing bolt and nut on exhaust
manifold.

056RW001

7. Remove eight fixing bolts then the cylinder head

cover.

010RW002

Installation

1. Install cylinder head cover.

Clean the sealing surface of cylinder head and
cylinder head cover to remove oil and sealing
materials completely.
Apply sealant (TB-1207B or equivalent) of bead
diameter 2-3 mm at eight place of arched area of
camshaft bracket on front and rear sides.

The cylinder head cover must be installed within 5
minutes after sealant application to prevent
premature hardening of sealant.

Tighten bolts to the specified torque.

Torque : 9 N·m (80 lb in)

014RW019

2. Install exhaust gas recirculation pipe and tighten to

specified torque.

Torque:
Exhaust manifold side: 28 N·m (21 lb ft)
Flare nut: 44 N·m (33 lb ft)
Cylinder head side: 25 N·m (18 lb ft)

3. Tighten fuel injector harness bracket bolts to

specified torque then reconnect fuel injector harness
connector.

Torque : 7.8 N·m (5.7 lb ft)

4. Install heater pipe bolt to the specified torque.

Torque : 21 N·m (15 lb ft)

5. Connect ignition coil connector and tighten ignition

coil fixing bolts to specified torque.

Torque : 4 N·m (35 lb in)

6. Connect ventilation hose to cylinder head.

6A–22

ENGINE MECHANICAL (6VD1 3.2L)

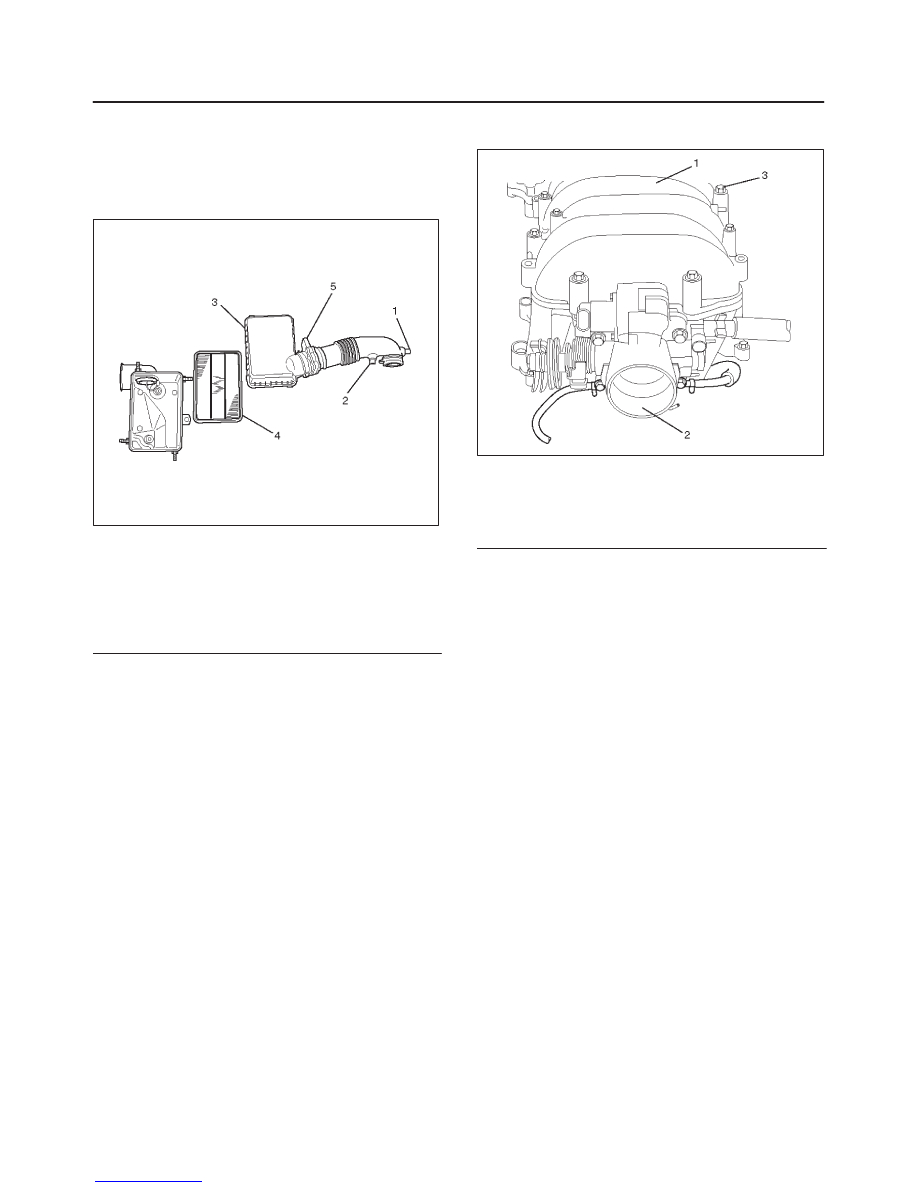

Common Chamber

Removal

1. Disconnect battery ground cable.
2. Remove air cleaner duct assembly.

130RW001

Legend

(1) Positive Crankcase Ventilation Hose Connector
(2) Intake Air Temperature Sensor
(3) Air Cleaner Duct Assembly
(4) Air Cleaner Element
(5) Air Flow Sensor

3. Disconnect accelerator pedal cable from throttle body

and cable bracket.

4. Disconnect vacuum booster hose from common

chamber.

5. Disconnect connector from manifold absolute

pressure sensor, idle air control valve, throttle
position sensor, solenoid valve, electric vacuum
sensing valve, and EGR valve.

6. Disconnect vacuum hose on canister VSV and

positive crankcase ventilation hose, fuel rail
assembly with pressure control valve bracket.

7. Remove ventilation hose from throttle valve and

intake duct and remove water hose.

8. Remove the four throttle body fixing bolts.
9. Remove exhaust gas recirculation valve assembly

fixing bolt and nut on common chamber and remove
EGR valve assembly.

10. Remove two bolts from common chamber rear side

for remove fuel hose bracket.

11. Remove common chamber four bolts and four nuts

then remove the common chamber.

025RW001

Legend

(1) Common Chamber
(2) Throttle Valve Assembly
(3) Bolt

Installation

1. Install common chamber and tighten bolts and nuts to

the specified torque.

Torque :
Bolt : 25 N·m (18 lb ft)
Nut : 25 N·m (18 lb ft)

2. Install fuel hose bracket and tighten bolts to specified

torque.

Torque : 10 N·m (89 lb in)

3. Install exhaust gas recirculation valve assembly and

tighten bolt and nut to the specified torque.

Torque : 25 N·m (18 lb ft)

4. Install throttle body and tighten bolts to the specified

torque.

Torque : 25 N·m (18 lb ft)

5. Install ventilating hose to throttle valve and intake

duct.

6. Connect vacuum hoses on canister VSV and positive

crankcase ventilation hose. Tighten bolts for fuel rail
assembly with pressure control valve bracket.

Torque : 25 N·m (18 lb ft)

7. Connect each connector without fail.
8. Connect vacuum booster hose.
9. Connect accelerator pedal cable.

6A–23

ENGINE MECHANICAL (6VD1 3.2L)

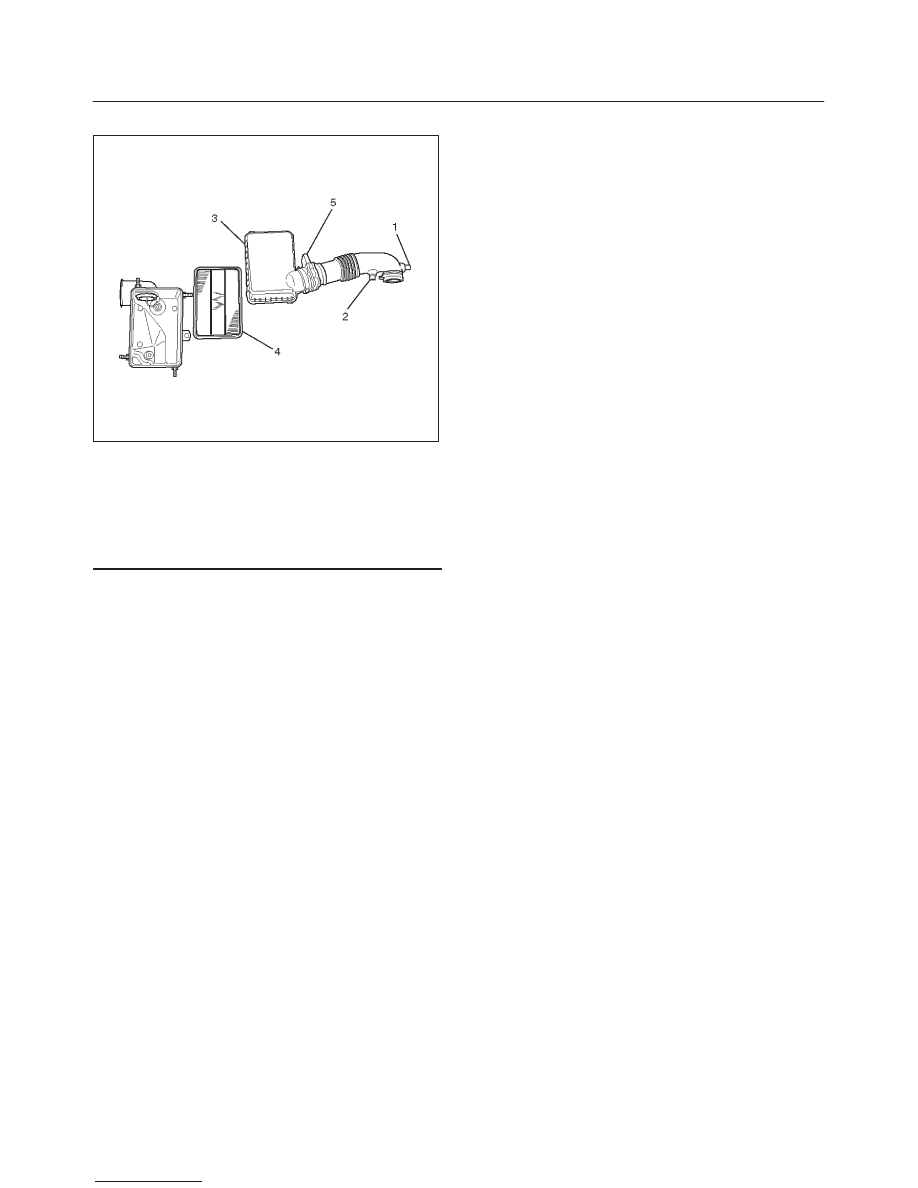

10. Install air cleaner duct assembly.

130RW001

Legend

(1) Positive Crankcase Ventilation Hose Connector
(2) Intake Air Temperature Sensor
(3) Air Cleaner Duct Assembly
(4) Air Cleaner Element.
(5) Air Flow Sensor

6A–24

ENGINE MECHANICAL (6VD1 3.2L)

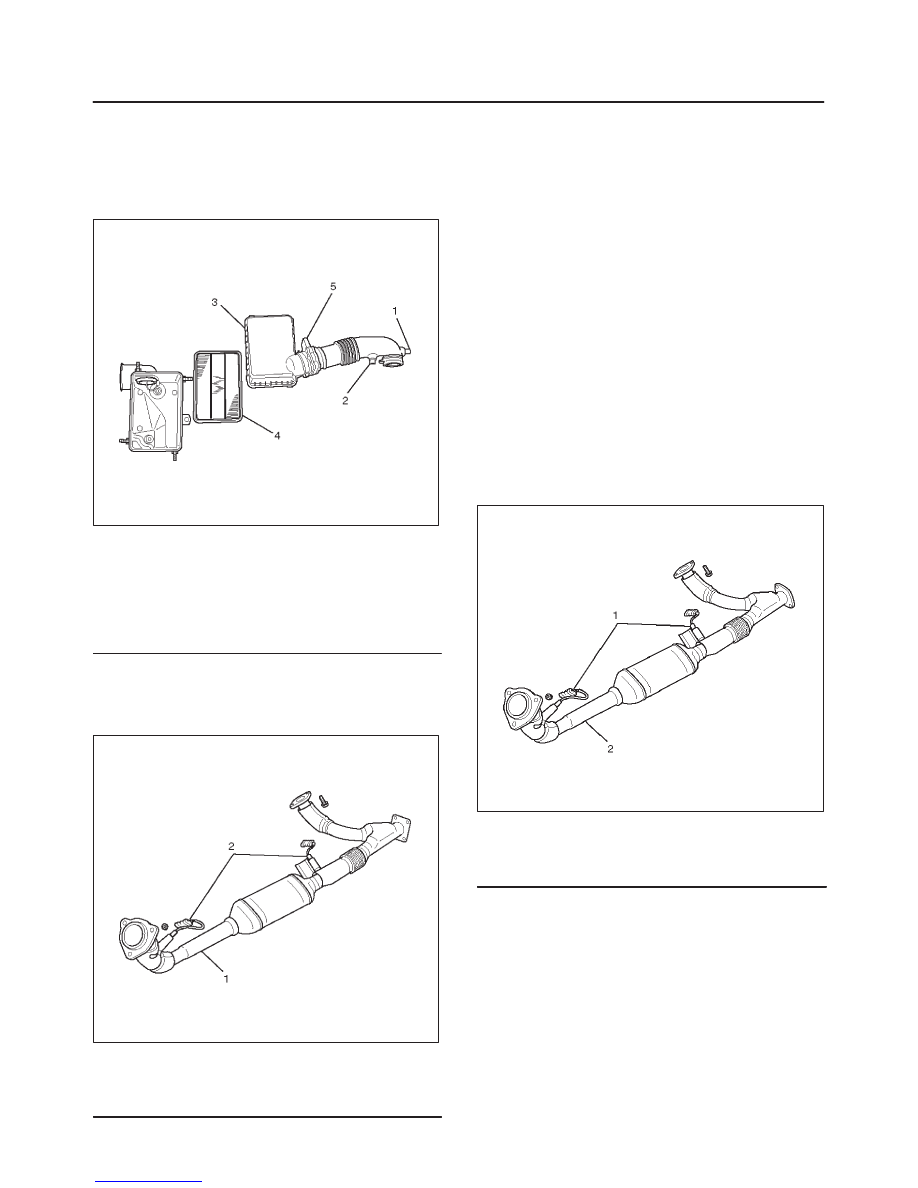

Exhaust Manifold LH

Removal

1. Disconnect battery ground cable.
2. Remove air cleaner duct assembly.

130RW001

Legend

(1) Positive Crankcase Ventilation Hose Connector
(2) Intake Air Temperature Sensor
(3) Air Cleaner Duct Assembly
(4) Air Cleaner Element
(5) Air Flow Sensor

3. Disconnect O

sensor connector.

4. Remove exhaust front pipe three stud nuts from

exhaust side and two nuts from rear end of exhaust
front pipe.

035RW006

Legend

(1) Exhaust Front Pipe LH
(2) O

Sensor

5. Remove heat protector two fixing bolts then the heat

protector.

6. Remove a bolt on engine LH side for air conditioner

(A/C) compressor bracket and loosen two bolts for
A/C compressor then move A/C compressor to front
side.

7. Remove exhaust manifold eight fixing nuts and

remove exhaust manifold from the engine.

Installation

1. Install exhaust manifold and tighten exhaust manifold

fixing nuts to the specified torque with new nuts.

Torque: 57 N·m (42 lb ft)

2. Install heat protector.
3. Install exhaust front pipe and tighten three stud nuts

and two nuts to the specified torque.

Torque :
Stud nuts: 67 N·m (49 lb ft)
Nuts: 43 N·m (32 lb ft)

035RW016

Legend

(1) O

Sensor

(2) Exhaust Front Pipe LH

4. Set A/C compressor to normal position and tighten

two bolts and a bolt to the specified torque.

Torque : 40 N·m (30 lb ft)

5. Reconnect O

sensor connector.

6. Install air cleaner duct assembly.
