ENGINE SPEED CONTROL SYSTEM (X22SE 2.2L)

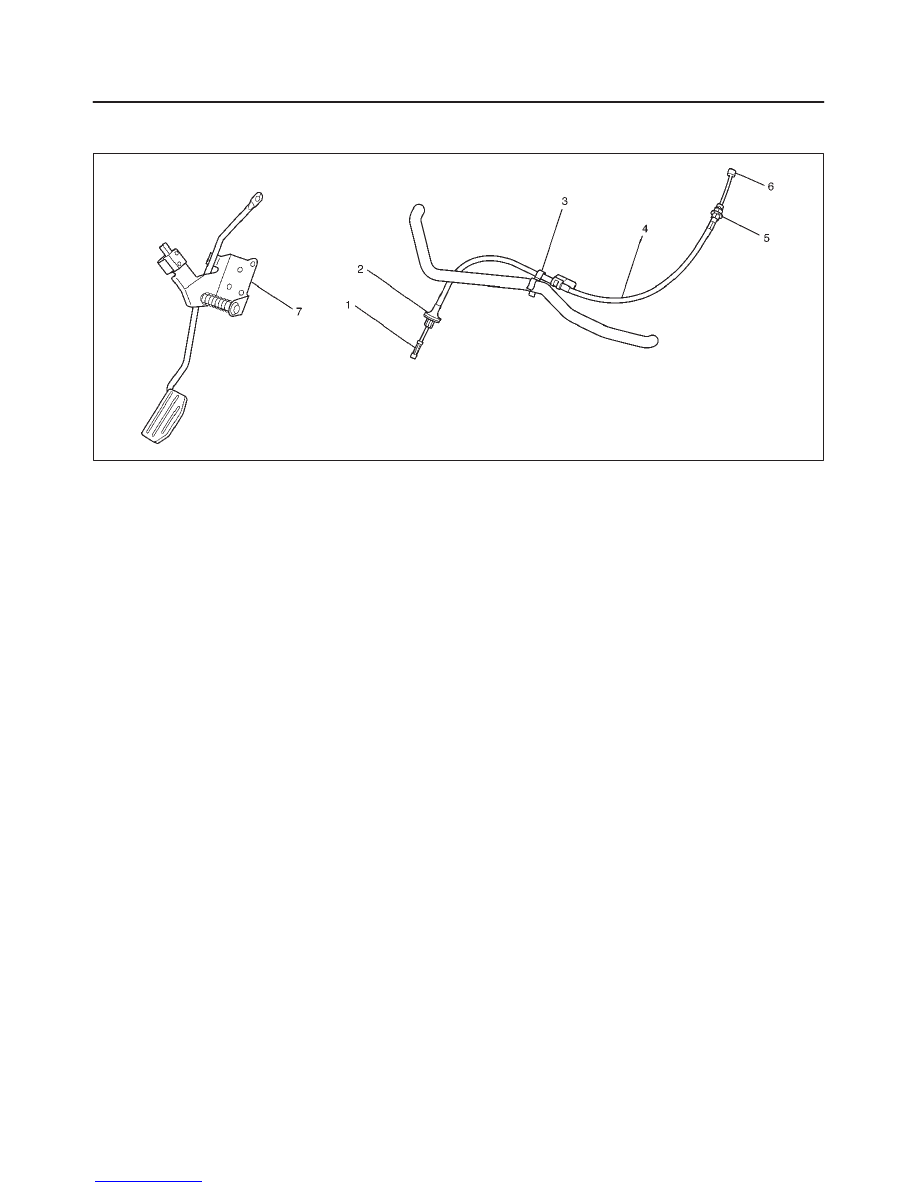

Accelerator Pedal Control Cable

035RX004

Removal

1. Loosen the nut(5) on the cable bracket mounted.
2. Remove cable clip(3).
3. Disconnect accelerator pedal (AP) control cable(6).

(on throttle valve side)

4. Disconnect AP control cable(1). (on AP pedal(7) side)
5. Remove grommet(2).
6. Remove AP control cable(4).

Inspection

Check the following items, and replace the control cable if
any abnormality is found:

f

The control cable should move smoothly.

f

The control cable should not be bent or kinked.

f

The control cable should be free of damage and
corrosion.

Installation

1. Install AP control cable(4).
2. Install grommet(2).
3. Connect AP control cable(1). (on AP pedal(7) side)
4. Connect AP control cable(6). (on throttle valve side)
5. Install cable clip(3).
6. Install nut(5).

ENGINE SPEED CONTROL SYSTEM (X22SE 2.2L)

6H–3

Accelerator Pedal

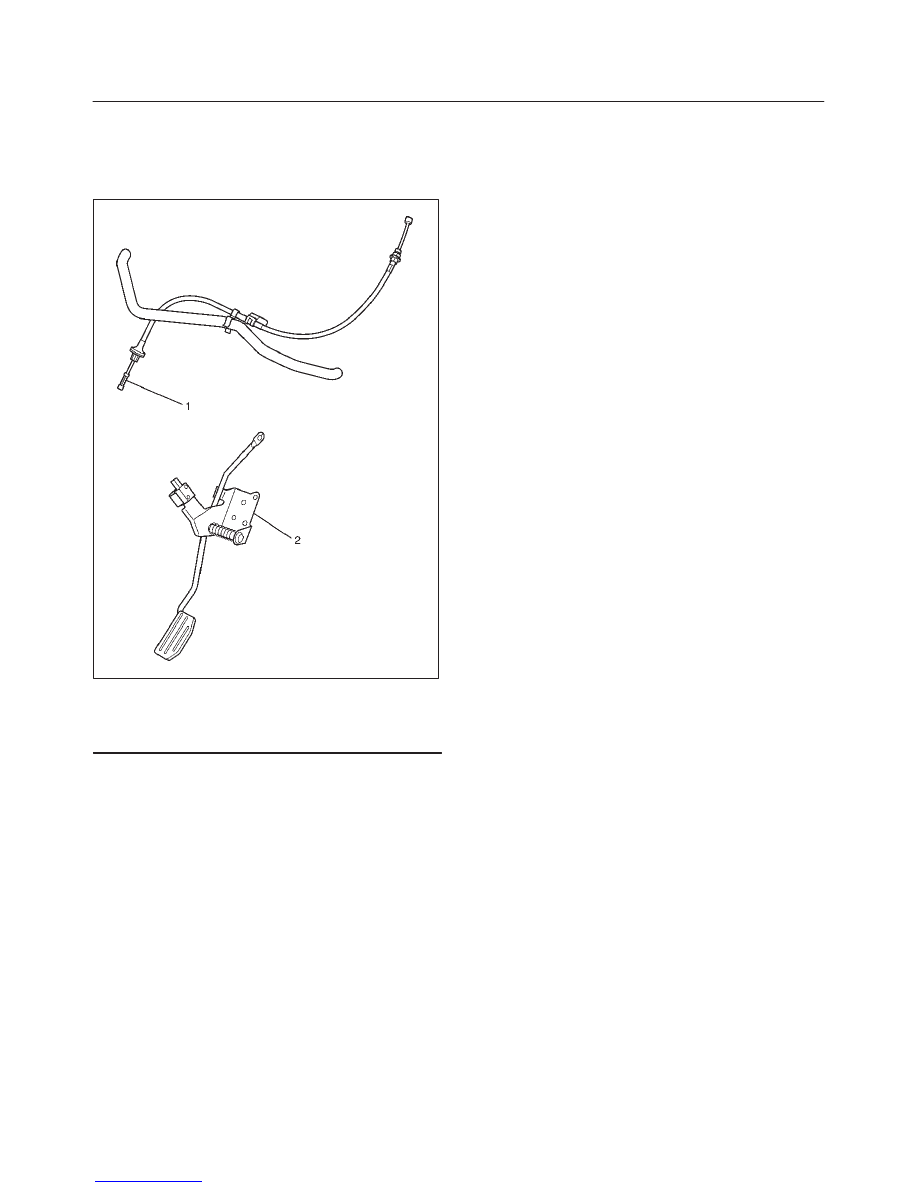

Accelerator Pedal and Associated
Parts

035RX002

Legend

(1) Accelerator Pedal Control Cable
(2) Accelerator Pedal Assembly

Removal

1. Accelerator pedal control cable(1).
2. Accelerator pedal assembly(2).

Installation

1. Accelerator pedal assembly (2).
2. Accelerator pedal control cable (1).

6J–1

INDUCTION (X22SE 2.2L)

RODEO

ENGINE

INDUCTION (X22SE 2.2L)

CONTENTS

Service Precaution

6H–1

. . . . . . . . . . . . . . . . . . . . . .

Air Cleaner Filter

6H–2

. . . . . . . . . . . . . . . . . . . . . . . .

Removal

6H–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection

6H–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Installation

6H–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).  REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING. WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION. FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location. When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal. ISUZU will also call out
the fasteners that require thread lockers or thread
sealant. UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces. Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener. When
you install fasteners, use the correct tightening
sequence and specifications. Following these
instructions can help you avoid damage to parts and
systems.

6J–2

INDUCTION (X22SE 2.2L)

Air Cleaner Filter

Removal

1. Remove positive ventilation hose connector.
2. Remove intake air temperature sensor.
3. Remove mass air flow sensor.
4. Remove air cleaner duct assembly.
5. Remove air cleaner element.

Inspection

Check the air cleaner filter for damage or dust clogging.
Replace if it is damaged, or clean if it is clogged.

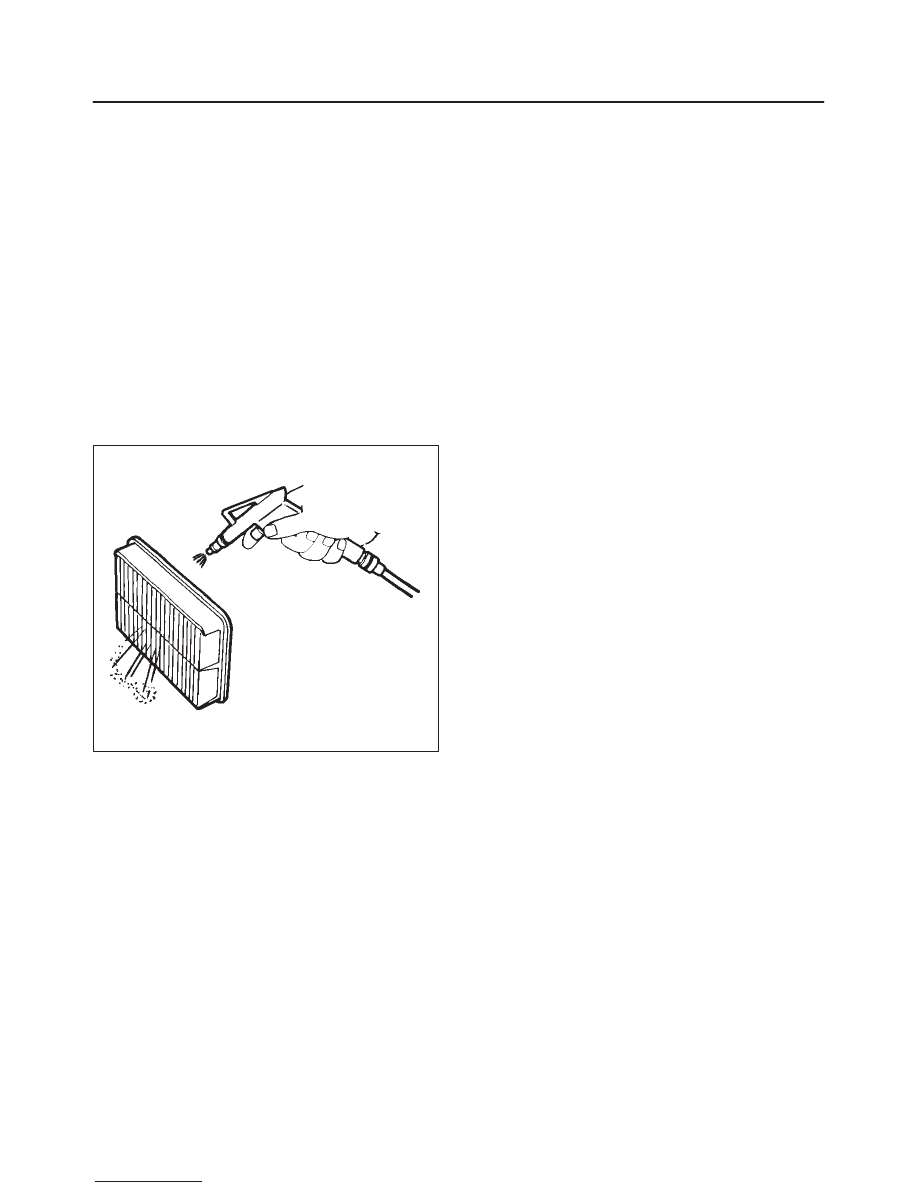

Cleaning Method

Tap the air cleaner filter gently so as not to damage the
paper filter, or clean the element by blowing with
compressed air of about 490 kPa (71 psi) from the clean
side if it is extremely dirty.

130RW002

Installation

1. Install air cleaner element.
2. Attach the air cleaner duct cover to the body

completely, then clamp it with the clip.

3. Install mass air flow sensor.
4. Install mass air temperature sensor.
5. Install positive crankcase ventilation hose connector.
