6E1–411

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

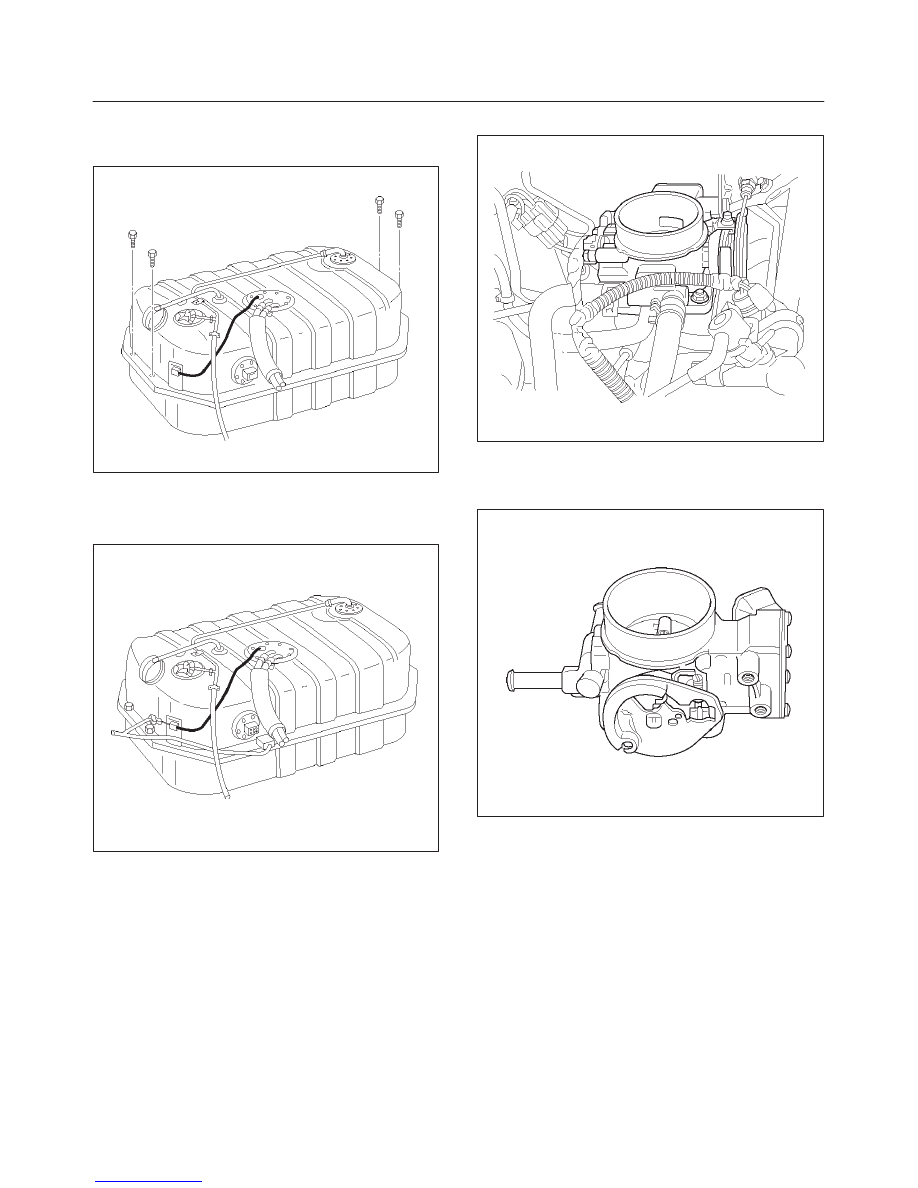

7. Connect the fuel filler hose, the air breather hose and

EVAP hose onto fuel tank and secure them with
clamps.

041RX006

8. Pour fuel into fuel tank.
9. Install fuel filler cap securely.

10. Connect the battery negative cable.

041RX005

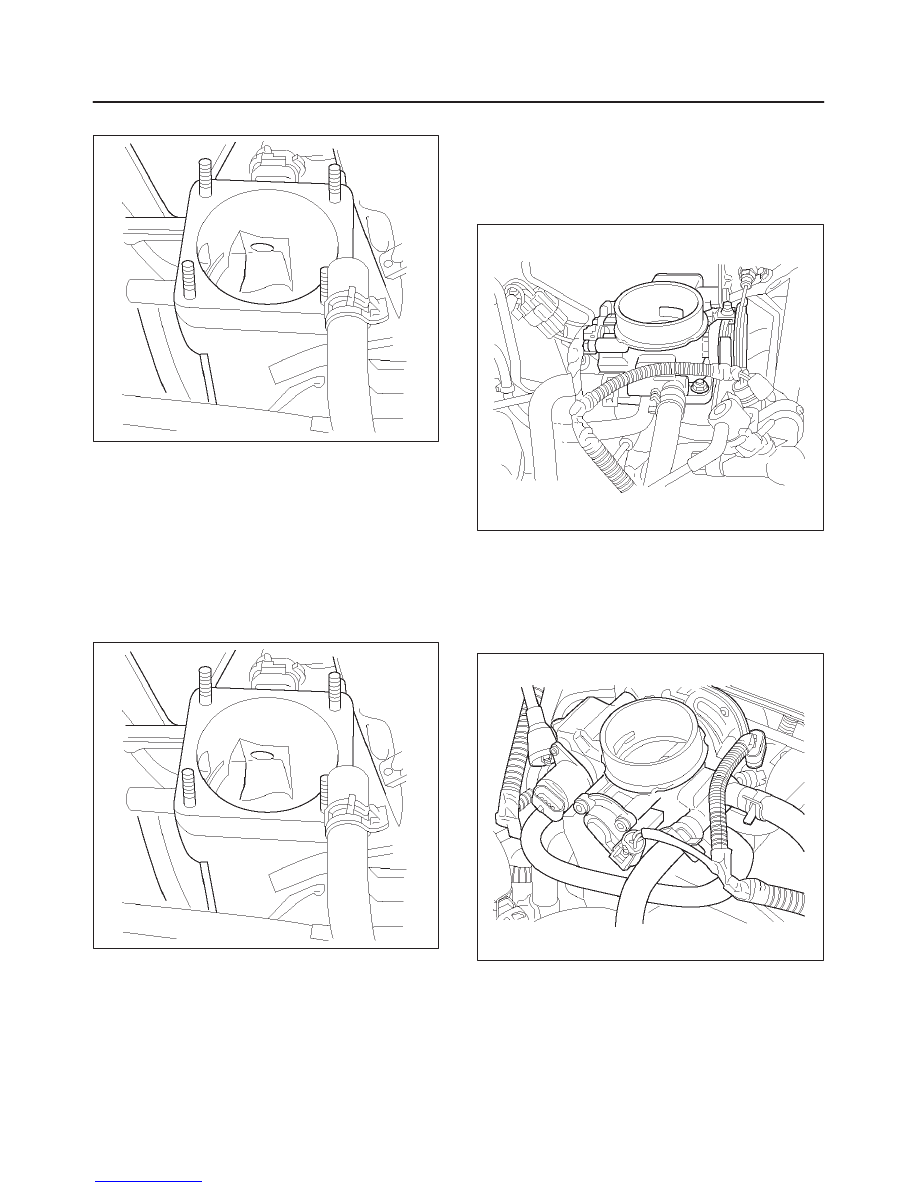

Throttle body (TB)

Removal Procedure

1. Disconnect the negative battery cable.
2. Drain the cooling system. Refer to Cooling System.
3. Remove the air intake duct. Refer to Air Intake Duct

Removal Procedure.

4. Remove the accelerator cable from throttle. Refer to

Accelerator Cable Assembly Removal Procedure.

5. Disconnect the electrical connectors from the throttle

position sensor and the idle air control valve solenoid.

6. Disconnect all vacuum hoses below air horn.

7. Disconnect coolant lines.

014RX025

8. Remove the mounting bolts retaining the throttle body

the intake manifold.

9. Lift up the throttle body from the intake manifolds.

014RX040

10. Remove the gaskets from the intake manifolds.

11. Remove the IAC. Refer to Idle Air Control Valve

Solenoid Removal Procedure.

12. Remove TPS. Refer to Throttle Position Sensor

Removal Procedure.

Inspection Procedure

NOTE: Do not use solvent of any type when you clean the
gasket surfaces on the intake manifold and the throttle
body assembly. The gasket surface and the throttle body
assembly may be damaged as results.

1. If the throttle body gasket needs to be released,

remove any gasket material that may be stuck to the
mating surfaces of the manifold.

6E1–412

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

2. Do not leave any scratches in the aluminum casting.

014RX041

Installation Procedure

1. Install IAC valve onto the throttle body. Refer to Idle

Air Control Valve Solenoid Installation Procedure.

2. Install TPS onto the throttle body if necessary. Refer

to TPS Installation Procedure.

3. Place the gasket then the throttle body on the

manifold.

4. Install four mounting bolt. Tighten the throttle body

mounting bolt to 13.5 Nm (10 lb ft).

014RX041

5. Connect coolant line and secure them with clamps.
6. Connect all vacuum hoses and secure them with

clamps if necessary.

7. Install accelerator control cable bracket onto the

throttle body.

8. Connect accelerator control cable to throttle plate.

014RX025

9. Connect electrical connector at IAC valve and TPS.

10. Install the air intake duct. Refer to Air Intake Duct

Installation Procedure.

11. Fill the cooling system with required coolant. Refer to

Engine Cooling System.

12. Connect the negative battery cable.

101RX002

6E1–413

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

ELECTRONIC IGNITION

SYSTEM  Ignition Control

 Module (ICM)

Removal Procedure

1. Disconnect the negative battery cable.
2. Disconnect the electrical connector from the ignition

control module.

3. Remove the two attaching screws.
4. Remove the ignition control module from the engine

block.

Installation Procedure

1. Fasten the module to the engine block with two

screws.

2. Reconnect the electrical connector.
3. Reconnect the negative battery terminal.

041RX042

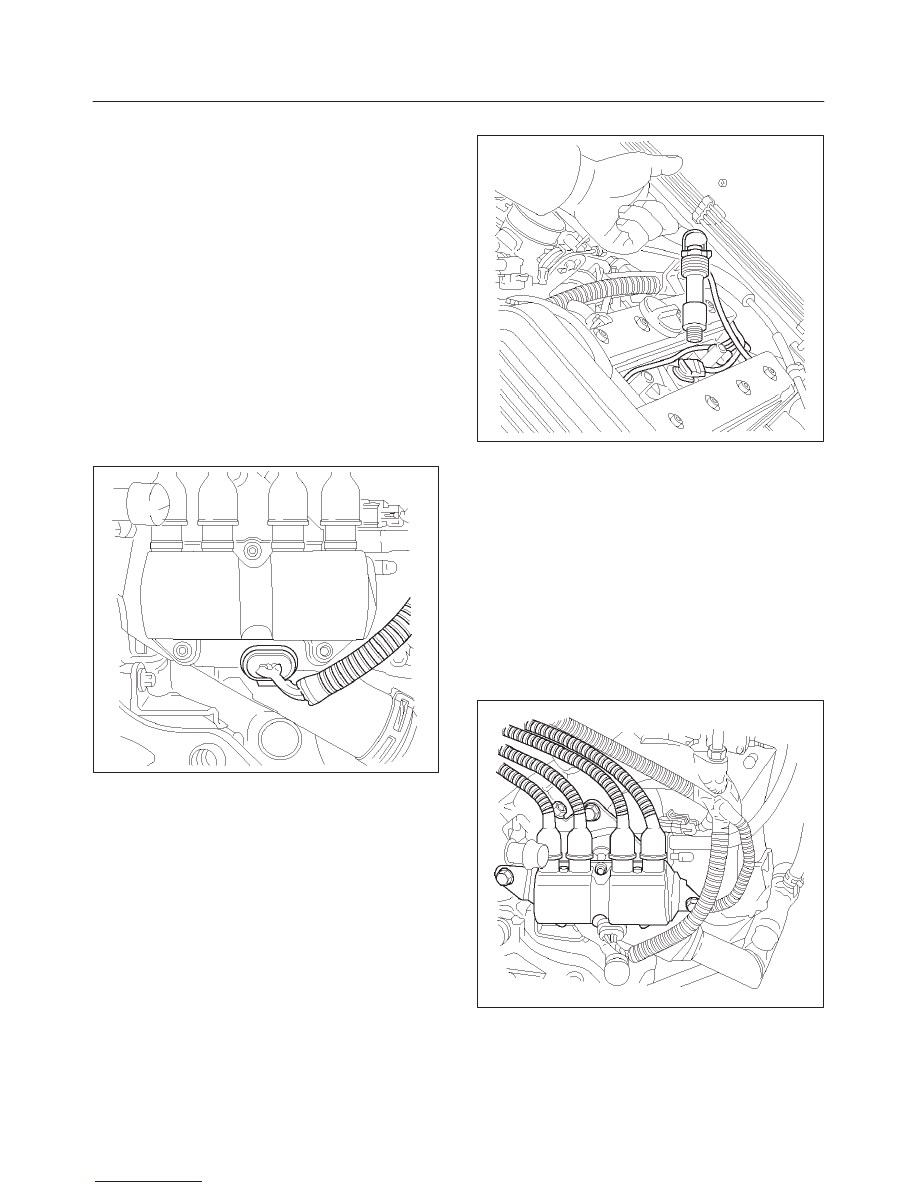

Ignition Coil

Removal Procedure

1. Disconnect the negative battery cable.
2. Drain the cooling system. Refer to Engine Cooling

System.

3. Remove the heater supply and return hose.
4. Remove the coolant return hose.
5. Disconnect all four spark plug cables from the coil.
6. Disconnect electrical connector from the ignition coil.
7. Remove three mounting bolt from the ignition coil.

8. Remove the ignition coil from the bracket.

014RX043

Installation Procedure

1. Install the ignition coil onto the bracket with three

mounting bolts.

2. Connect electrical connector at the ignition coil.
3. Connect spark plug cable to the ignition coil.
4. Connect heater supply and return hose and secure

them with clamps.

5. Connect coolant return line and secure them with

clamps.

6. Fill the cooling system with required coolant. Refer to

Engine Cooling System.

7. Connect the negative battery cable.

014RX044

6E1–414

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

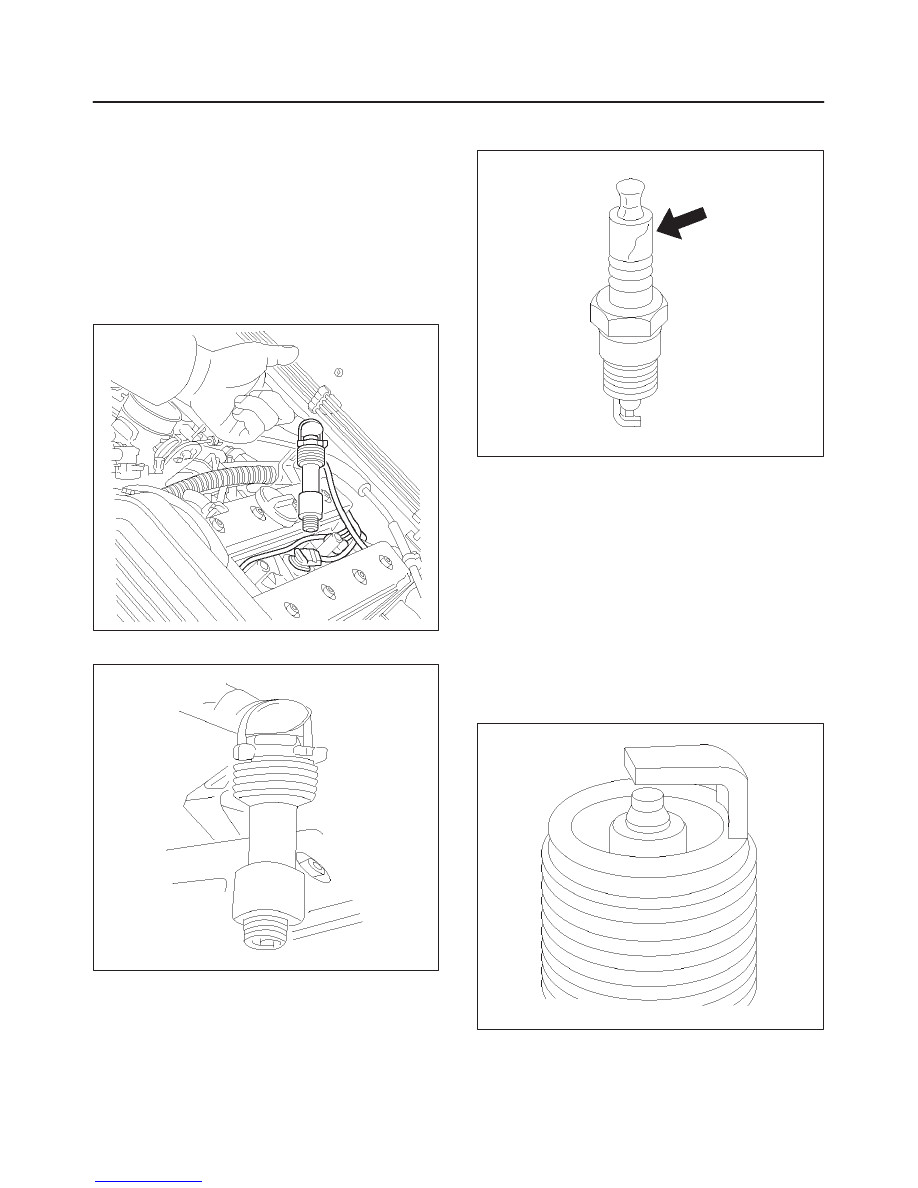

Spark Plugs

Removal Procedure

Type: NGK BPR6ES–11
Spark Gap : 1.05 MM (0.040”)
Spark Plug Torque : 25 Nm (18 lb ft)

1. Disconnect the negative battery cable.
2. Remove four bolt holding spark plug cover plate to top

of valve cover, and remove the cover plate.

3. Pull ignition wire using hocks attached to end of spark

plug cable.

014RX043

4. Remove the spark plug.

014RX045

Inspection Procedure

1. Check the insulator for cracks. Replace the spark

plug if crack are present.

2. Check the electrode condition and replace the spark

plug if necessary.

014RX046

If the spark plug electrodes and insulators are fouled with
carbon or oil, the engine will not operate efficiently.
There are number of possible causes:

f

Fuel mixture is too rich.

f

Oil in the combustion chamber.

f

The spark plug gap is not set correctly.

If spark plug fouling is excessive, check the fuel and
electrical system for possible causes of trouble. If fuel and
electrical system are normal, install spark plug of a higher
heat range which have the same physical dimensions as
the original equipment spark plug.
The following symptoms are characteristics of spark
plugs that are running too hot:

f

Fuel mixture is too lean.

f

Heat range is incorrect.

014RX047

If vehicle usage does not conform to normal driving
conditions, a more suitable spark plug may be
substituted.
If fuel and electrical system are normal, in most cases of
this sort, the problem can be corrected by using a colder
