6E1–43

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

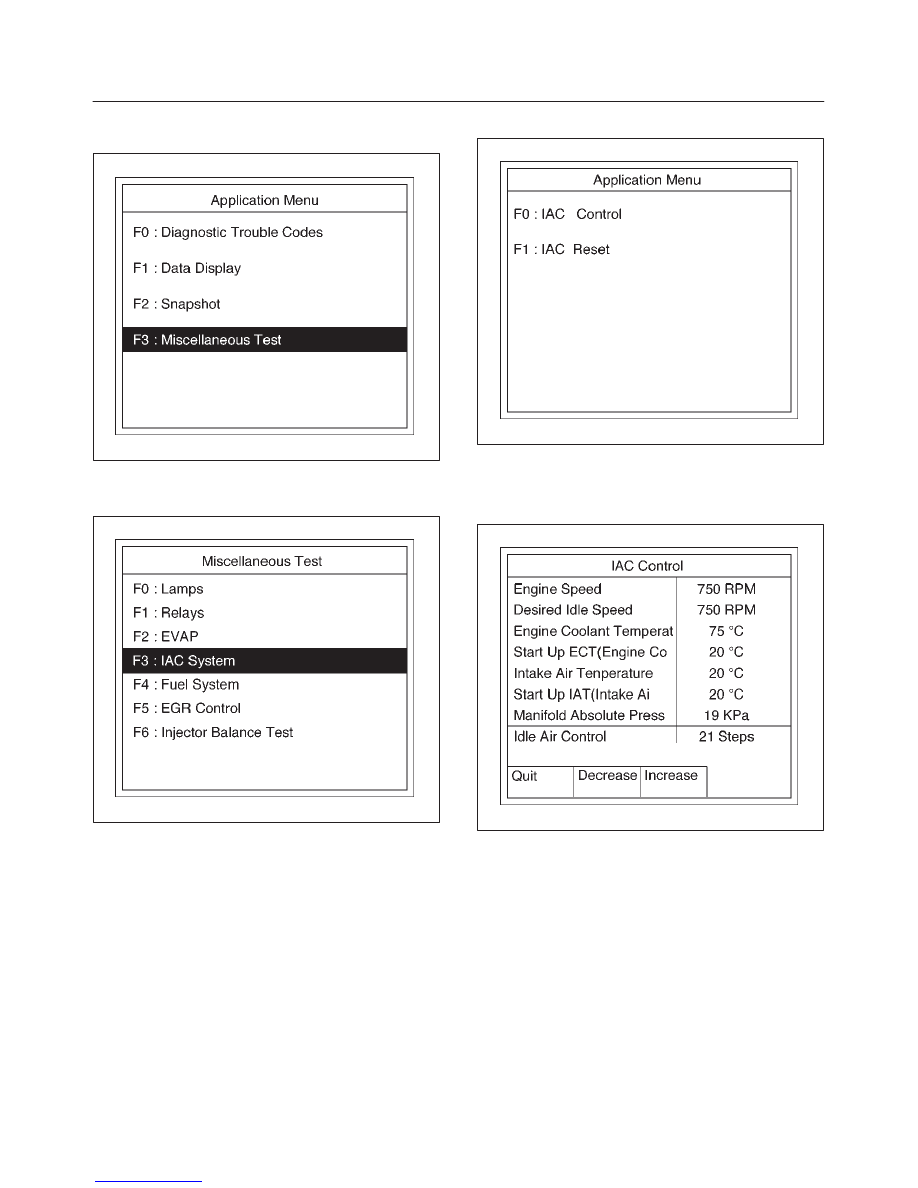

4. Select F3: IAC System Test in the Miscellaneous

Test.

060RX051

5. Select F1: IAC Control Test.

060RX052

6. Push “Increase” or “Decrease” soft key.
7. Control IAC system and check a data list.

f

F0: IAC Control

060RX015

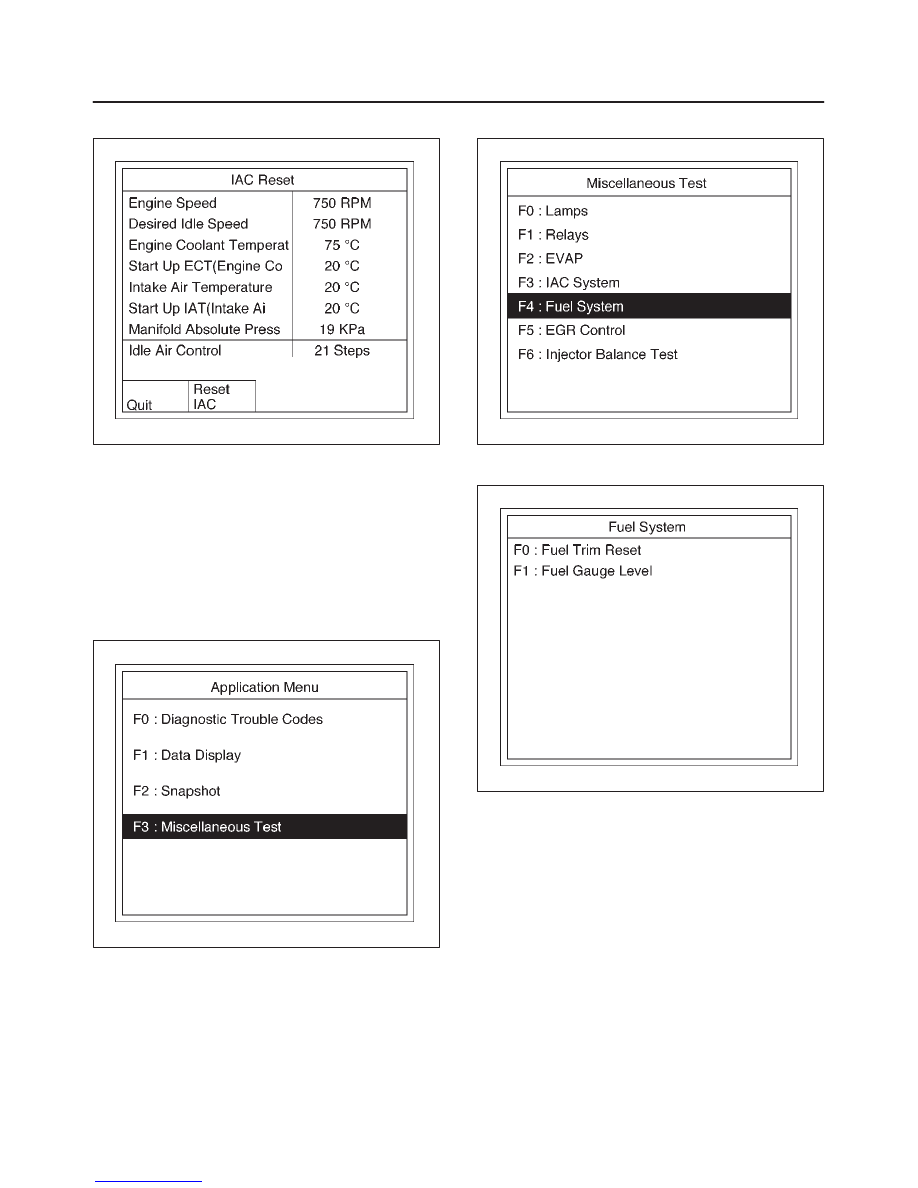

8. Select F1: IAC Reset.
9. Push “Reset IAC” soft key.

10. Control IAC Reset and check data list.

6E1–44

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

11. If data list changes, the IAC has been Reset.

060RW231–1

Fuel System Test

This test is conducted check Fuel Level Gauge for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Ignition SW is “On”.
3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

4. Select F4: Fuel System in the Miscellaneous Menu.

060RX053

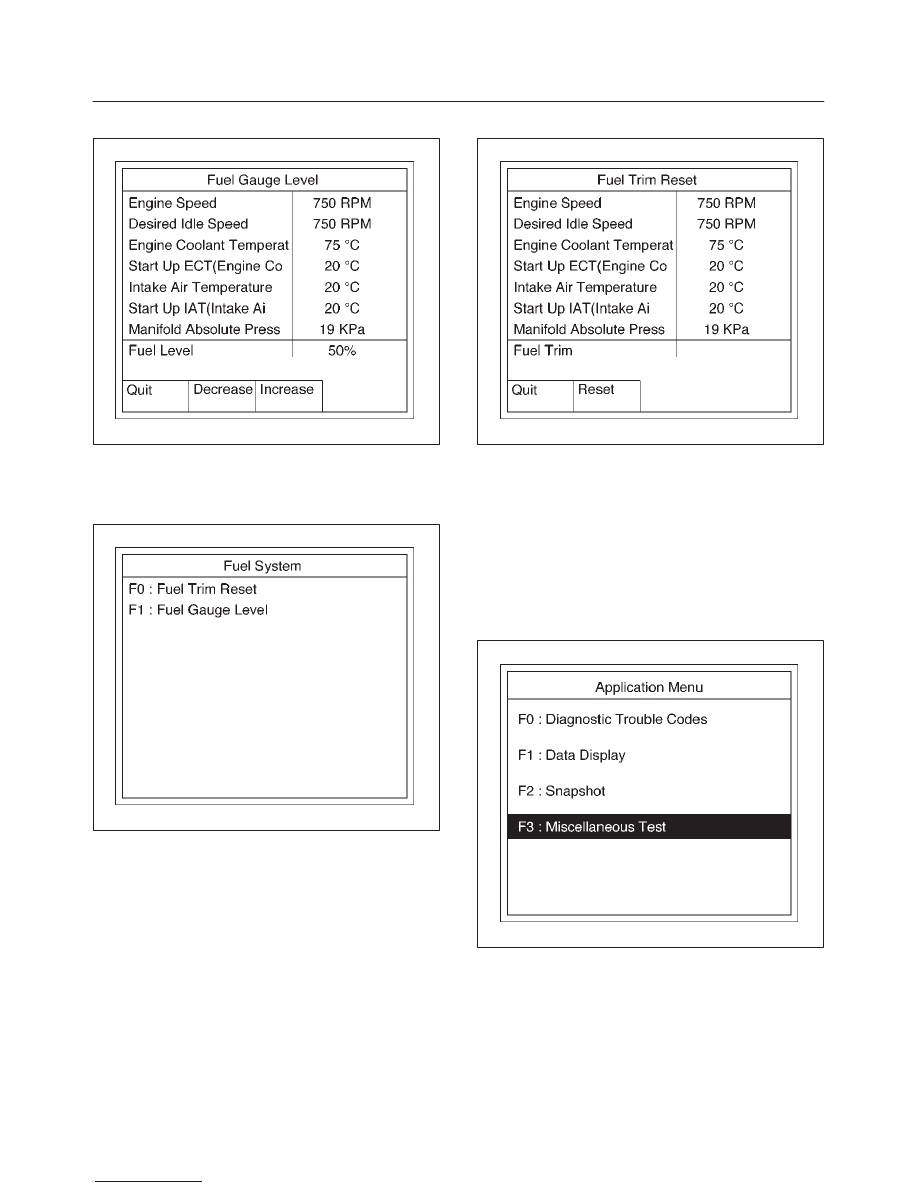

5. Select F1: Fuel Gauge Level

060RX028

6E1–45

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

6. Push “Decrease” or “Increase” of soft key.

060RX030

7. Control Fuel Level and check data list.
8. If data list changes, the Fuel Gauge Level is normal.
9. Select F0: Fuel Trim Reset.

060RX028

10. Push “Reset” of soft key.

060RX029

EGR Control Test

This test is conducted check EGR valve for proper
operation.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.
3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

6E1–46

RODEO X22SE 2.2L ENGINE DRIVEABILITY AND EMISSION

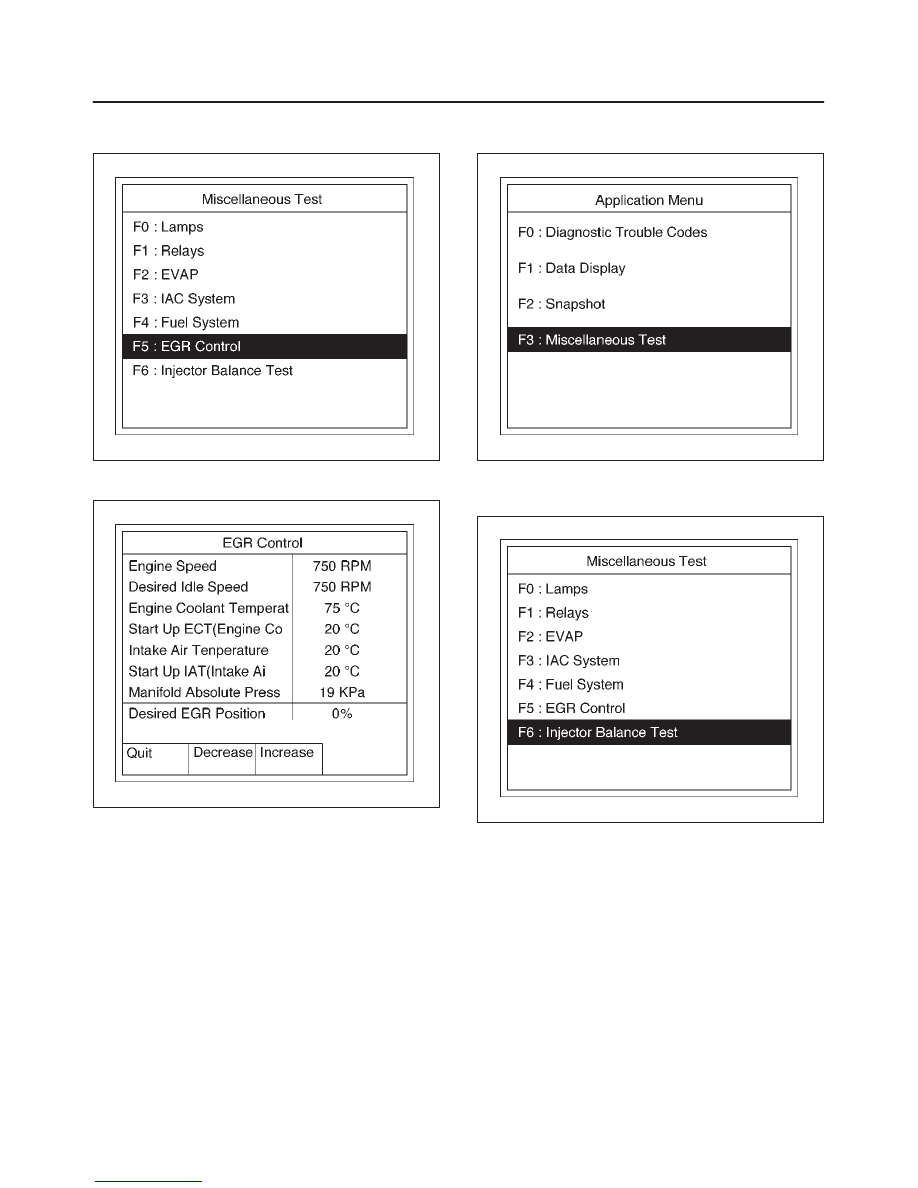

4. Select F5: EGR Control Test in the Miscellaneous

Test.

060RX054

5. Control EGR Valve and check data list.

060RX017

6. If the change, the EGR Control is normal.

Injector Balance Test

This test is conducted to make sure the appropriate
electric signals are being sent to injectors Nos. 1–6.
Tech 2 must be used for this test.
Test Procedure:

1. Connect Tech 2 to the vehicle DLC.
2. Run the Engine at idle.

3. Select F3: Miscellaneous Test in the Application

Menu.

060RW228

4. Select F6: Injector Balance Test in the Miscellaneous

Test.

060RX055
