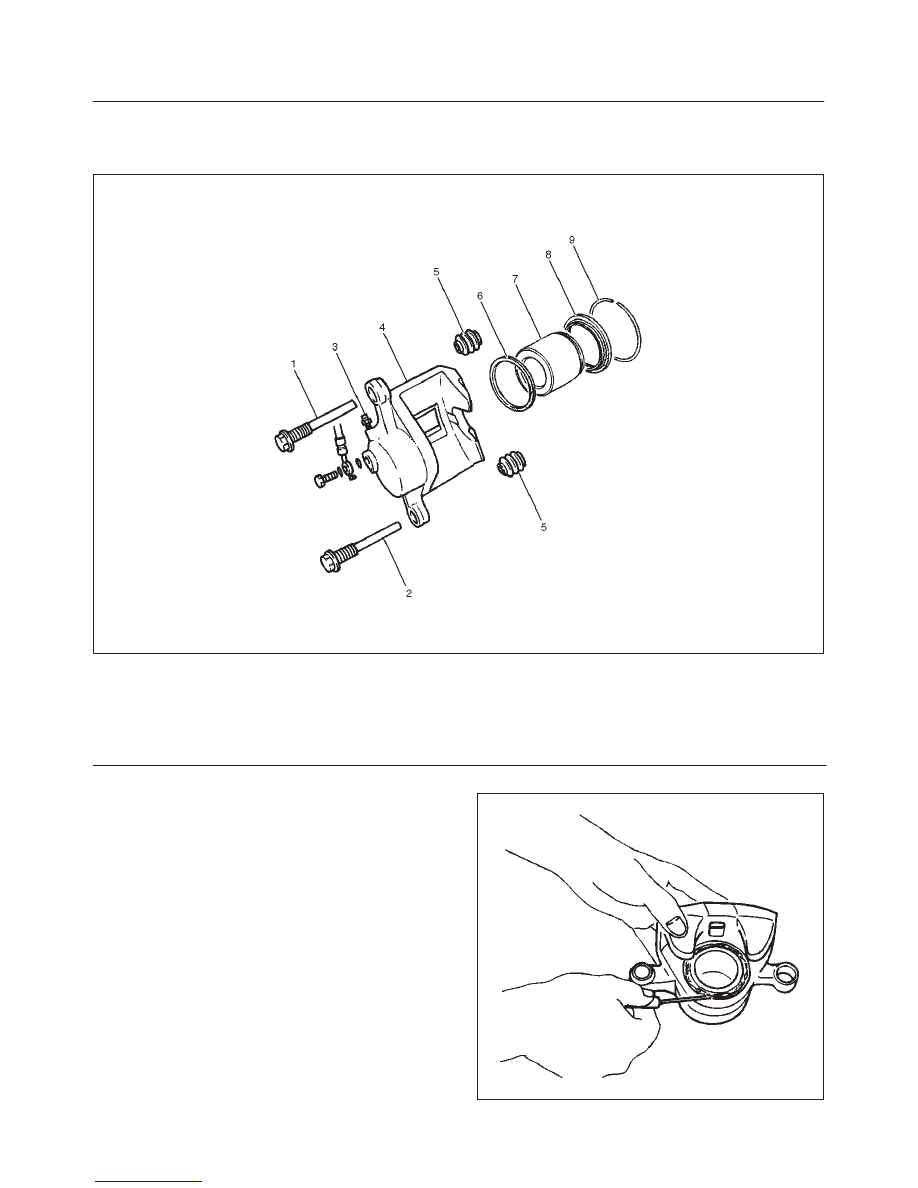

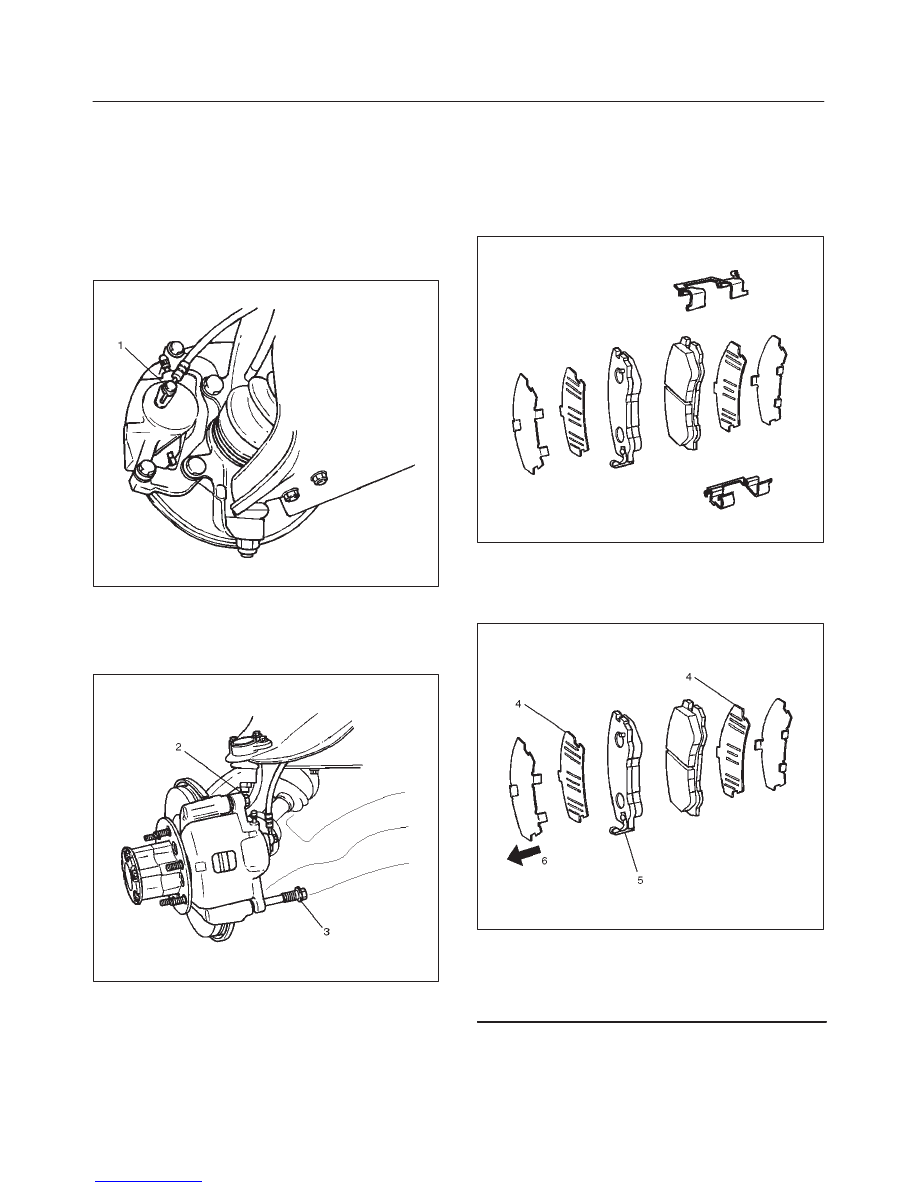

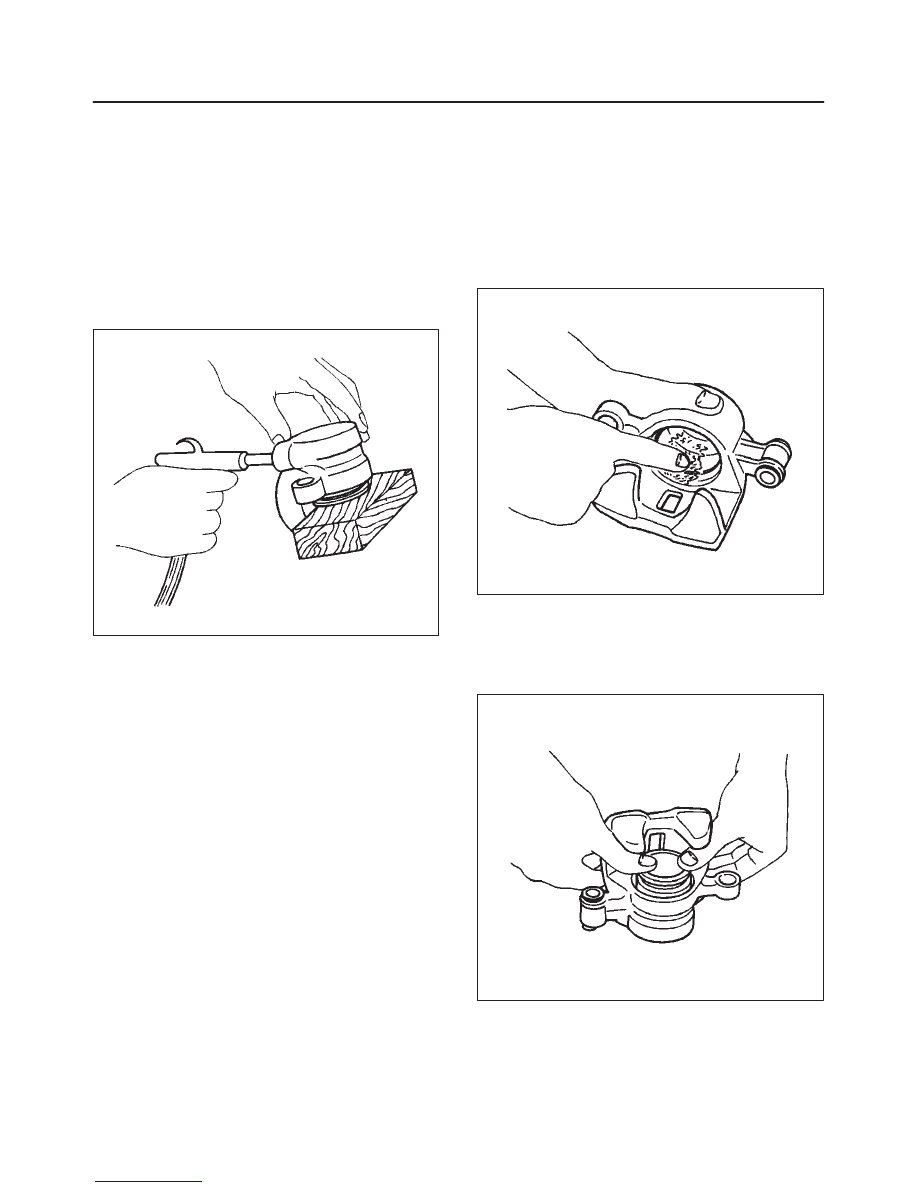

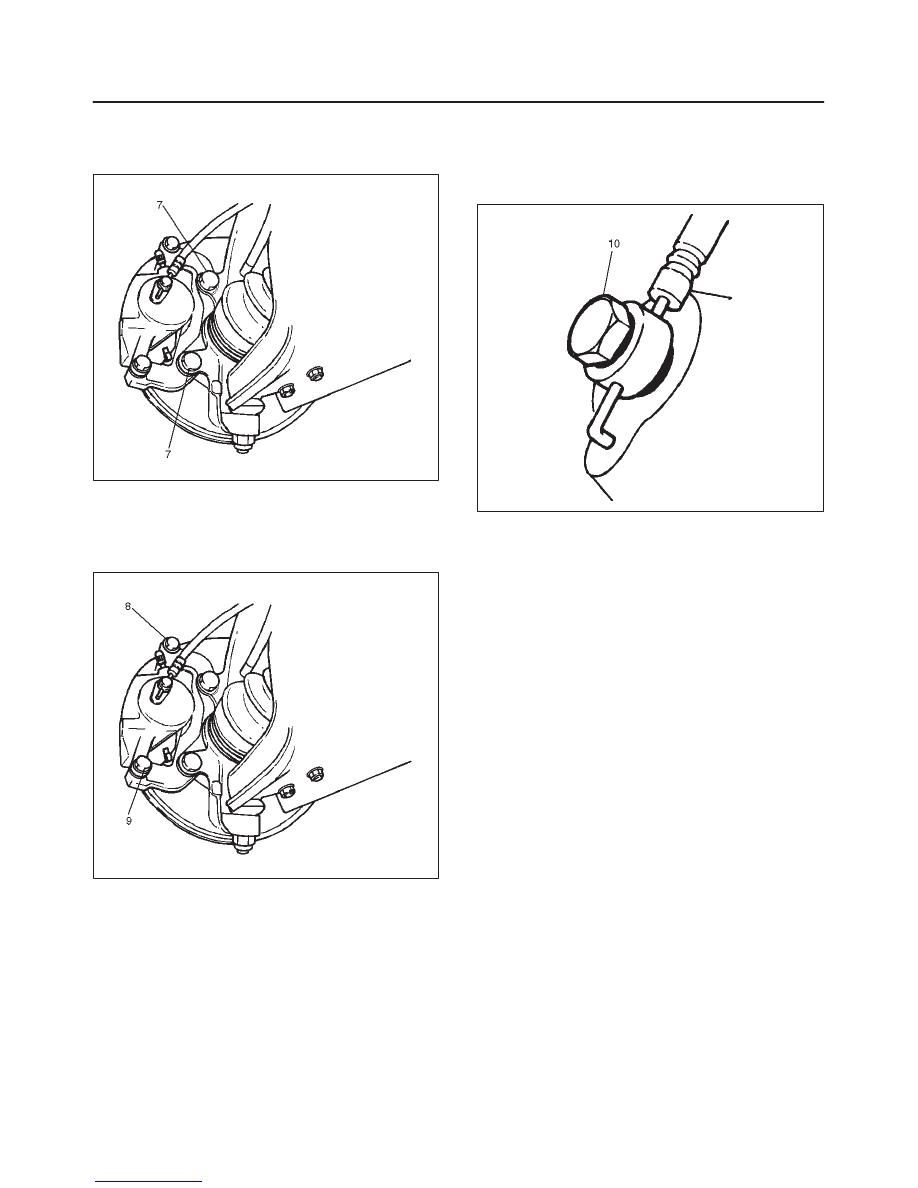

5C–37 POWER–ASSISTED BRAKE SYSTEM Removal 1. Raise the vehicle and support with suitable safety stands. 2. Concernig wheel and tire assembly, refer to “Wheels and Tires System” in Section 3E. 3. Remove the bolt and gaskets, then disconnect the flexible hose from the caliper and after disconnecting 302RW009 4. Since the brake fluid flows out from the connecting coupler, place a drain pan under the vehicle. 5. Remove guide bolt (2). 302RW010 7. Remove caliper assembly. care not to damage the flexible brake hose when 9. Remove pad assembly with shim and mark the lining locations if they are to be reinstalled. 10. Remove clip. Installation 1. Install clip. 302RS005 2. Apply special grease (approximately 0.2 g) to both contacting surfaces of the inner shims (4). Wipe off 302RW011 Legend (4) Inner Shim |
