5B–2

ANTI–LOCK BRAKE SYSTEM

Electronic Hydraulic Control Unit

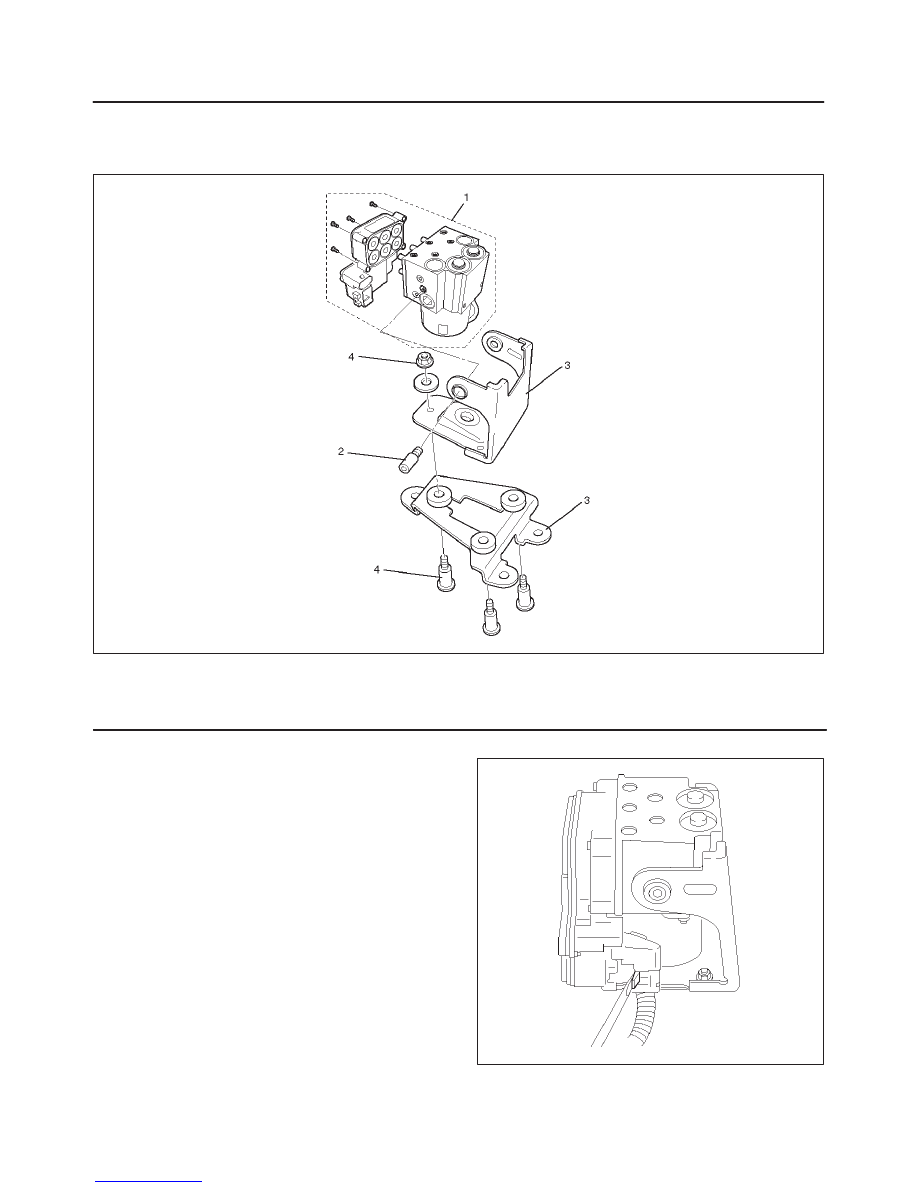

Electronic Hydraulic Control Unit and Associated Parts

350RW017

Legend

(1) EHCU
(2) Bolt

(3) Bracket
(4) Bolt and Nut

Removal

1. Remove brake pipes.

f

After disconnecting brake pipe, cap or tape the
openings of the brake pipe to prevent the entry of
foreign matter.

2. Remove three bracke fixing bolts.
3. Disconnect red clip from harness connector.

350RW018

5B–3

ANTI–LOCK BRAKE SYSTEM

4. Remove harness connector.
5. Remove EHCU ASM.
6. Remove EHCU.

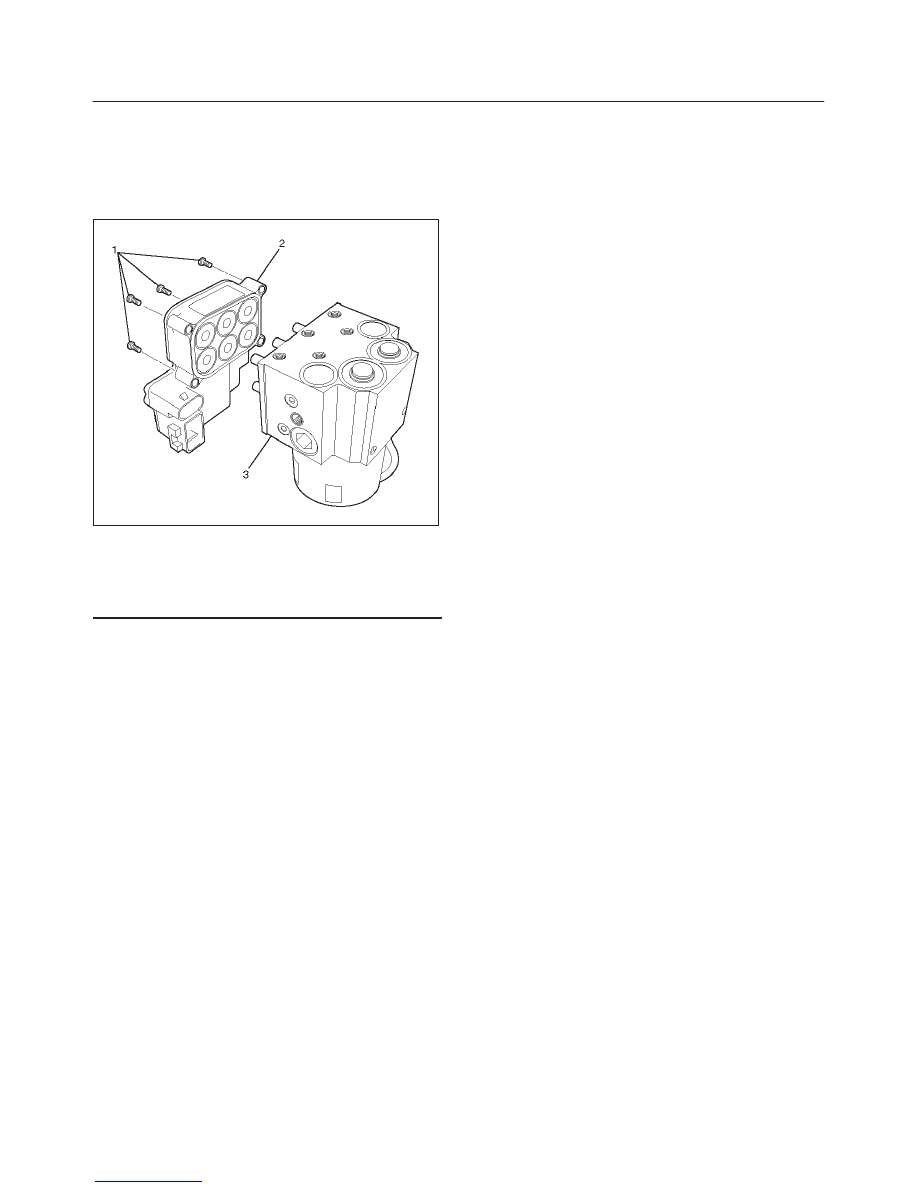

Disassembled View

350RW025

Legend

(1) Fixing Bolts
(2) Coil Integrated Module
(3) Hydraulic Unit (H/U)

Disassembly

1. Remove fixing bolts from EHCU.
2. Remove coil integrated module from hydraulic unit.

Reassembly

To reassembly, follow the disassembly steps in the
reverse order, noting the following points:

Torque:
Fixing bolts: 4.4 N·m (39 lb in)

Installation

To install, follow the removal steps in the reverse order,
noting the following points:

Torque:
Hydraulic unit fixing nuts : 22 N·m (16 lb ft)
Ground cable : 14 N·m (10 lb ft)
Brake pipe (joint bolts) : 16 N·m (12 lb ft)

f

After installing the hydraulic unit, bleed brakes
completely.  See Section 5A “Hydraulic Brakes”.

5B–4

ANTI–LOCK BRAKE SYSTEM

Front Wheel Speed Sensor

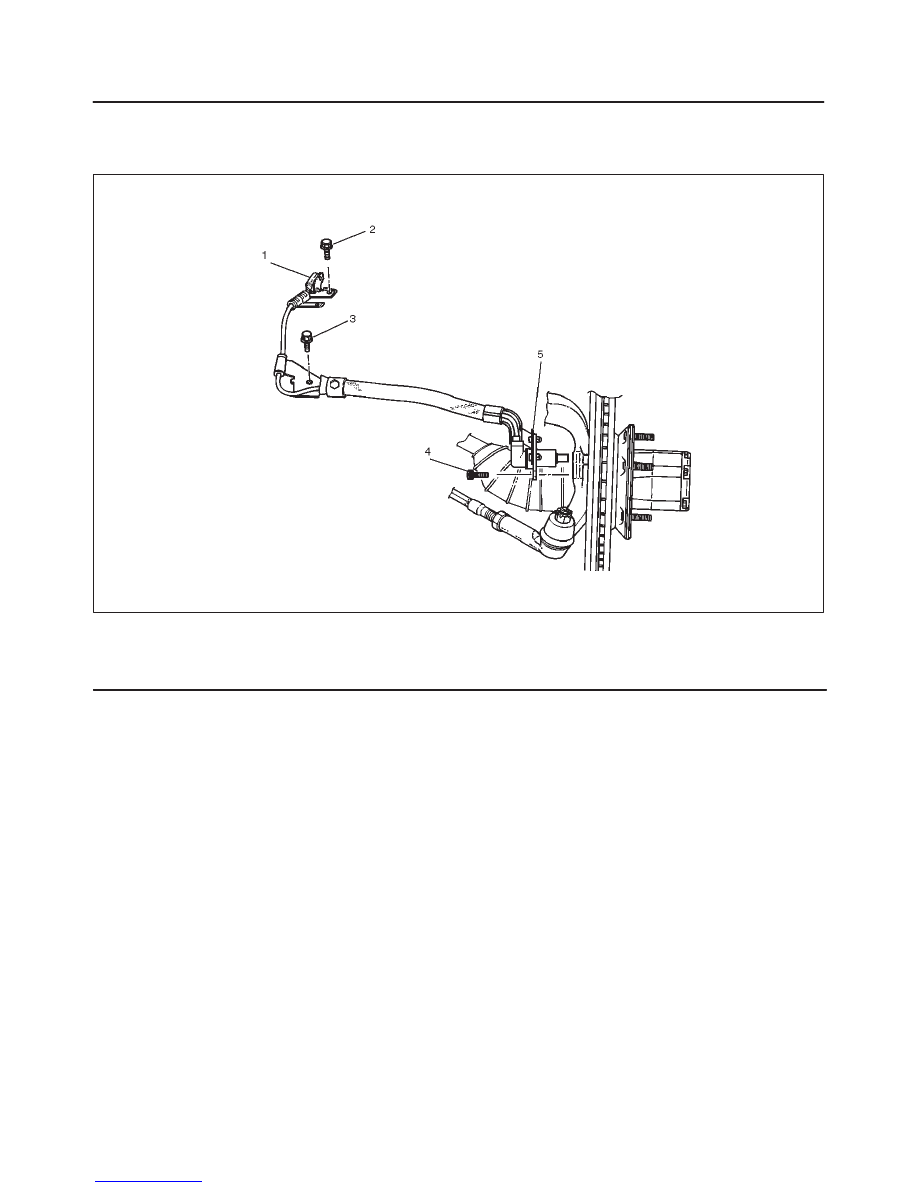

Front Wheel Speed Sensor and Associated Parts

350RS033

Legend

(1) Speed Sensor Connector
(2) Sensor Cable Fixing Bolt (Upper side)

(3) Sensor Cable Fixing Bolt (Lower side)
(4) Sensor Cable Fixing Bolt (Sensor side)
(5) Speed Sensor

Removal

1. Remove speed sensor connector.
2. Remove sensor cable fixing bolt (Upper side).
3. Remove sensor cable fixing bolt (Lower side).
4. Remove the speed sensor cable fixing bolt.
5. Remove speed sensor.

Inspection and Repair

1. Check the speed sensor pole piece for presence of

foreign materials; remove any dirt, etc.

2. Check the pole piece for damage; replace speed

sensor if necessary.

3. Check the speed sensor cable for short or open

circuit, and replace with a new one if necessary.
To check for cable short or open, bend or stretch the
cable while checking for continuity.

4. Check the sensor ring for damage including tooth

chipping, and if damaged, replace the sensor ring
assembly.  Refer to removal of the sensor ring in
Section 4D “Front hub and disc”.

Installation

1. Install speed sensor and take care not to hit the speed

sensor pole piece during installation.

2. Install speed sensor fixing bolt and tighten the fixing

bolt to the specified torque.

Torque: 11 N·m (95 lb in)

3. Install speed sensor cable fixing bolt (Lower side) and

tighten the fixing bolt to the specified torque.

Torque : 24 N·m (18 lb ft)

4. Install speed sensor cable fixing bolt (Upper side) and

tighten the fixing bolt to the specified torque.

Torque : 6 N·m (52 lb ft)

NOTE: Confirm that a white line marked on the cable is
not twisted when connecting the speed sensor cable.

5. Install speed sensor connector.

5B–5

ANTI–LOCK BRAKE SYSTEM

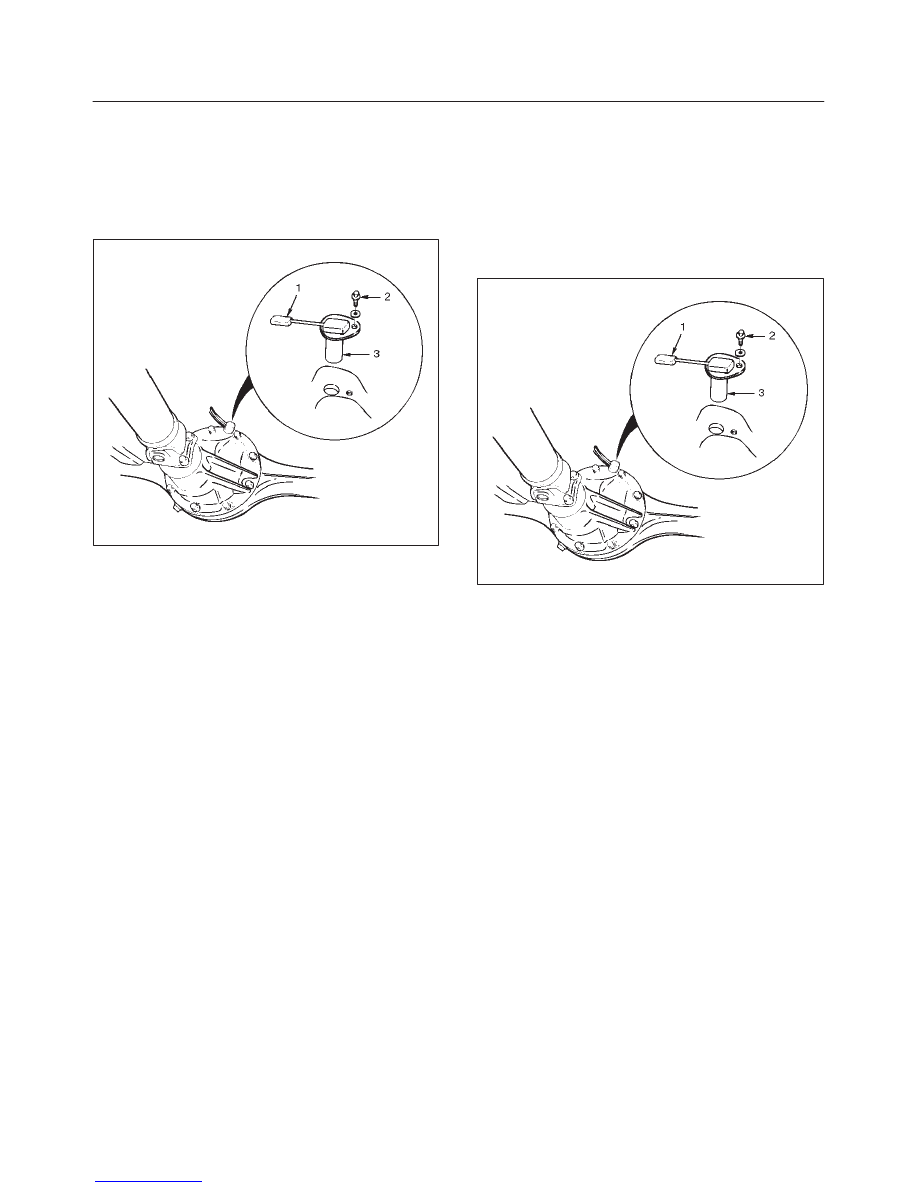

Rear Wheel Speed Sensor

Removal

1. Disconnect harness connector (1).
2. Remove sensor fixing bolt (2) .
3. Remove speed sensor (3).

350RW022

Inspection and Repair

1. Check speed sensor pole piece for presence of

foreign materials; remove any dirt, etc.

2. Check the pole piece for damage, and replace speed

sensor if necessary.

3. Check speed sensor cable for short or open, and

replace with a new one if necessary.  To check for
cable short or open, bend or stretch the cable while
checking for continuity.

4. Check the sensor ring for damage including tooth

chipping, and if damaged, replace the axle shaft
assembly.  Refer to removal of the sensor ring in
Section 4A2 “Differential (Rear)”.

Installation

1. Install speed sensor (3).
2. Tighten the sensor fixing bolt (2) to the specified

torque.

Torque : 11 N·m (95 lb in)

3. Connect harness connector (1).

350RW022
