4A1–23

DIFFERENTIAL (FRONT)

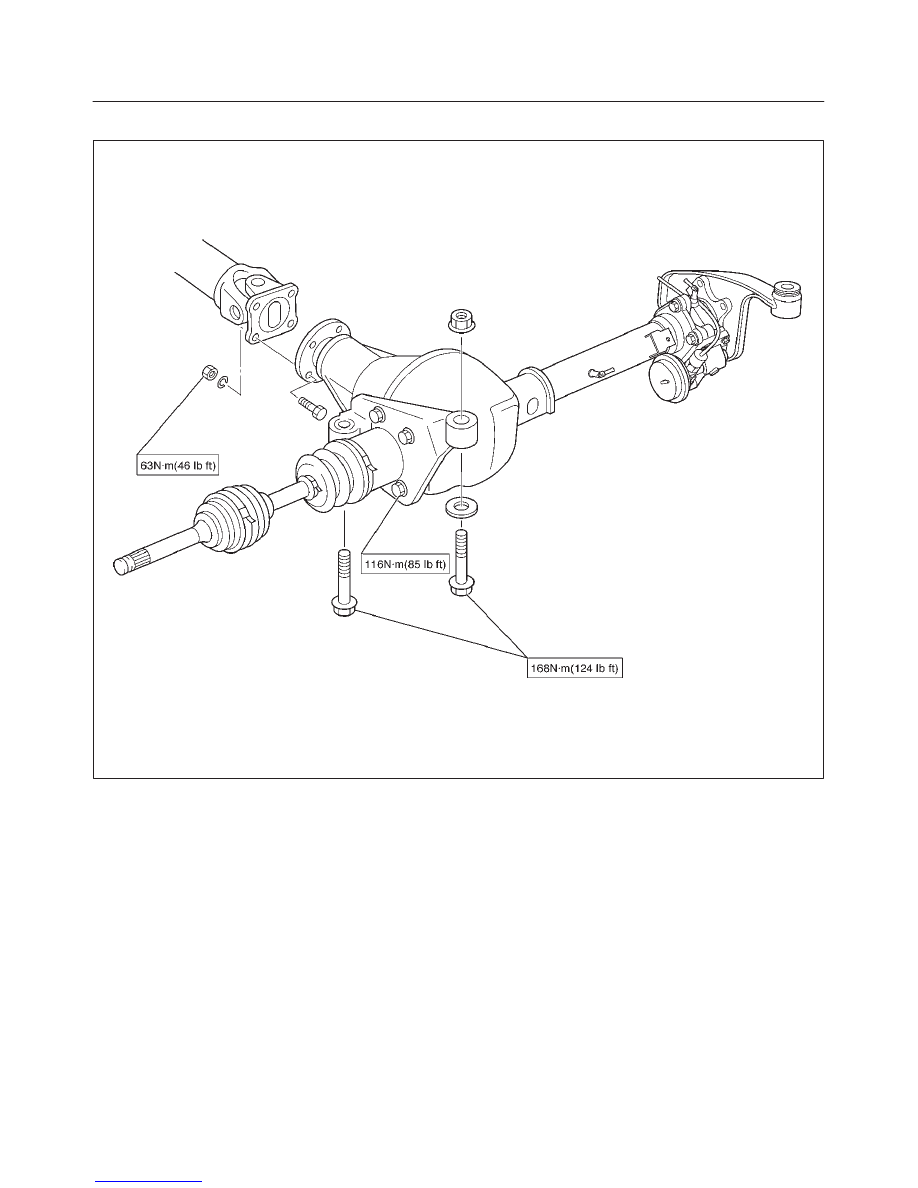

Torque Specifications

E04RX001

DIFFERENTIAL (FRONT)

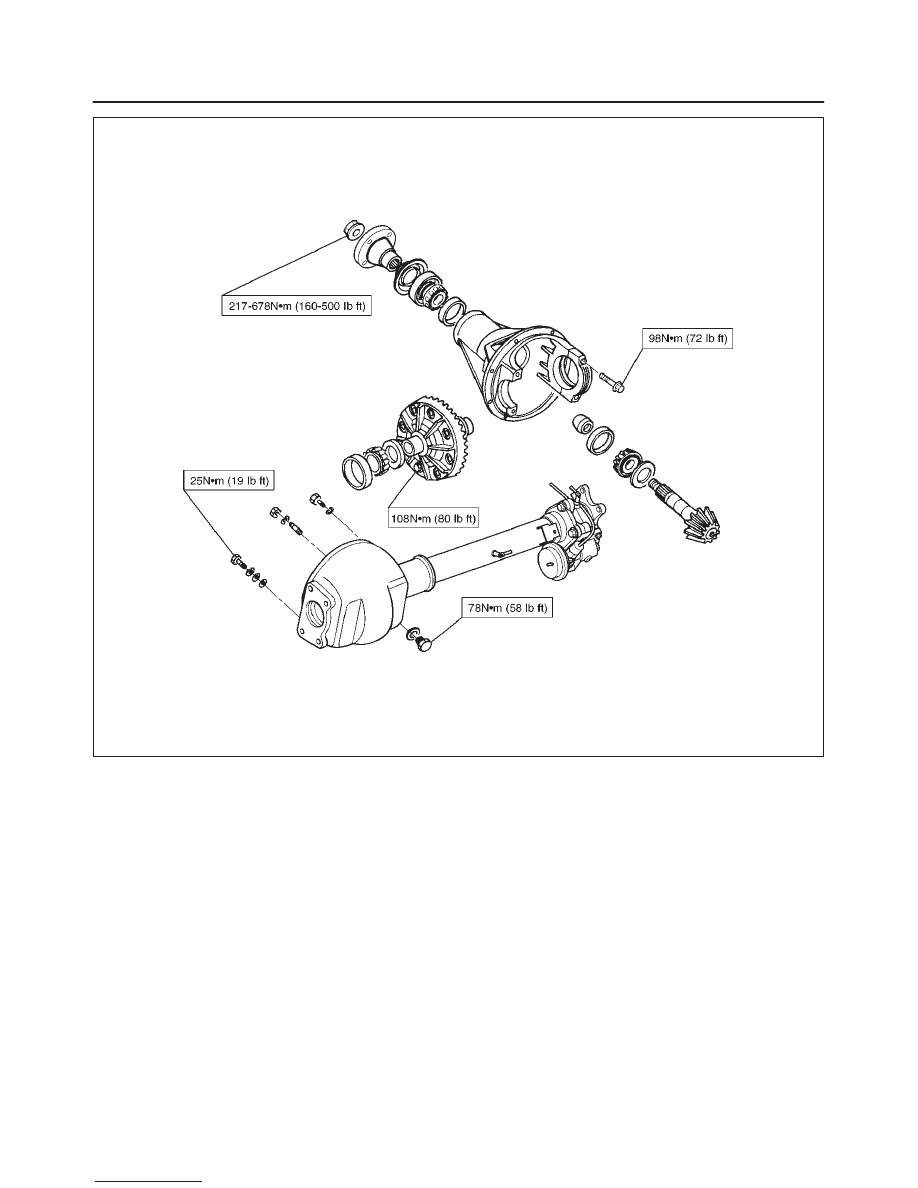

4A1–24

E04RW009

4A1–25

DIFFERENTIAL (FRONT)

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–8614–01

Holder; Pinion flange

J–24250

Installer; Oil seal

J–37264

Differential holding

fixture

(Use with J–3289–20

base)

J–3289–20

Holding fixture base

J–42379

Remover; Side/Pinion

bearing

J–8107–2

Adapter; Side bearing

plug

ILLUSTRATION

TOOL NO.

TOOL NAME

J–7817

Installer; Outer bearing

outer race

J–7818

Installer; Inner bearing

outer race

J–8092

Driver handle

J–21777–42

Pilot

J–21777–43

Nut and stud

J–42479–1

Gauge plate

DIFFERENTIAL (FRONT)

4A1–26

ILLUSTRATION

TOOL NO.

TOOL NAME

J–8001

Dial indicator

J–23597–8

Disc

J–23597–1

Arbor

J–6133–01

Installer; Pinion bearing

J–24244

Installer; Side bearing

J–39602

Remover; Outer bearing

ILLUSTRATION

TOOL NO.

TOOL NAME

J–42479–2

Pilot
