FRONT SUSPENSION

3C–23

Main Data and Specifications

General Specifications

Front suspension

Type

Independent wishbone arms, torsion bar spring

with stabilizer bar.

Torsion bar spring

Length

1142 mm (45.0 in)

Diameter

28.0 mm (1.10 in)

Front shock absorber

Type

Hydraulic, double acting, telescopic

Piston diameter

30.0 mm (1.18 in)

Stroke

125.0 mm (4.92 in)

Compressed length

255.0 mm (10.04 in)

Extended length

380.0 mm (14.96 in)

Stabilizer bar

Diameter

24.0 mm (0.94 in)

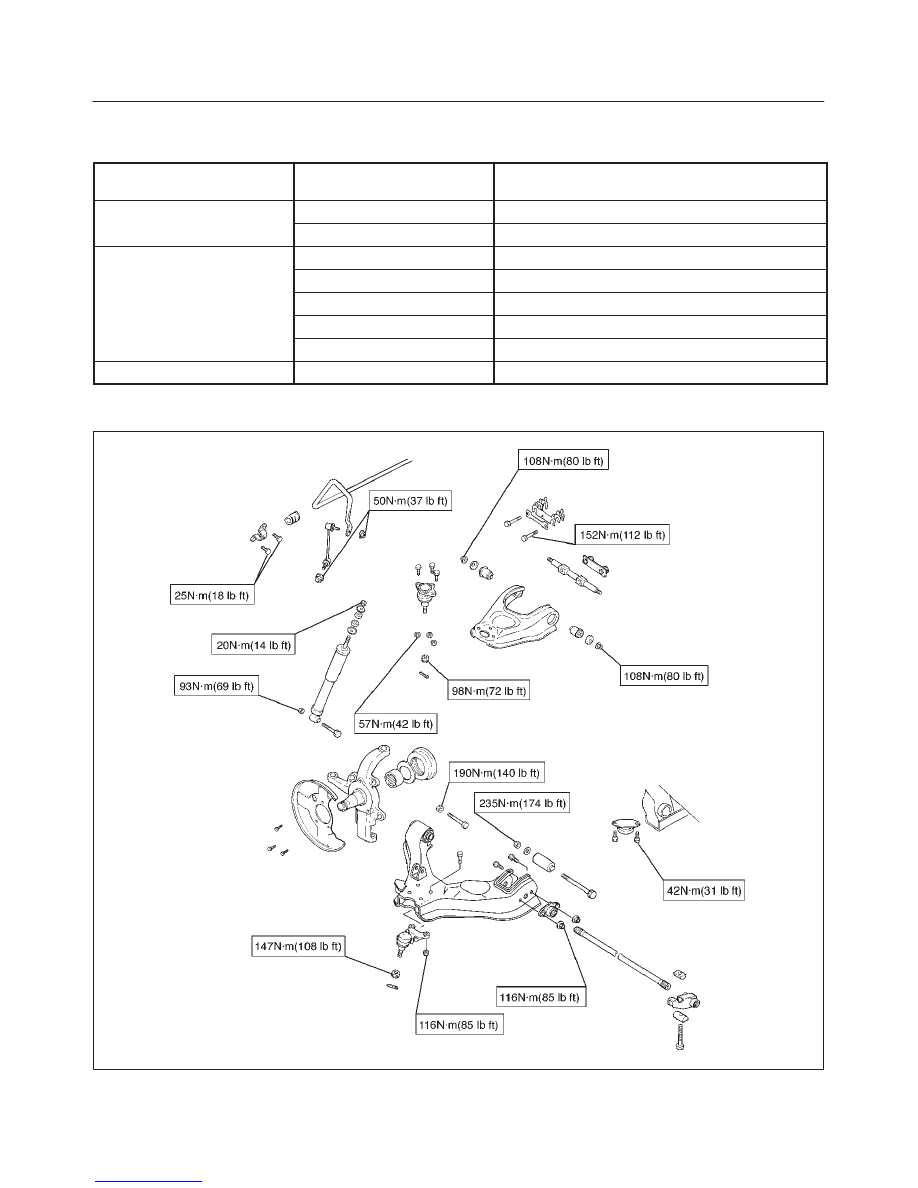

Torque Specifications

E03RX001

3C–24

FRONT SUSPENSION

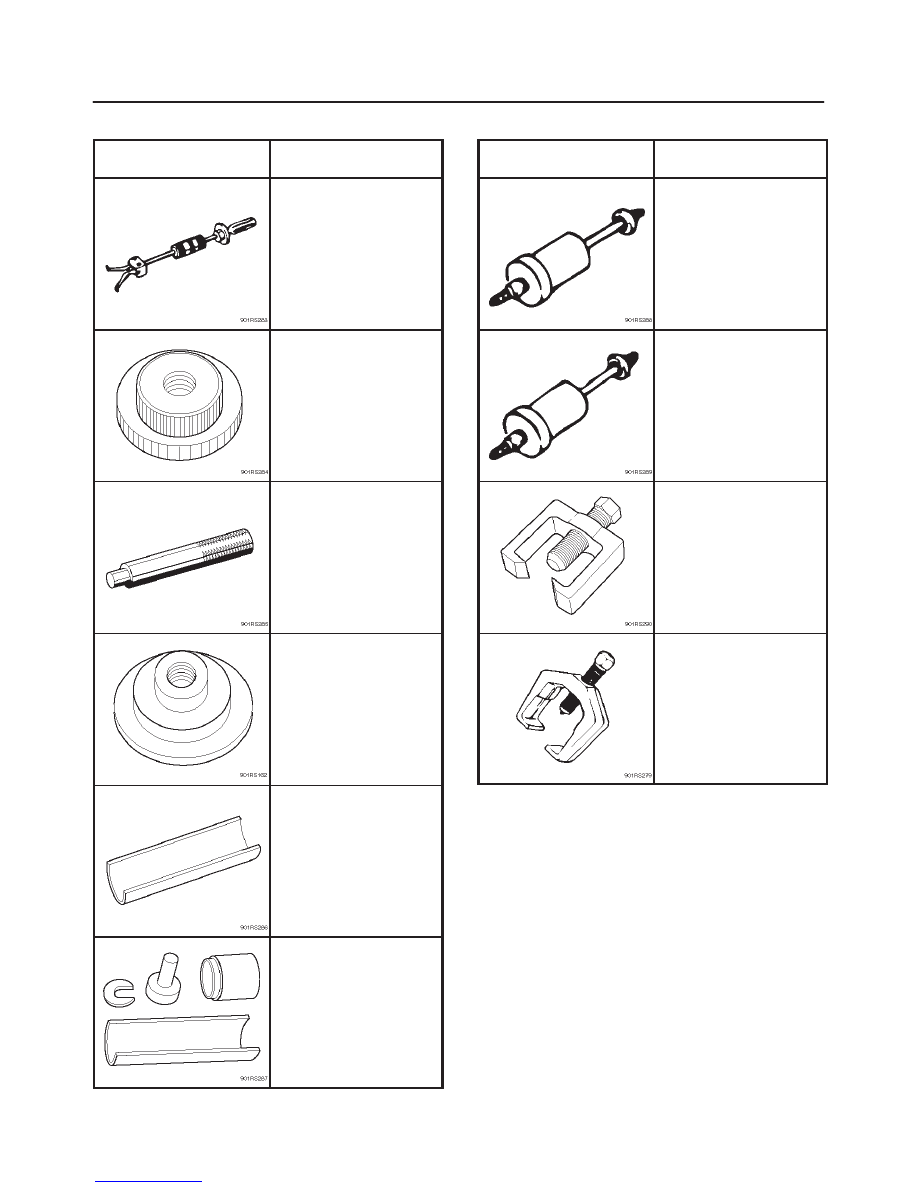

Special Tools

ILLUSTRATION

TOOL NO.

TOOL NAME

J–23907

Remover;Needle

bearing

J–36838

Installer; Needle bearing

J–8092

Grip

J–36837

Installer; Oil seal

J–39376

Installer; Upper arm

bushing

J–29775

Remover and Installer

Upper arm bushing

ILLUSTRATION

TOOL NO.

TOOL NAME

J–36833

Remover and Installer

kit;

Lower arm front bushing

J–36834

Remover and Installer

kit;

Lower arm rear bushing

J–36831

Ball joint remover

J–29107

Tie-rod end remover

REAR SUSPENSION

3D–1

RODEO

SUSPENSION

REAR SUSPENSION

CONTENTS

Service Precaution

3D–1

. . . . . . . . . . . . . . . . . . . . . .

General Description

3D–1

. . . . . . . . . . . . . . . . . . . . .

Diagnosis

3D–2

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Coil Spring

3D–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Coil Spring and Associated Parts

3D–5

. . . . . . . .

Removal

3D–5

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

3D–6

. . . . . . . . . . . . . . . . . .

Installation

3D–6

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Shock Absorber

3D–7

. . . . . . . . . . . . . . . . . . . . . . . . .

Shock Absorber and Associated Parts

3D–7

. . . .

Removal

3D–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

3D–7

. . . . . . . . . . . . . . . . . .

Installation

3D–7

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trailing Link

3D–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Trailing Link and Associated Parts

3D–8

. . . . . . .

Removal

3D–8

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

3D–8

. . . . . . . . . . . . . . . . . .

Installation

3D–9

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Upper Link

3D–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Upper Link and Associated Parts

3D–10

. . . . . . . .

Removal

3D–10

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

3D–10

. . . . . . . . . . . . . . . . . .

Installation

3D–11

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lateral Rod

3D–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Lateral Rod and Associated Parts

3D–12

. . . . . . .

Removal

3D–12

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

3D–12

. . . . . . . . . . . . . . . . . .

Installation

3D–13

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Stabilizer Bar

3D–14

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Stabilizer Bar and Associated Parts

3D–14

. . . . . .

Removal

3D–14

. . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Inspection and Repair

3D–14

. . . . . . . . . . . . . . . . . .

Installation

3D–15

. . . . . . . . . . . . . . . . . . . . . . . . . . . .

Main Data and Specifications

3D–16

. . . . . . . . . . . . .

Special Tools

3D–18

. . . . . . . . . . . . . . . . . . . . . . . . . . .

Service Precaution

WARNING: THIS VEHICLE HAS A SUPPLEMENTAL
RESTRAINT SYSTEM (SRS).  REFER TO THE SRS
COMPONENT AND WIRING LOCATION VIEW IN
ORDER TO DETERMINE WHETHER YOU ARE
PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING.  WHEN YOU
ARE PERFORMING SERVICE ON OR NEAR THE SRS
COMPONENTS OR THE SRS WIRING, REFER TO
THE SRS SERVICE INFORMATION.  FAILURE TO
FOLLOW WARNINGS COULD RESULT IN POSSIBLE
AIR BAG DEPLOYMENT, PERSONAL INJURY, OR
OTHERWISE UNNEEDED SRS SYSTEM REPAIRS.

CAUTION: Always use the correct fastener in the
proper location.  When you replace a fastener, use
ONLY the exact part number for that application.
ISUZU will call out those fasteners that require a
replacement after removal.  ISUZU will also call out
the fasteners that require thread lockers or thread
sealant.  UNLESS OTHERWISE SPECIFIED, do not
use supplemental coatings (Paints, greases, or other
corrosion inhibitors) on threaded fasteners or
fastener joint interfaces.  Generally, such coatings
adversely affect the fastener torque and the joint
clamping force, and may damage the fastener.  When
you install fasteners, use the correct tightening
sequence and specifications.  Following these
instructions can help you avoid damage to parts and
systems.

General Description

The rear suspension is a 5-link, coil spring type
suspension with a stabilizer bar, consisting of two trailing
links, two upper links, lateral rod, shock absorber, and
stabilizer.  In this suspension, the links are specially
arranged to enable the rear axle to move freely, thereby
expanding suspension stroke, reducing friction, and
improving lateral rigidity and roll control.  All these result in
improved stability, riding comfort, and rough road
maneuverability.
Each link connects the axle housing with the frame
through a runner bushing.  The axle housing is supported
by the trailing links and upper links longitudinally and by
the lateral rod latitudinally.

3D–2

REAR SUSPENSION

Diagnosis

Condition

Possible cause

Correction

Vehicle Pulls

Mismatched or uneven tires.

Replace tire.

Tires not adequately inflated.

Adjust tire pressure.

Broken or sagging springs.

Replace spring.

Radial tire lateral force.

Replace tire.

Improper wheel alignment.

Adjust wheel alignment.

Brake dragging in one wheel.

Repair brake.

Loose, bent or broken front or rear
suspension parts.

Tighten or replace the appropriate
suspension part(s).

Faulty shock absorbers.

Replace shock absorber.

Parts in power steering valve
defective.

Replace power steering unit.

Abnormal or Excessive Tire Wear

Sagging or broken spring.

Replace spring.

Tire out of balance.

Balance or replace tire.

Improper wheel alignment.

Check front end alignment.

Faulty shock absorber.

Replace shock absorber.

Hard driving.

Replace tire.

Overloaded vehicle.

Replace tire and reduce load.

Tires not rotated periodically.

Replace or rotate tire.

Worn or loose road wheel bearings.

Replace wheel bearing.

Wobbly wheel or tires.

Replace wheel or tire.

Tires not adequately inflated.

Adjust the pressure.

Wheel Hop

Blister or bump on tire.

Replace tire.

Improper shock absorber operation.

Replace shock absorber.

Shimmy, Shake or Vibration

Tire or wheel out of balance.

Balance wheels or replace tire/or
wheel.

Loose wheel bearings.

Replace wheel bearing.

Worn steering linkage ball joints.

Replace ball joints.

Worn upper or lower end ball joints.

Replace ball joints.

Excessive wheel runout.

Repair or replace wheel and/or tire.

Blister or bump on tire.

Replace tire.

Excessive loaded radial runout of
tire/wheel assembly.

Replace tire or wheel.

Improper wheel alignment.

Check wheel alignment.

Loose or worn steering linkage.

Tighten or replace steering linkage.

Loose steering unit.

Tighten steering unit.

Tires not adequately inflated.

Adjust tire pressure.

Loose, bent or broken front or rear
suspension parts.

Tighten or replace the appropriate
suspension parts.

Faulty shock absorber.

Replace shock absorber.

Hub bearing preload misadjustment.

Adjust preload.

Parts in power steering valve
defective.

Replace power steering unit.
