2A–36 POWER–ASSISTED STEERING SYSTEM

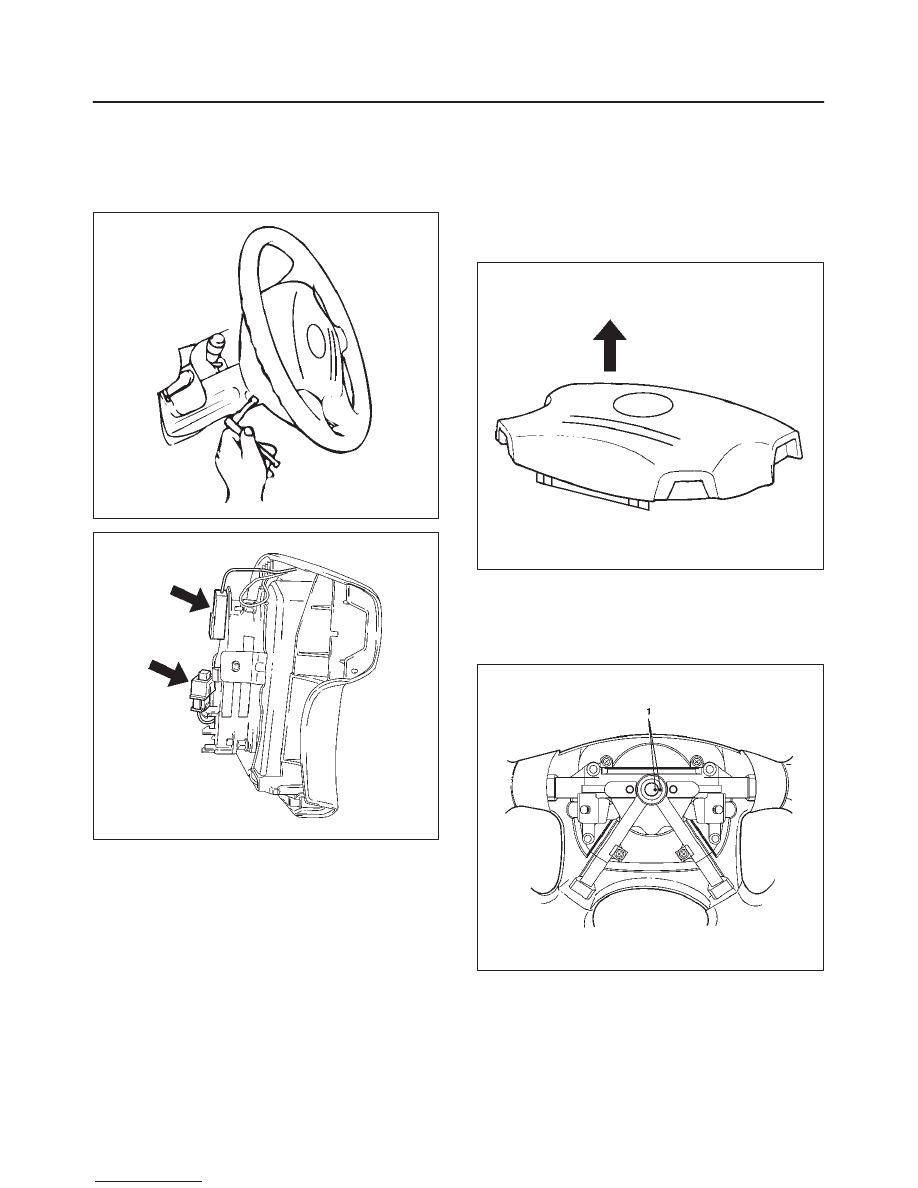

7. Loosen the inflator module fixing bolt from behind the

steering wheel assembly using a TORX



 driver or

equivalent until the inflator module can be released
from steering assembly. Disconnect the yellow 2-way
SRS connector and horn lead located behind the
inflator module, then remove inflator module.

827RW070

827RW073

WARNING: THE INFLATOR MODULE SHOULD
ALWAYS BE CARRIED WITH THE URETHANE
COVER AWAY FROM YOUR BODY AND SHOULD
ALWAYS BE LAID ON A FLAT SURFACE WITH THE
URETHANE SIDE UP.  THIS IS NECESSARY
BECAUSE A FREE SPACE IS PROVIDED TO ALLOW
THE AIR CUSHION TO EXPAND IN THE UNLIKELY
EVENT OF ACCIDENTAL DEPLOYMENT.
OTHERWISE, PERSONAL INJURY MAY RESULT.

827RW072

8. Apply a setting mark (1) across the steering wheel

and shaft so parts can be reassembled in their original
position. Move the front wheels to the straight ahead
position, then use steering wheel remover J–29752 to
remove the steering wheel.

430RW021

POWER–ASSISTED STEERING SYSTEM

2A–37

CAUTION: Never apply force to the steering wheel
in direction of the shaft by using a hammer or other
impact tools in an attempt to remove the steering
wheel.  The steering shaft is designed as an energy
absorbing unit.

430RX005

9. Remove steering column cover.

10. Disconnect the wiring harness connectors located

under the steering column then remove combination
switch and SRS coil assembly.

NOTE: The SRS coil is a part of the combination switch
assembly, which can not be replaced separately.
Therefore, be sure not to remove the SRS coil from the
combination switch assembly.

825RW288

Installation

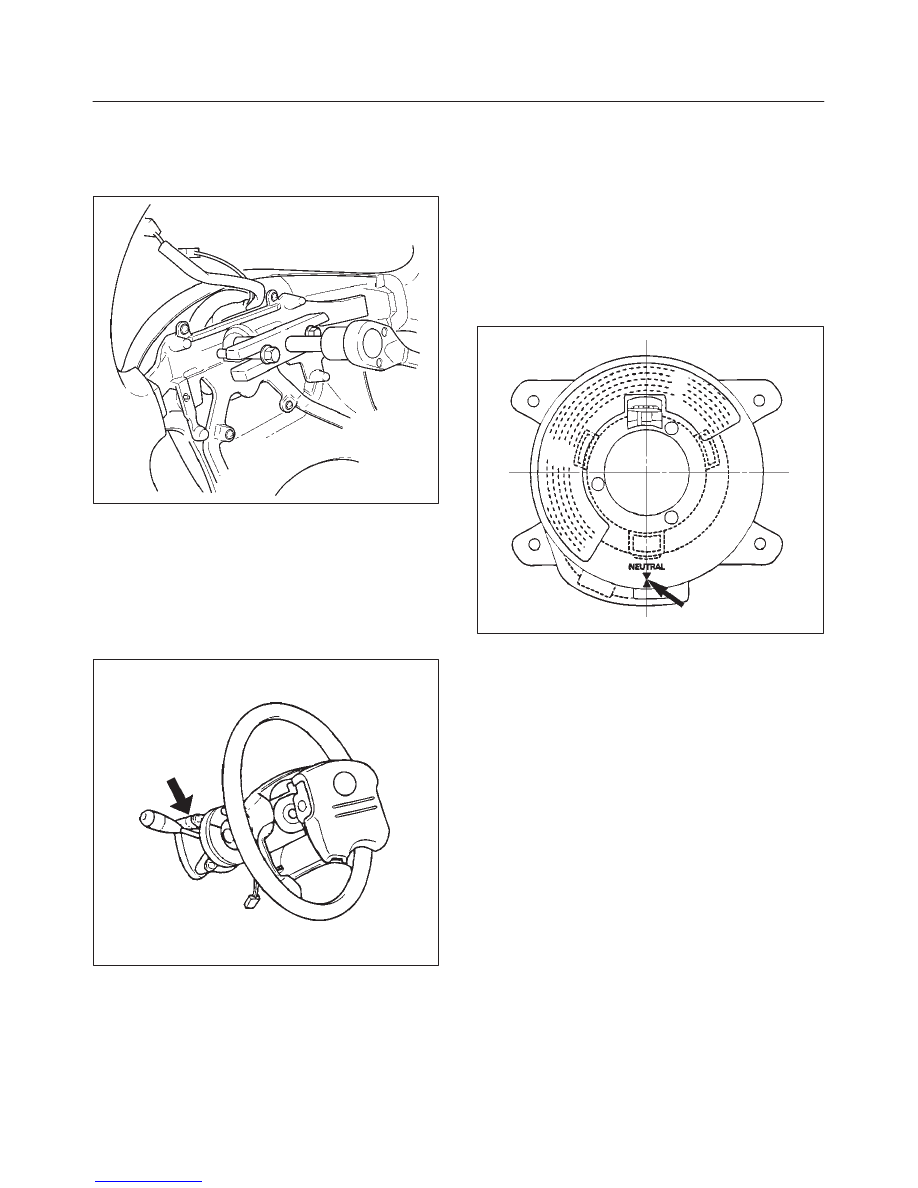

1. Install combination switch and SRS coil assembly.

After installation of combination switch assembly,
connect the combination switch wiring harness
connector and the SRS 2-way connector located
under the steering column.  Then turn the SRS coil
counter clockwise to full, return about 3 turns and
align the neutral mark.

CAUTION: When turning the SRS coil counter
clockwise to full, stop turning if resistance is felt.
Forced further turning may damage to the cable in
the SRS coil.

825RW016

2A–38 POWER–ASSISTED STEERING SYSTEM

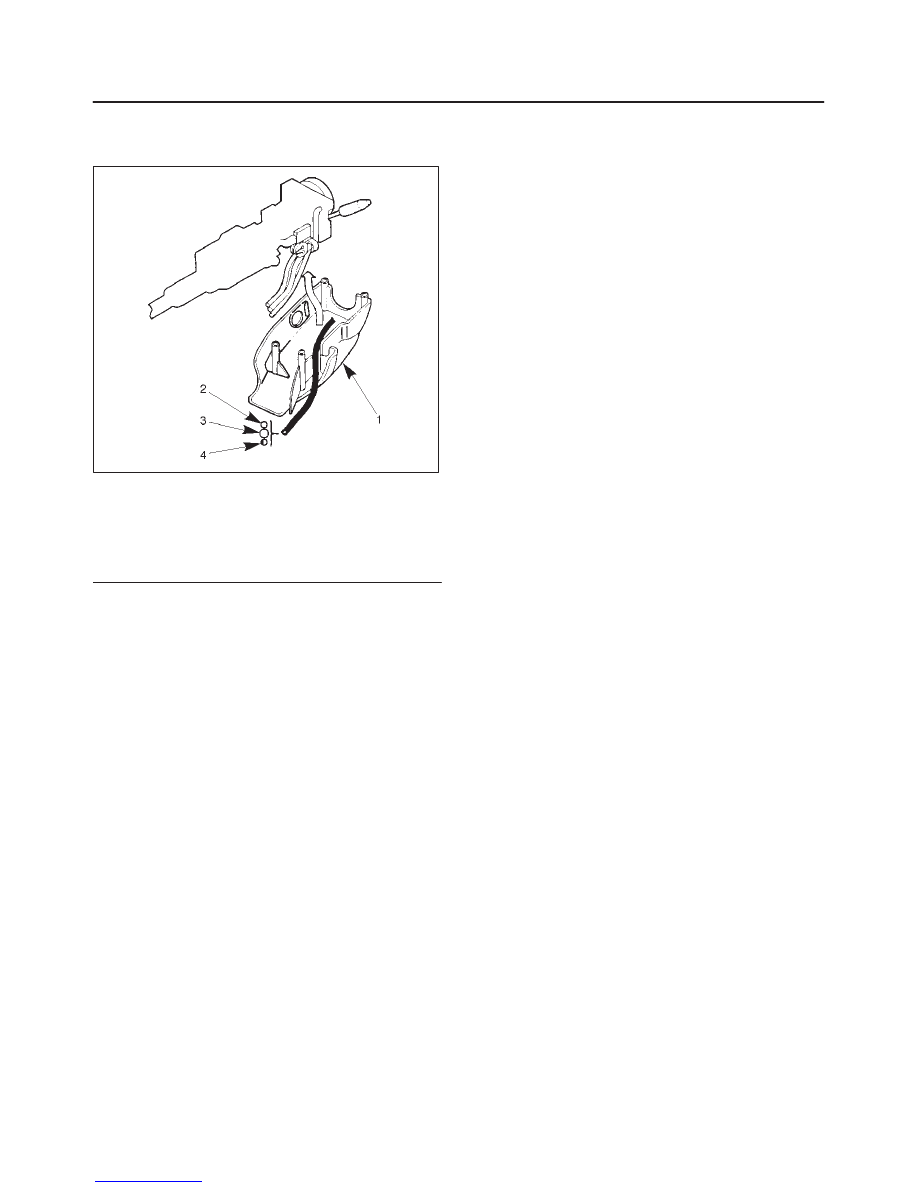

2. When installing the steering column cover, be sure to

route each wire harness as illustrated so that the
harnesses do not catch on any moving parts.

825RW017

Legend

(1) Steering Column Cover
(2) Starter Switch Harness
(3) Combination Switch Harness
(4) Inflator Module Harness

3. Align the setting marks made when removing then

install steering wheel.

CAUTION: Never apply force to the steering wheel
in direction of the shaft by using a hammer or other
impact tools in an attempt to remove the steering
wheel.  The steering shaft is designed as an energy
absorbing unit.

4. Tighten the steering wheel fixing nut to the specified

torque.

Torque: 34 N·m (25 lb ft)

5. Support the inflator module and carefully connect the

SRS connector and horn lead.

NOTE: Pass the lead wire through the tabs on the plastic
cover (wire protector) of inflator to prevent lead wire from
being pinched.

6. Tighten bolts to specified torque.

Torque: 9 N·m (78 lb in)

7. Install driver knee bolster (reinforcement).
8. Install instrument panel lower cover then Install the

engine hood opening lever.

9. Connect  the SRS connector.

10. Connect the battery “-” terminal cable.

11. Turn the ignition switch to “ON” while watching

warning light and check the light should flash 7 times
and then go off.  If lamp does not operate correctly,
refer to Restraints section.

POWER–ASSISTED STEERING SYSTEM

2A–39

Lock Cylinder

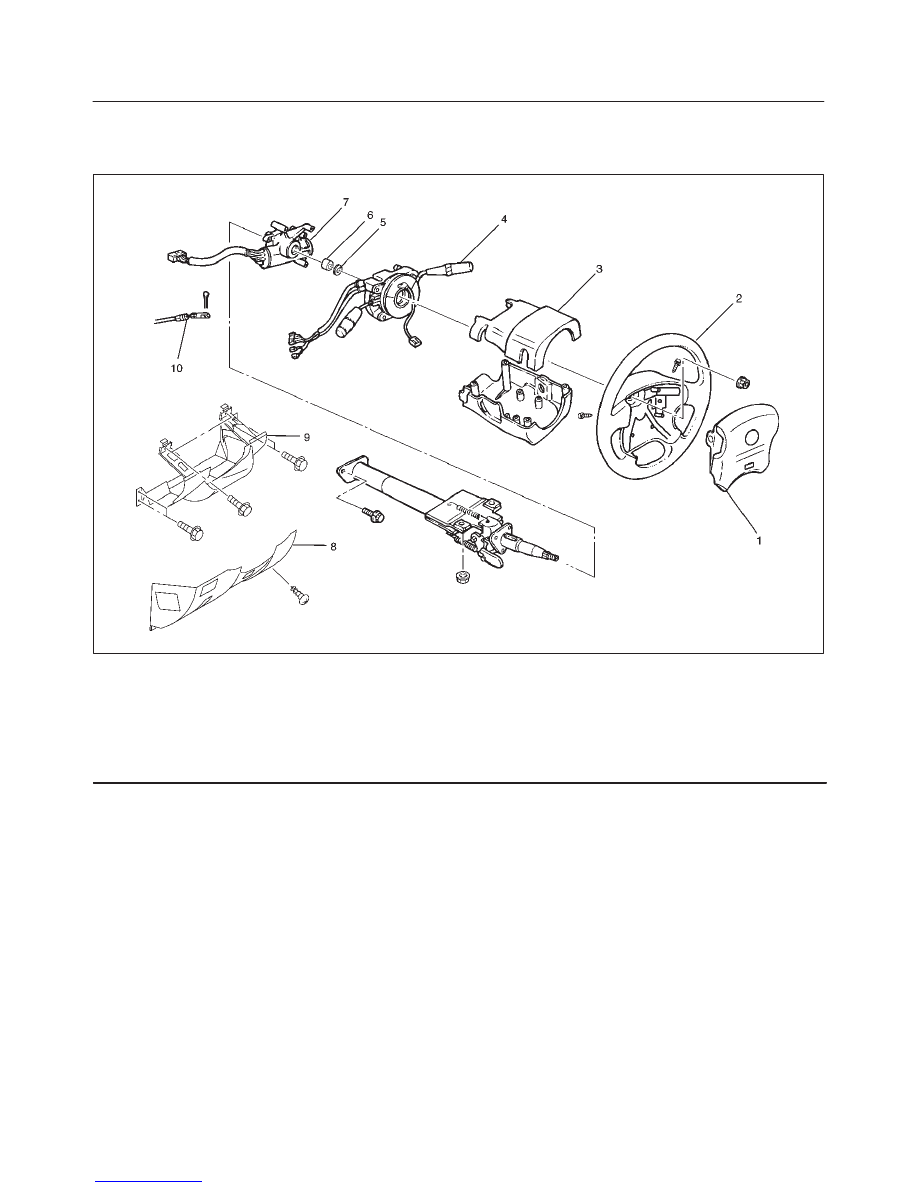

Lock Cylinder and Associated Parts

431RX005

Legend

(1) Inflator Module
(2) Steering Wheel
(3) Steering Column Cover
(4) Combination Switch and SRS Coil Assembly
(5) Snap Ring

(6) Cushion Rubber
(7) Lock Cylinder Assembly
(8) Instrument Panel Lower Cover
(9) Driver Knee Bolster (reinforcement)

(10) Shift Lock Cable (for A/T)

Removal

1. Turn the steering wheel so that the vehicle’s wheels

are pointing straight ahead.

2. Turn the ignition switch to “LOCK”.
3. Disconnect the battery “–” terminal cable, and wait at

least 5 minutes.

4. Disconnect the yellow 2-way SRS connector located

under the steering column.

CAUTION: The wheels of the vehicle must be
straight ahead and the steering column in the
”LOCK” position before disconnecting the steering
wheel.  Failure to do so will cause the coil assembly
to become uncentered which will cause damage to
the coil assembly.

5. Remove the engine hood opening lever and steering

lower cover.

6. Remove driver knee bolster (reinforcement).
