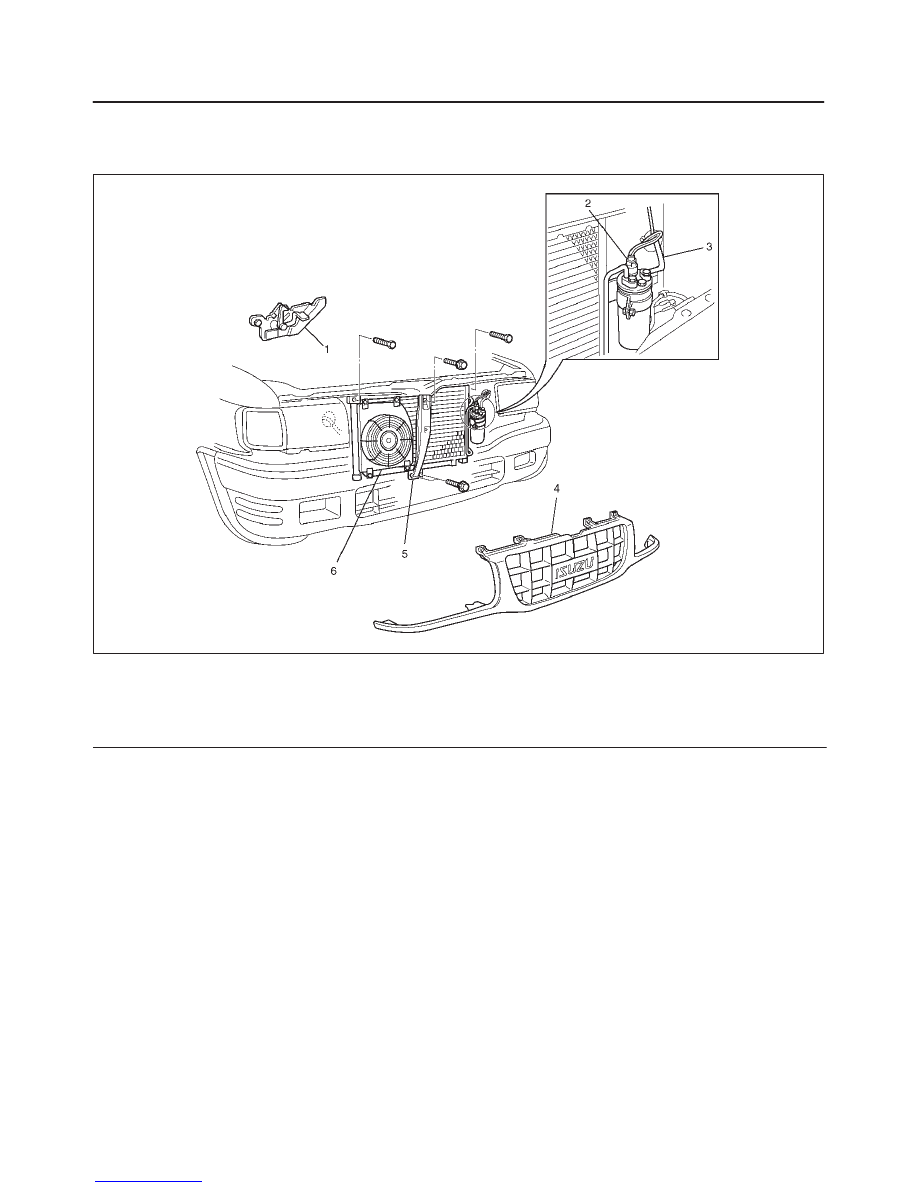

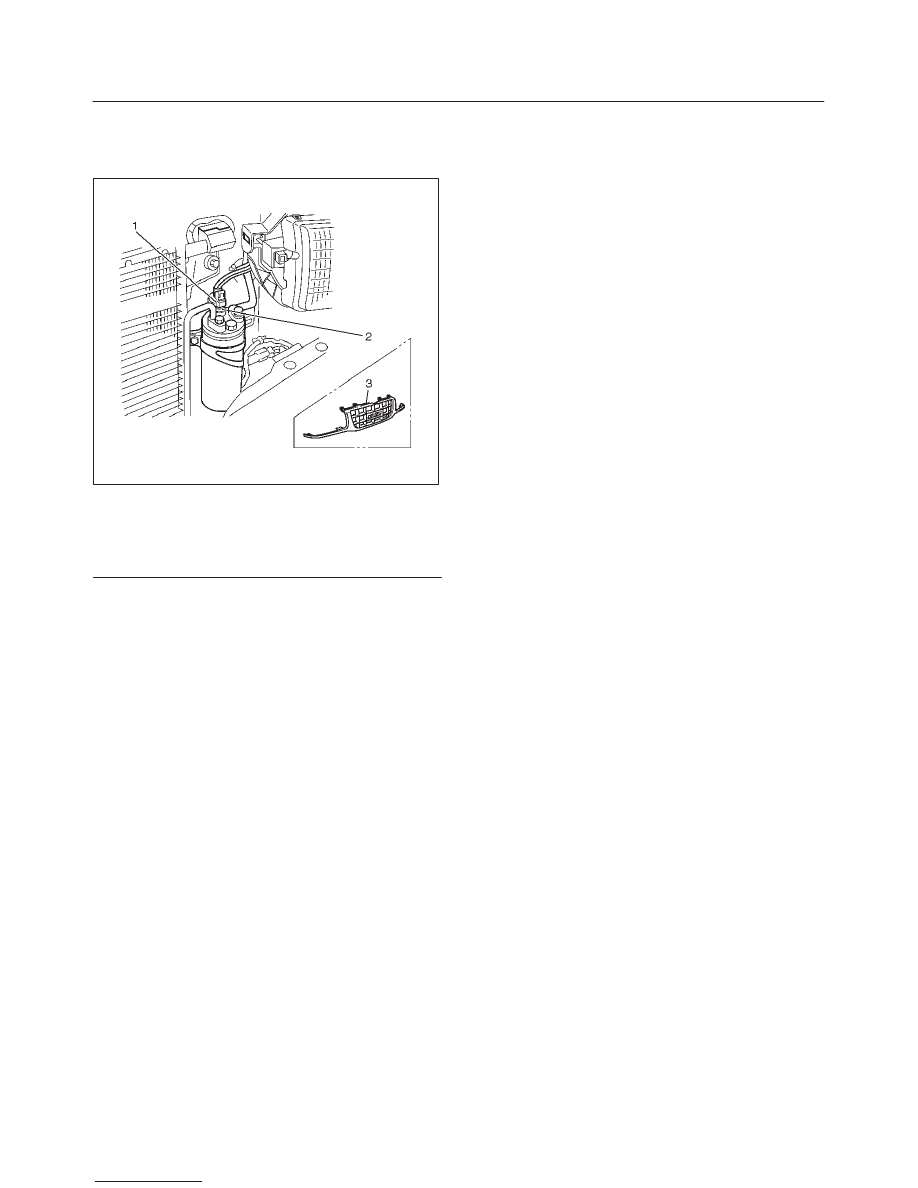

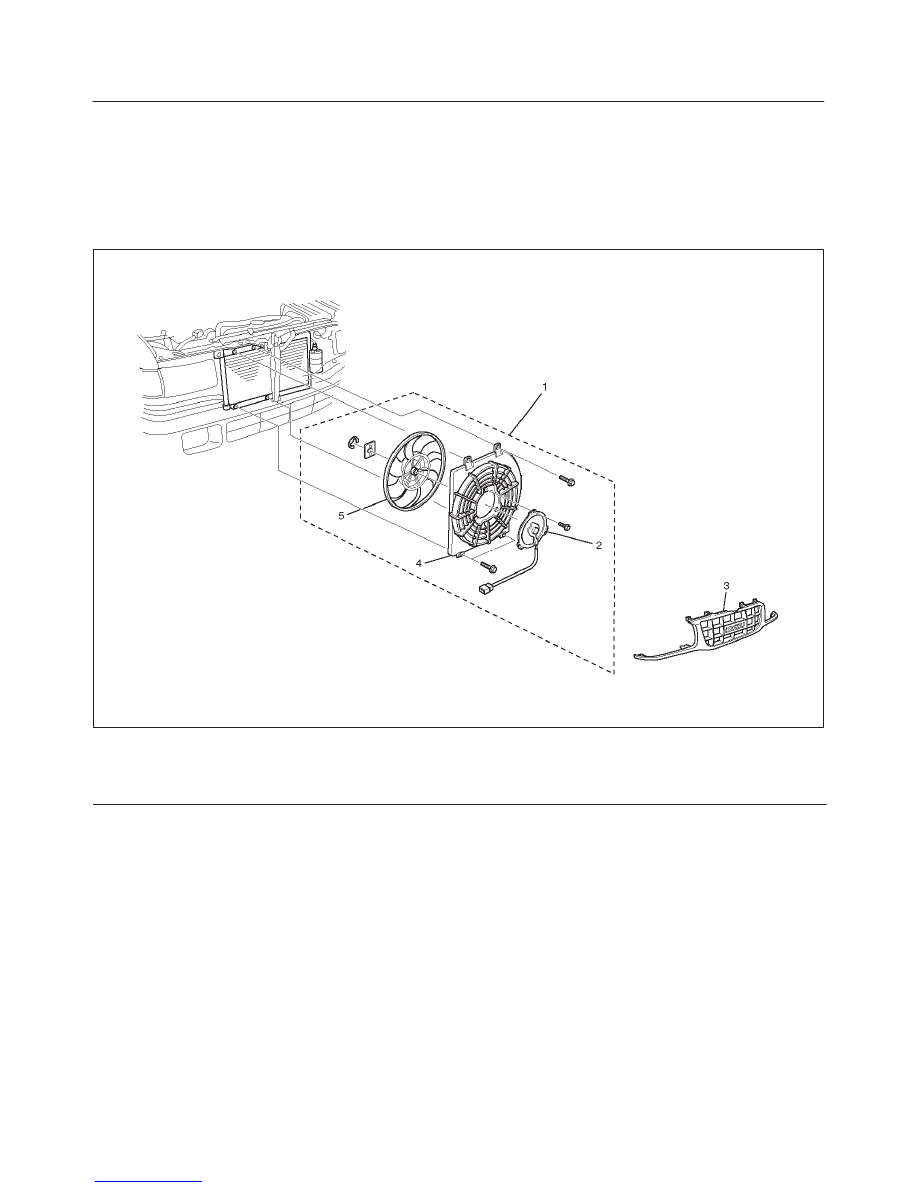

1A–54 HEATING, VENTILATION AND AIR CONDITIONING (HVAC) Condenser Assembly Condenser Assembly and Associated Parts 875RW008 Legend (1) Engine Hood Lock (4) Radiator Grille Removal 1. Disconnect the battery ground cable. f Refer to Refrigerant Recovery in this section. 3. Remove radiator grille. f Apply setting mark to the engine hood lock fixing 6. Disconnect pressure switch connector. f When removing the line connector, the connecting 8. Remove condenser assembly. f Handle with care to prevent damaging the Installation 1. Install condenser assembly. f If installing a new condenser, be sure to add 30cc f Tighten the condenser fixing bolts to the specified Torque: 6 N • m (52 lb in) 2. Connect refrigerant line. f Tighten the inlet line connector fixing bolt to the Torque: 15 N • m (11 lb ft) f Tighten the outlet line connector fixing bolt to the Torque: 6 N • m (52 lb in) f O-rings cannot be reused. Always replace with new |
