1A–42 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

Condenser Fan Diagnosis

While the air conditioning is ON, the cycling switch in the
triple pressure switch senses the refrigerant pressure,
and activates the condenser fan to improve the cooling
capacity of the condenser when the refrigerant pressure

exceeds a set pressure value. The condenser fan stops
when the air conditioning is turned “OFF” or when the
pressure goes down below the set pressure value.

D08RW062

Condition

Possible cause

Correction

Condenser fan does not run.

–

Refer to “Chart A”.

–

Refer to “Chart B”.

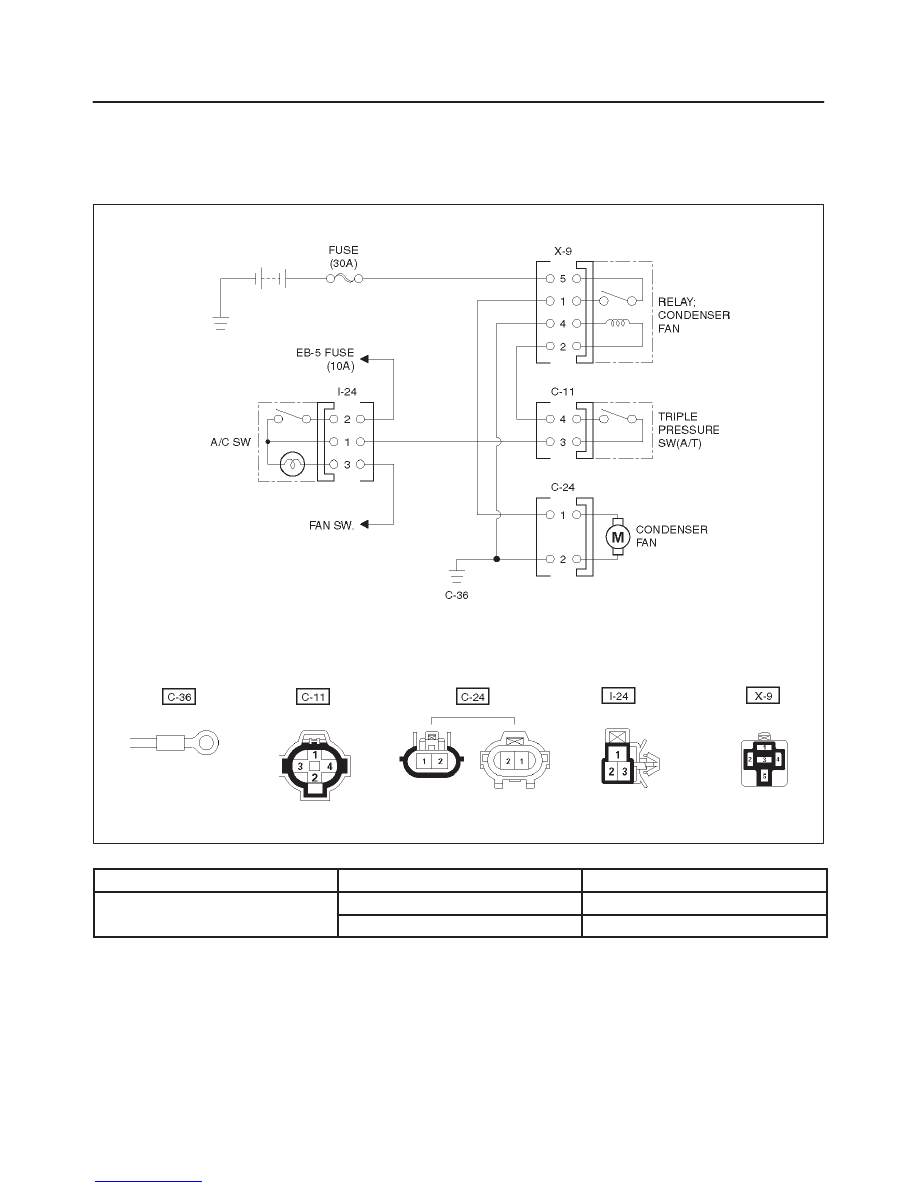

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–43

Chart “A” Condenser Fan Does Not Run

Step

Action

Yes

No

1

Are 30A fuse OK?

Go to Step 2

Replace

2

Is relay (X-9) OK?

Go to Step 3

Replace

3

Is pressure switch OK?

Go to Step 4

Switch defective

or insufficient

refrigerant.

4

Is air conditioning switch OK?

Go to Step 5

Replace

5

Is fan motor OK?

Go to Step 6

Replace

6

1. Disconnect condenser fan relay (X-9).
2. Check to see if battery voltage is present at the chassis side

relay terminal NO. X9-5

Is there a battery voltage?

Go to Step 7

Open circuit

between EB-17

fuse (30A) and

No.X9-5.

7

1. Reconnect condenser fan relay (X-9).
2. Air conditioning switch “ON”.
3. Check to see if battery voltage is present at chassis side

connector terminal No.C11-3.

Is there a battery voltage?

Go to Step 8

Open circuit

between I-24-1

and C11-3.

8

1. Air conditioning switch “OFF”.
2. Check to see if continuity between chassis side relay terminal

No.X9-2 and the chassis side connector terminal No.C11-4.

Is there a continuity?

Go to Step 9

Open circuit.

9

Check to see if continuity between chassis side connector
terminal No. C24-1 and chassis side relay terminal No.X9-1.

Is there a continuity?

Poor ground or

open circuit

between chassis

side connector

terminal No.X9-4

(or No.C24-2)

and body ground

(No.C36).

Open circuit.

Chart “B” Condenser Fan Does Not Stop

Step

Action

Yes

No

1

1. Air conditioning switch “OFF”.

Does condenser fan stop?

Triple pressure

switch defective.

Condenser fan

relay (X9)

defective.

1A–44 HEATING, VENTILATION AND AIR CONDITIONING (HVAC)

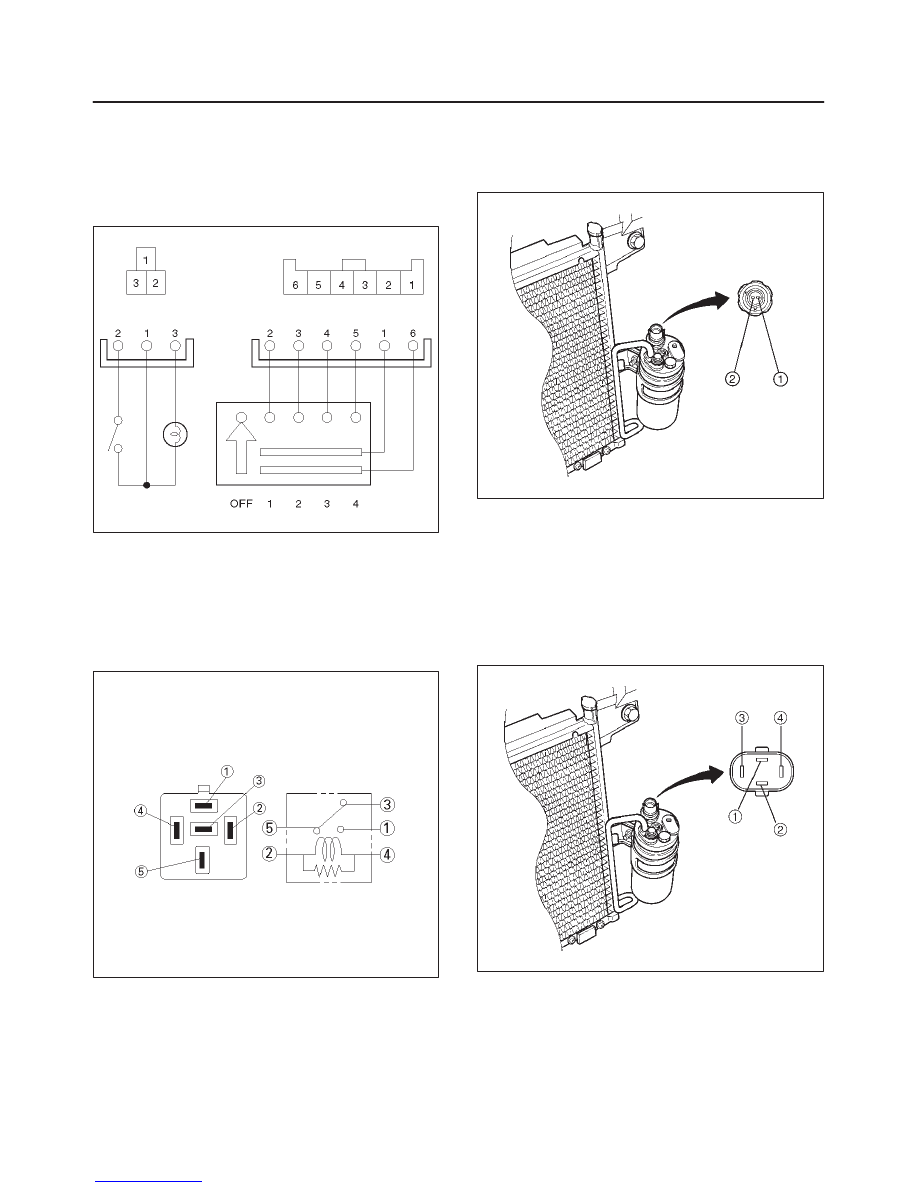

Individual Inspection

Fan Control Knob (Fan Switch) And Air
Conditioning (A/C) Switch

1. Check for continuity between the fan switch and the

A/C switch side connector terminals.

D08RW061

Heater (X-6), Thermostat (X-5), Condenser
Fan (X-9) And Compressor (X-4) Relay

1. Disconnect relays and check for continuity and

resistance between relay terminals.

f

For handling of these relays, refer to Heater Relay
in this section.

825RS179

Pressure Switch

1. Disconnect pressure switch connector and check for

continuity between pressure switch side connector
terminals (1) and (2).

875RW003

Triple Pressure Switch (V6, A/T)

1. Disconnect the connector and check for continuity

between pressure switch side connector terminals (1)
and (2).

2. Reconnect the connector to activate the A/C switch,

and check to see if there is continuity between the
chassis side connector terminals (3) and (4) and the
fan operates.

875RW013

HEATING, VENTILATION AND AIR CONDITIONING (HVAC) 1A–45

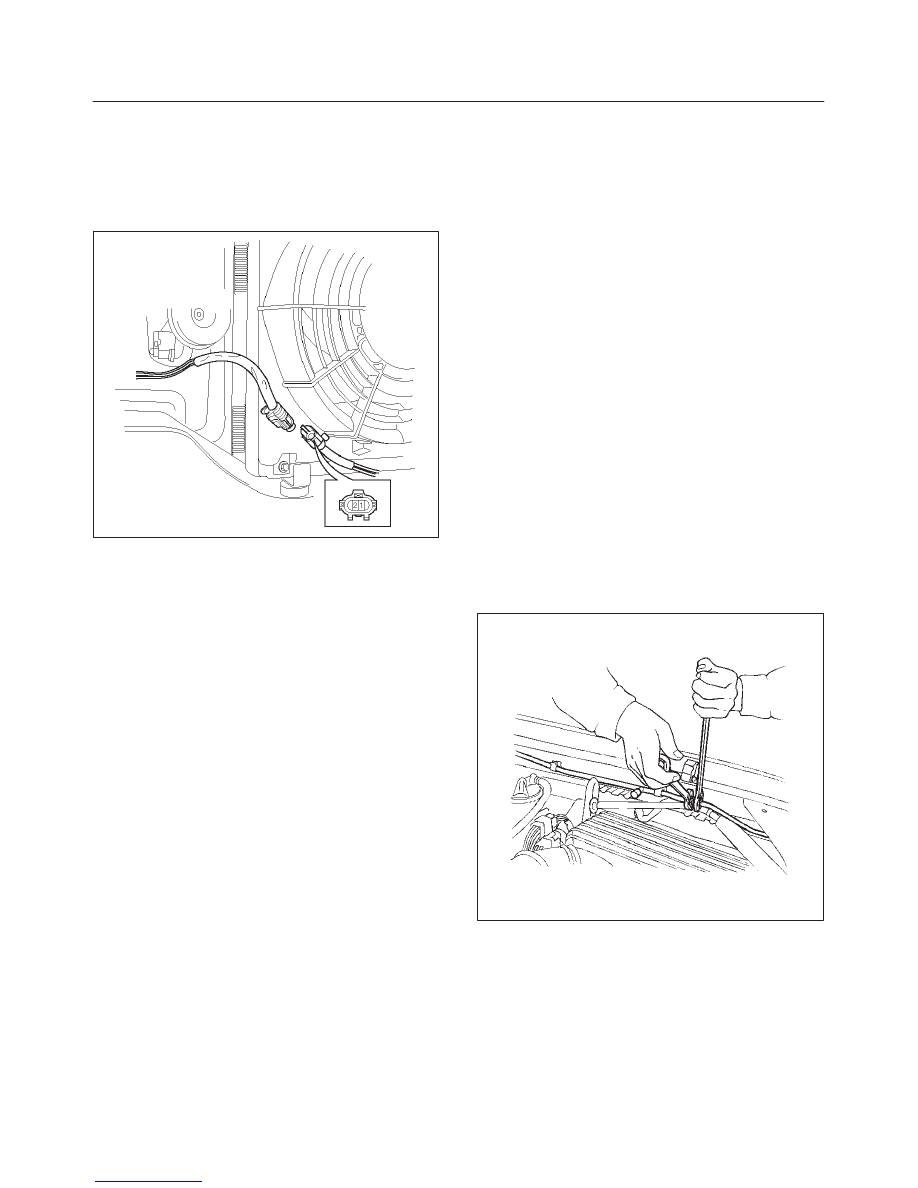

Condenser Fan

1. Disconnect the condenser fan connector.
2. Connect the battery positive terminal to the

condenser fan side connector terminal No.C-24-1
and negative to the No.C-24-2.

3. Check that condenser fan is rotating correctly.

875RW010

General Repair Procedure

Precautions For Replacement or Repair of
Air Conditioning Parts

There are certain procedures, practices and precautions
that should be followed when servicing air conditioning
systems:

f

Keep your work area clean.

f

Always wear safety goggle and protective gloves
when working on refrigerant systems.

f

Beware of the danger of carbon monoxide fumes
caused by running the engine.

f

Beware of discharged refrigerant in enclosed or
improperly ventilated garages.

f

Always disconnect the negative battery cable and
discharge and recover the refrigerant whenever
repairing the air conditioning system.

f

When discharging and recovering the refrigerant, do
not allow refrigerant to discharge too fast; it will draw
compressor oil out of the system.

f

Keep moisture and contaminants out of the system.
When disconnecting or removing any lines or parts,
use plugs or caps to close the fittings immediately.
Never remove the caps or plugs until the lines or parts
are reconnected or installed.

f

When disconnecting or reconnecting the lines, use
two wrenches to support the line fitting, to prevent
from twisting or other damage.

f

Always install new O-rings whenever a connection is
disassembled.

f

Before connecting any hoses or lines, apply new
specified compressor oil to the O-rings.

f

When removing and replacing any parts which
require discharging the refrigerant circuit, the
operations described in this section must be
performed in the following sequence:

1. Use the J-39500 (ACR

4

: HFC-134a Refrigerant

Recovery / Recycling  / Recharging / System) or
equivalent to thoroughly discharge and recover the
refrigerant.

2. Remove and replace the defective part.
3. After evacuation, charge the air conditioning

system and check for leaks.

Repair Of Refrigerant Leaks

Refrigerant Line Connections
Install new O-rings, if required.  When disconnecting or
connecting lines, use two wrenches to prevent the
connecting portion from twisting or becoming damaged.

852RS003
