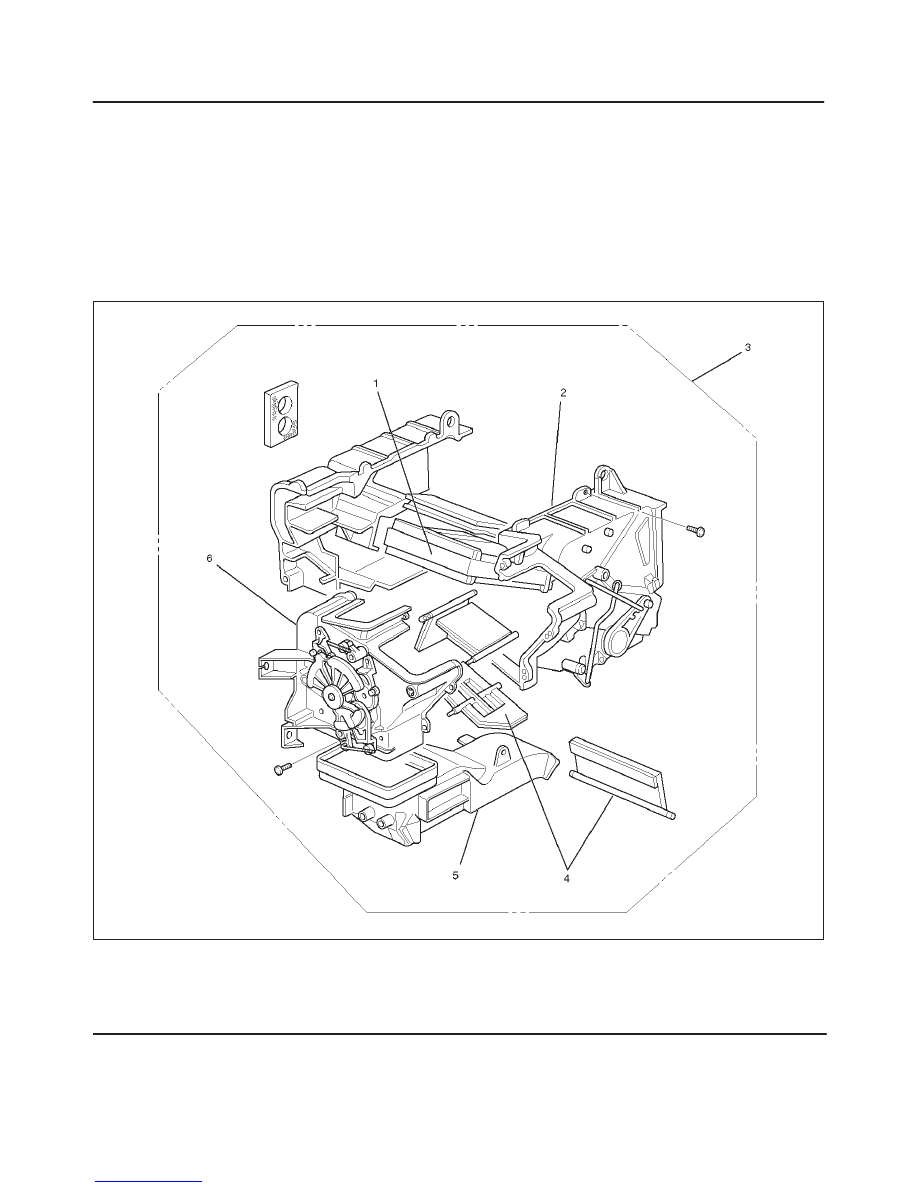

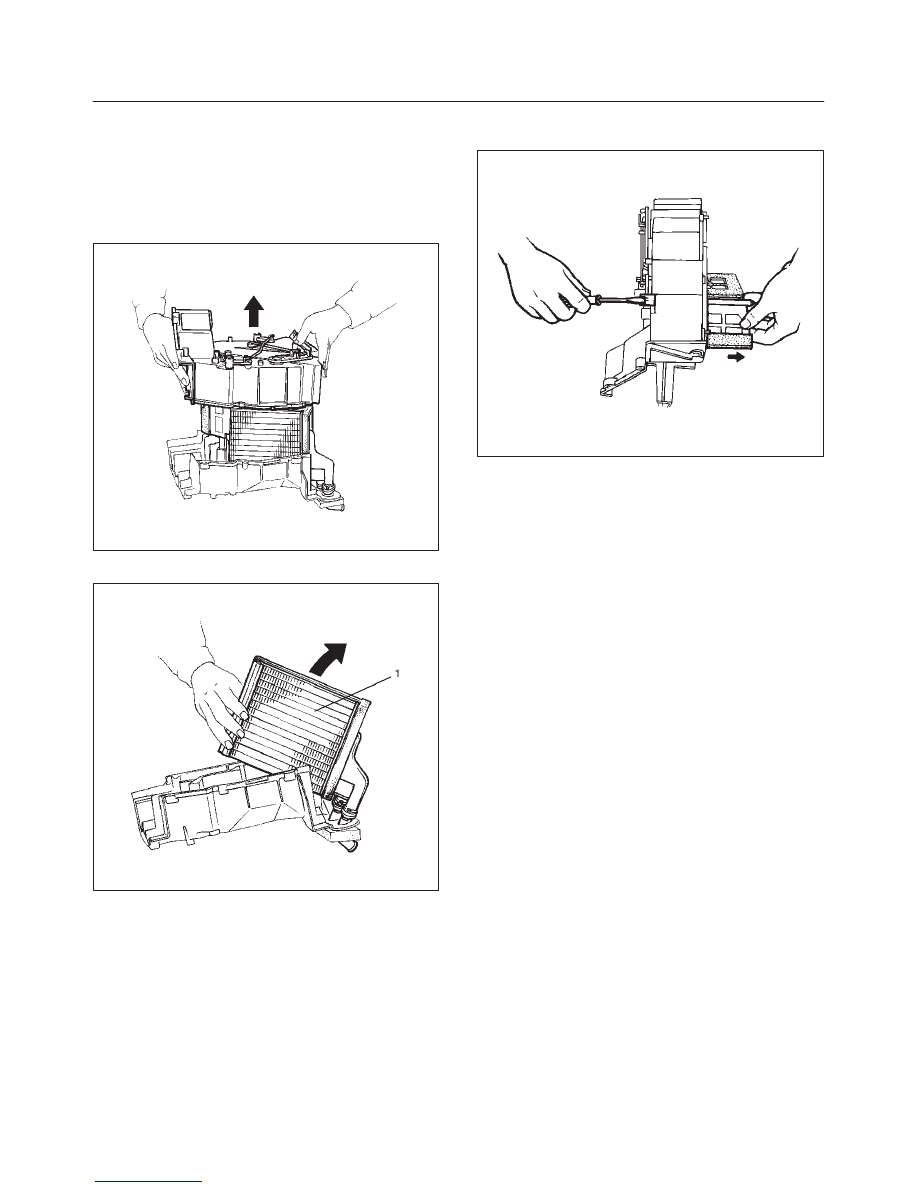

1A–14 HEATING, VENTILATION AND AIR CONDITIONING (HVAC) Installation To install, follow the removal steps in the reverse order, 1. When handling the PCM and the control unit, be careful not to make any improper connection of the 2. Adjust the control cables. f Refer to Control Lever Assembly in this section. 3. When installing the heater unit, defroster nozzle and center vent duct, be sure that the proper seal is made, Heater Core and / or Mode Door Disassembled View 860RW001 Legend (1) Heater Core (4) Mode Door Removal 1. Disconnect the battery ground cable. 3. Discharge and recover refrigerant (with air conditioning). f Refer to Refrigerant Recovery in this section. |
