Automatic Transmission – 4L60E – Electrical Diagnosis

Page 7C2–6

DTC Description................................................................................................................................................. 100



Circuit Description............................................................................................................................................. 100



Conditions for Running the DTC ...................................................................................................................... 101



Conditions for Setting the DTC......................................................................................................................... 101



Action Taken When the DTC Sets .................................................................................................................... 101



Conditions for Clearing the DTC ...................................................................................................................... 101



Test Description................................................................................................................................................. 101



DTC P0977 Diagnostic Table............................................................................................................................. 101



4.32



DTC P1810, P1815 and P1816 – Transmission Fluid Pressure Position Switch........................................... 103



DTC Description................................................................................................................................................. 103



Circuit Description............................................................................................................................................. 103



Conditions for Running the DTC ...................................................................................................................... 104



DTC P1810 .................................................................................................................................................... 104



DTC P1815 .................................................................................................................................................... 104



DTC P1816 .................................................................................................................................................... 104



Conditions for Setting the DTC......................................................................................................................... 104



DTC P1810 .................................................................................................................................................... 104



DTC P1815 .................................................................................................................................................... 104



DTC P1816 .................................................................................................................................................... 104



Action Taken When the DTC Sets .................................................................................................................... 104



Conditions for Clearing the DTC ...................................................................................................................... 105



Diagnostic Aids.................................................................................................................................................. 105



Test Description................................................................................................................................................. 105



DTC P1810, P1815 and P1816 Diagnostic Table.............................................................................................. 105



4.33



DTC P2763 – Torque Converter Clutch Pressure Control Solenoid Control Circuit High Voltage ............. 108



DTC Description................................................................................................................................................. 108



Circuit Description............................................................................................................................................. 108



Conditions for Running the DTC ...................................................................................................................... 108



Conditions for Setting the DTC......................................................................................................................... 108



Action Taken When the DTC Sets .................................................................................................................... 108



Conditions for Clearing the DTC ...................................................................................................................... 108



Test Description................................................................................................................................................. 109



DTC P2763 Diagnostic Table............................................................................................................................. 109



4.34



DTC P2764 – Torque Converter Clutch Pressure Control Solenoid Control Circuit Low Voltage .............. 111



DTC Description................................................................................................................................................. 111



Circuit Description............................................................................................................................................. 111



Conditions for Running the DTC ...................................................................................................................... 111



Conditions for Setting the DTC......................................................................................................................... 111



Action Taken When the DTC Sets .................................................................................................................... 111



Conditions for Clearing the DTC ...................................................................................................................... 111



Test Description................................................................................................................................................. 112



DTC P2764 Diagnostic Table............................................................................................................................. 112



4.35



DTC P2769 – Torque Converter Clutch Enable Solenoid Control Circuit Low Voltage ............................... 115



DTC Description................................................................................................................................................. 115



Circuit Description............................................................................................................................................. 115



Conditions for Running the DTC ...................................................................................................................... 115



Conditions for Setting the DTC......................................................................................................................... 115



Action Taken When the DTC Sets .................................................................................................................... 115



Conditions for Clearing the DTC ...................................................................................................................... 116



Diagnostic Aids.................................................................................................................................................. 116



Test Description................................................................................................................................................. 116



DTC P2769 Diagnostic Table............................................................................................................................. 116



4.36



DTC P2770 – Torque Converter Clutch Enable Solenoid Control Circuit High Voltage............................... 119



DTC Description................................................................................................................................................. 119



Circuit Description............................................................................................................................................. 119



Conditions for Running the DTC ...................................................................................................................... 119



Conditions for Setting the DTC......................................................................................................................... 119



Action Taken When the DTC Sets .................................................................................................................... 120



Conditions for Clearing the DTC ...................................................................................................................... 120



Test Description................................................................................................................................................. 120



Automatic Transmission – 4L60E – Electrical Diagnosis

Page 7C2–7

DTC P2770 Diagnostic Table............................................................................................................................. 120



4.37



DTC U0073 and U0100 – CAN-Bus No Communication With ECM (Engine Control Module)...................... 121



DTC Description................................................................................................................................................. 121



Circuit Description............................................................................................................................................. 121



Conditions for Running the DTC ...................................................................................................................... 121



Conditions for Setting the DTC......................................................................................................................... 121



DTC U0073 .................................................................................................................................................... 121



DTC U0100 .................................................................................................................................................... 121



Action Taken When the DTC Sets .................................................................................................................... 122



Conditions for Clearing the DTC ...................................................................................................................... 122



Test Description................................................................................................................................................. 122



DTC P0864 and U0101 Diagnostic Table.......................................................................................................... 122



5



Electrical Specifications ....................................................................................................................124



5.1



Transmission Fluid Temperature (TFT) Sensor Specifications ..................................................................... 124



5.2



Range Reference................................................................................................................................................ 124



5.3



Transmission Fluid Pressure Manual Valve Position Switch Logic .............................................................. 125



5.4



Transmission Range Switch Logic................................................................................................................... 125



5.5



Component Resistance ..................................................................................................................................... 126



5.6



Shift Solenoid Valve State and Gear Ratio ...................................................................................................... 126



5.7



Line Pressure ..................................................................................................................................................... 126



6



Special Tools ......................................................................................................................................127







Automatic Transmission – 4L60E – Electrical Diagnosis

Page 7C2–8

1 General

Information

1.1 Introduction

This Section covers the electrical diagnostic for the 4L60E automatic transmission when mated to a V6 engine.

1.2 General

Description

The 4L60E automatic transmission incorporates electronic controls that utilise a transmission control module (TCM) to
control shift points through:

•

the 1-2 and 2-3 shift solenoid valves,

•

the 3-2 downshift solenoid valve,

•

a torque converter clutch (TCC) solenoid valve,

•

apply and release through the TCC pulse width modulated (PWM) solenoid valve, and

•

line pressure through the pressure control (PC) solenoid valve.

Electrical signals from various sensors provide information to the TCM about the following:

•

vehicle speed,

•

throttle position,

•

engine coolant temperature,

•

transmission fluid temperature,

•

gear range selector position,

•

engine speed,

•

converter turbine speed, and

•

engine load braking and operating mode.

The TCM uses this information to determine the precise moment to upshift or downshift, apply or release the TCC and
what fluid pressure is needed to apply the clutches. This type of control provides consistent and precise shift points and
shift quality based on the operating conditions of the vehicle.

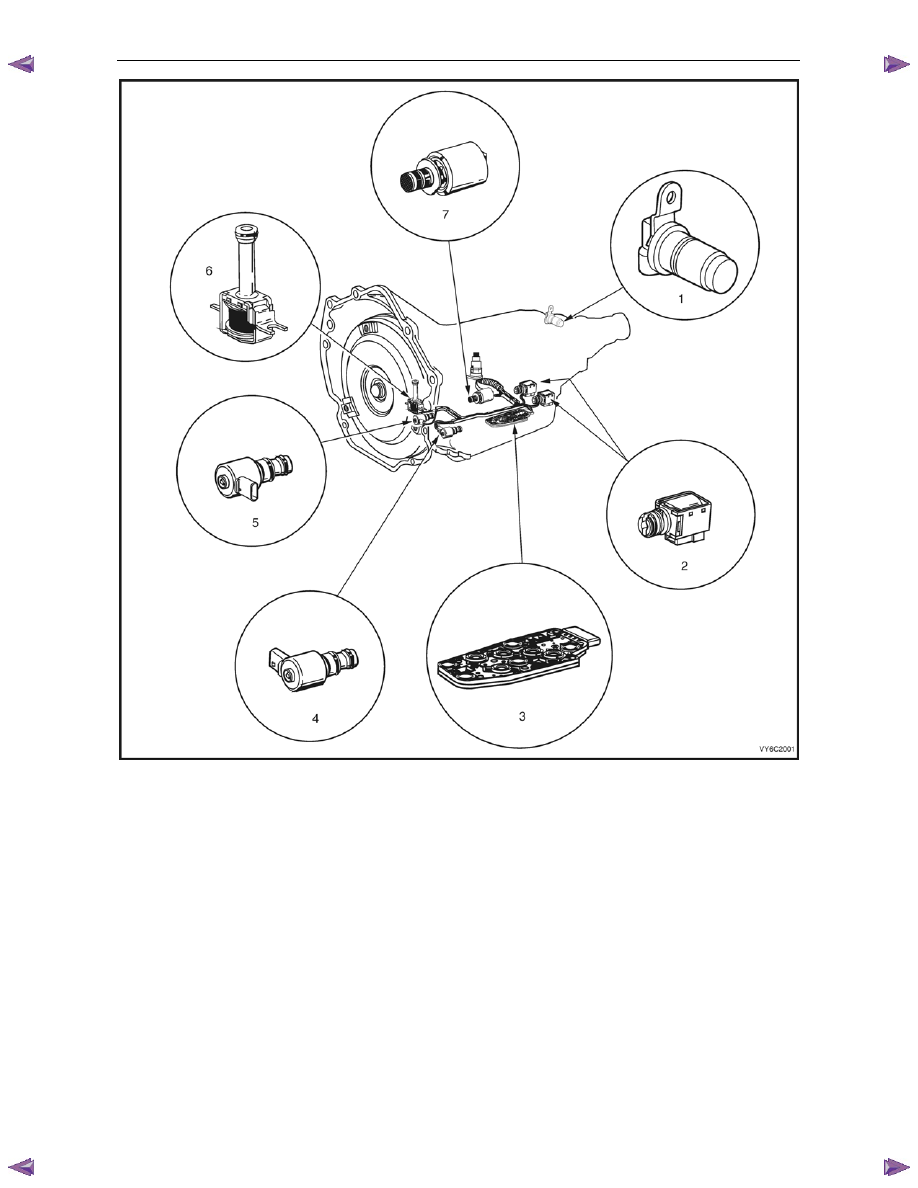

Figure 7C2 – 1 shows the location of the internal electronic components in the transmission.

Automatic Transmission – 4L60E – Electrical Diagnosis

Page 7C2–9



Figure 7C2 – 1

Legend

Vehicle Speed Sensor

Torque Converter Clutch Pulse Width Modulation (TCC
PWM) Solenoid Valve

1-2 Shift Solenoid (Solenoid A) and 2-3 Shift Solenoid
(Solenoid B)

Torque Converter Clutch (TCC) Solenoid Valve

Automatic Transmission Fluid Pressure (TFP) Manual Valve
Position

Pressure Control (PC) Solenoid Valve

3-2 Downshift Solenoid



Transmission Adaptive Functions

The 4L60E automatic transmission uses a line pressure control system, which has the ability to adapt the system line
pressure to compensate for normal wear within the transmission, such as the clutch pack fibre plates, seals, springs, etc.
The adapt feature is similar in function to the long term/short term fuel trim feature of the engine management system.

The 4L60E automatic transmission uses the adapt function for garage shifts, upshifts and torque converter clutch (TCC)
application. The TCM monitors the engine torque to determine if the shift is occurring too fast or too slow and adjusts the
pressure control solenoid to maintain the correct shift feel.
