Exhaust System – V6 Page 6F – 8
N O T E : • Support the exhaust system at all times.
• Clean the threads of the attaching bolts, nuts, studs and flanges with a suitable cleaning • Apply a high temperature anti-seize compound to the manifold front pipe flange Reinstallation 1. Install any removed O2 sensors, Refer to 6C1 – 1 Engine Management General Info. 2. Position the centre exhaust pipe into location under the vehicle. 3. Install the two rear exhaust flange nuts and bolts (9). 4. Position the front exhaust pipes into location under the vehicle. 5. Install the centre exhaust pipes into the rubber mounts (6). 6. Install the exhaust flange fixing nuts (1), three each bank. 7. Install the rear exhaust pipe flange nuts (7), two each bank. 8. Reconnect the O2 sensor harness connectors (4), two each bank. 9. Install the two front torsion bar springs, Refer to 3C Suspension. 10. Install the suspension cross member, Refer to 7B1 Manual transmission. 11. Reconnect the battery ground cable.

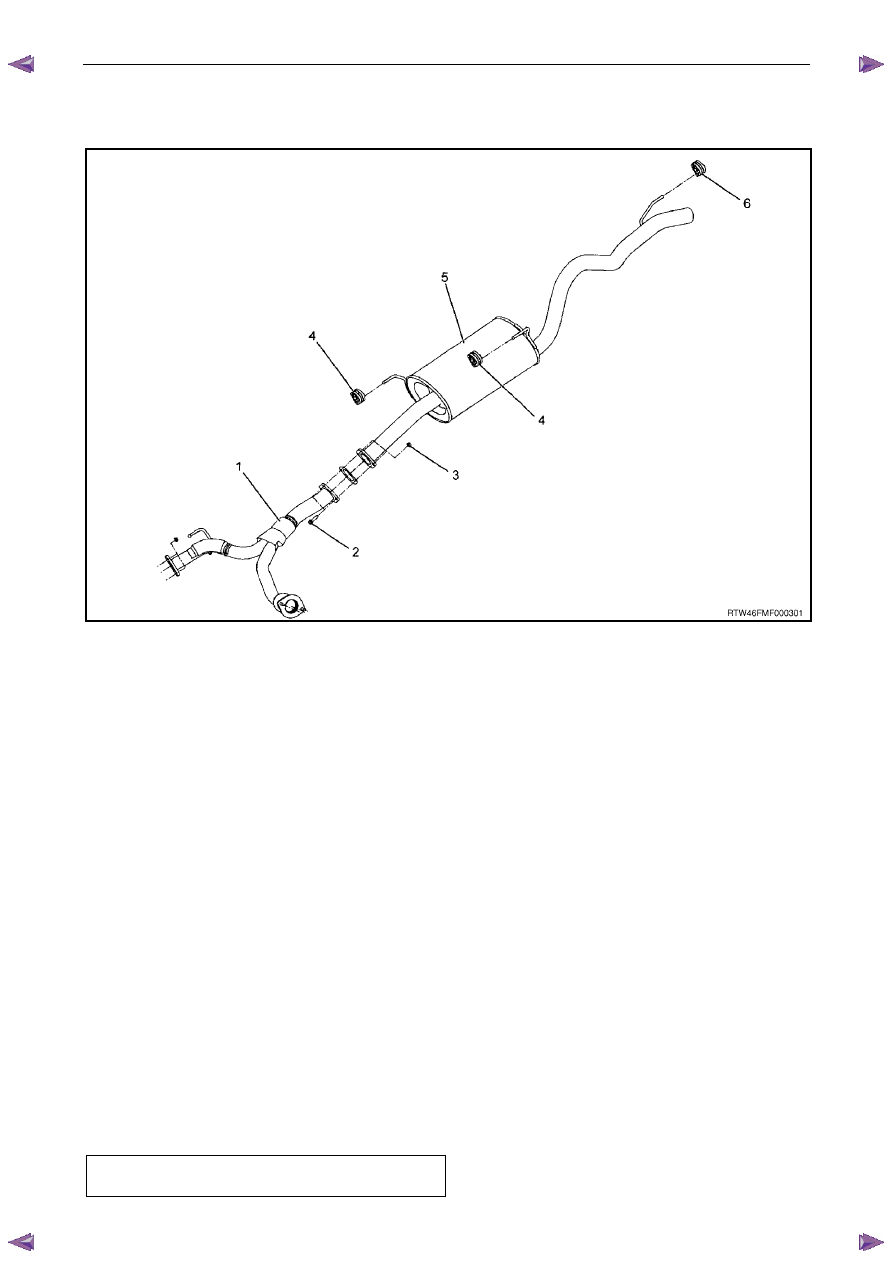

O2 Sensor Front Exhaust Flange Nuts Centre Exhaust Flange Nuts Rear Exhaust Flange Nuts |
