Isuzu KB P190. Manual - part 896

Engine Management – V6 – Service Operations

Page 6C1-3–60



4 Assembly

Lubricants

Camshaft Position (CMP) Sensor O-ring........................................... Engine Oil

Crankshaft Position (CKP) Sensor .................................................... Engine Oil

Evaporative Emission (EVAP) Canister Purge Valve
Quick Connect Fitting ........................................................................ Engine Oil

Fuel Feed Hose Quick Connect Fitting.............................................. Engine Oil

Fuel Injector Seals............................................................................. Engine Oil

Heated Oxygen Sensor (HO2S) – All .............................. Anti-seize Compound

Ignition Coil Boot .......................................................................Talcum Powder

Ignition Coil Sealing Rubber .............................................................. Engine Oil

Engine Management – V6 – Service Operations

Page 6C1-3–61



5 Torque

Specifications

Fuel Rail Attaching Bolt ............................................................... 8.0 – 12.0 Nm

Accelerator Pedal Position Sensor Support Bracket
Attaching Nut............................................................................... 8.5 – 11.5 Nm

Air Cleaner Lower Housing Attaching Bolt................................. 18.0 – 22.0 Nm

Barometric Pressure Sensor Attaching Bolt ................................ 8.0 – 12.0 Nm

Camshaft Position Sensor Attaching Bolt .................................... 8.0 – 12.0 Nm

Crankshaft Position Sensor Attaching Bolt .................................. 8.0 – 12.0 Nm

Engine Coolant Temperature Sensor ................................................... 22.0 Nm

Engine Control Module Attaching Bolt ......................................... 8.0 – 12.0 Nm

Ground Terminal Attaching Screw.......................................................... 4.5 Nm

Engine Control Module Bracket Assembly
Attaching bolt (6mm Bolt) ............................................................ 8.0 – 12.0 Nm

Engine Control Module Bracket Assembly
Attaching bolt (8mm Bolt) .......................................................... 20.0 – 25.0 Nm

Engine Oil Pressure Sensor ...................................................... 12.0 – 14.0 Nm

Heated Oxygen Sensor ............................................................. 40.0 – 50.0 Nm

Ignition Coil Attaching Bolt........................................................... 7.0 – 11.0 Nm

Air Intake Duct Retaining Clamp ................................................... 1.5 – 2.5 Nm

Knock Sensor Attaching Bolt ..................................................... 21.0 – 25.0 Nm

Mass Air Flow Sensor Attaching Nut ............................................. 1.8 – 2.2 Nm

Spark Plug................................................................................. 16.0 – 20.0 Nm

Throttle Body Assembly Attaching Bolt........................................ 8.0 – 12.0 Nm

Engine Management – V6 – Service Operations

Page 6C1-3–62



6 Special

Tools

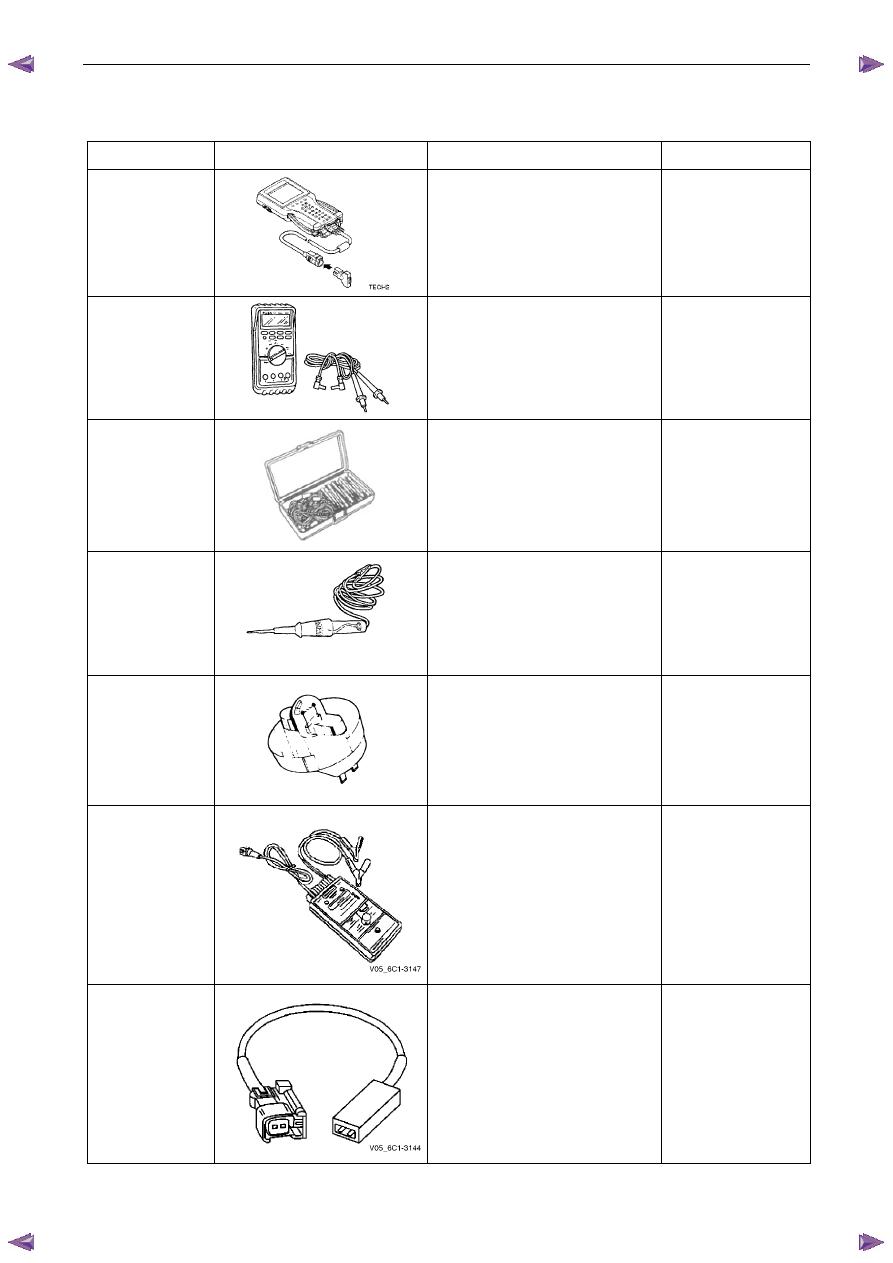

Tool

Number Illustration

Description Tool

Classification

7000086i



Tech 2 scan tool

Used for diagnosis of vehicle electrical
systems.

Previously released.

Mandatory

3588



Digital Multimeter

Previously released as j 39200, 3545
GM.

Available

J 35616



Connector Test Adaptor Kit

Used when carrying out electrical
diagnostic circuit checks.

Previously released.

Desirable

J 34142-a



Un-powered Test Lamp

Previously released as CT-40-C and
also commercially available.

Must have a current draw less than
0.3 A.

Mandatory

J 34730-2C



Injector Test Light

Used to check for power and the
control circuit of the fuel injector, for
proper operation.

Also previously released as
ST- 8329

Mandatory

J 39021

Fuel Injector Coil / Balance Tester

Used in conjunction with a DMM for
testing the fuel injector coil windings
and for injector balance testing.

Previously released

Mandatory

J 44602

Injector Test Adapter

Mandatory

Engine Management – V6 – Service Operations

Page 6C1-3–63



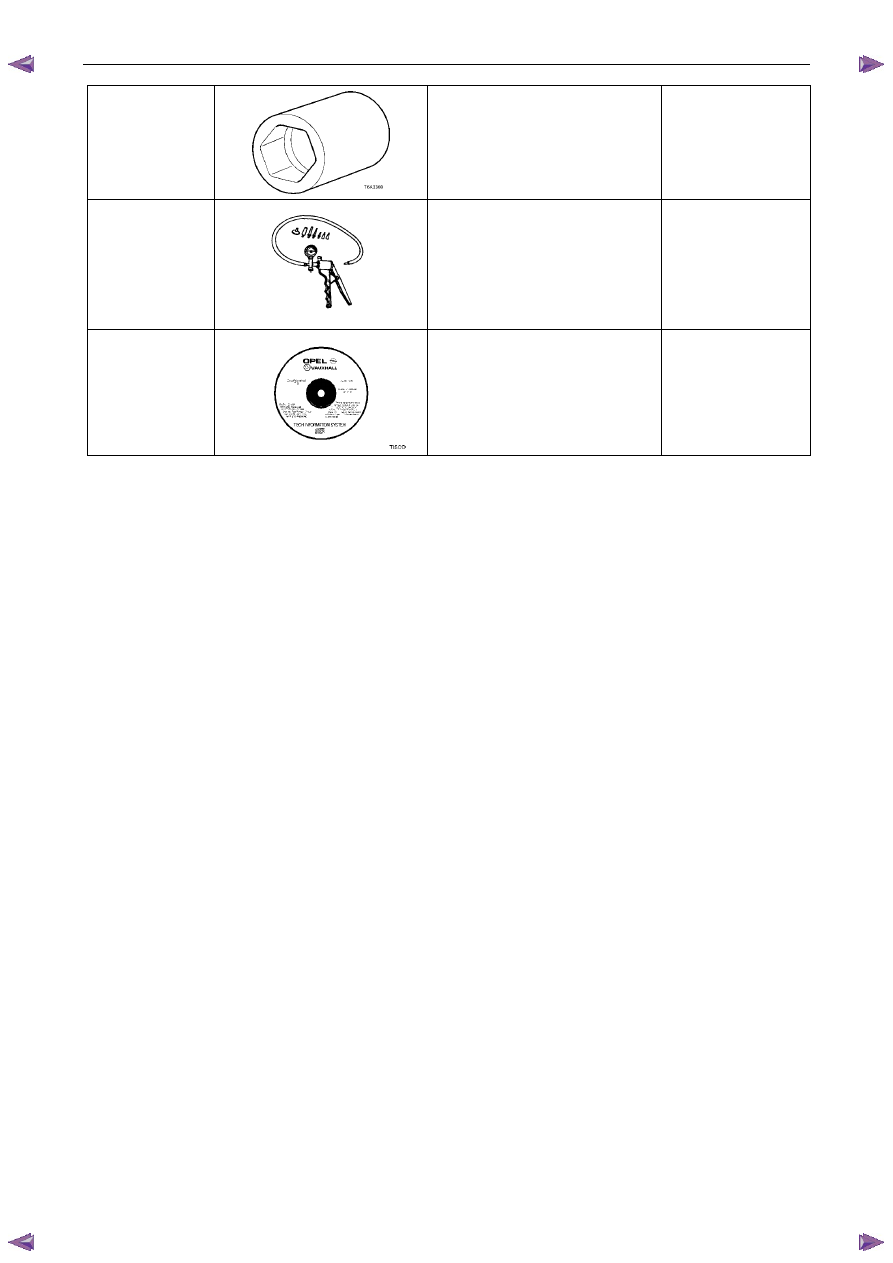

J 41712



Oil Pressure Sensor Socket

Used in conjunction with 3/8” drive
socket equipment to remove / reinstall
oil pressure sensor.

Previously released

Desirable

J 23738-A



Vacuum Pump (20 in. Hg Minimum)

Used for many applications where a
controlled vacuum is required to be
applied.

Previously released and also
commercially available

Mandatory

N/A



Technical Information System (TIS)

CD ROM

Available to Authorised Dealers.

Mandatory
