Engine Management – V6 – General Information

Page 6C1-1–6



2.3 Engine

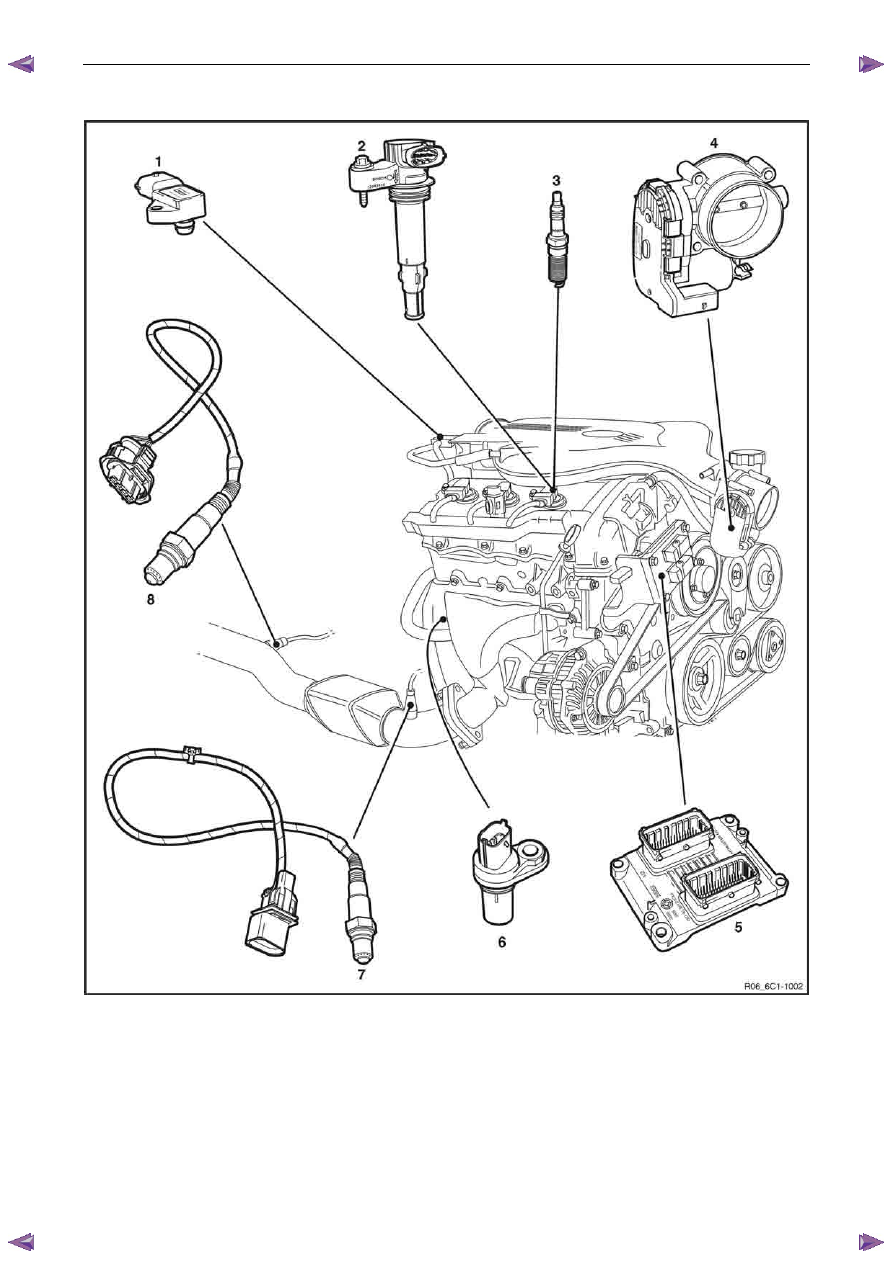

Figure 6C1-1 – 3

Legend

1

Barometric Pressure (BARO) Sensor

2

Ignition Coil Assembly (six places)

3

Spark Plug (six places)

4

Throttle Body Assembly

5

Engine Control Module (ECM)

6

Crankshaft Position (CKP) Sensor

7

Heated Oxygen Sensor (HO2S), Pre-Catalyst (two places)

8

Heated Oxygen Sensor (HO2S), Post-Catalyst (two places)

Engine Management – V6 – General Information

Page 6C1-1–7

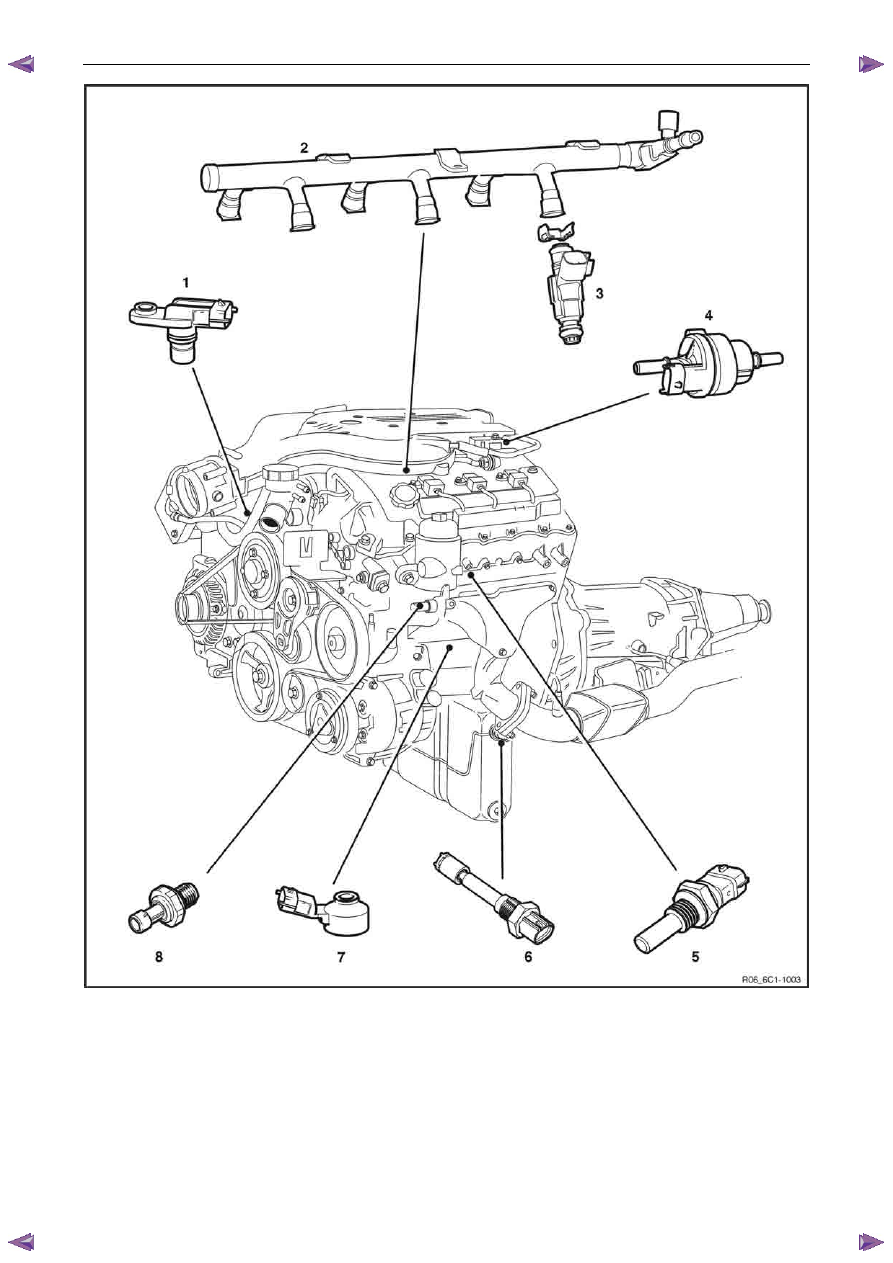

Figure 6C1-1 – 4

Legend

1

Camshaft Position (CMP) Sensor

2

Fuel Rail Assembly

3

Fuel Injector (six places)

4

Evaporative Canister Purge (EVAP) Valve

5

Engine Coolant Temperature (ECT) Sensor

6

Engine Oil Level / Temperature Sensor

7

Knock (KS) Sensor (two places)

8

Engine Oil Pressure Sensor

Engine Management – V6 – General Information

Page 6C1-1–8



2.4 Interior

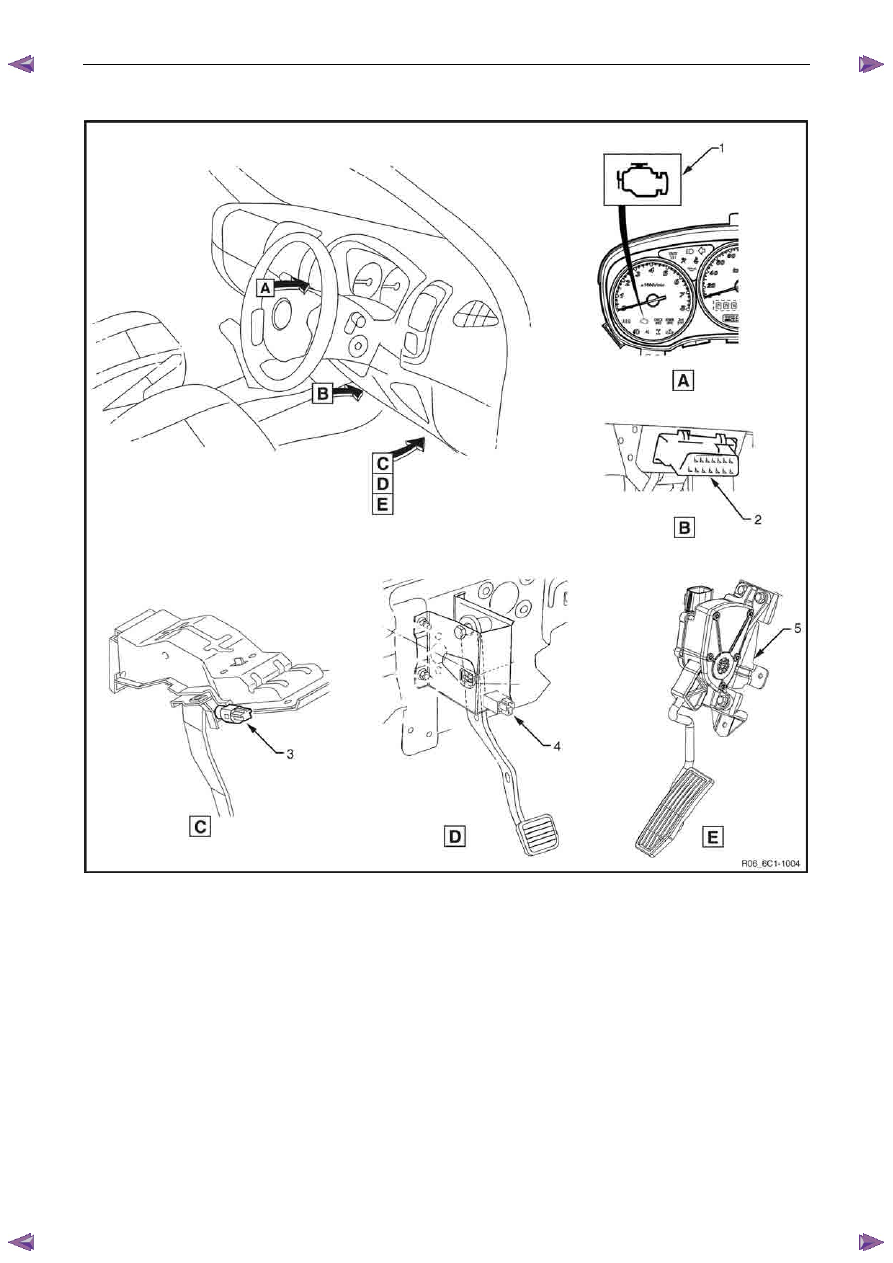

Figure 6C1-1 – 5

Legend

1

Malfunction Indicator Lamp (MIL)

2

Data Link Connector (DLC)

3

Brake Pedal Switch Assembly

4

Clutch Pedal Switch Assembly

5

Accelerator Pedal Assembly

Engine Management – V6 – General Information

Page 6C1-1–9



3 System

Operation

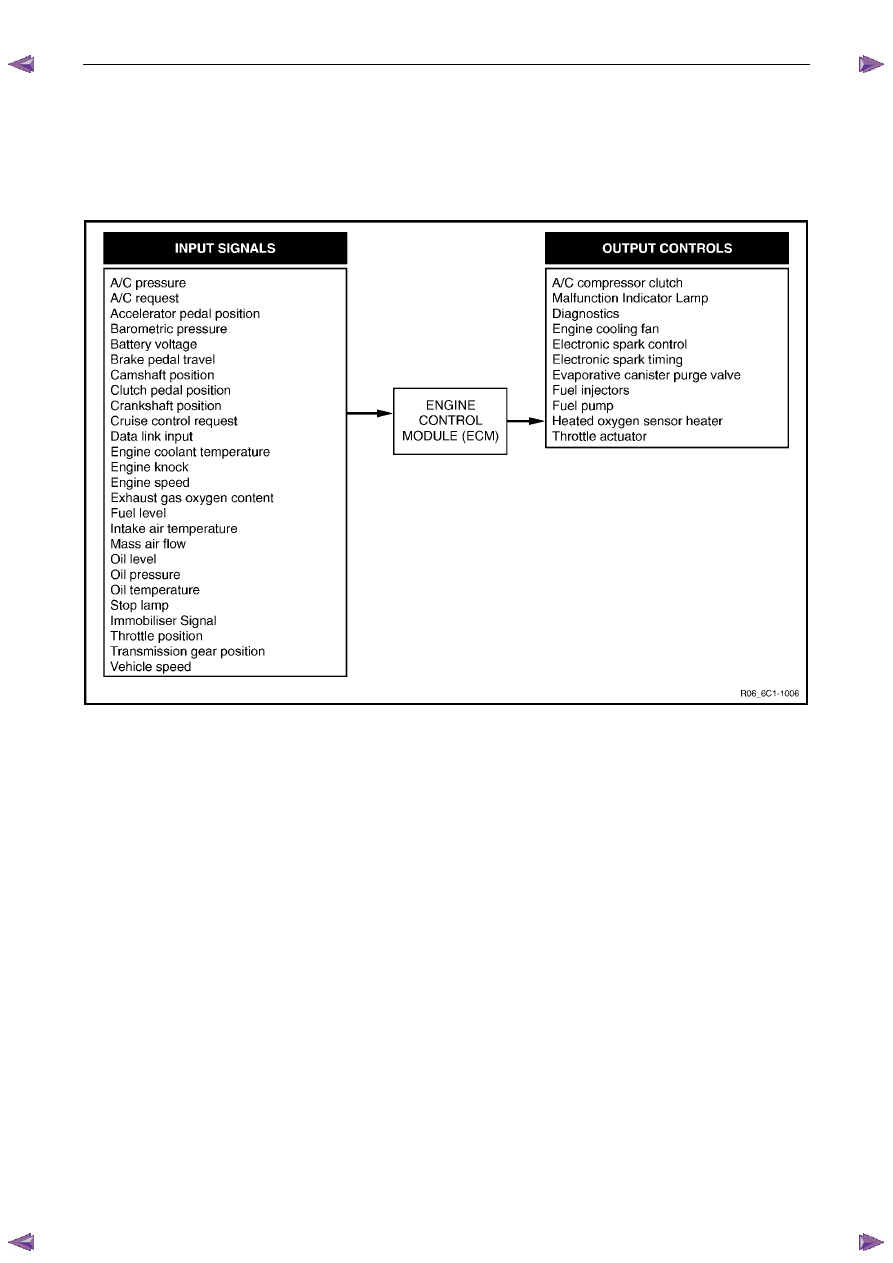

The engine control module (ECM) is the control centre of the V6 engine management system. The ECM constantly
monitors and evaluates inputs from various sensors and switches. Based on these inputs, the ECM controls the
operation of the engine management system. Refer to Figure 6C1-1 – 6 for the illustration of the inputs and outputs of
the ECM.



Figure 6C1-1 – 6

3.1

Fuel Delivery System

Fuel System Pressure

When the ignition switch is turned on, the ECM energises the fuel pump circuit and the fuel pump runs and builds up
pressure in the fuel system. The fuel pump will continue to operate if the engine is started or as long as the engine is
cranking or running and the ECM detects crankshaft position (CKP) sensor signal pulses. If the CKP sensor signal
pulses stop, the ECM de-energises the fuel pump circuit within two seconds, which stops the fuel pump operation.

The vehicle is fitted with a modular fuel pump and sender assembly that provides delivery of fuel from the fuel tank and
information on the fuel level. The fuel delivery system is a single line, on-demand design. With the fuel pressure regulator
incorporated into the modular fuel pump and sender assembly, the need for a return pipe from the engine is eliminated.

The electric fuel pump contained in the modular fuel pump and sender assembly provides fuel at a pressure greater than
the regulated pressure which is supplied to the fuel rail. The fuel is then distributed through the fuel rail to six injectors
located directly above each cylinder’s two intake valves.

Having a single line fuel supply system reduces the internal temperature of the fuel tank by not returning hot fuel from the
engine. In reducing the internal temperature of the fuel tank, lower evaporative emissions are achieved.

Unleaded fuel must be used to ensure correct emission parameters and engine operation. Leaded fuel damages the
emission control system and use of leaded fuel can result in loss of emission warranty. Using unleaded fuel will also
minimise any spark plug fouling and extend engine oil life.
