Engine Mechanical – V6

Page 6A1–319



Page 6A1–319

12

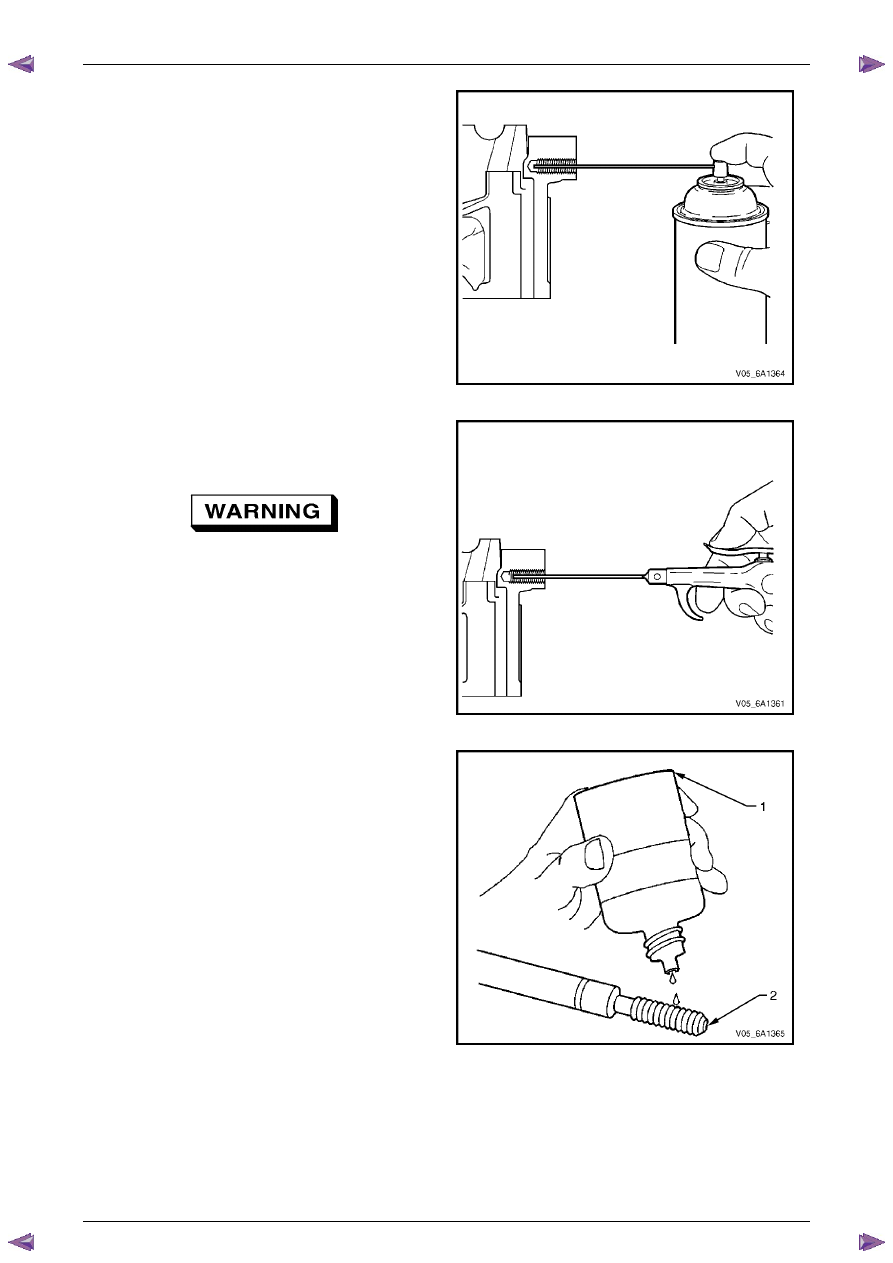

Spray a commercially available thread cleaner into
the tapped hole.



Figure 6A1 – 597

N O T E

All swarf must be removed from the tapped hole
prior to insert installation.



Safety glasses must be worn when using
compressed air.

13

Using compressed air, clean out any swarf.



Figure 6A1 – 598

N O T E

Do not allow oil or other foreign material to
contact the outside diameter (OD) of the insert.

14

Lubricate the threads of the driver installation tool (2)
with the driver oil (1).



Figure 6A1 – 599

Engine Mechanical – V6

Page 6A1–320



Page 6A1–320

15

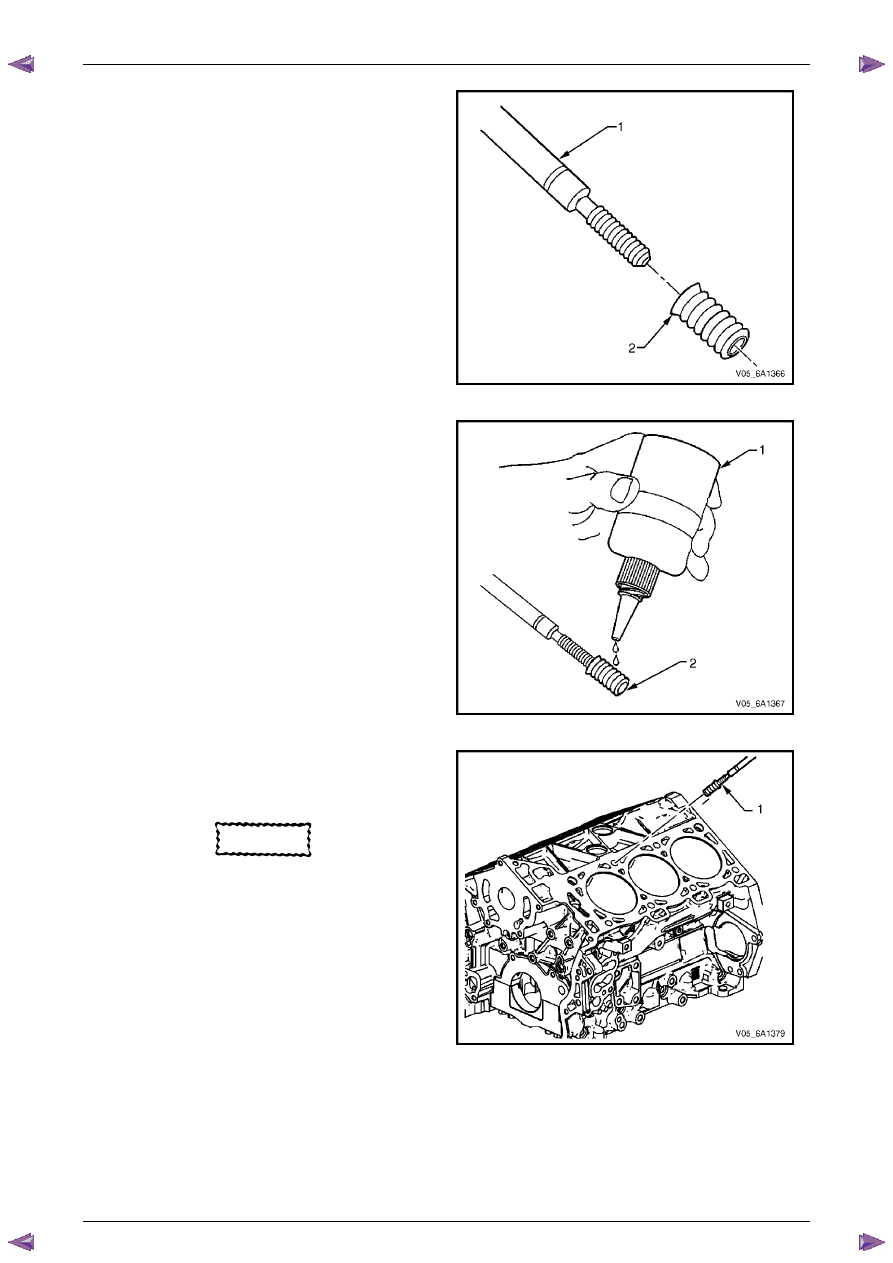

Install the insert (2) onto the driver installation tool (1).



Figure 6A1 – 600

16

Apply thread lock sealant (1) such as Loctite 277® or
equivalent to the insert OD threads (2).



Figure 6A1 – 601

17

Install the insert and installation driver (1) into the
tapped hole by hand only.

18

Start the insert into the threaded hole.

CAUTION



If the insert will not thread down until the
flange contacts the counter-bored surface,
remove the insert immediately with a screw
extracting tool and inspect the tapped hole
for any remaining swarf and/or incorrect
tapping.

19

Install the insert until the flange of the insert contacts
the counter-bored surface.

N O T E

The driver installation tool will tighten up before
cutting completely through the insert. This is
acceptable. The threads at the bottom of the
insert are being formed and the insert is
mechanically locking the insert into the base
material threads.

20

Continue to rotate the driver installation tool through
the insert.



Figure 6A1 – 602

Engine Mechanical – V6

Page 6A1–321



Page 6A1–321

21

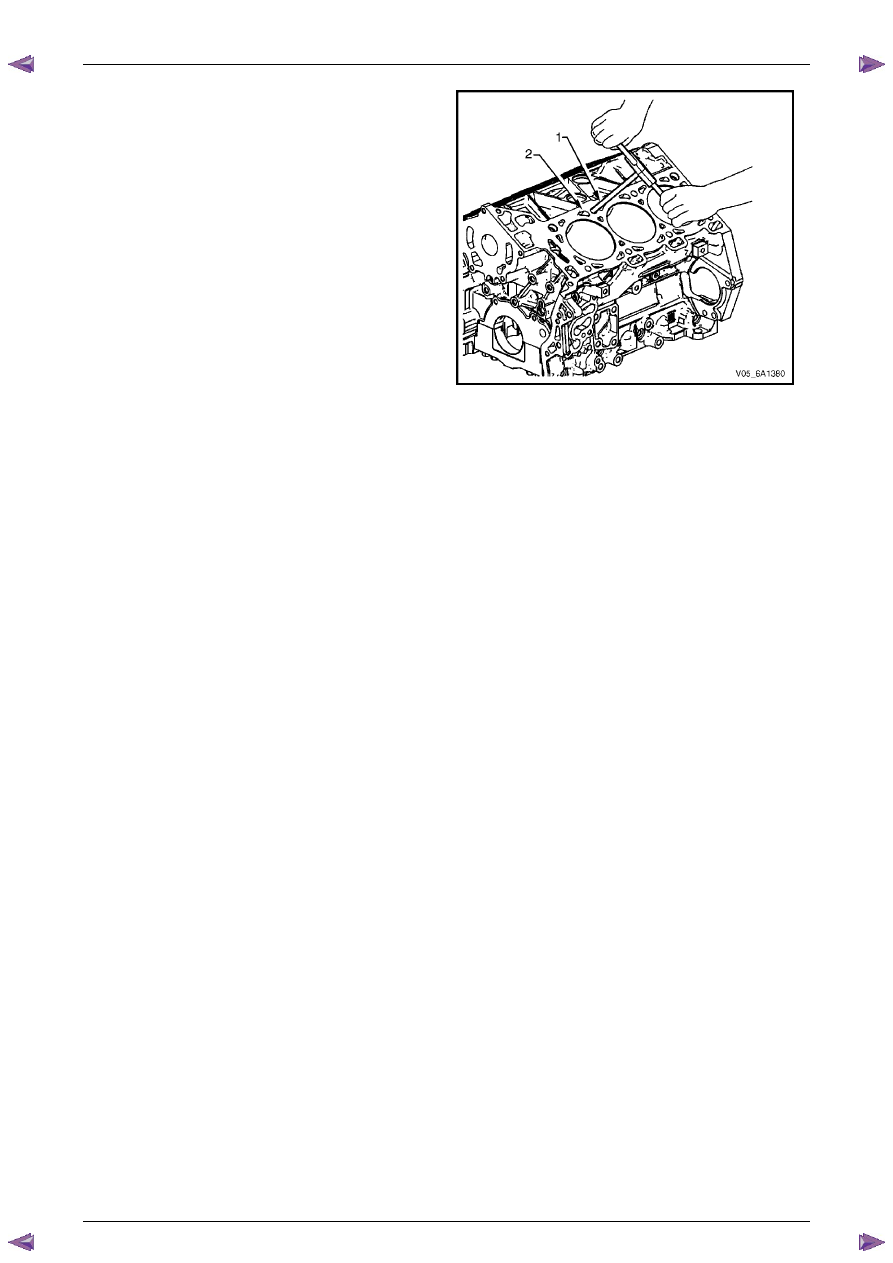

In order to completely form the new threads in the
insert, rotate the driver installation tool through the
insert until the mark on the driver installation tool (1)
aligns with the surface of the engine block deck (2).

22

Inspect the insert for correct installation into the
tapped hole.



Figure 6A1 – 603

Engine Mechanical – V6

Page 6A1–322



Page 6A1–322

4.9

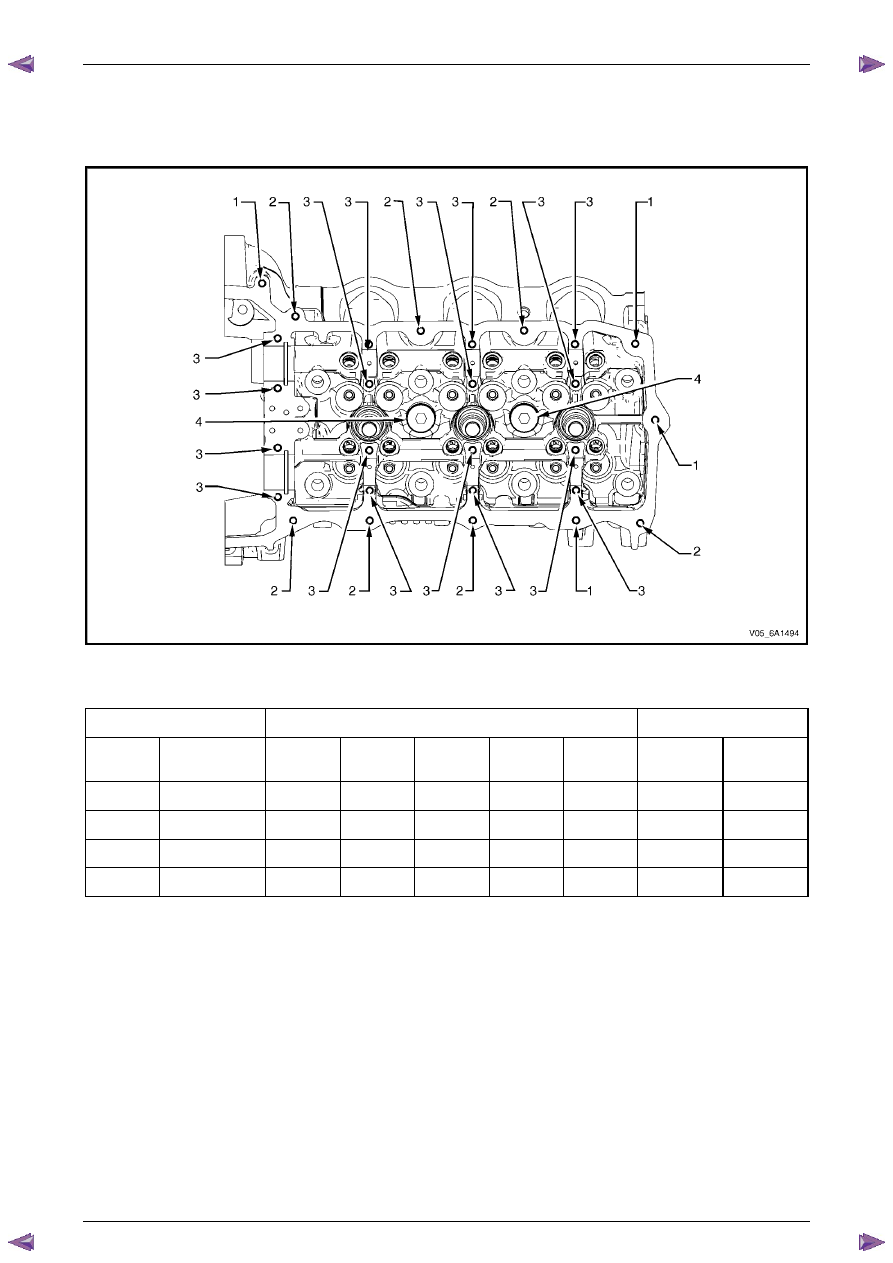

Thread Repair Specifications

Left-hand Cylinder Head Camshaft Cover Face



Figure 6A1 – 604

Legend

Hole

Tool Number J 42385

Max. Depth in mm

Number Thread

Size  Drill

Counter-

bore

Tap Driver

Insert  Drill

Tap



1

M6 x 1.0

201

202

203

204

205

22.5

18.0

2

M6 x 1.0

201

202

203

204

205

Thru

Thru

3

M6 x 1.0

701

n/a

203

204

205

28.5

24.0

4

M20 x 1.5

715

716

717

718

719

25.0

17.0
