Engine Mechanical – V6

Page 6A1–247



Page 6A1–247

44

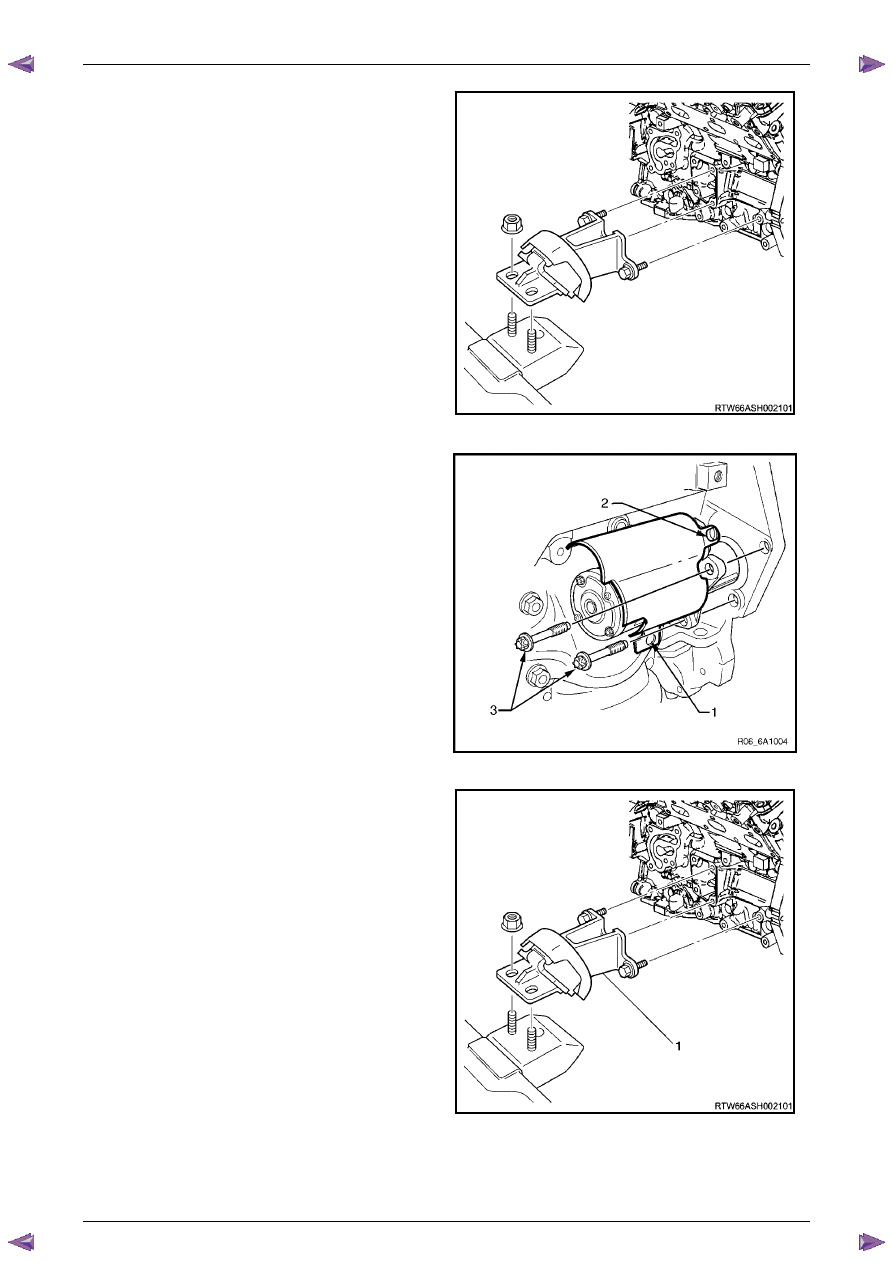

Remove the left-hand side engine mount (1),
(automatic transmission only).





Figure 6A1 – 426

45

Unclip the oil level sensor harness from the heat
shield (1).

a

Remove the heat shield retaining screw (2).

b

Remove the lower starter motor attaching bolt (3).

c

Remove the heat shield.

d

Remove the upper starter motor retaining bolt (3).

46

Remove the starter motor from the engine block and
lower the starter motor as far as possible to gain
access to the wiring harness connections.

47

Remove the starter motor, (automatic transmission
only).



Figure 6A1 – 427

48

Reinstall the left-hand side engine mount (1),
(automatic transmission only).

49

Remove the transmission assembly, refer to

Section 7C1 Automatic – 4L60E – General
Information

.







Figure 6A1 – 428

Engine Mechanical – V6

Page 6A1–248



Page 6A1–248

50

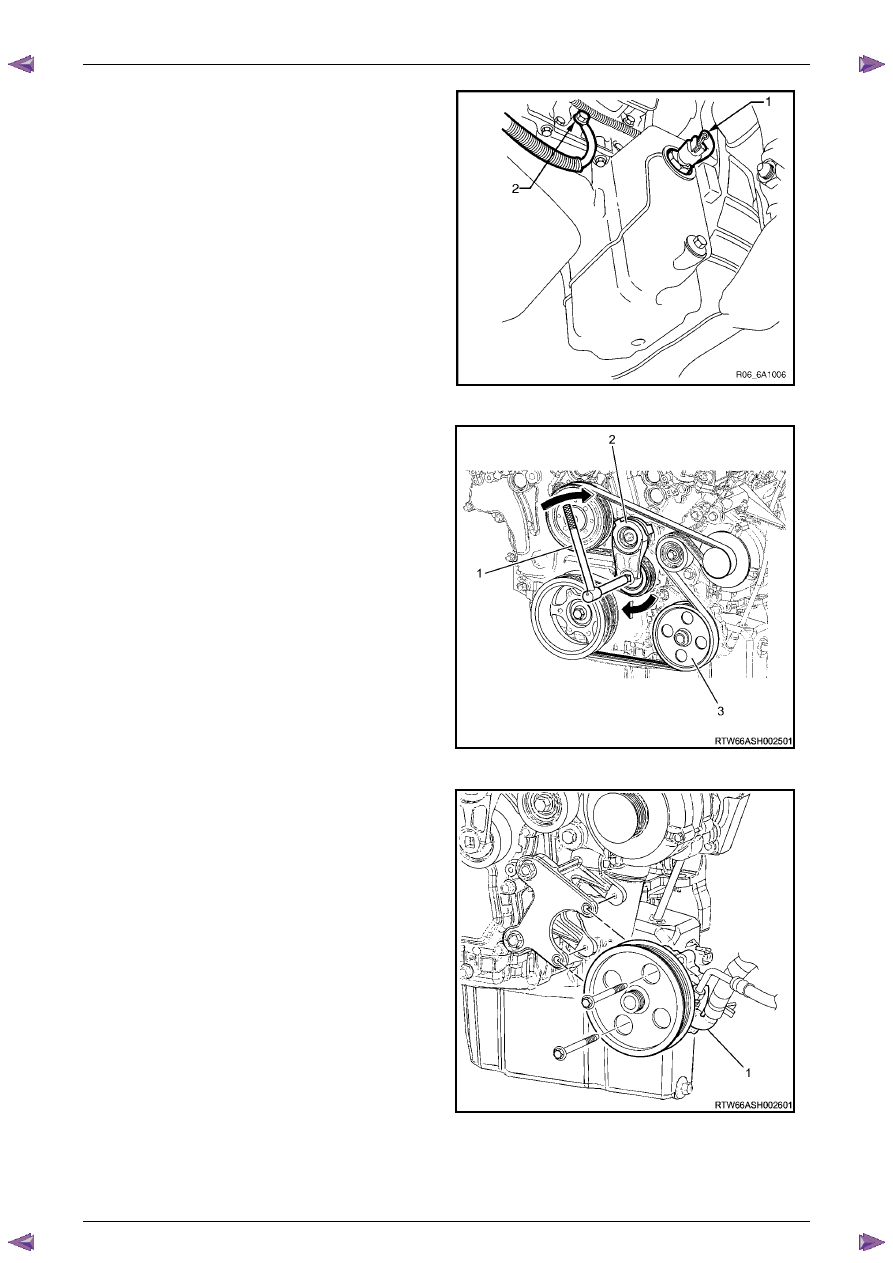

Unplug the connector from the oil level sensor (1).

51

Remove the attaching bolt (2) holding the ground
cable to the engine block.





Figure 6A1 – 429

52

Remove the accessory drive belt using a socket
wrench (1), to reduce tension rotate the drive belt
tensioner (2) clockwise, then while holding the
tensioner in the reduced tension position, remove the
accessory drive belt (3).





Figure 6A1 – 430

53

Remove the power steering pump bolts (two places),
remove the pump (1) from the mounting bracket and
disconnect the power steering hoses (two places)
from the pump body.



N O T E

Plug the open ends of the power steering hoses
to prevent the ingress of contaminants.



Figure 6A1 – 431

Engine Mechanical – V6

Page 6A1–249



Page 6A1–249

54

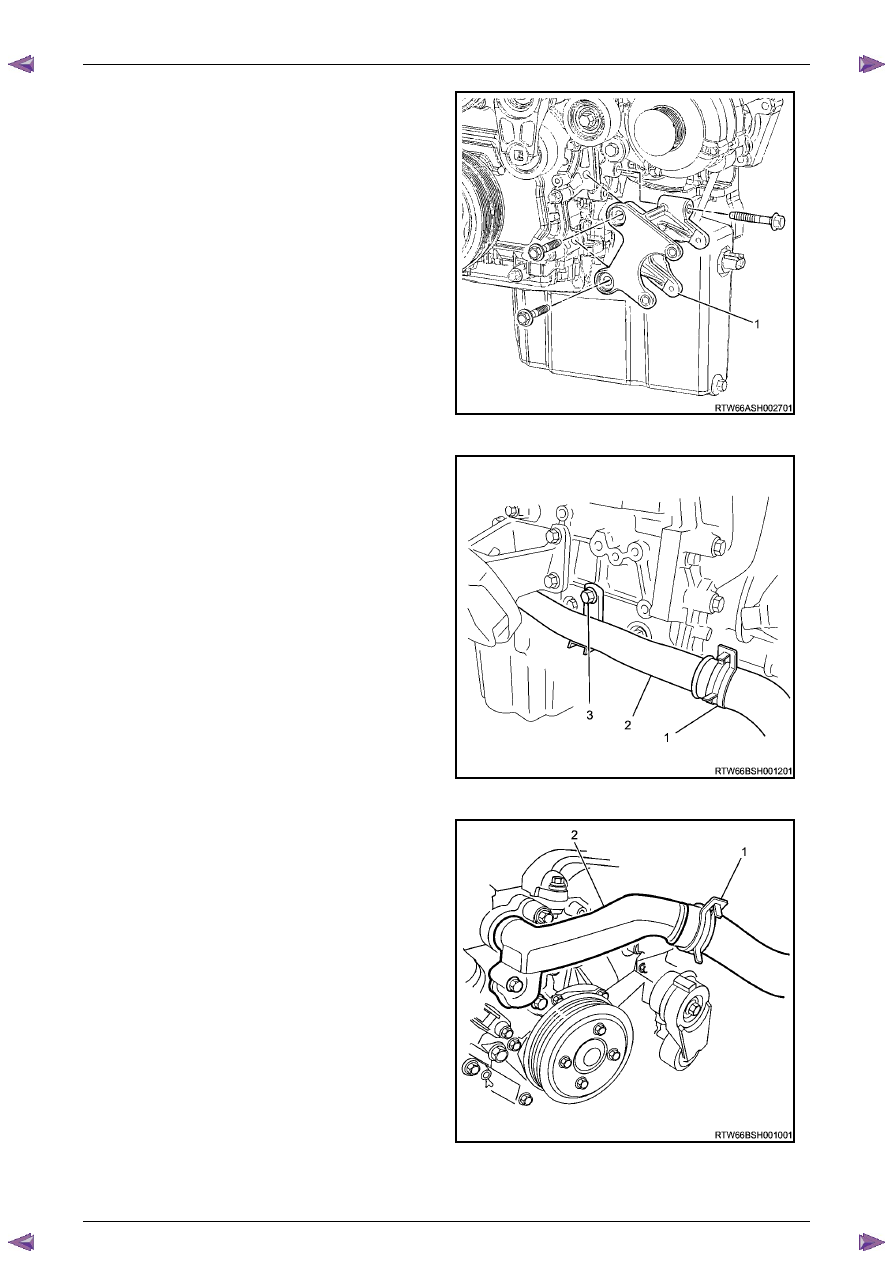

Remove the power steering pump bracket mounting
bolts (three places) then remove the pump bracket
(1).



Figure 6A1 – 432

55

Release the lower radiator hose clamp (1) and
remove the lower hose from the coolant pipe (2).



Figure 6A1 – 433

56

Release the upper radiator hose clamp (1) and
remove the upper hose from the coolant pipe (2).



Figure 6A1 – 434

Engine Mechanical – V6

Page 6A1–250



Page 6A1–250

57

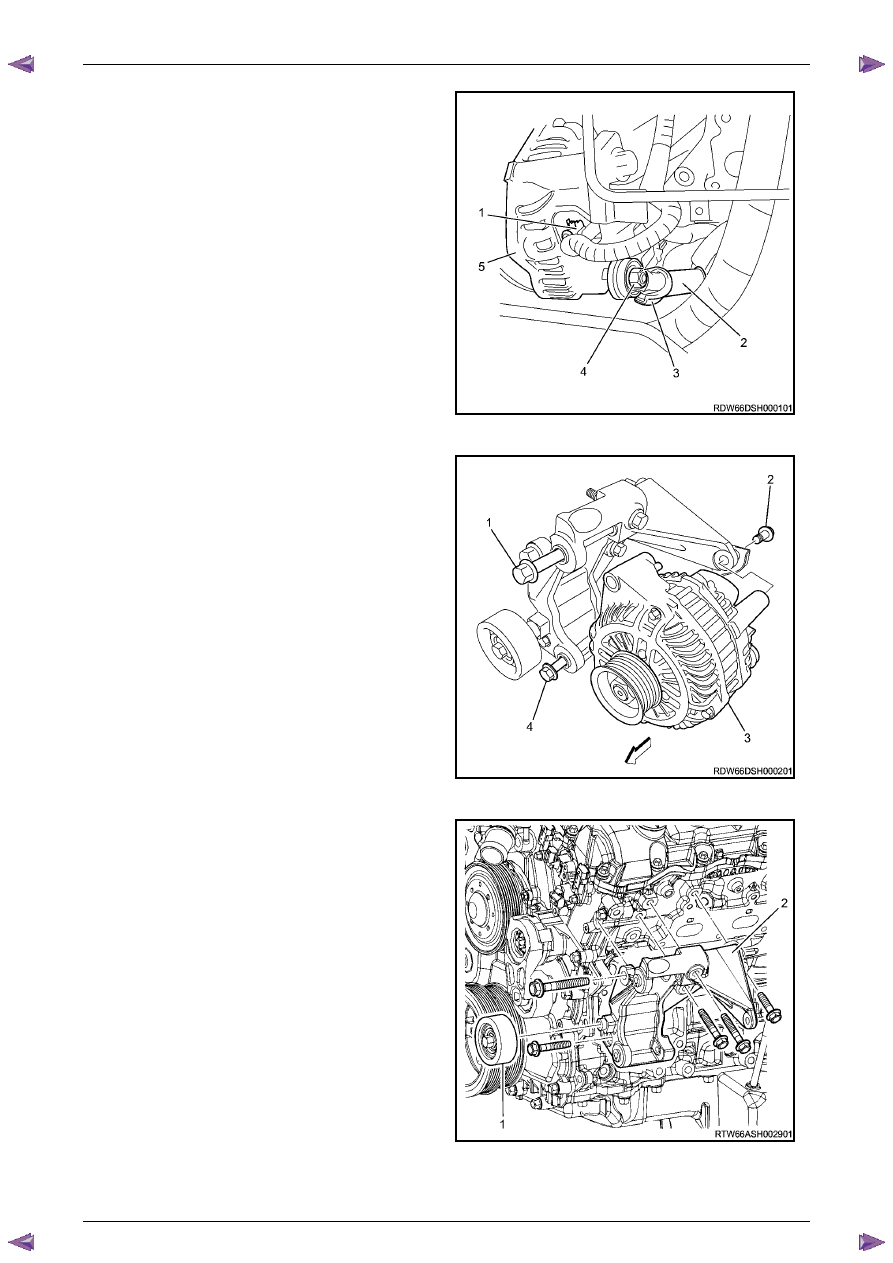

Unclip and remove the generator wiring harness
connector (1), Remove battery connection attaching
nut (4), and remove the battery harness cable (2)
from the connection stud.





Figure 6A1 – 435

58

Remove the generator attaching bolts (1, 2, and 4)
three places, then remove the generator (3) from the
mounting bracket.



Figure 6A1 – 436

59

Remove the idler pulley attaching bolt and remove the
idler pulley (1).

60

Remove the generator bracket attaching bolts, five
places, and remove the generator mounting bracket
(2).



Figure 6A1 – 437
