Engine Mechanical – V6

Page 6A1–21



1.4 Engine

Construction

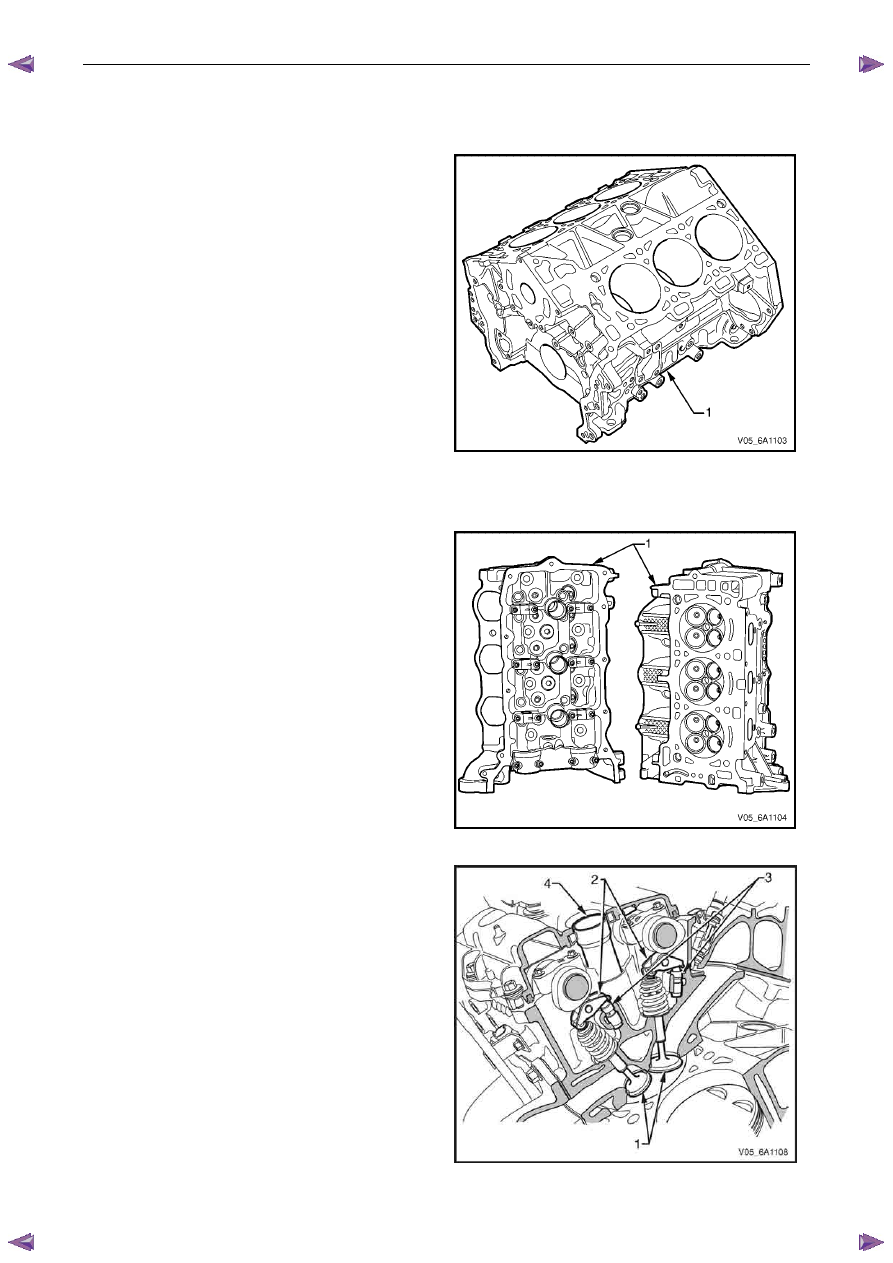

Cylinder Block

The cylinder block (1) is constructed from aluminium alloy
with cast-in-place iron cylinder bore liners.

Each of the four copper-infiltrated sintered steel main
bearing caps are attached to the cylinder block by six bolts.
Along with two outer and two inner bolts, two side bolts are
used in the deep skirt block for increased block stiffness.

The crankshaft thrust bearing is mounted in the third main
bearing cap.

To prevent aeration, oil return from the valve train and
cylinder heads is channelled away from the reciprocating
components through oil drain back passages incorporated
into the cylinder heads and engine block. Pressure
actuated piston oil cooling jets are mounted between
opposing cylinders.

Figure 6A1 – 14

Cylinder Heads

The cylinder heads (1) are semi-permanent mould cast
aluminium with powdered metal valve seat inserts and
valve guides.

Figure 6A1 – 15

Each cylinder head contains four valves per cylinder. The
valves (1) are actuated by the rocker arms (2) that pivot on
stationary hydraulic lash adjusters (3), which are oil-fed to
maintain valve / rocker lash.



The separate exhaust and intake camshafts are supported
by four bearings machined into the cylinder head. The front
camshaft bearing cap is used as a thrust control surface for
each camshaft.



A tube (4) is pressed into each cylinder head in three
places that shields each spark plug. An ignition coil
assembly is mounted directly on each spark plug, through
each spark plug tube.

Figure 6A1 – 16

Engine Mechanical – V6

Page 6A1–22



Crankshaft

The crankshaft is a forged steel design with four main bearings. The number three main bearing controls crankshaft
thrust. A crankshaft position reluctor wheel is pressed onto the rear of the crankshaft, in front of the rear main journal.
The crankshaft is internally balanced with an integral oil pump drive machined into the nose in front of the front main
journal.

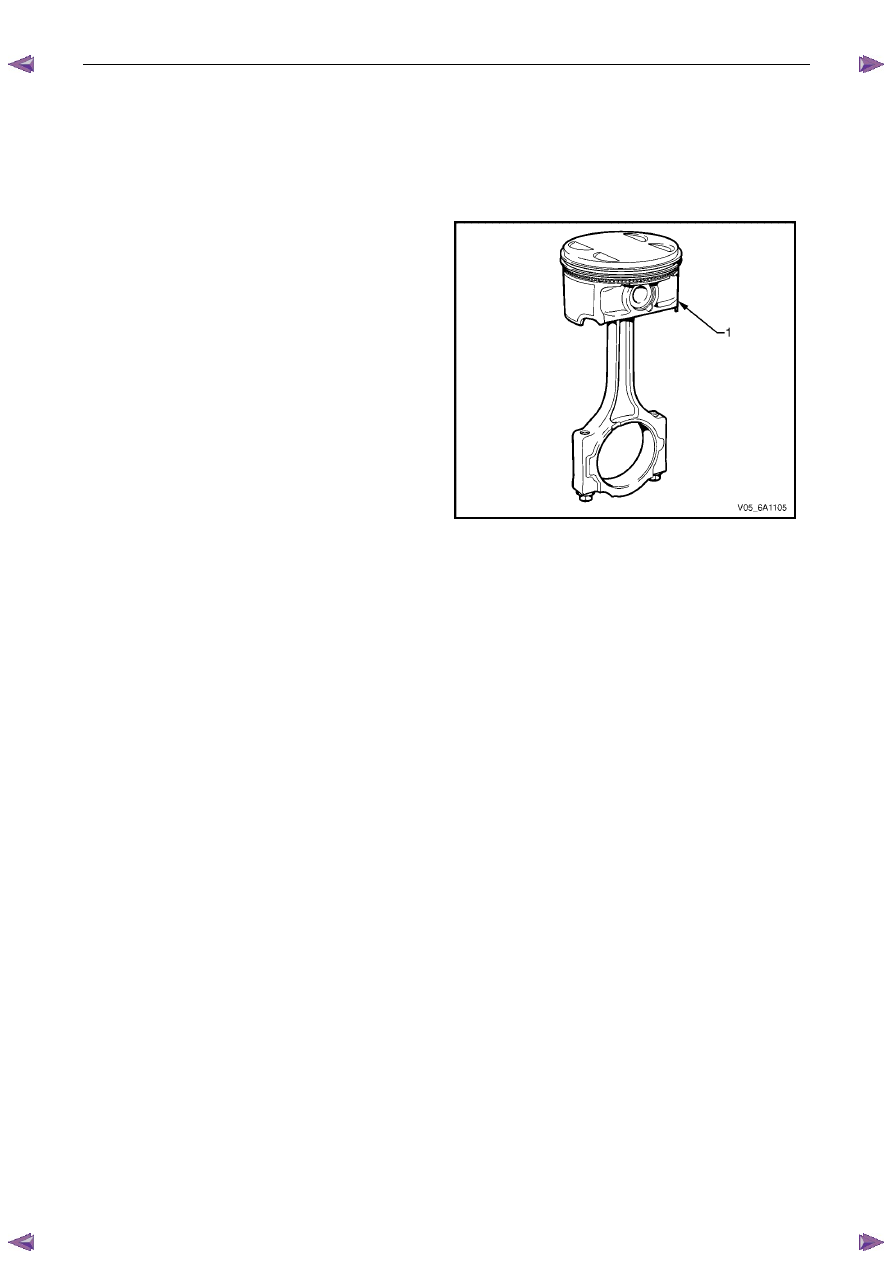

Pistons, Pins and Connecting Rods

The piston assembly (1) is fitted with two low tension
compression rings and one multi-piece oil control ring. The
top compression ring is plasma sprayed, while the second
compression ring is cast iron Napier.

The oil control ring incorporates a steel expander and two
chrome plated steel rails.

The connecting rods are sinter forged steel and have full
floating piston pins. The piston pins are a slip-fit type, into
the bronze bushed connecting rods. Round wire retainers
are used to retain the piston pin into the piston.

The cast aluminium pistons incorporate a polymer coated
skirt to reduce friction.

Figure 6A1 – 17

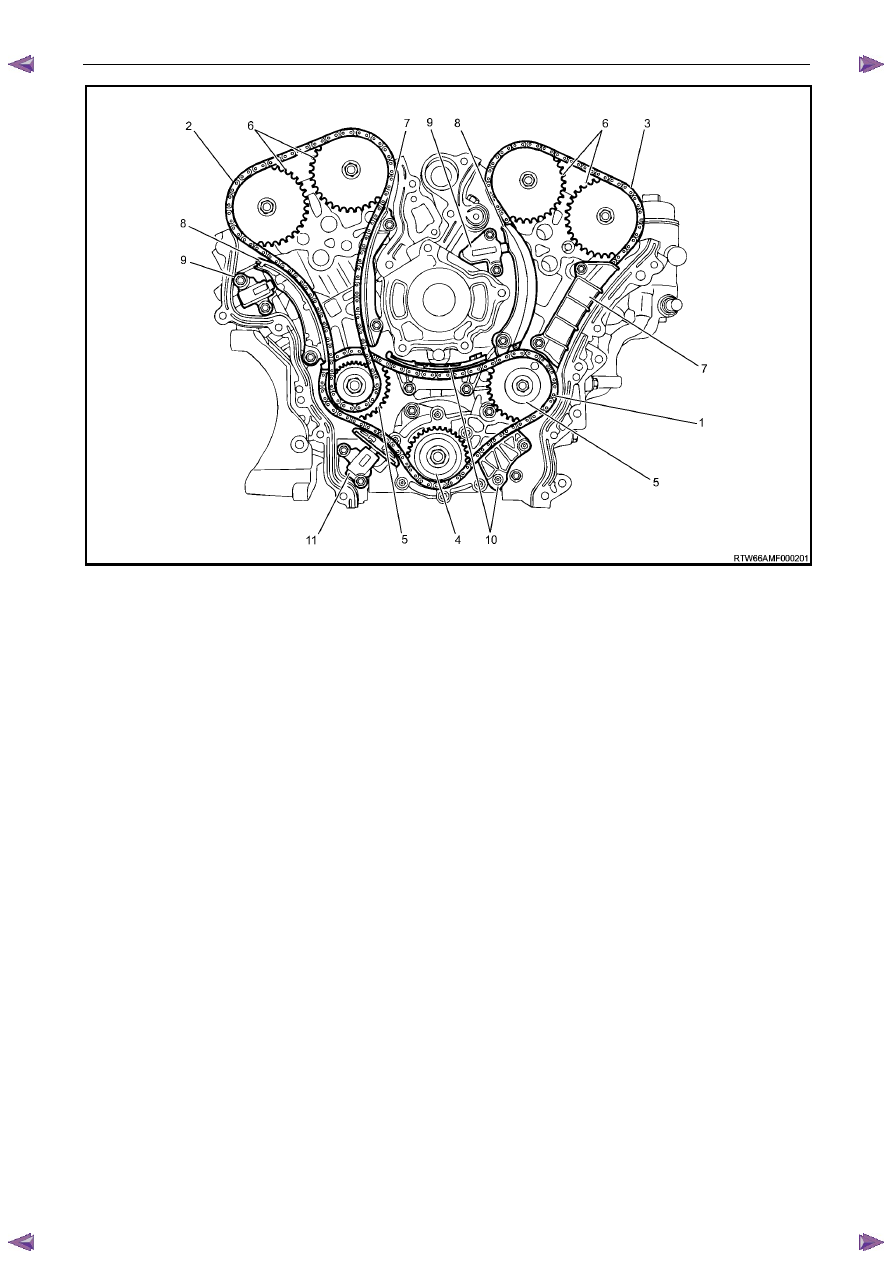

Camshaft Drive System

Three timing chains are fitted:
•

primary (1),

•

right-hand secondary (2), and

•

left-hand secondary (3), refer to Figure 6A1 – 18 for the HFV6 engine.

The primary timing chain connects the crankshaft sprocket (4) with the left-hand and right-hand intermediate drive shaft
sprockets (5).

Each oil pressure fed intermediate sprocket drives the secondary timing chains, which subsequently drive the respective
cylinder head camshaft position actuators (6).

Two stationary timing chain guides (7) and movable timing chain shoes (8) control secondary timing chain backlash.

Each secondary timing chain shoe is under tension from an oil pressure hydraulically operated tensioner (9). To control
backlash on the primary chain, two stationary timing chain guides (10) and an oil pressure hydraulically actuated
tensioner with built in shoe (11) are fitted.

The tensioners minimise timing chain noise and provide accurate valve action by keeping slack out of the timing chains,
while continuously adjusting for timing chain wear. The tensioners incorporate a plunger that adjusts outward with wear,
minimising backlash. The tensioners are equipped with oiling jets to spray oil onto the timing components during engine
operation. Each tensioner is sealed to the head or block using a rubber coated steel gasket. The gasket traps an
adequate oil reserve to ensure quiet start-up.

Engine Mechanical – V6

Page 6A1–23





Figure 6A1 – 18

Legend

1

Primary Timing Chain

2

Secondary Timing Chain, Right-hand

3

Secondary Timing Chain, Left-hand

4 Crankshaft

Sprocket

5

Intermediate Driveshaft Sprocket

6 Camshaft

Sprocket

7

Secondary Timing Chain Guide

8

Secondary Timing Chain Shoe

9

Secondary Timing Chain Tensioner

10

Primary Timing Chain Guide

11

Primary Timing Chain Tensioner



Engine Mechanical – V6

Page 6A1–24



1.5

Engine Lubrication System

Lubrication Description

A structural diecast aluminium oil pan is fitted that incorporates an oil suction pipe, an oil deflector and an oil level sensor.
The oil suction pipe is bolted into the oil pan and seals to the bottom of the cylinder block with a gasket. The oil deflector
is bolted to the upper portion of the oil pan and ensures oil supply is maintained under all conditions. The oil level sensor
is mounted through the bottom of the oil pan.

A crankshaft driven gerotor oil pump is mounted to the front of the cylinder block. The pump, which incorporates an
internal pressure-relief valve, draws oil from the oil suction tube through the lower passage in the cylinder block. Oil is
then directed through an upper passage to the left-hand side of the cylinder block where the oil filter adapter is mounted.

The oil filter adapter incorporates a top-access, cartridge style oil filter. The filter is accessed through a screw-on cap that
incorporates an oil bypass valve. The oil filter adapter housing incorporates a drain back control valve and a threaded oil
pressure sender. Oil flows through a lower passage within the oil filter adapter and through the oil filter cartridge. Filtered
oil travels back through the upper passage of the adapter and into the engine block.

Oil is then directed up and across the front of the cylinder block, through several drilled passages. These front passages
feed oil to each cylinder head, the passage for the main bearings and piston oil jets, the right-hand and left-hand
secondary idler sprockets and to the primary timing chain tensioner.

Each cylinder head passage directs oil into oiling circuits for the stationary hydraulic lash adjusters (SHLAs) and the
camshaft bearing journals.  An additional passage in the cylinder head also directs oil to the secondary timing chain
tensioner.

The oil passage that supplies oil to the main bearings also supplies oil to pressure actuated piston cooling oil jets. Each
oil jet is mounted between opposing cylinder bores and directs oil to the two bores to provide extra cooling and control
piston temperatures.

From the front passages, oil is directed to the front of the block where the right-hand and left-hand intermediate drive
shaft sprockets and the primary timing chain tensioner are mounted. Each camshaft timing chain tensioner relies on a
gasket to maintain an oil reserve after the engine is turned off. All camshaft timing chain tensioners incorporate a small
oil jet to supply an oil spray onto the camshaft timing chain components.

Oil returns to the oil pan, either through the camshaft timing chain area or through the drain back passages on the
outboard walls of the cylinder heads and cylinder block.

1.6 Service

Notes

Cleanliness and Care

Throughout this Section, correct cleaning and protection of machined surfaces and friction areas is a part of the repair
procedure. This is considered standard workshop practice, even if not specifically stated.

When any internal engine part is serviced, care and cleanliness is extremely important.

When components are removed for service, they should be marked, organised or retained in a specific order for
reassembly.

At the time of installation, components should be installed in the same location and with the same mating surface as
when removed.

Any engine is a combination of many machined, honed, polished and lapped surfaces with tolerances that are measured
in thousandths of a millimetre. These surfaces should be covered or protected to avoid component damage.

A liberal coating of clean engine oil should be applied to friction areas during assembly, as the lubrication will protect and
lubricate friction surfaces during the initial engine start-up.

Replacing Engine Gaskets

Re-Using Gaskets and Applying Sealants

•

do not reuse any gasket unless specified,

•

gaskets that can be reused will be identified in the service procedure, and

•

do not apply sealant to any gasket or sealing surface unless specified in the service information.

Separating Components

•

Use a rubber mallet to separate components.

•

Bump the part sideways to loosen the components.

•

Bumping should be done at bends or reinforced areas to prevent distortion of parts.

Cleaning Gasket Surfaces

•

Where required, remove all gasket and sealing material from the part using a plastic or wood scraper.

•

Care must be used to avoid gouging or scraping the sealing surfaces.
