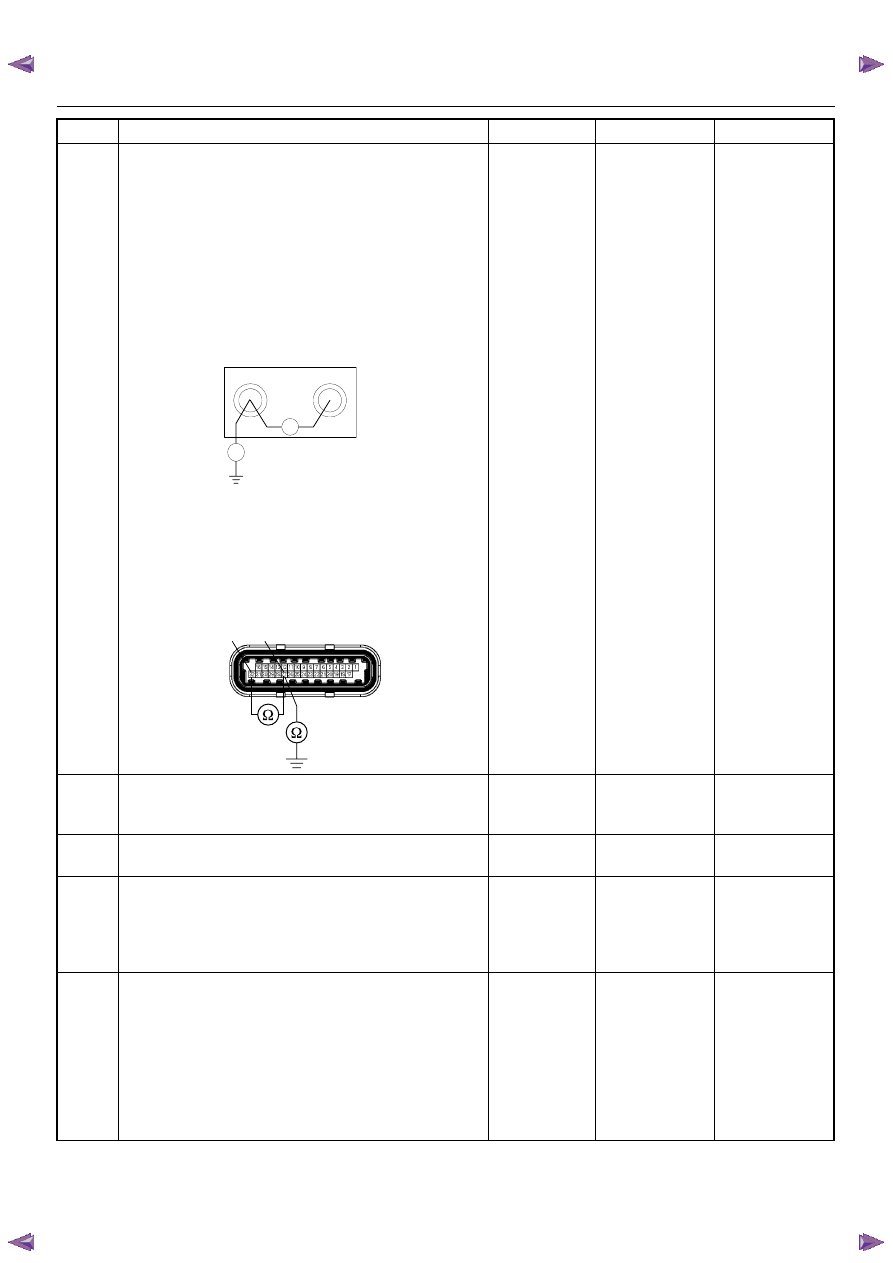

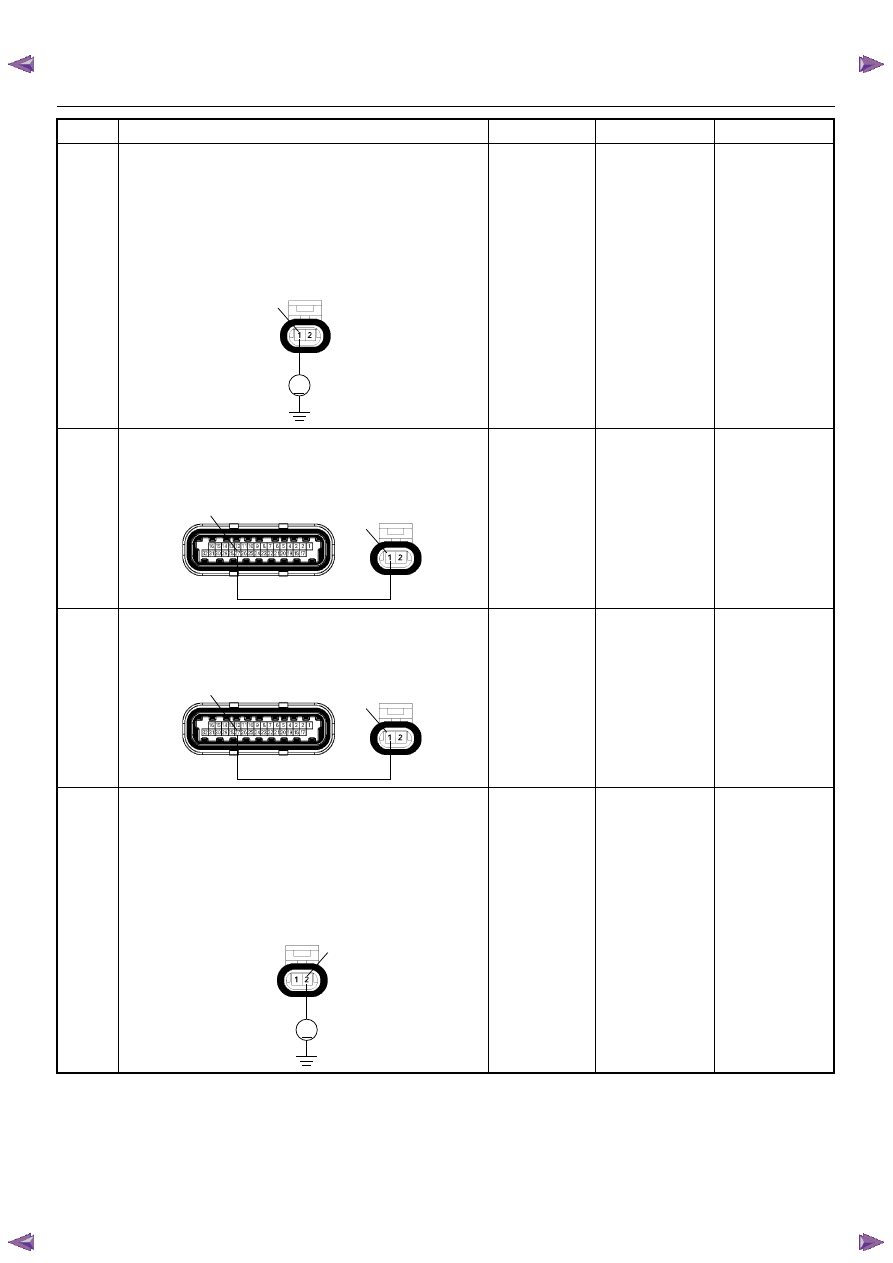

Using the DVM and check the ECT sensor signal
circuit.
Breaker box is available:

1. Ignition “Off”, engine “Off”.

2. Install the breaker box as type A. (ECM

disconnected) Refer to 6E-88 page.

3. Disconnect the ECT sensor connector.

4. Check the circuit for short to sensor ground or

ground circuit.

Was the problem found?

Breaker box is not available:

1. Ignition “Off”, engine “Off”.

2. Disconnect the ECT sensor connector.

3. Check the circuit for short to sensor ground or

ground circuit.

Was the problem found?

—

Repair faulty

harness and

verify repair

Go to Step 10

8

Substitute a known good ECT sensor assembly and
recheck.
Was the problem solved?

—

Go to Step 9

Go to Step 10

9

Replace the ECT sensor.
Is the action complete?

—

Verify repair

—

10

Is the ECM programmed with the latest software
release?
If not, download the latest software to the ECM using
the “SPS (Service Programming System)”.
Was the problem solved?

—

Verify repair

Go to Step 11

11

Replace the ECM.
Is the action complete?
IMPORTANT:  The replacement ECM must be
programmed. Refer to section of the Service
Programming System (SPS) in this manual.
Following ECM programming, the immobilizer system
(if equipped) must be linked to the ECM. Refer to
section 11 “Immobilizer System-ECM replacement” for
the ECM/Immobilizer linking procedure.

—

Verify repair

—

Step

Action

Value(s)

Yes

No

J1-27

J1-32

Ω

Breaker Box

Ω

E60(J1)

27

32

ENGINE DRIVEABILITY AND EMISSIONS

6E–139

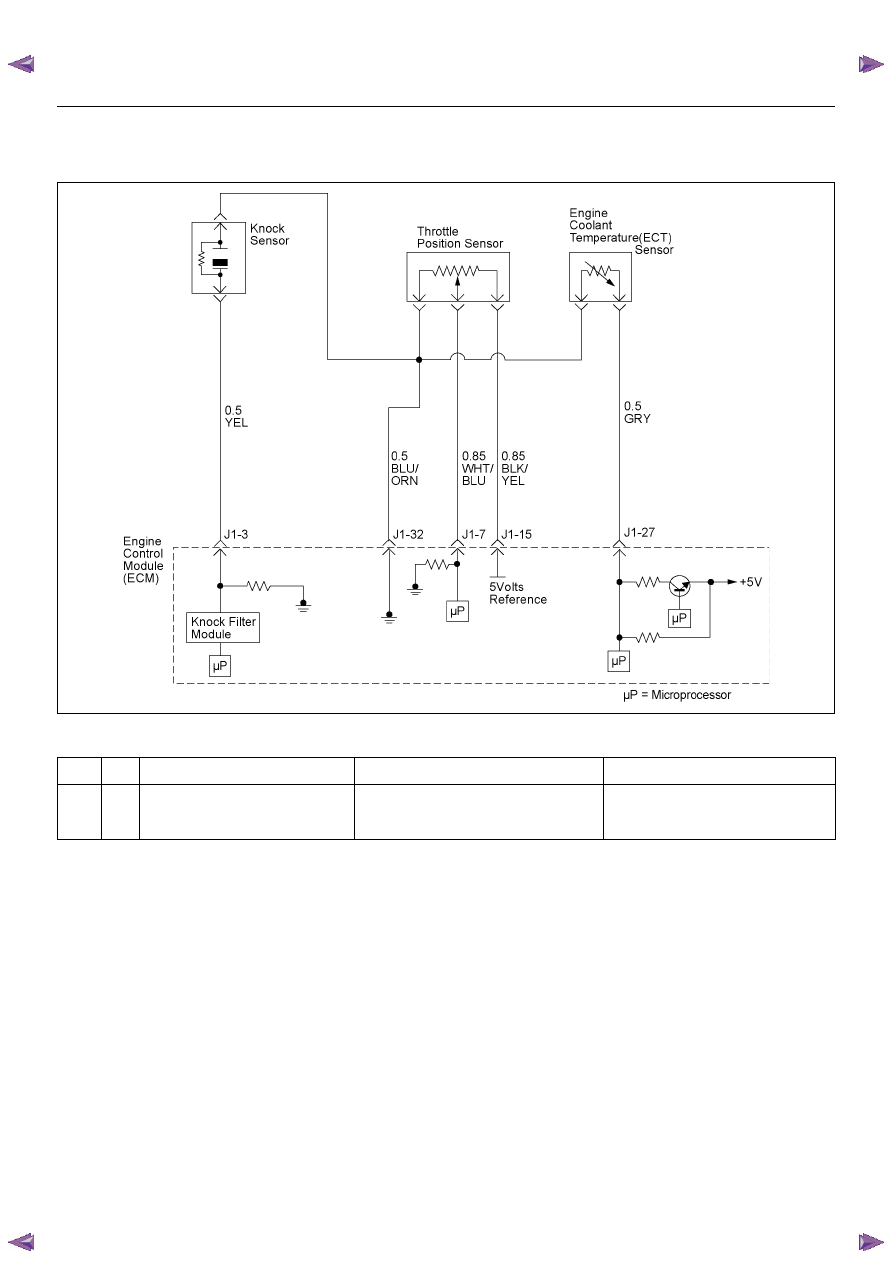

DIAGNOSTIC TROUBLE CODE (DTC) P0118 ENGINE COOLANT

TEMPERATURE SENSOR HIGH INPUT

Condition for setting the DTC and action taken when the DTC sets

Circuit Description

The engine coolant temperature (ECT) sensor is a
thermistor mounted in the engine coolant stream. The
engine control module (ECM) applies a voltage (about 5
volts) through a pull-up resistor to the ECT signal circuit.
When the engine coolant is cold, the sensor (thermistor)
resistance is high, therefore the ECM will measure a
high signal voltage. As the engine coolant warms, the
sensor resistance becomes less, and the ECT signal
voltage measured at the ECM drops. Diagnostic Trouble
code P0118 set when the ECM detects an excessively
high signal voltage on the engine coolant temperature
sensor signal circuit.

Diagnostic Aids

Check for the following conditions:

• Poor connection at ECM - Inspect harness

connectors for backed-out terminals, improper
mating, broken locks, improperly formed or damaged
terminals, and poor terminal-to-wire connection.

• Damaged harness - Inspect the wiring harness for

damage, short to ground, short to battery positive,
and open circuit. If the harness appears to be OK,
observe the ECT display on the Tech 2 while moving
connectors and wiring harnesses related to the ECT
sensor. A change in the ECT display will indicate the
location of the fault.

Code

Type

DTC Name

DTC Setting Condition

Fail-Safe (Back Up)

P0118

A

Engine Coolant Temperature Sensor
High Input

1.  Engine run time is longer than 120 sec-

onds.

2. ECT sensor output is below -38 deg.C.

The ECM uses default engine coolant
temperature value based on intake air
temperature and engine run time.

6E–140

ENGINE DRIVEABILITY AND EMISSIONS

Diagnostic Trouble Code (DTC) P0118

Engine Coolant Temperature Sensor High Input

Step

Action

Value(s)

Yes

No

1

Was the “On-Board Diagnostic (OBD) System Check”
performed?

—

Go  to  Step 2

Go to On Board

Diagnostic

(OBD) System

Check

2

1. Connect the Tech 2.

2. Review and record the failure information.

3. Select “F0: Read DTC Infor By Priority” in “F0:

Diagnostic Trouble Code”.

Is the DTC P0118 stored as “Present Failure”?

—

Go to Step 3

Refer to

Diagnostic Aids

and Go to Step

3

3

1. Using the Tech2, ignition “On” and engine “Off”.

2. Select “Clear DTC Information” with the Tech2 and

clear the DTC information.

3. Operate the vehicle and monitor the “F5: Failed

This Ignition” in “F2: DTC Information”.

Was the DTC P0118 stored in this ignition cycle?

—

Go to Step 4

Refer to

Diagnostic Aids

and Go to Step

4

4

Check for poor/faulty connection at the ECT sensor or
ECM connector. If a poor/faulty connection is found,
repair as necessary.
Was the problem found?

—

Verify repair

Go to Step 5

5

Visually check the ECT sensor.
Was the problem found?

—

Go to Step 12

Go to Step 6

6

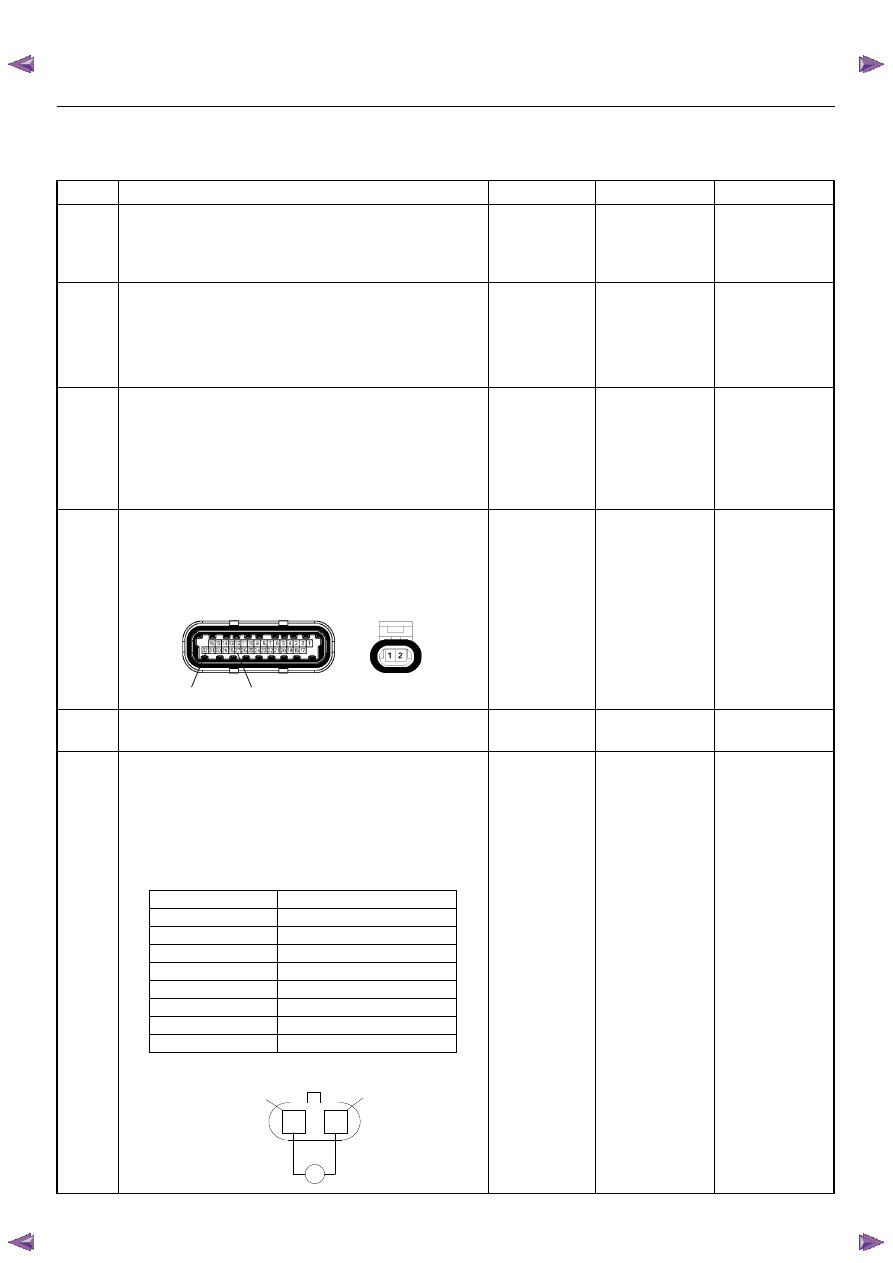

Using the DVM and check the ECT sensor.

1.  Ignition “Off”,  engine “Off”.

2. Disconnect ECT sensor connector.

3. Measure the resistance of ECT sensor.

Does the tester indicate standard resistance as shown
in the following table?

Standard

resistance

Go to Step 7

Go to Step 12

E60(J1)

E69

32

27

Temperature (°C)

Resistance (

Ω) (Approximately)

-20

26740

0

9120

20

3500

40

1464

60

664

80

333

100

175

120

102

2

1

ECT Sensor

Ω

1

2

ENGINE DRIVEABILITY AND EMISSIONS

6E–141

7

Using the DVM and check the ECT sensor signal
circuit.

1.  Ignition “On”, engine “Off”.

2. Disconnect the ECT sensor connector.

3. Check the circuit for open circuit.

Was the DVM indicated specified value?

Approximately

5.0V

Go to Step 10

Less than 1V:

Go to Step 8

More than

specified value:

Go to Step 9

8

Repair the open circuit between the ECM and ECT
sensor.
Was the problem solved?

—

Verify repair

Go to Step 14

9

Repair the short to voltage circuit between the ECM
and ECT sensor.
Was the problem solved?

—

Verify repair

Go to Step 14

10

Using the DVM and check the ECT sensor ground
circuit.

1. Ignition “On”, engine “Off”.

2. Disconnect the ECT sensor connector.

3. Check the circuit for short to power supply circuit.

Was the DVM indicated specified value?

Less than 1V

Go to Step 11

Repair faulty

harness and

verify repair

Step

Action

Value(s)

Yes

No

V

E69

1

E60(J1)

E69

27

1

E60(J1)

E69

27

1

V

E69

2
