6E–30

ENGINE DRIVEABILITY AND EMISSIONS

RELAY AND FUSE

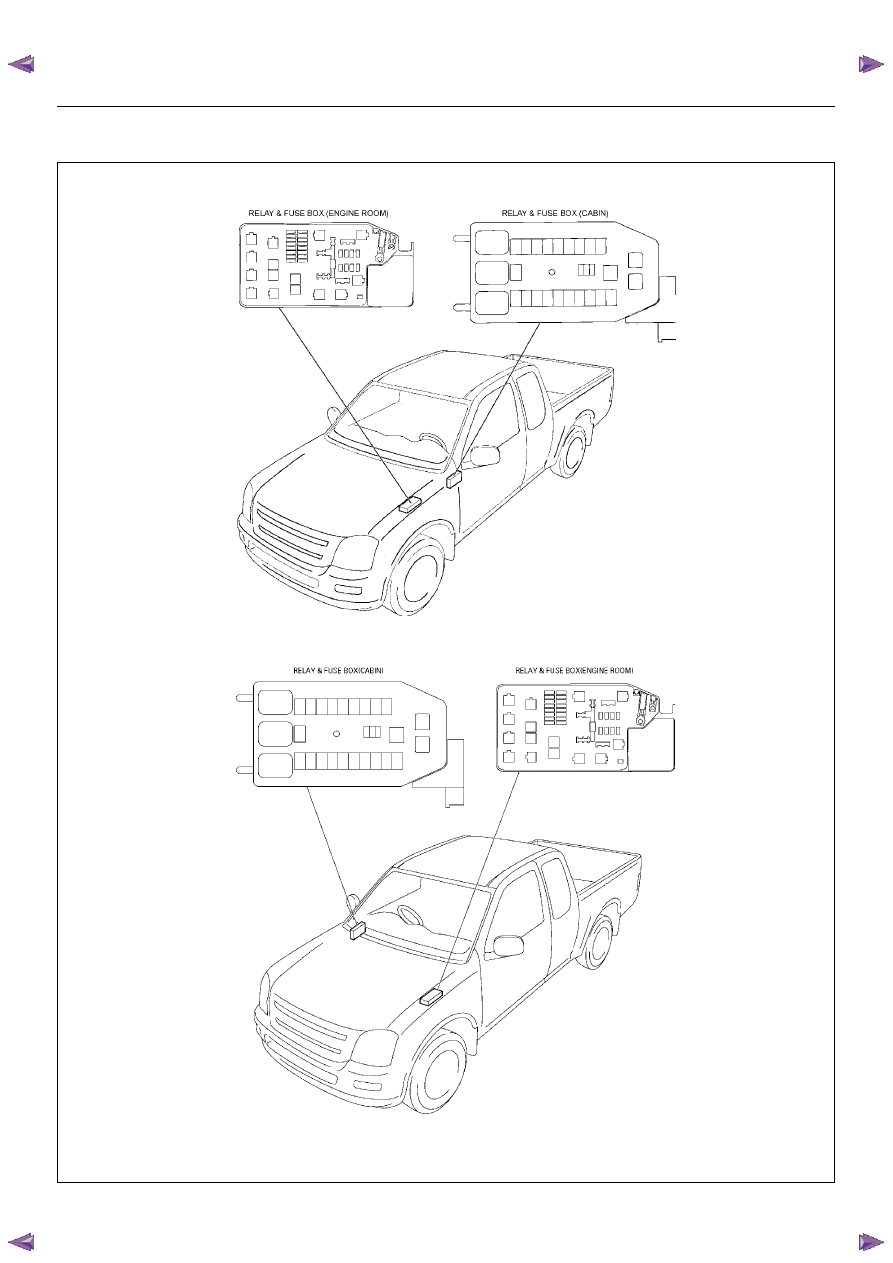

RELAY AND FUSE BOX LOCATION (LHD & RHD)

LHD

RHD

ENGINE DRIVEABILITY AND EMISSIONS

6E–31

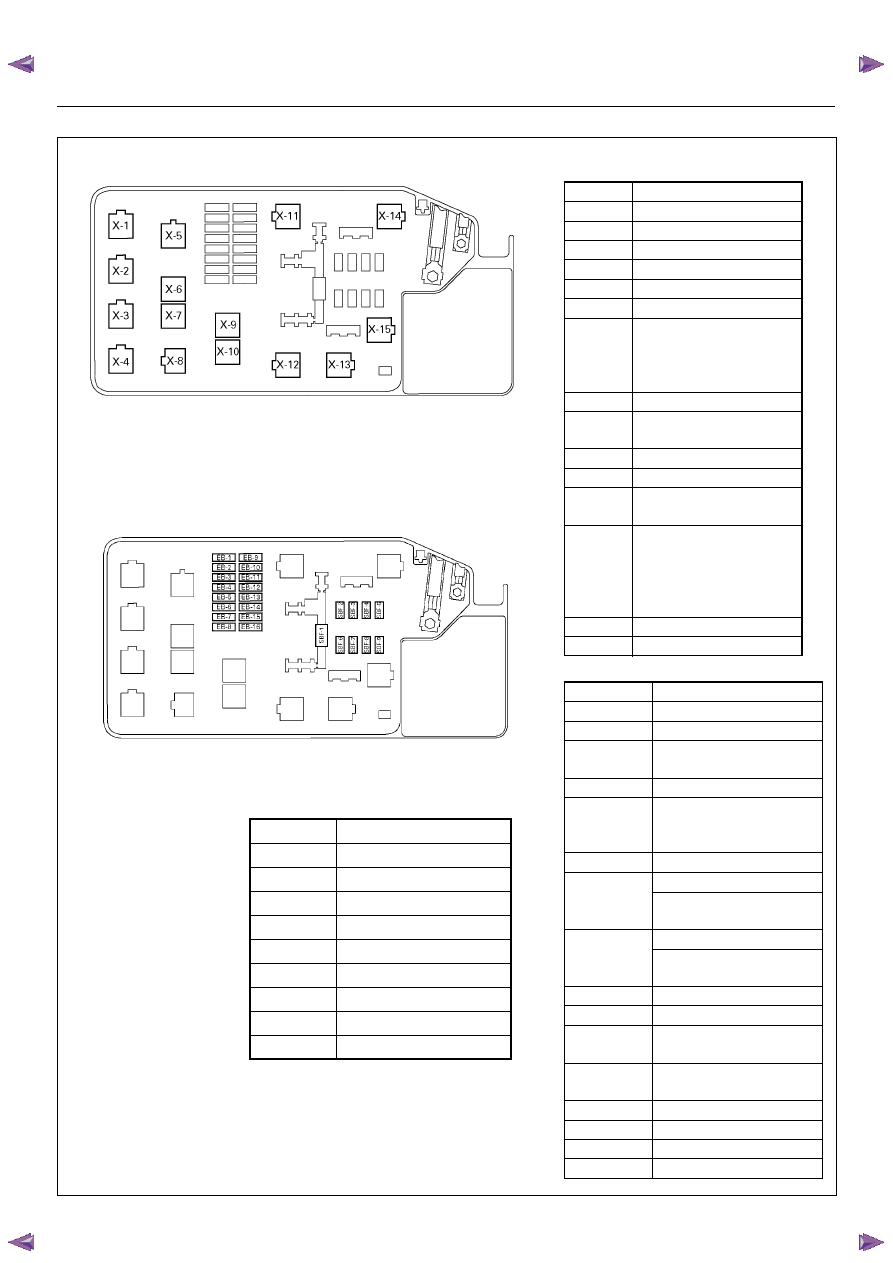

RELAY AND FUSE BOX LOCATION (LHD & RHD)

RELAY

No.

Relay Name

X-1

RELAY; TAIL LIGHT

X-2

RELAY; FUEL PUMP

X-3

RELAY; HORN

X-4

RELAY; DIMMER

X-5

—

X-6

RELAY; STARTER

X-7

RELAY; H/LAMP
(Except AUSTRALIA)
RELAY; COND FAN
(AUSTRALIA)

X-8

—

X-9

RELAY; FRT FOG
LIGHT

X-10

—

X-11

RELAY; HEATER

X-12

RELAY; STARTER
CUT (AUSTRALIA)

X-13

RELAY; STARTER
CUT (Except
AUSTRALIA)
REPLAY; H/LAMP
(AUSTRALIA)

X-14

RELAY; A/C COMP

X-15

RELAY; THERMO

SLOW BLOW FUSE

NO.

Slow Blow Fuse Name

SBF-1

100A MAIN

SBF-2

—

SBF-3

—

SBF-4

20A COND, FAN

SBF-5

40A IG 1

SBF-6

—

SBF-7

—

SBF-8

30A BLOWER

SBF-9

50A IG 2

*1 AUSTRALIA
*2 WITH HEADLIGHTS LEVELING

FUSE

NO.

Fuse Name

EB-1

15A ECM

EB-2

—

EB-3

15A FRT FOG
20A TRAILER *1

EB-4

15A ACG (S)

EB-5

10A ILLUMI
10A ILLUMI & TAIL-RF
*1

EB-6

10A TAIL

EB-7

10A H/LIGHT-RH
10A H/LIGHT-RH-LOW
*2

EB-8

10A H/LIGHT-LH
10A H/LIGHT-LH-LOW
*2

EB-9

20A FUEL PUMP

EB-10

10A O

2

 SENSOR

EB-11

10A H/LIGHT-RH-
HIGH *2

EB-12

10A H/LIGHT-LH-
HIGH *2

EB-13

10A A/C

EB-14

10A 4WD

EB-15

10A HORN

EB-16

10A HAZARD

6E–32

ENGINE DRIVEABILITY AND EMISSIONS

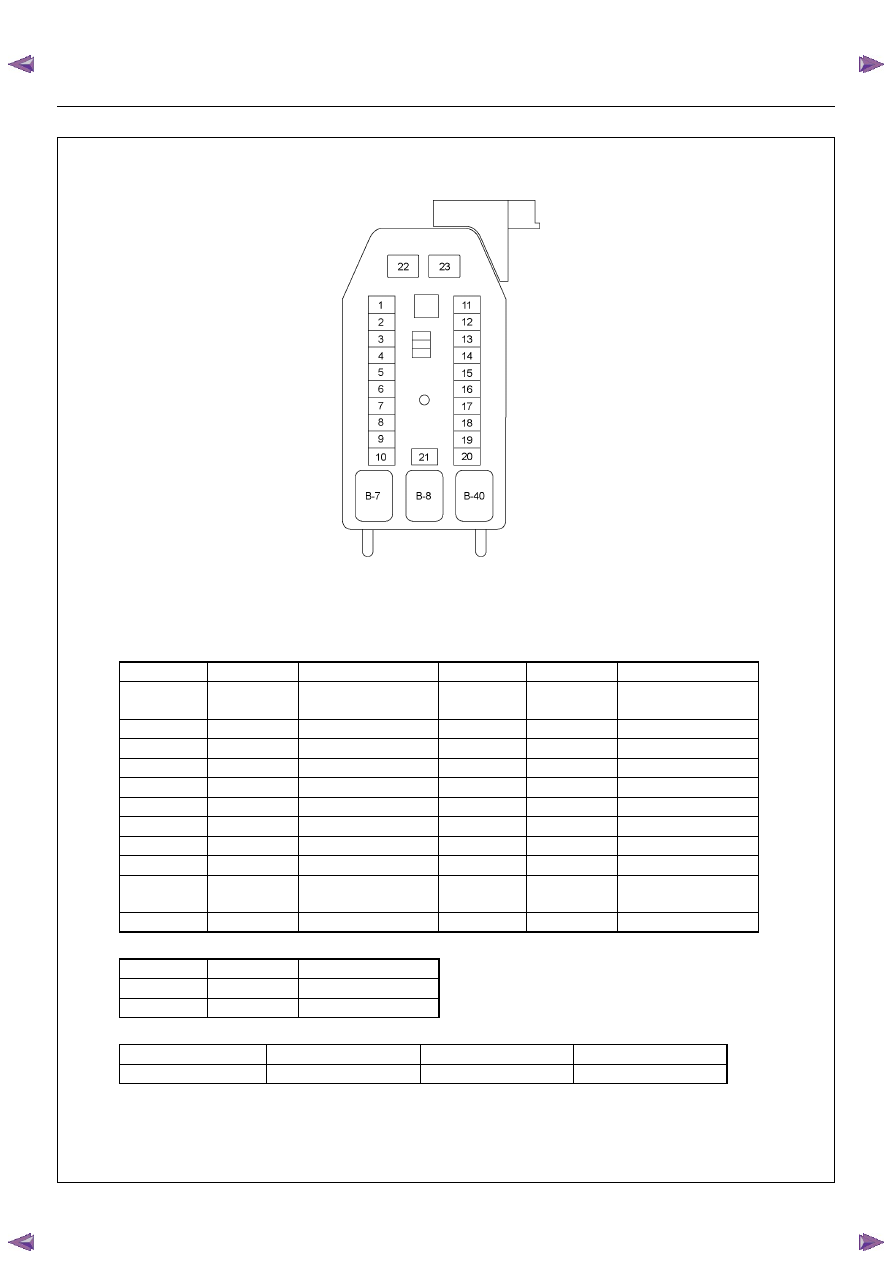

FUSE AND RELAY LOCATION (LHD & RHD)

FUSE

SLOW BLOW FUSE

RELAY

No.

Capacity

Indication on label

No.

Capacity

Indication on label

1

—

—

12

15A

CIGER/ACC

SOCKET

2

10A

ABS/4WD

13

15A

AUDIO (+B)

3

10A

TRAILER

14

20A

DOOR LOCK

4

15A

BACK UP

15

10A

METER (+B)

5

15A

METER

16

10A

ROOM

6

10A

TURN

17

10A

ANTI THEFT

7

15A

ELEC.IG

18

15A

STOP

8

15A

ENGINE

19

—

—

9

20A

FRT WIPER

20

10A

STARTER

10

15A

EGR (RHD)

IG.COIL (LHD)

21

10A

SRS

11

10A

AUDIO

No.

Capacity

Indication on label

22

20A

RR DEF

23

30A

POWER WINDOW

Connector No.

B-7

B-8

B-40

C24SE

REAR DEFOGGER

POWER WINDOW

(NO RELAY)

FUSE BOX

ENGINE DRIVEABILITY AND EMISSIONS

6E–33

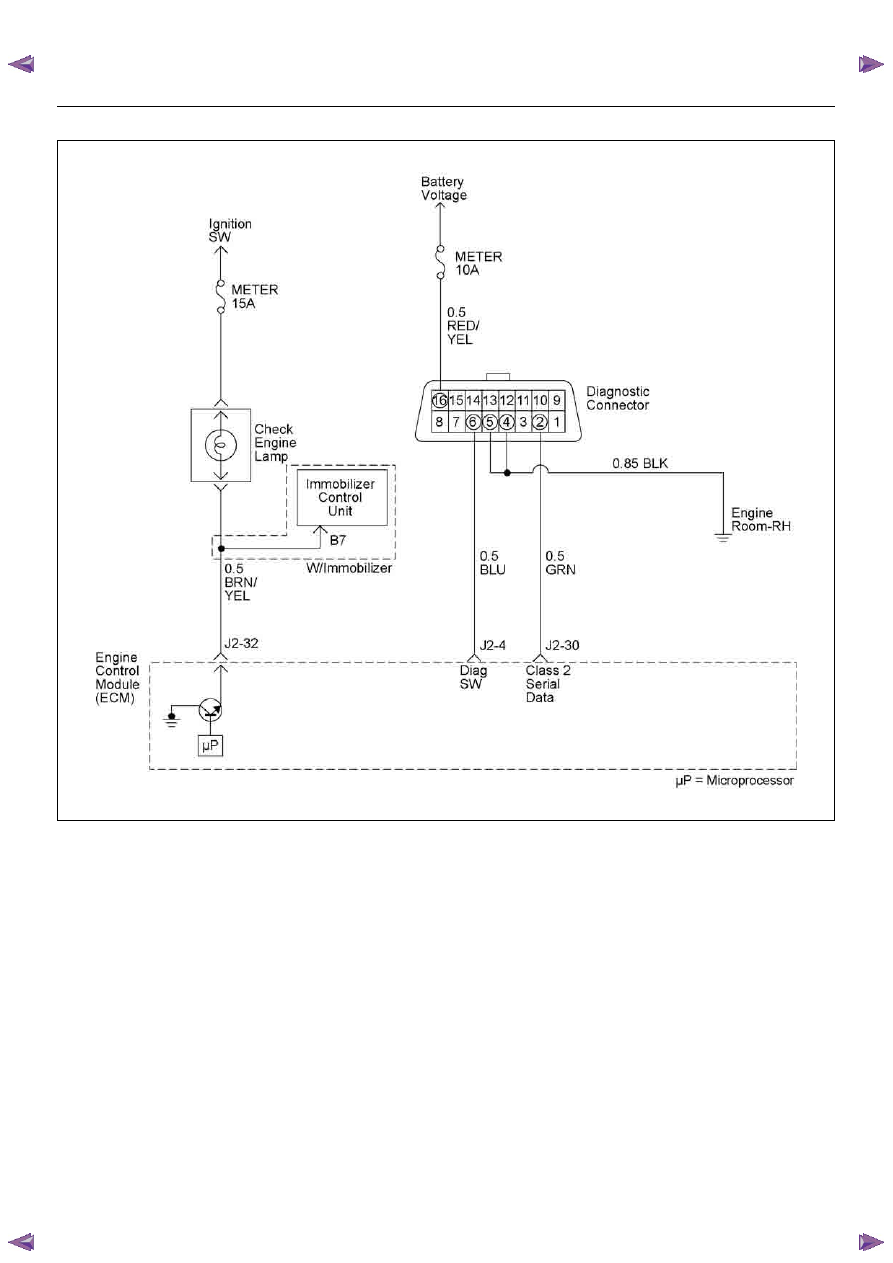

ECM WIRING DIAGRAM (1/9)
