6D3-20  STARTING AND CHARGING SYSTEM





Load regulation test

Increase the engine speed until the generator is running at
6000 rpm, increase the load to 90% of full output a decrease in
the regulating voltage should not exceed 0.50 volts for 12 v
and 0.70 v for 24 v regulators of the readings obtained in the
previous test.  If so, the regulator is defective.

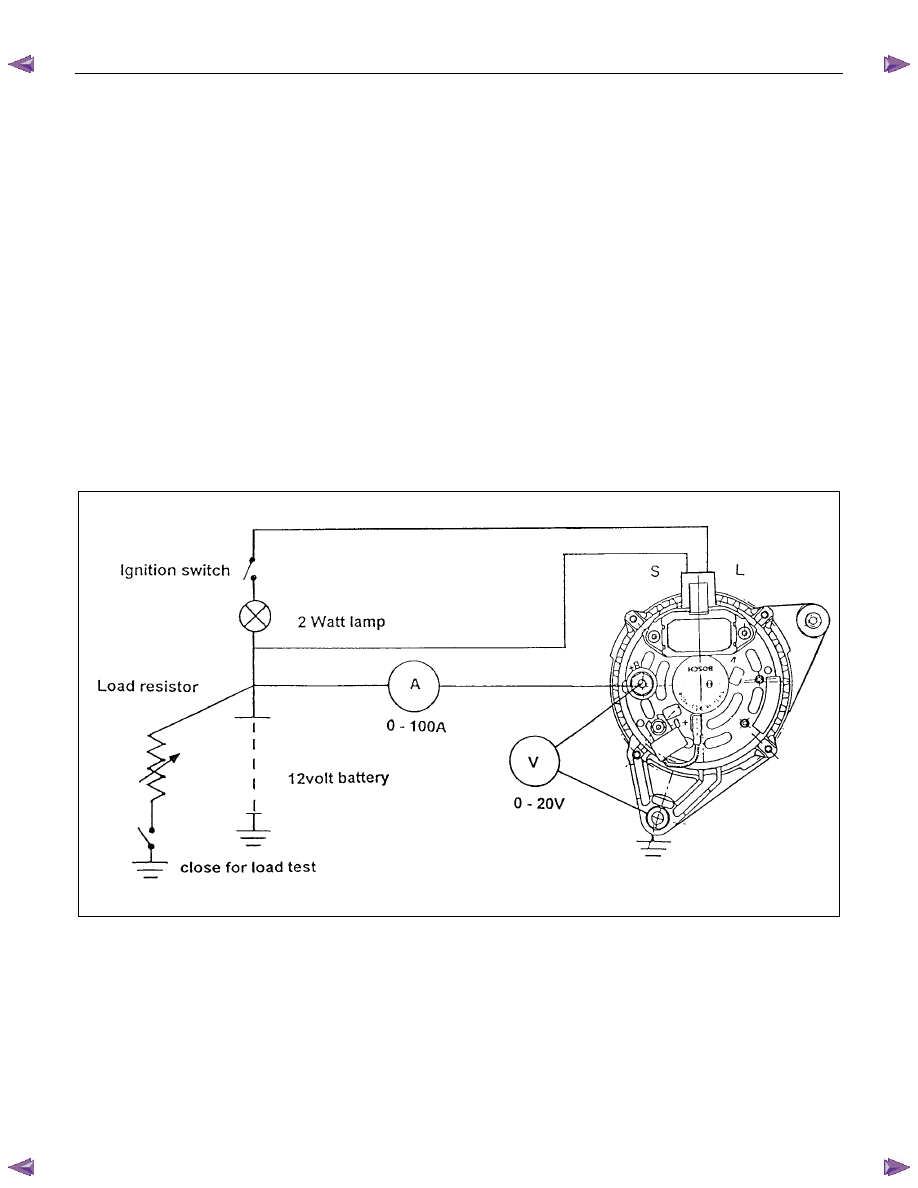

Generator output test at full load

Increase engine speed until the altenator is running at 6000
rpm, switch on electrical loads until the generator voltage
drops to 13.5 volts for 12 v systems and 26 volts for 24 v
systems, full outut should be obtained under these conditions.
It may be necessary to adjust engine speed to maintain
altenator speed. If sufficient electrical loads are not available a
carbon pile resistance can be connected across the battery
and adjusted until maximum output is obtained.

Keep the time for this test to a minimum to avoid undue
heating and high engine speeds.








STARTING AND CHARGING SYSTEM  6D3-21





Technical Data

(mm)

Brush wear  -  Minimum Length

3.8

Sliprings -

Minimum

Diameter

26.7

Sliprings -

Trueness

<0.06

Pole claws  -  Trueness

<0.05(93.25

±0.05)


Torque

N.m(kgf

⋅m)

Pulley retaining nut

54-68(5.5-6.9)

Capacitor retaining screw

2.7-3.8(0.3-0.4)

Capacitor whiz nut

1.5-2.2(0.1-0.2)

B+ terminal nut M8

7.5-8.5(0.8-0.9)

B+ terminal rectifier nut

6.0-7.5(0.6-0.8)

Regulator retaining screw

1.6-2.3(0.1-0.2)

Rectifier retaining screw

1.6-2.3(0.1-0.2)

Bearing retaining plate screw  2.1-3.0(0.2-0.3)
Through bolt

3.8-5.5(0.4-0.6)


Winding resistance(between phases)

(

Ω)

 Stator

Rotor

70 Amp generator

0.086+10%

2.6

±0.13

85 Amp generator

0.058+10%

2.6

±0.13

90 Amp generator

0.056+10%

2.6

±0.13


Warning lamp fault indication


Fault running

Generator not
running Ignition ON

Generator
Iginiton ON

Generator out cable
O/C

ON

ON

Battery "S" cable O/C

ON

ON

Battery overcharged

ON

ON

Positive diode short

OFF

ON

Negative diode short

ON

ON

Positive diode open

ON

OFF

Negative diode open

ON

OFF

Phase voltage sensing

ON

ON

cable open circuit
Power transistor
shorted

ON

ON

Warnign lamp driver
O/C

OFF

OFF

6D3-22  STARTING AND CHARGING SYSTEM

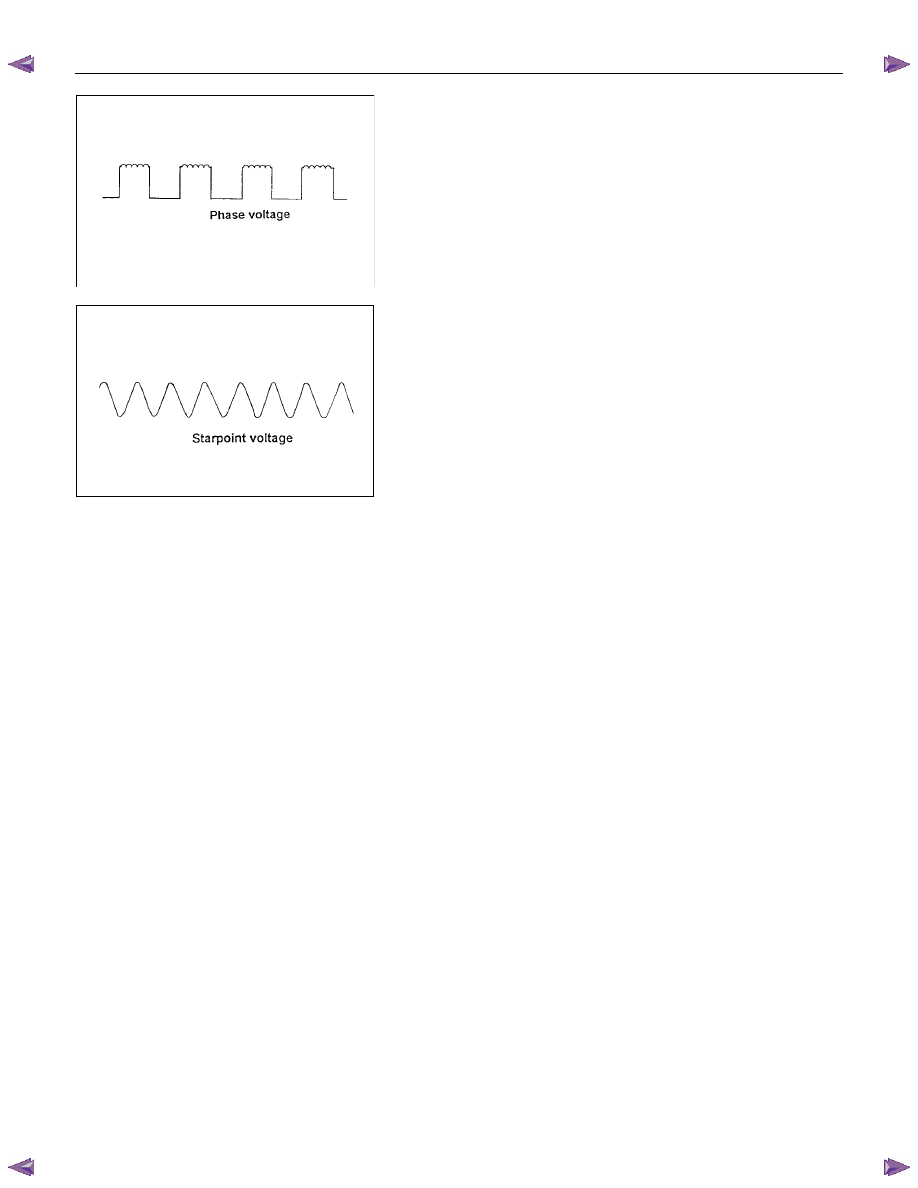

Output wave forms for phase and startpoint connections.

Note;  the average of these two waveforms are identical from
no load to 100% output of rated load.

Voltage phase = Voltage startpoint

6.9v@ rated output    7.2v@ Zero output


Note: The phase frequency is one third of the startpoint
frequency.
