Fuel Sedimenter Switch

Inspection

1.  Check that there is continuity between the switch

connector terminals when the float in the fuel

sedimenter is above the water drain line.

2. Turn on the ignition switch, remove the fuel

sedimenter connector, and connect the terminals

of the connectors on the harness side. Confirm

that the sedimenter warning lamp lights up.

If abnormalities are detected during the check, replace
the switch parts and carry out repairs in case of
defective connection between circuits or short circuits.








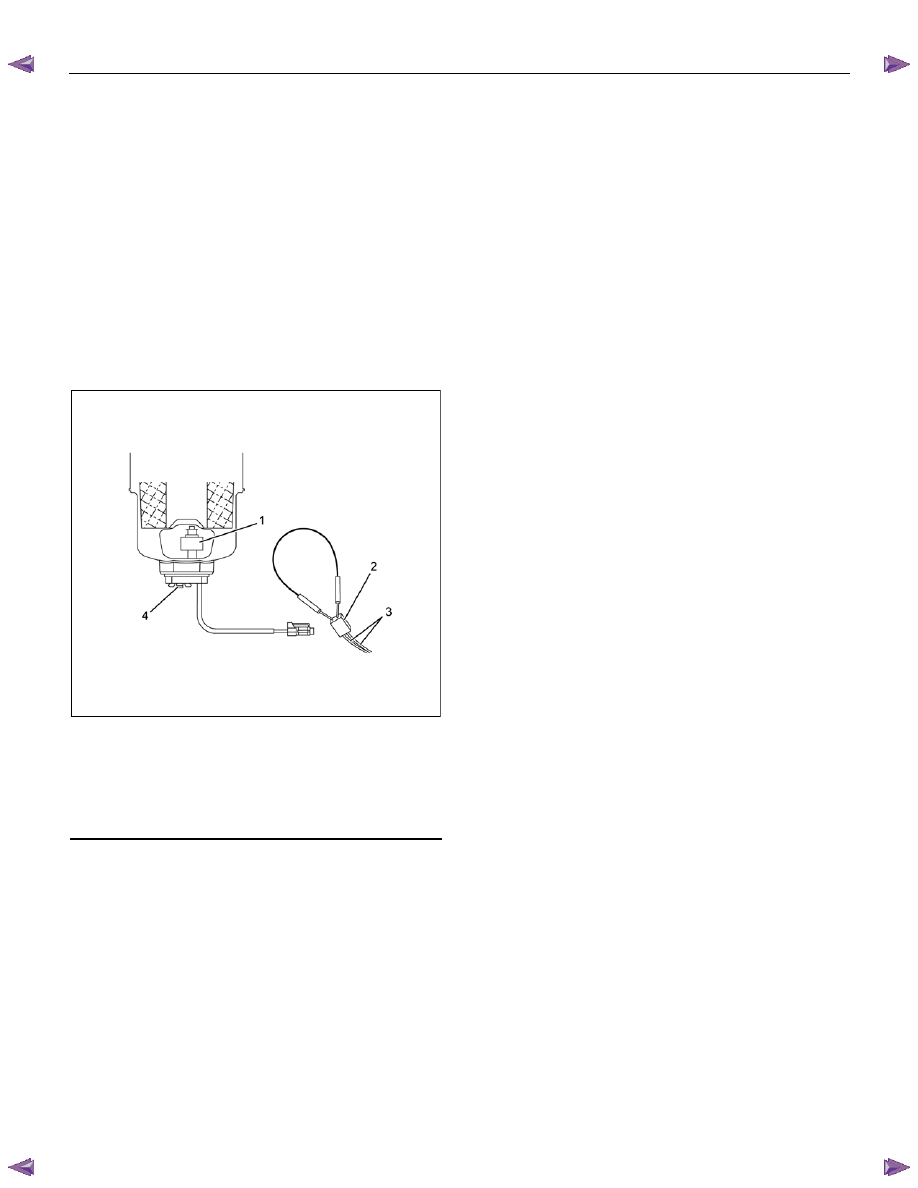

RTW76CSH001101

Legend

 1. Sensor

  2.  Connector on The Vehicle Side

 3. Harness

 4. Drain

Valve









6C-40  FUEL SYSTEM (4JK1/4JJ1)

Fuel Tank and Fuel Cooler

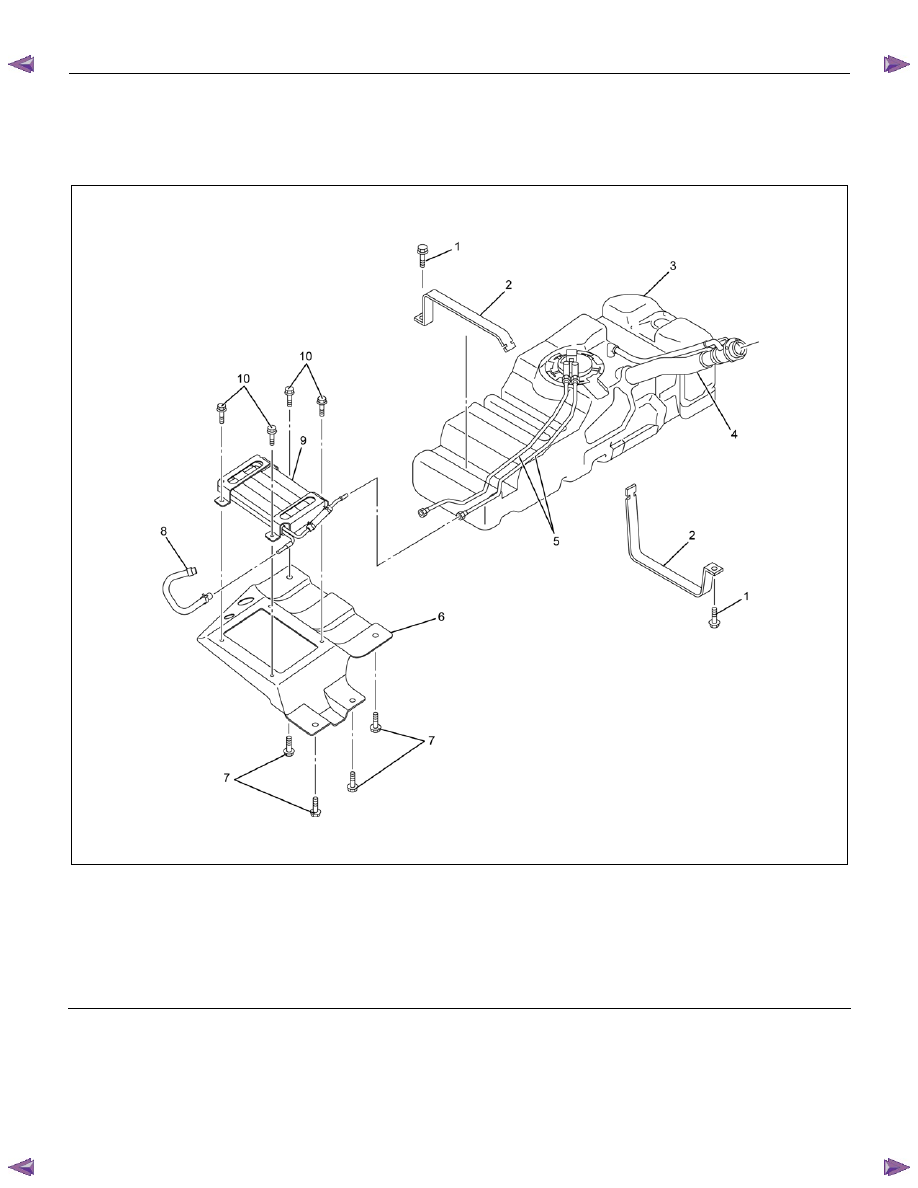

Fuel Tank and Associated Parts











RTW76CLF000501

Legend

  1.  Bolt; Fuel Tank

  2.  Fuel Tank Band

 3. Fuel

Tank

  4.  Fuel Filler Hose and Pipe

  5.  Fuel Tube/Quick Connector



  6.  Bracket; Fuel Cooler

  7.  Bolt; Fuel Cooler Bracket

  8.  Fuel Return Hose

 9. Fuel

Cooler

  10.  Bolt; Fuel Cooler





FUEL SYSTEM (4JK1/4JJ1)  6C-41

Removal

Note: When repairs to the fuel system have been
completed, start the engine and check the fuel system
for loose connections or leakage. For the fuel system
diagnosis, see Section "Drivability and Emission".

1.  Disconnect the battery ground cable.

2.  Slowly loosen the fuel filler cap.

Note: Be careful that fuel does not spout out because of
change of pressure in the fuel tank.

Note: Cover opening of the filler neck to prevent any
dust entering.

3.  Jack up the vehicle.

4.  Disconnect the quick connector (5) of the fuel tube

at the fuel cooler way.

5.  Remove fuel return hose (8) from the pipe.

6.  Remove fixing bolt (7) of the bracket fuel cooler

and remove bracket fuel cooler (6).

Note: Cover the opening of the pipe to prevent any dust
and fuel leakage.

Note: For remove fuel cooler, Remove bolts (10) of the
fuel cooler and remove fuel cooler.

7.  Support underneath of the fuel tank with a lifter.

8.  Remove the inner liner of the wheel house at rear

left side.

9.  Remove fixing bolt of the filler neck from the body.

10. Disconnect the quick connector (5) of the fuel tube

from the fuel pipe and the evapo tube from evapo

joint connector.

Note: Cover the quick connector to prevent any dust
entering and prevent fuel leakage.

Note: Refer to "Fuel Tube/Quick Connector Fittings" in
this section when performing any repairs.

11.

Remove fixing bolt (1) of the tank band and

remove the tank band (2).

12. Disconnect the pump and sender connector on the

fuel pump and remove the harness from the weld

clip on the fuel tank.

13. Lower the fuel tank (3).

Note: When lowering the fuel tank from the vehicle, do
not scratch the hoses and tubes by contact with other
parts.





Installation

1.  Raise the fuel tank.

Note: When raising the fuel tank to the vehicle, do not
scratch the hoses and tubes by contact with other parts.

2. Connect the pump and sender connector to the

fuel pump and install the harness to the weld clip

on the tank.

Note: The connector must be securely connected
against the stopper.

3.  Install the tank band and fasten bolt.

Torque: 68 N

⋅⋅⋅⋅m (6.9 kg⋅⋅⋅⋅m /50 lb ft)

Note: The anchor of the tank band must be securely
installed to the guide hole on the frame.

4.  Connect the quick connector of the fuel tube to the

fuel pipe and the evapo tube from evapo joint

connector.

Note: Pull off the left checker on the fuel pipe.

Note: Refer to "Fuel Tube/Quick Connector Fittings" in
this section when performing any repairs.

5.  Install the filler neck to the body with bolt.

Note: For install the fuel cooler to the bracket with bolt.

Torque: 6.5 N

⋅⋅⋅⋅m (0.7 kg⋅⋅⋅⋅m /61 lb in)

6.  Install the bracket to Frame with bolt.

Torque: 48 N

⋅⋅⋅⋅m (4.9 kg⋅⋅⋅⋅m /35 lb ft)

7.  Install the fuel return hose at the fuel cooler way.

8.  Install the quick connector at the fuel cooler way.

9.  Install the inner liner of the wheel house at rear left

side.

10. Remove lifter from the fuel tank.

11. Lower the vehicle.

12. Tighten the filler cap until at least three clicks.

13. Connect the battery ground cable.





6C-42  FUEL SYSTEM (4JK1/4JJ1)

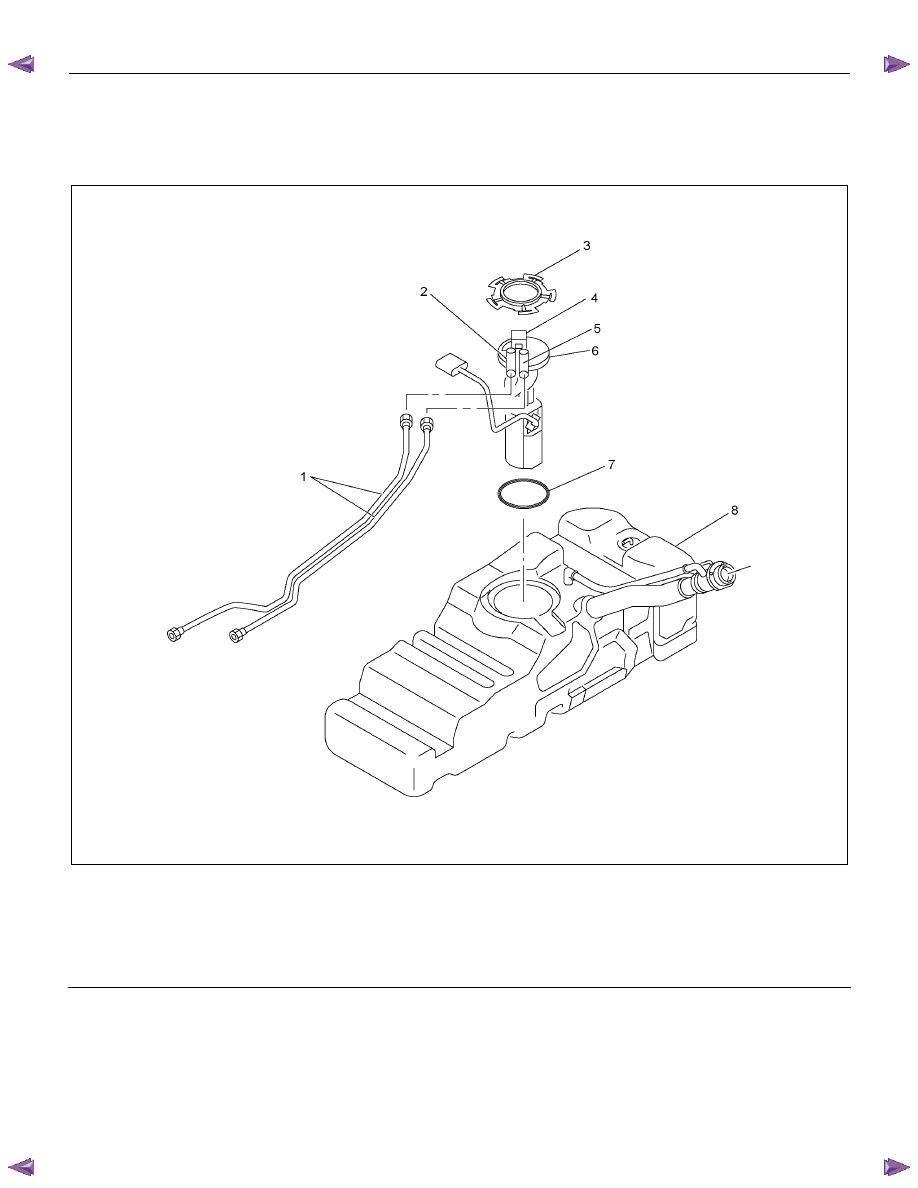

Fuel Gauge Unit

Fuel Gauge Unit and Associated Parts













RTW56CLF001001

Legend

  1.  Fuel Tube/Quick Connector

  2.  Fuel Feed Port

  3.  Retainer Ring (Fuel Gauge Unit Lock)

  4.  Connector; Fuel Gauge Unit



  5.  Fuel Return Port

  6.  Fuel Gauge Unit and Sender Assembly

  7.  Seal; Fuel Gauge Unit

  8.  Fuel Tank Assembly
