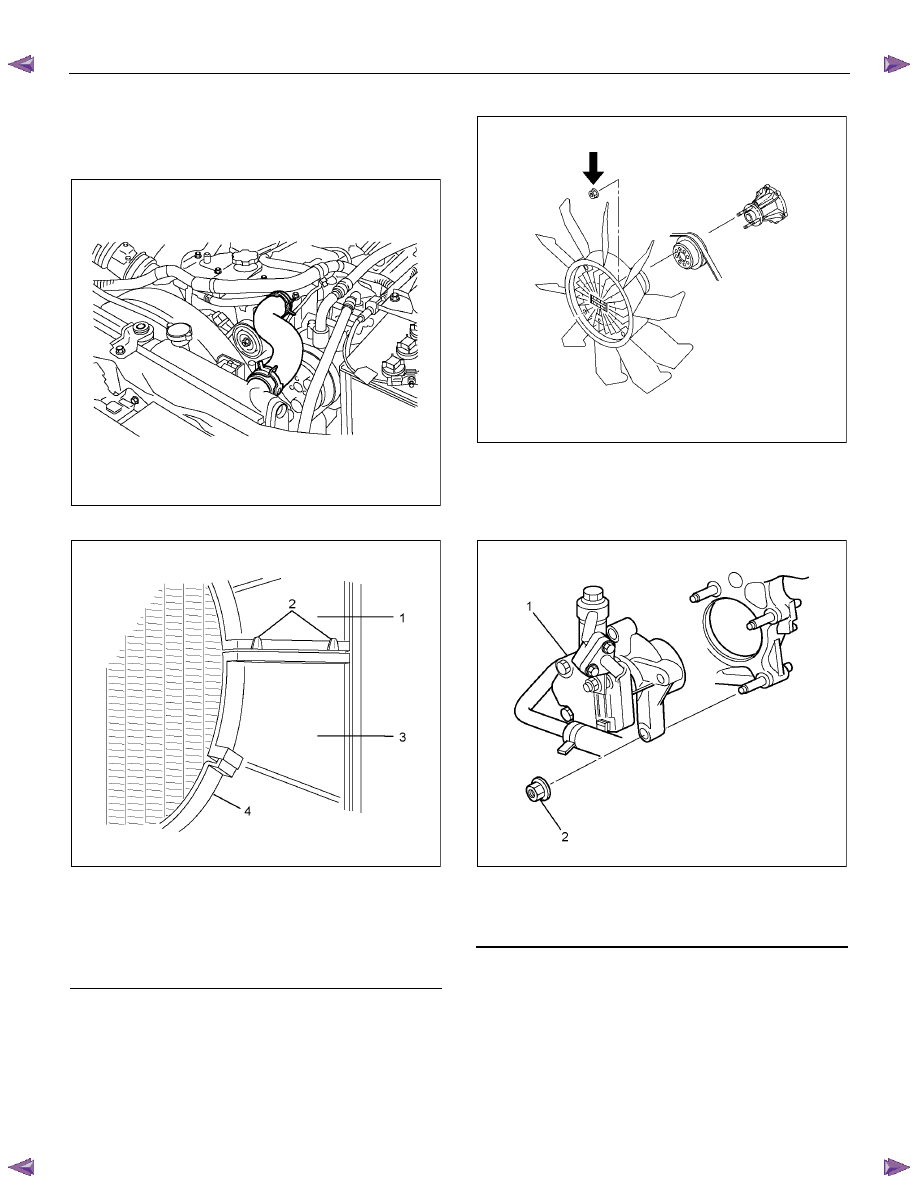

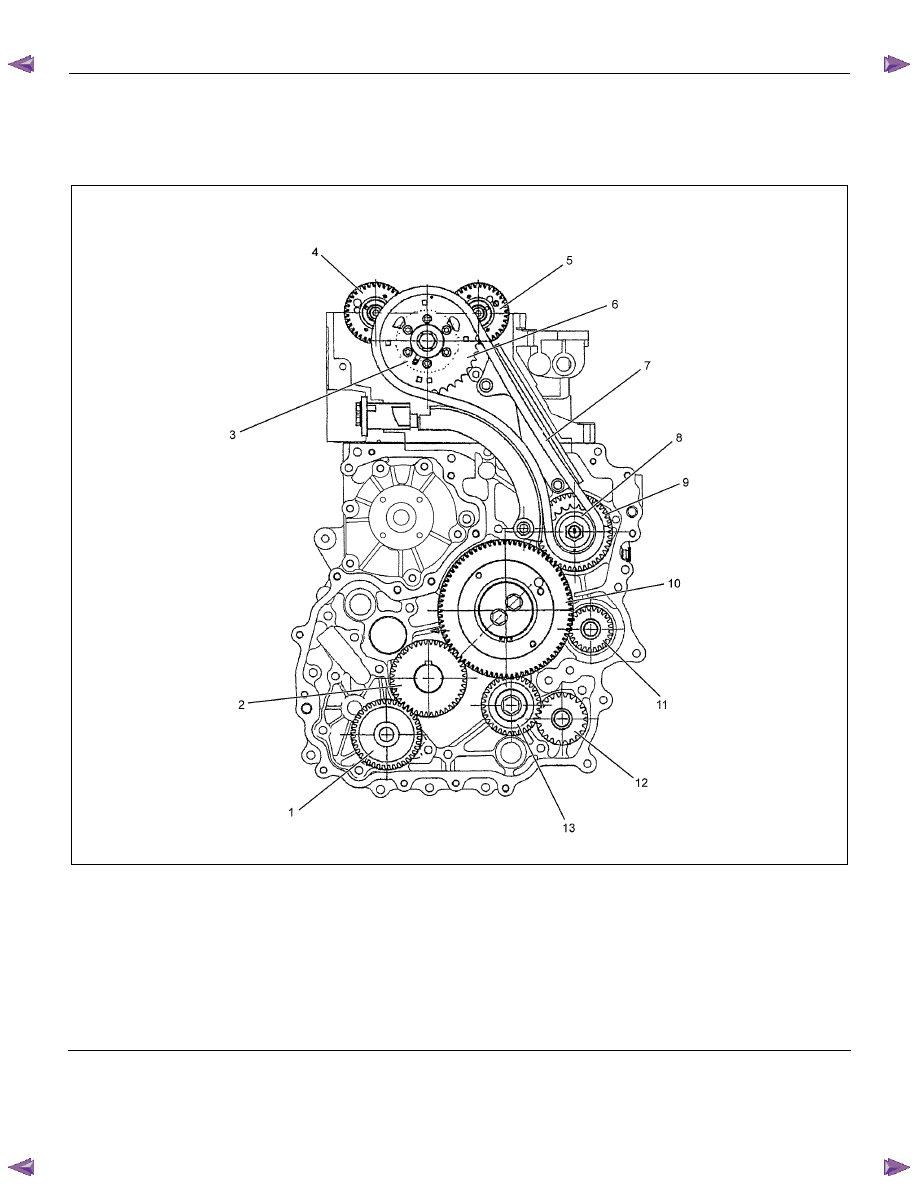

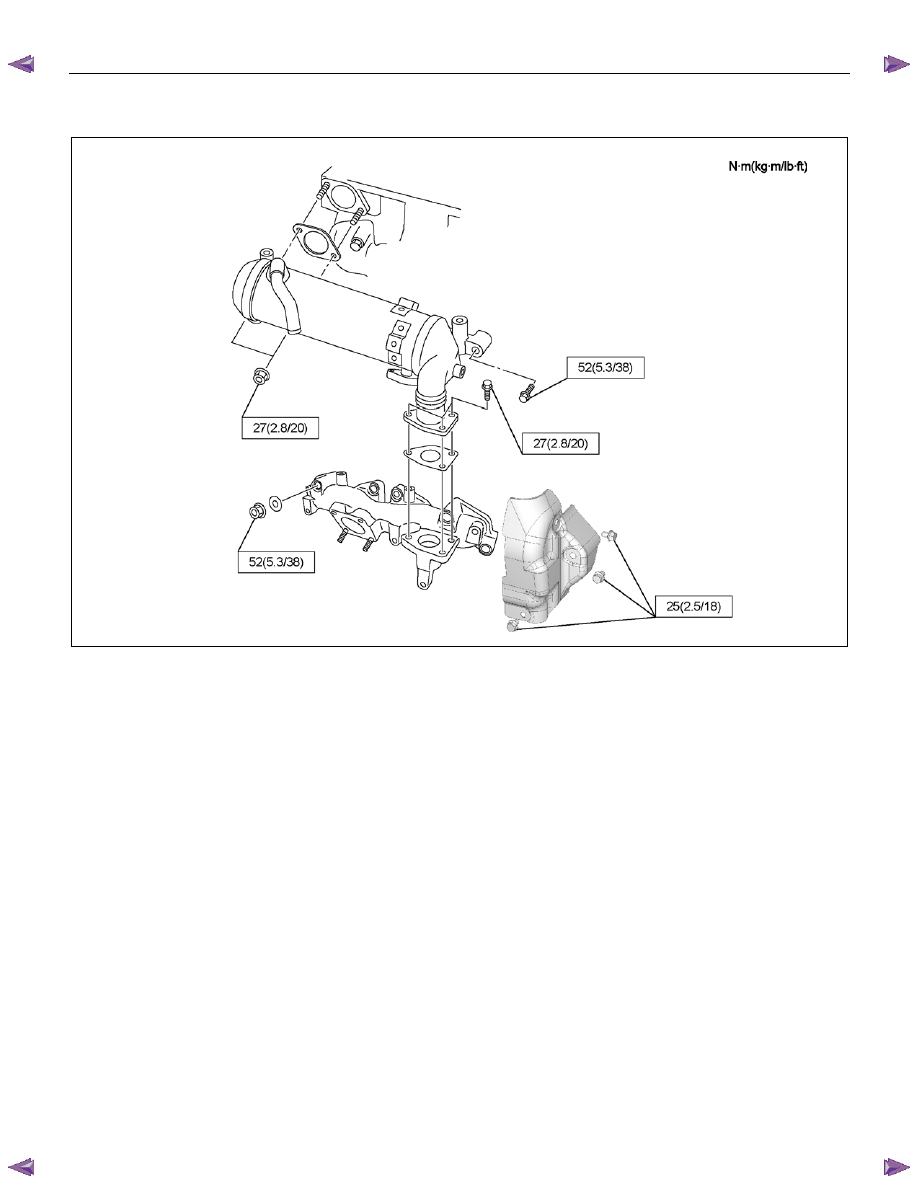

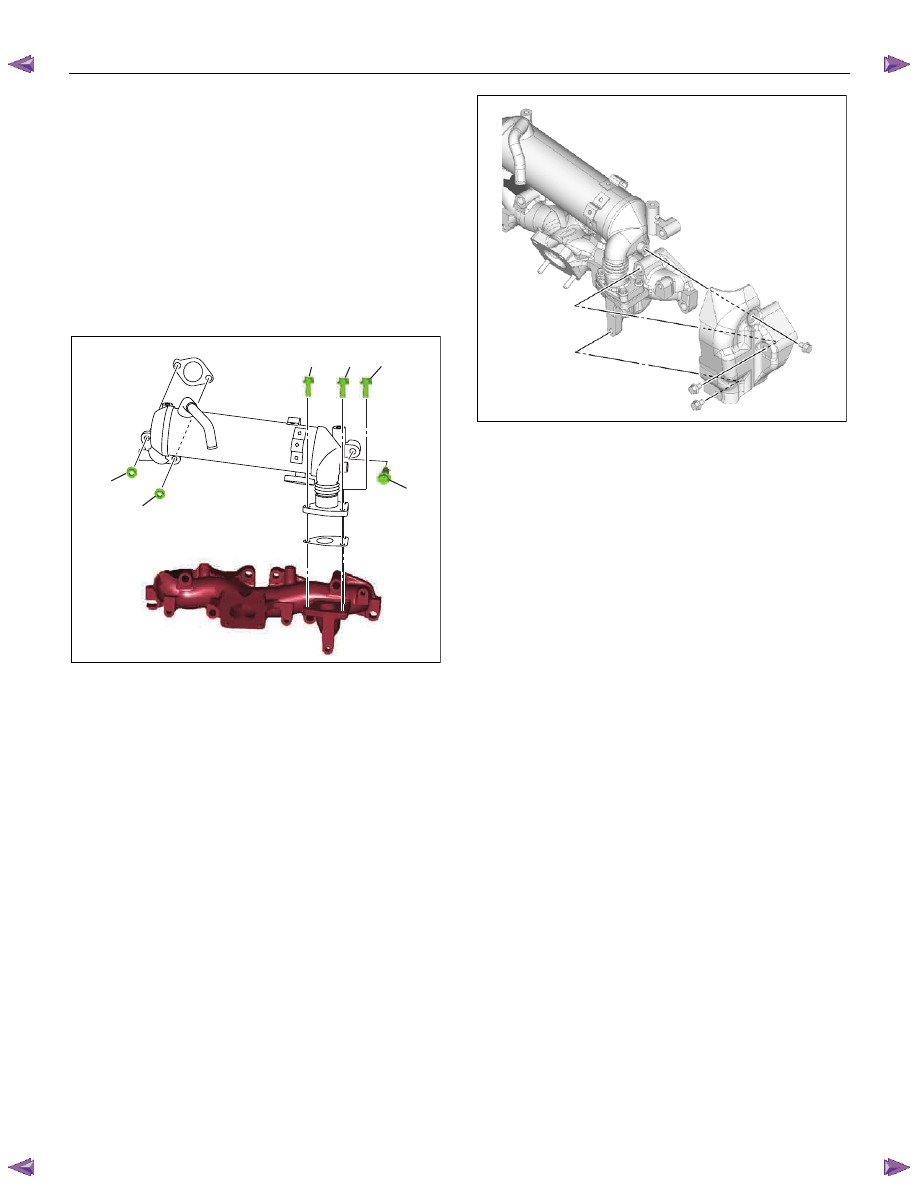

6A-48 ENGINE MECHANICAL (4JK1/4JJ1) 2. Install the EGR cooler. • Install the gaskets. 1 →2→3→4→5→6 • Fully tightening order. 3 →4→5→1→2→6 Tighten the nut and bolts to the specified torque. Tightening torque:
Nuts and bots 1-5: 27 N·m (2.8 kg·m / 20 lb ft) Bolt 6: 52 N·m (5.3 kg·m / 38 lb ft)
6 5 4 3 1 2
RTW76FSH000201 3. Install the water hoses to the EGR cooler water pipes. 4. Heat protector.
Tighten the bolts to the specified torque. Tightening torque: 25 N·m (2.5 kg·m / 18 lb ft)
RTW76FSH000101 5. Install the turbocharger. • Refer to “Turbocharger”. 6. Replenish the engine coolant.
|
