ACCELERATOR CONTROL    6H – 3



4JA1T(L)/LHD







RTW46HLF000601

6H – 4   ACCELERATOR CONTROL



4JA1TC, 4JH1TC/RHD












RTW46HLF000201

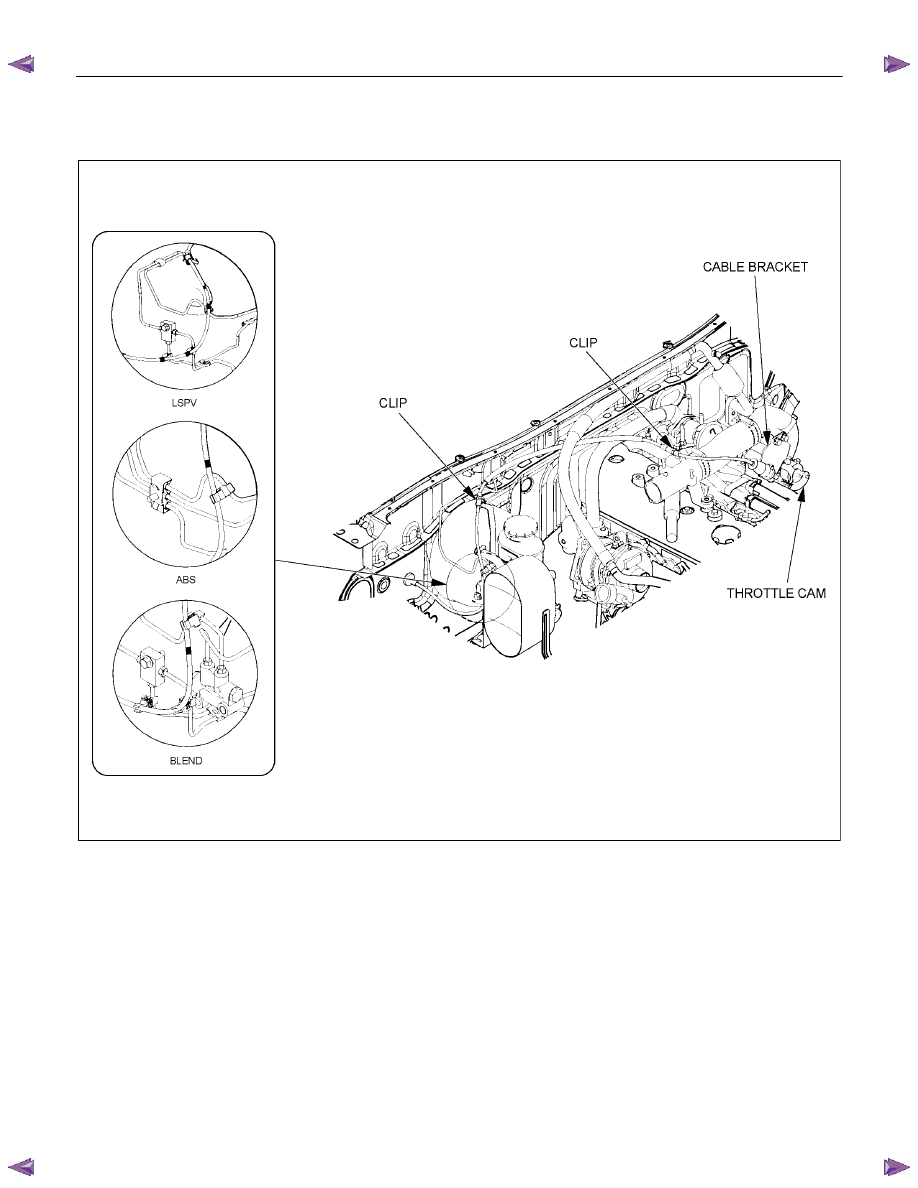

ACCELERATOR CONTROL    6H – 5



4JA1TC, 4JH1TC/LHD









PTW46BMF000101

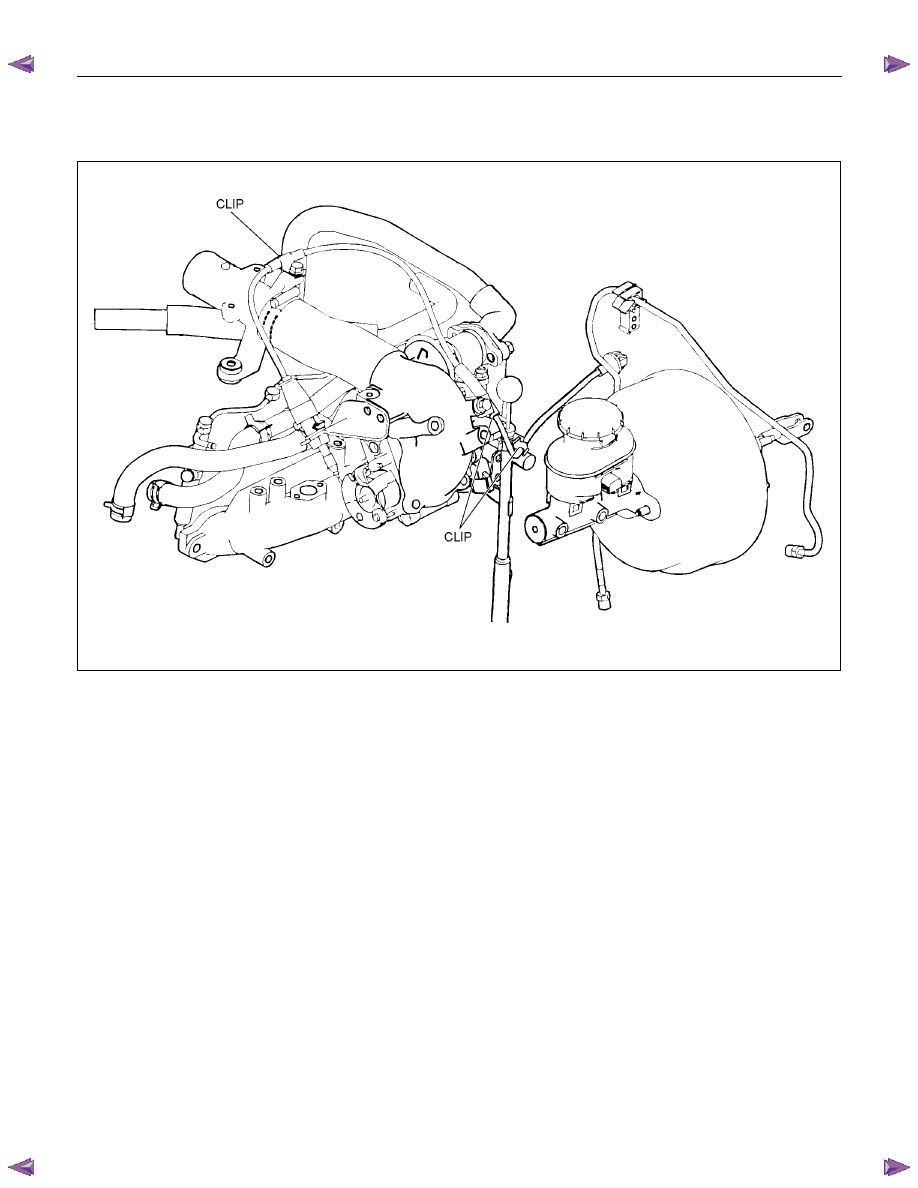

6H – 6   ACCELERATOR CONTROL





RTW46HMH000201





























Removal

1.  Disconnect the accelerator control cable from the

accelerator pedal and dash panel.

2.  Remove the cable clips.

3.  Remove the accelerator control cable from accelerator

control cable bracket.

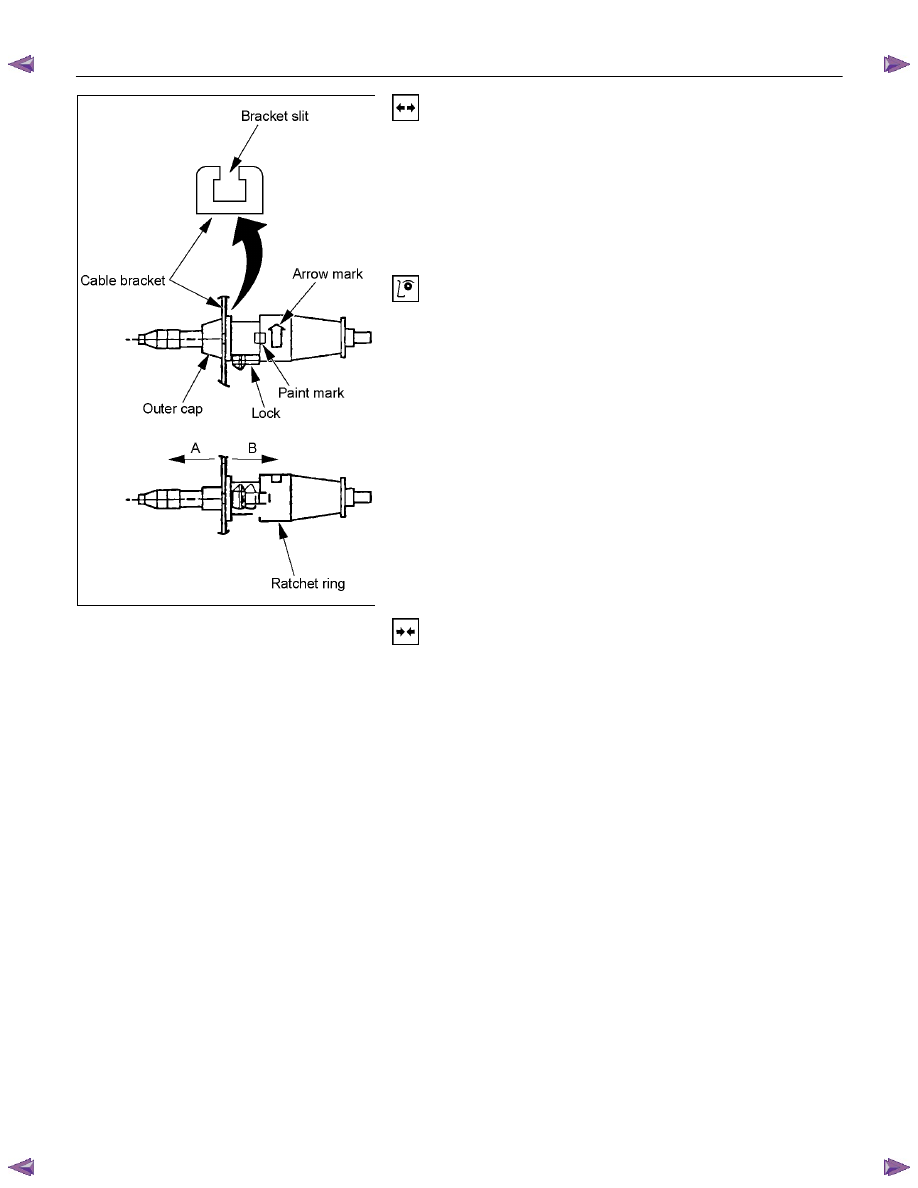

1)  Slide the lock in direction A

2)  Rotate the ratchet ring in undirection an arrow 90

°.

4.  Remove the accelerator control cable from the throttle.

Inspection

Check the following items and replace the control cable if
any abnormality is found.

•  The control cable should move smoothly.
•  The control cable should not be bent or kinked.
•  The control cable should not be damage or

corrosion.



Installation

1.  Install the accelerator control cable to accelerator

control pedal dash panel.

2.  Install the accelerator control cable to throttle.



Attach T-END and inner cable to throttle cam of
engine.

3.  Install accelerator control cable to accelerator bracket.

1)  Rotate the ratchet ring in direction an arrow 90

°

until both white marking are aligned.

2)  Confirm marking of outer cap must be upper side.

3)  Slider the lock in direction B.

4)  Confirm ratchet ring is locked.

4.  Install the cable clips to accelerator control cable.





NOTE:

Confirm that the throttle (engine side) is at full stroke
when the accelerator pedal is at full stroke.
