6C – 16   FUEL SYSTEM

FILLER NECK



Removal

1.  Remove the fuel tank.

NOTE: Refer to "Fuel Tank" in this section.

2.  Put a marking the following point as the filler neck assembly

is restored.
•  Each joint area of the hose (to restore axial direction and

insertion length of the hose)

•  Each fasten area of the clamp (to restore axial direction

and position of the clamp)

•  Each bolt in the clamp (to restore fasten length of bolt in

the clamp)

•  The band clip (to restore position and fasten length of

the band clip)

NOTE: Cover end of each hose and pipe to prevent any dust
entering.













Installation

1.  Align each marking and restore the following point.

•  Each joint area of the hose (Restore axial direction and

insertion length of the hose)

•  Each fasten area of the clamp (Restore axial direction

and position of the clamp)

•  Each bolt in the clamp (Restore fasten length of bolt in

the clamp)

Torque

N·m (kg·m / lb ft)

2.5  (0.25 / 21.7)

filler neck side except flat deck model.

•  The band clip (Restore position and fasten length of the

band clip)

2.  Install the fuel tank.
NOTE: Refer to "Fuel Tank" in this section.




FUEL SYSTEM    6C – 17

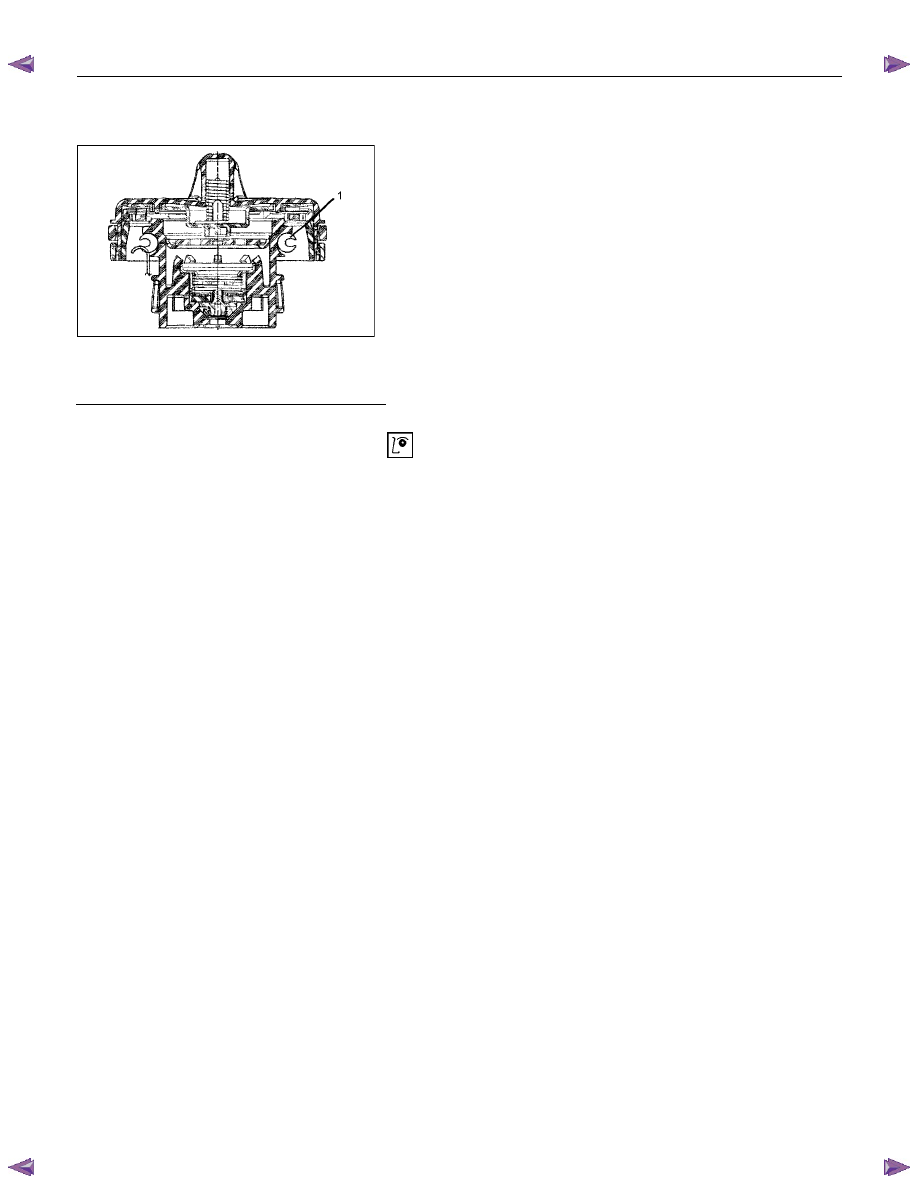

FUEL FILLER CAP










RTW46CSH000301

Legend

  1.  Seal Ring







General Description

A vacuum valve and pressure valve are built into the fuel filler
cap which adjusts the fuel pressure in the fuel tank to prevent
fuel tank damage.




Inspection

The fuel filler cap must be inspected for seal condition.
The fuel filler cap must be replaced if found defective

CAUTION: A replacement fuel filler cap must be the same
as the original. The fuel filler cap valve was designed
primarily for this application and must be replaced with
the same type or decreased engine performance may
occur.













6C – 18   FUEL SYSTEM

INJECTION PUMP



 REMOVAL AND INSTALLATION

Read this Section carefully before performing any removal and installation procedure. This Section gives you
important points as well as the order of operation. Be sure that you understand everything in this Section before you
begin.







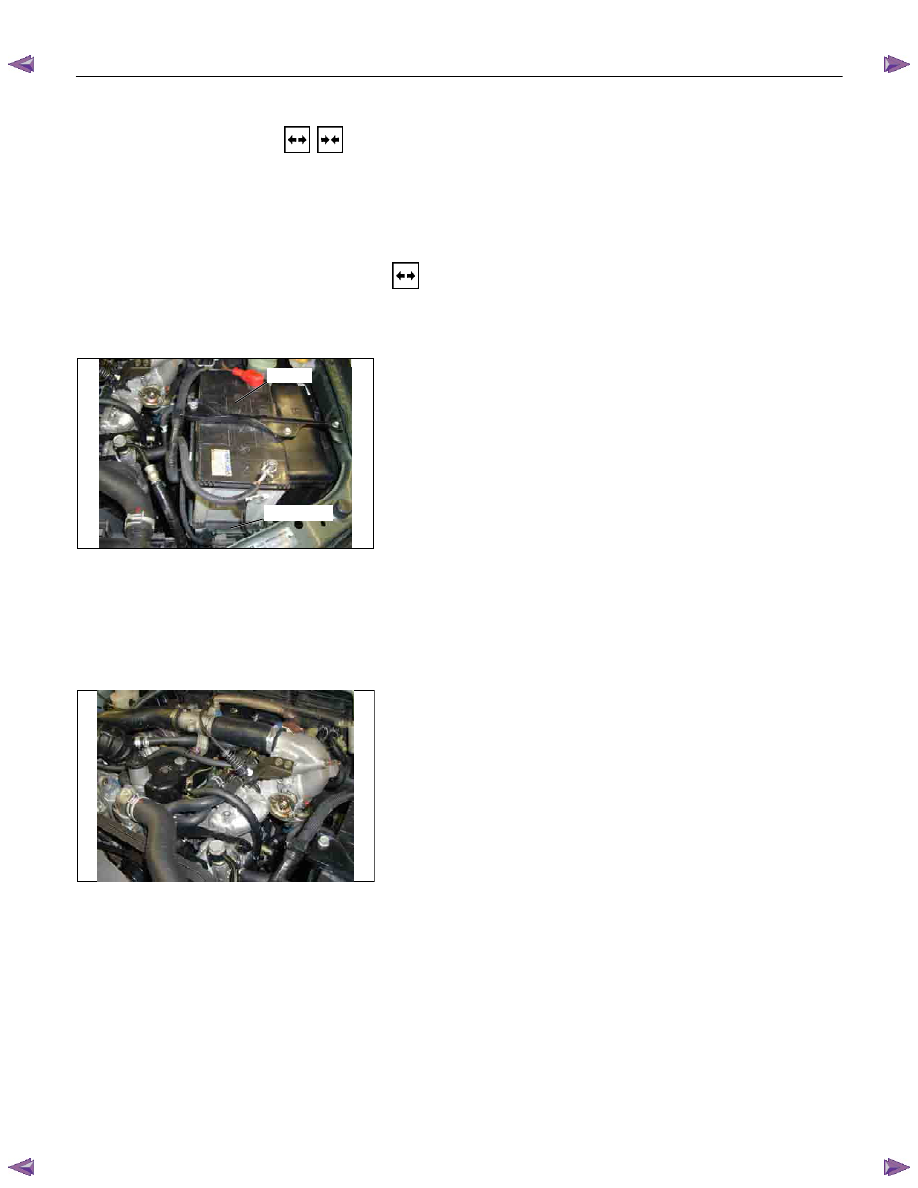

Removal

1. Battery

Remove the battery from the battery tray.





Battery

Battery tray





P1010011









2. Drive Belt

1)  Loosen the adjust bolt of the power steering pump

pulley.

2)  Remove the drive belt.

3.  Power Steering Pump Assembly




P1010003



4.  Accelerator Control Cable

Disconnect the accelerator cable from the intake throttle.







5. Vacuum Hose


Disconnect the vacuum hose from the EGR valve and the
intake throttle.

6. Fan


FUEL SYSTEM    6C – 19



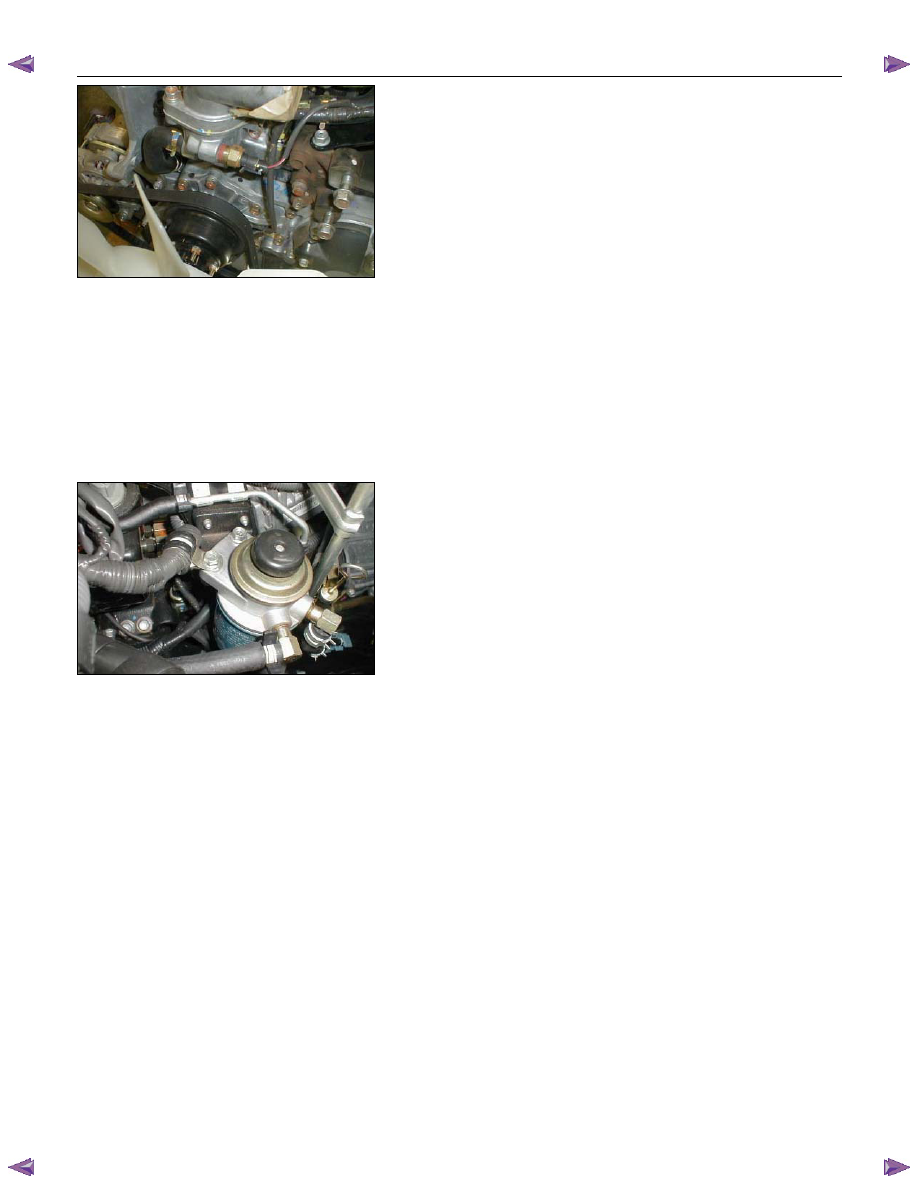

7.  Power Steering Pump Bracket





6C-4







8.

Throttle Position Sensor Harness Connector

(4JA1TC/4JH1TC only)

Disconnect the harness connector from the throttle
position sensor.





9.  Oil Level Gauge

10. Fuel Pipe

1)  Disconnect the fuel hoses from the fuel filter or priming

pump.

2)  Disconnect the fuel hoses from the injection pump.



11.  Fuel Filter Assembly (Except EURO III model)

6C-5









12. Fuel Filter Bracket (Except EURO III model)
13. Leak Off Hose

Disconnect the leak off hose at the injection pump.

14. Injection Pipe Clip
15. Injection Pipe

1)  Loosen the injection pipe sleeve nuts at the delivery

valve side and the injection nozzle side.

Note:

Do not apply excessive force to the injection pipes.

2)  Loosen the injection pipe clip.

3)  Remove the injection pipes.

Note:

Plug the delivery holder ports with the caps to prevent
the entry of foreign material.



16. Intake Manifold

1)  Remove the EGR valve from the intake manifold and

EGR pipe.

2)  Loosen the intake rubber hoses clip.

3)  Loosen the intake manifold bolts and nuts.

17. Injection Pump Cover (4JA1TC/4JH1TC only)
