Isuzu KB P190. Manual - part 236

ENGINE MECHANICAL   6A – 139

Illustration

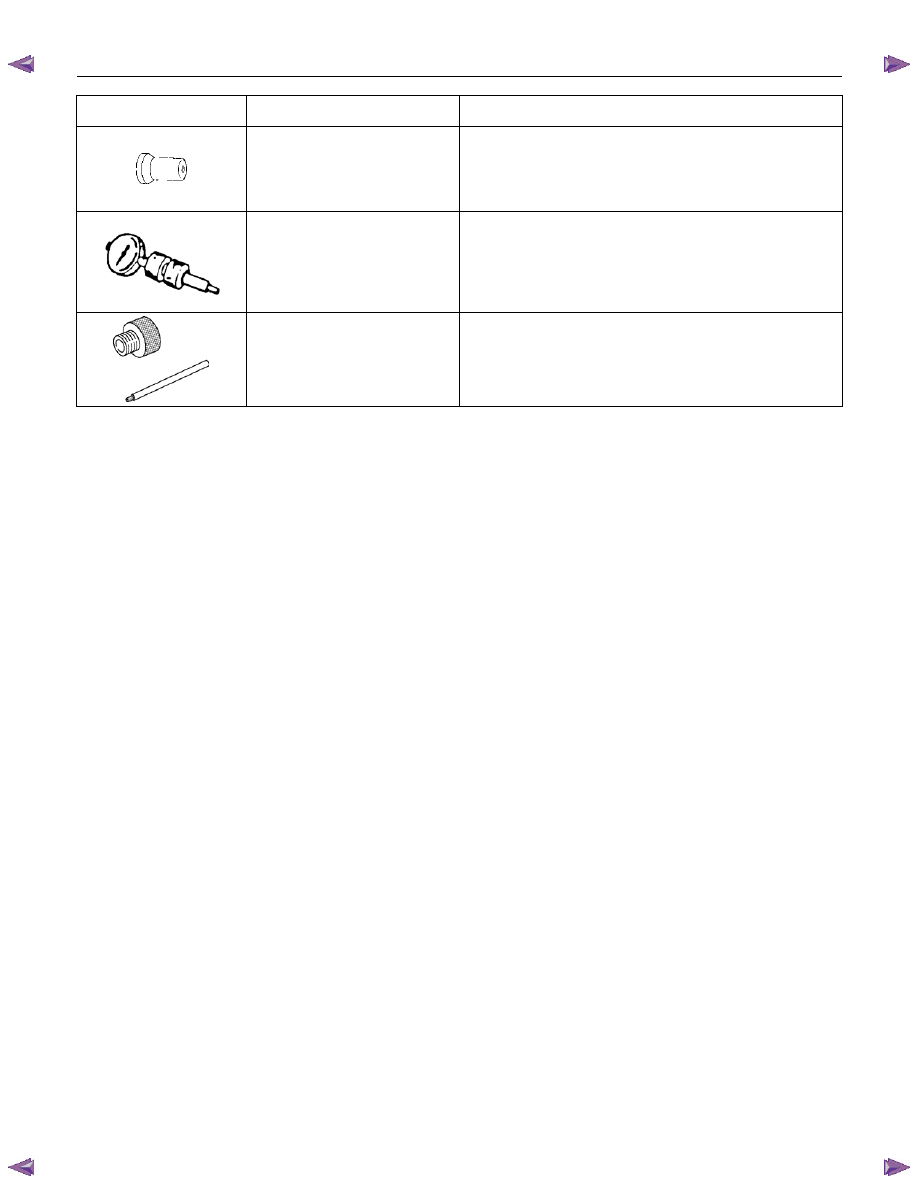

Tool Number

Tool Name



5-8840-2361-0

Front Oil Seal Installer



5-8840-0145-0

Static Timing Gauge



5-8840-2834-0

Adapter Set: Static Timing Gauge







SECTION 6B

ENGINE COOLING





TABLE OF CONTENTS

PAGE

Main Data and Specifications.......................................................................................  6B -  3

  General Description ..................................................................................................  6B -  4

 Coolant

Flow..............................................................................................................

6B

- 4

  Water Pump ...............................................................................................................  6B - 5

 Thermostat.................................................................................................................

6B -  5

 Radiator...................................................................................................................... 6B -  6

Diagnosis ....................................................................................................................... 6B -  7

Draining and Refilling Cooling System .......................................................................  6B -  8

Water Pump ...................................................................................................................  6B -  10

  Removal and Installation ..........................................................................................  6B -  10

 Removal .....................................................................................................................

6B -  10

  Inspection and Repair...............................................................................................  6B -  11

 Installation .................................................................................................................

6B -  11

Thermostat ..................................................................................................................... 6B - 13

  Removal and Installation ..........................................................................................  6B -  13

 Removal .....................................................................................................................

6B -  13

  Inspection and Repair...............................................................................................  6B -  13

 Installation .................................................................................................................

6B -  14

Radiator.......................................................................................................................... 6B - 15

  Removal and Installation ..........................................................................................  6B -  15

  Radiator and Associated Parts ................................................................................  6B -  15

 Removal .....................................................................................................................

6B -  16

  Inspection and Repair...............................................................................................  6B -  17

 Installation .................................................................................................................

6B -  18

ENGINE COOLING   6B – 1

6B – 2  ENGINE COOLING



PAGE

  Engine coolant change .............................................................................................  6B -  19

Fan Clutch with Cooling Fan ........................................................................................  6B -  20

  Inspection and Repair...............................................................................................  6B -  20

 Special

Tools .............................................................................................................

6B

- 20

ENGINE COOLING   6B – 3



MAIN DATA AND SPECIFICATIONS

Description

Item

M/T A/T

Cooling system

Water pump type

  Pump to crankshaft speed ratio

(To 1)

  Delivery volume

lit (US/UK gal)/min



Pump speed at 3000 rpm



Water temperature at 30

°C (86°F)

  Pump bearing type



Thermostat type

  Valve initial opening temperature

°C (°F)

  (Oil cooler thermo valve)
  (EGR cooler thermo valve)

  Valve full opening temperature

°C (°F)

  (Oil cooler thermo valve)
  (EGR cooler thermo valve)

  Valve lift at fully open position

mm (in)

  (Oil cooler thermo valve)
  (EGR cooler thermo valve)

Engine coolant forced circulation

Centrifugal impeller type

1.2

100 (26.3/22.2)





Double row shaft



Wax pellet with jiggle valve

82 (180)

76.5 (170)

40 (104)

95 (203)

90 (194)
55 (131)

9.5 (0.37)

4.5 (0.18)
3.5 (0.14)

 Radiator

Tube type corrugated

  Heat radiation capacity

93.0 kW (79,980 kcal/h)

  Heat radiation area

11.63 m

2

 (1.081ft

2

)

  Radiator front area

0.28m

2

 (0.026 ft

2

)

  Radiator dry weight

52 N (5.3 kg/11.7 lb)

53 N (5.4 kg/11.9 lb)

  Radiator cap valve opening pressure

93.3 ~ 122.7 kPa (13.5 ~ 17.8 psi)

  Engine coolant capacity

2.4 lit (5.1 U.S pint)

2.3 lit (4.9 U.S pint)

 Engine coolant total capacity

10.1 lit (21.3 U.S pint)

10.0 lit (21.1 U.S pint)
