ENGINE MECHANICAL   6A – 87







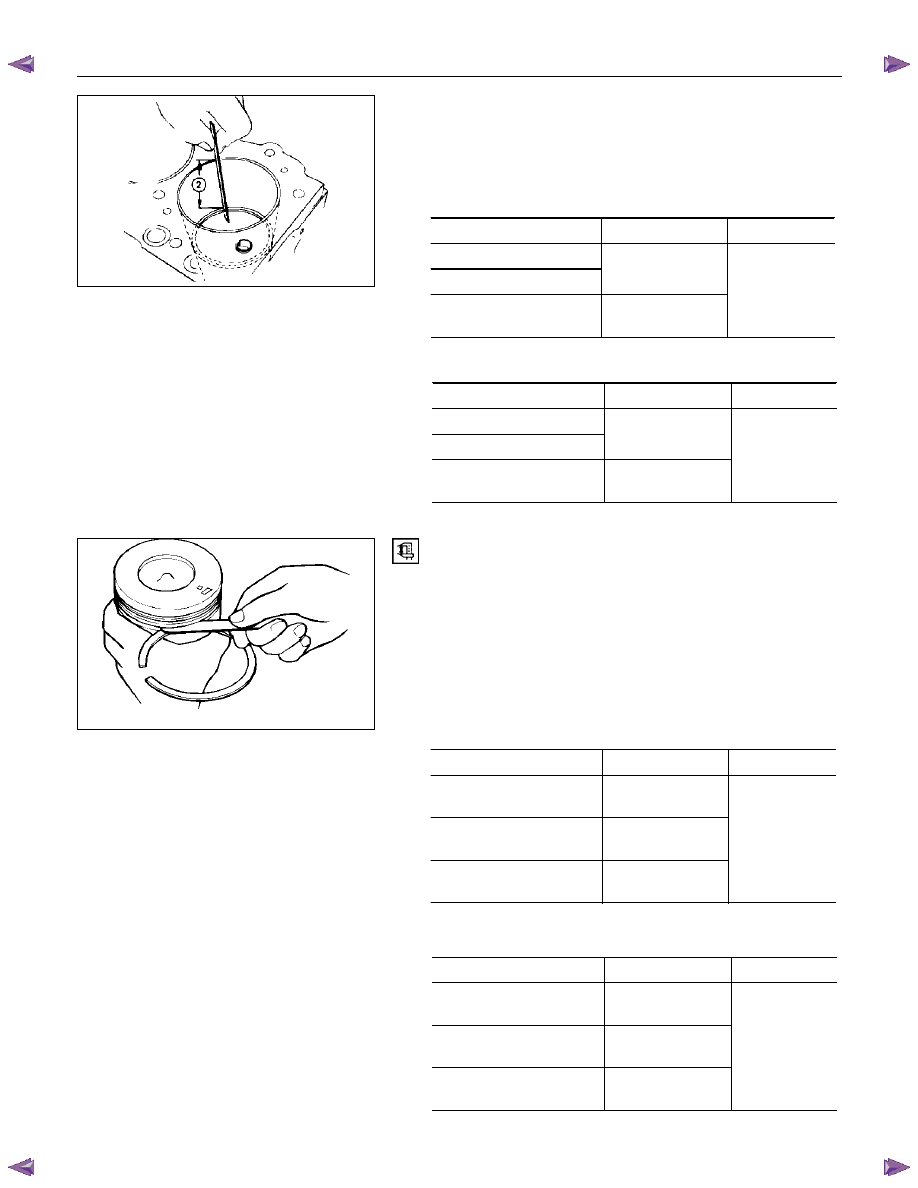

3.  Use a feeler gauge to measure the piston ring gap.

If the measured value exceeds the specified limit, the
piston ring must be replaced.





Piston Ring Gap

mm (in)

4JA1T (L), 4JA1TC

 Standard



Limit

1st Compression Ring

2nd Compression Ring

0.3-0.3

(0.0118-0.0197)

Oil Ring

0.250-0.450

(0.0098-0.0177)

1.5

(0.059)





4JH1TC

 Standard



Limit

1st Compression Ring

2nd Compression Ring

0.3-0.5

(0.0118-0.0197)

Oil Ring

0.250-0.450

(0.0098-0.0177)

1.5

(0.059)











Piston Ring and Piston Ring Groove Clearance

Use a feeler gauge to measure the clearance between the
piston ring and the piston ring groove at several points around
the piston.

If the clearance between the piston ring and the piston ring
groove exceeds the specified limit, the piston ring must be
replaced.





Piston Ring and Piston Ring Groove Clearance

mm (in)

4JA1T (L), 4JA1TC

 Standard



Limit

1st Compression Ring

0.09-0.125

(0.0035-0.0049)

2nd Compression Ring

0.05-0.085

(0.0020-0.0033)

Oil Ring

0.03-0.070

(0.0012-0.0028)

0.15

(0.0059)





4JH1TC

 Standard



Limit

1st Compression Ring

0.09-0.130

(0.0035-0.0051)

2nd Compression Ring

0.05-0.090

(0.0020-0.0035)

Oil Ring

0.03-0.070

(0.0012-0.0028)

0.15

(0.0059)







015RY00021

015LX025

6A – 88  ENGINE MECHANICAL









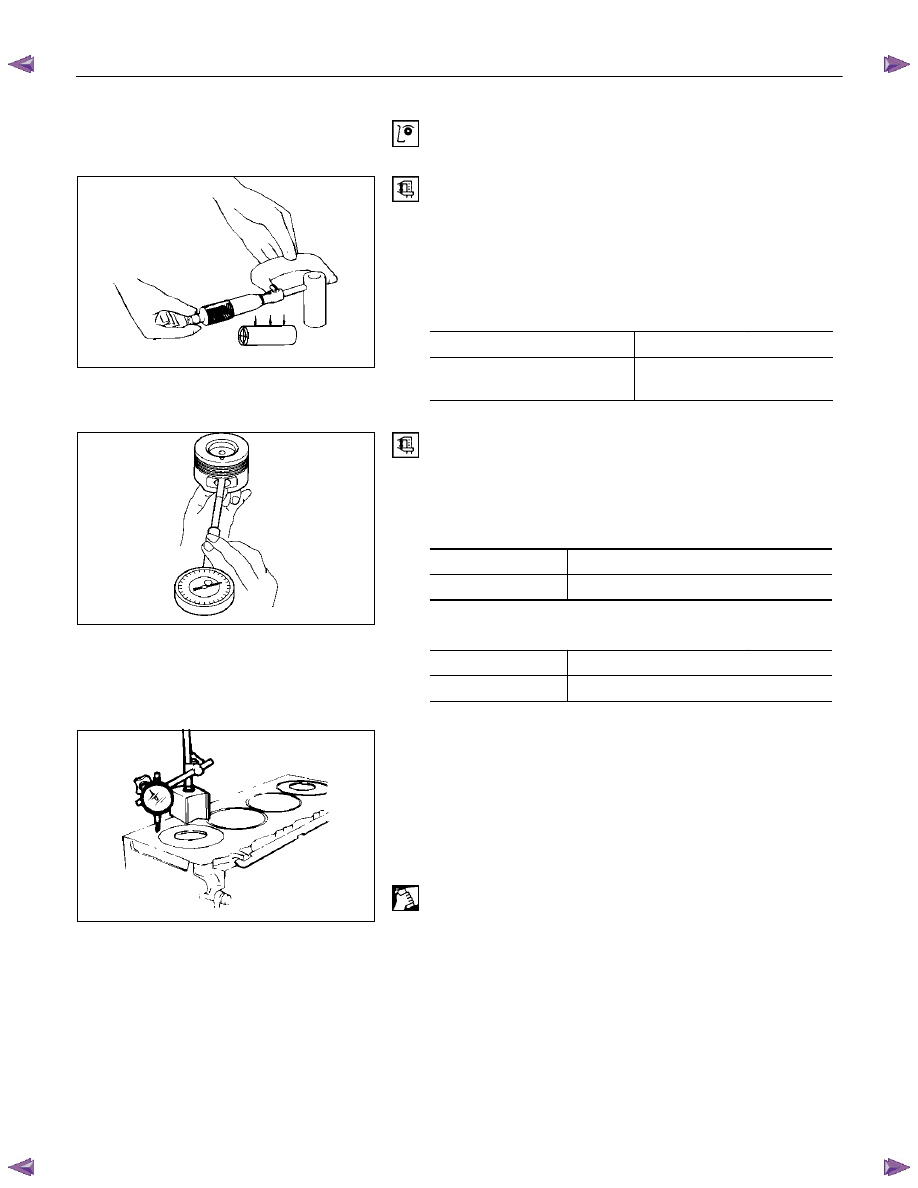

4.  Visually inspect the piston rings.

If a piston ring groove is damaged or distorted, the piston
must be replaced.











Piston Pin Diameter

Use a micrometer to measure the piston pin diameter at
several points.

If the measured value is less than the specified limit, the piston
pin must be replaced.





Piston Pin Diameter

 mm

(in)

Standard

Limit

30.995-31.000

(1.2202-1.2204)

30.97

(1.2193)











Piston Pin and Piston Clearance

Use and inside dial indicator to measure the piston pin hole (in
the piston).





Piston Pin Hole

 mm

(in)

4JA1T (L)

31.002-31.010 (1.2206-1.2208)

4JA1TC, 4JH1TC

31.005-31.013 (1.2207-1.2210)





Piston Pin and Piston Pin Hole Clearance

mm (in)

4JA1T (L)

0.002-0.015 (0.00008-0.0006)

4JA1TC, 4JH1TC

0.005-0.018 (0.0002-0.0007)















































CYLINDER HEAD GASKET SELECTION

Cylinder head gasket is determined by the piston head
projection from the cylinder body upper surface, in order to
improve engine performance.

Three types of gasket are provided by the difference of
thickness. Select the adequet one out of three grades of
gasket, according to the following procedure.

Before measurement, clear off carbon from the piston head
and cylinder body surface and also clean the place where a
gasket was installed.

015LX026

015RW048

011LX011

ENGINE MECHANICAL   6A – 89







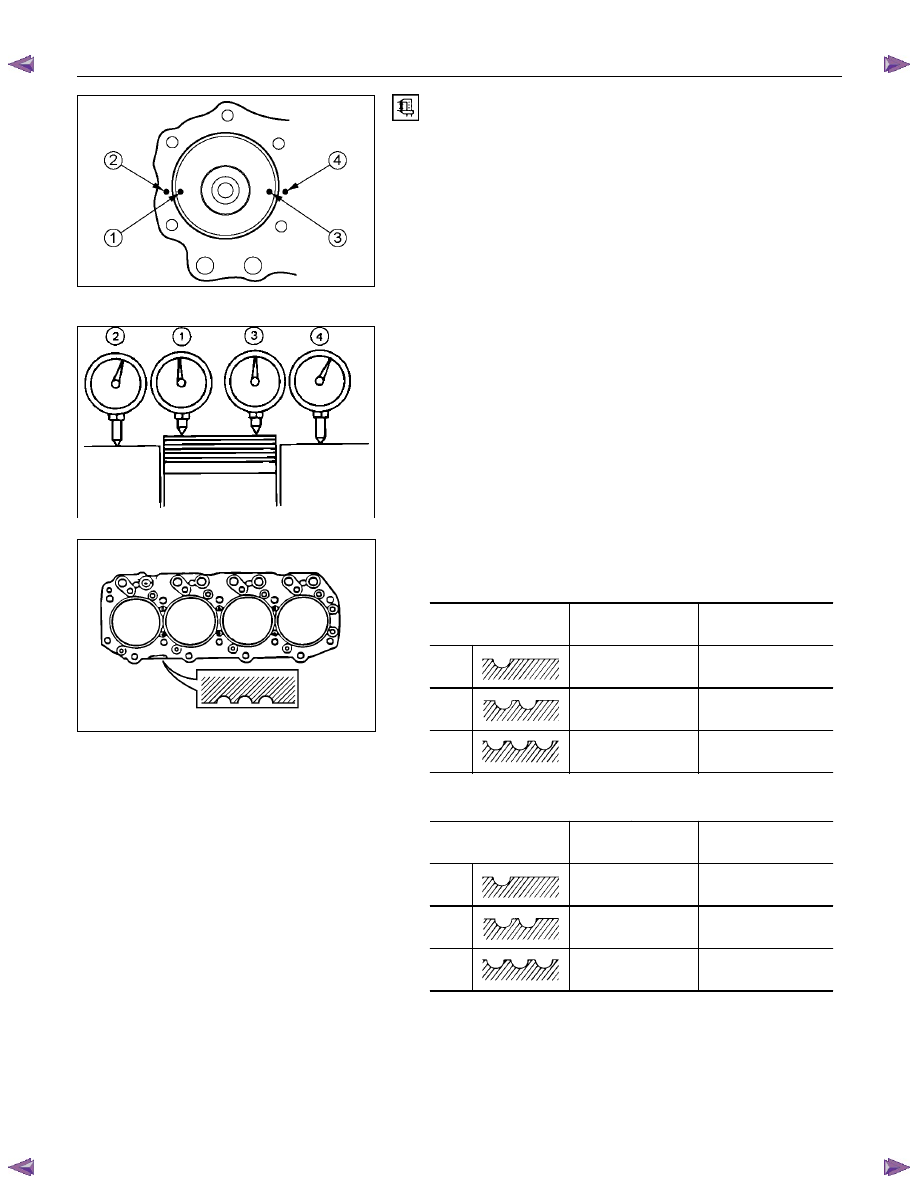

RTW36ASH001701

Piston Head Projection Measuring Point

1.  Use a dial indicator to measure the piston projection

amount.

2.  Refer to the illustration for the piston head projection

measuring positions.

All measuring positions should be as close as possible to
the cylinder liner.













3.  Measure the points 1, 2, 3, 4 and obtain two differences 1-

2 and 3-4 on each cylinder.

Calculate the average value of the piston head projection
on each cylinder.

4.  Obtain the maximum value in the four cylinders.

5.  Determine the gasket grade required to the maximum

value described above in accordance with the following
table.









Cylinder Head Gasket Combination

mm (in)



Cylinder Head Gasket Combination

4JA1T (L), 4JA1TC

mm (in)

Gasket Grade Mark Piston Projection

Gasket Thickness

(Reference)

A

0.718-0.773

(0.0283-0.0304)

1.6

(0.0630)

B

0.773-0.819

(0.0304-0.0322)

1.65

(0.0650)

C

0.819-0.874

(0.0322-0.0344)

1.70

(0.0669)





4JH1TC mm

(in)

Gasket Grade Mark Piston Projection

Gasket Thickness

(Reference)

A

0.215-0.265

(0.0085-0.0104)

1.3

(0.5118)

B

0.265-0.315

(0.0104-0.0124)

1.35

(0.5315)

C

0.315-0.365

(0.0124-0.0144)

1.4

(0.5512)

NOTE:
Difference of the each piston projection and must be
equal or within 0.1 mm (0.004 in).







011RY00027

011RY00030

6A – 90  ENGINE MECHANICAL

















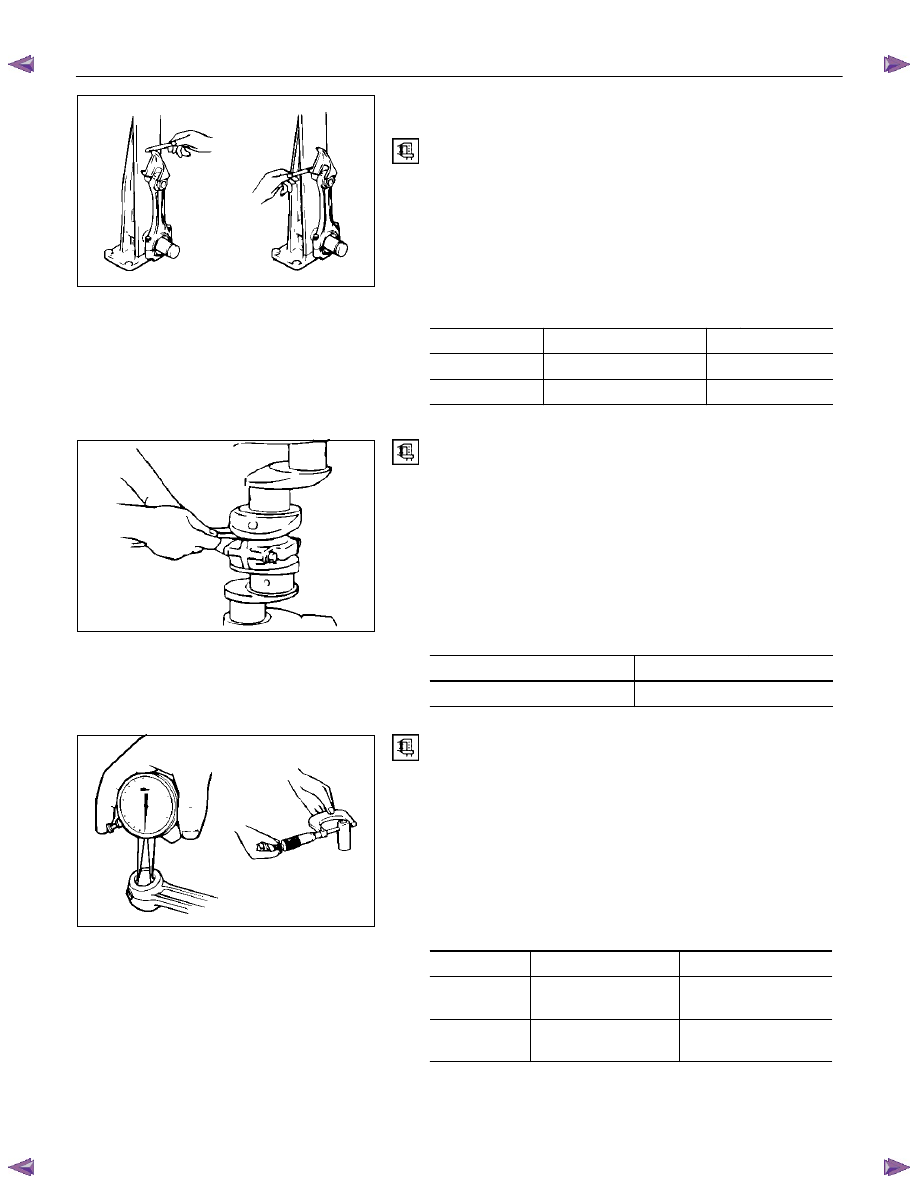

CONNECTING ROD

Connecting Rod Alignment

Use a connecting rod aligner to measure the distortion and the
parallelism between the connecting rod big end hole and the
connecting rod small end hole.

If either the measured distortion or parallelism exceed the
specified limit, the connecting rod must be replaced.





Connecting Rod Alignment Per Length of 100 mm (3.94 in)

mm (in)

 Standard

Limit

Distortion

0.08 (0.003) or Less

0.20 (0.008)

Parallelism

0.05 (0.002) or Less

0.15 (0.006)











Connecting Rod Side Face Clearance

1.  Install the connecting rod to the crankpin.

2.  Use a feeler gauge to measure the clearance between the

connecting rod big end side face and the crankpin side
face.

If the measured value exceeds the specified limit, the
connecting rod must be replaced.





Connecting Rod Big End and Crankpin Side Face Clearance

mm (in)

Standard

Limit

0.23 (0.009)

0.35 (0.014)











Piston Pin and Connecting Rod Small End
Bushing Clearance

Use a caliper calibrator and a dial indicator to measure the
piston pin and connecting rod small end bushing clearance.

If the clearance between the piston pin and the connecting rod
small end bushing exceeds the specified limit, replace the
piston pin and/or the connecting rod.





Piston Pin and Connecting Rod Small End
Bushing Clearance

mm (in)

 Standard

  Limit

4JA1T (L)

0.008-0.020

(0.003-0.0008)

0.050 (0.002)

4JA1TC,

4JH1TC

0.005-0.018

(0.0002-0.0007)

0.050 (0.002)







015LX034

011RY00029

015LX028
