BRAKE CONTROL SYSTEM   5A-35

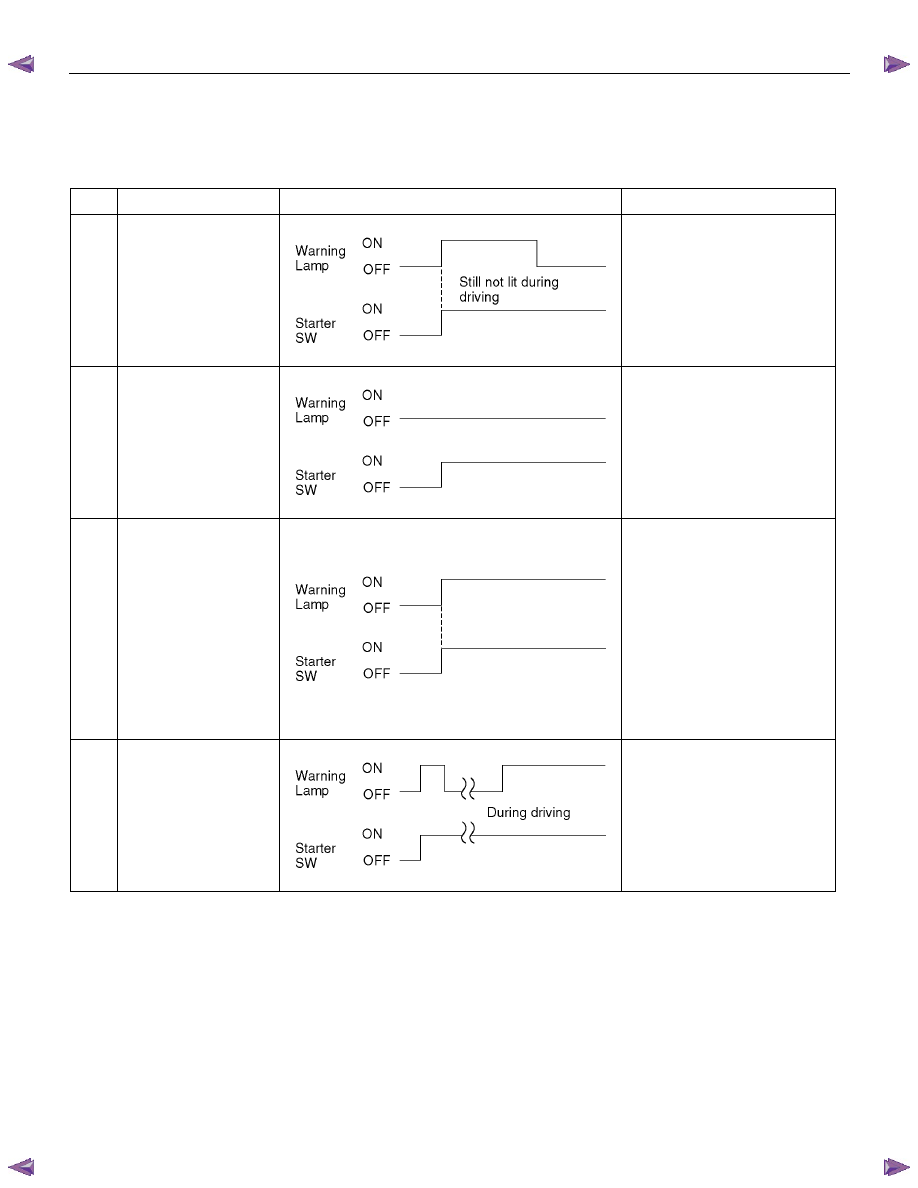

Diagnosis By “ABS” Warning Lamp

Illumination Pattern

In the event that there is abnormality in the “ABS”



Warning Lamp Illumination Pattern while the key is in
the “ON” position or if the warning lamp is actuated
during driving, the fault should be diagnosed on an
illumination pattern basis as follows:



No.

Condition

“ABS” Warning Lamp Illumination Pattern

Diagnostic

1

Warning Lamp is
actuated normally



Normal

2

Warning Lamp is not
lit



Warning Lamp lighting circuit
trouble.  Go to No ABS
Warning Lamp.

3 Warning

Lamp

remains ON



Diagnostic trouble codes are
stored.

Display diagnostic trouble
codes and diagnose on a
code basis according to the
flow charts.

If diagnostic trouble codes are
not stored, it means warning
lamp lighting circuit or meter
trouble.   Go to ABS warning
Lamp On Steady.

4

Warning Lamp is
actuated while driving



Diagnostic trouble codes are
stored.

Display diagnostic trouble
codes and diagnose on a
code basis according to the
flow charts.



Diagnostic Trouble Codes (DTCs)

When the warning lamp in the meter remains ON, the
EHCU stores the fault identification and disables the
ABS.









5A-36   BRAKE CONTROL SYSTEM

How to display and erase DTCs:

Note:

•

DTCs can be displayed also by TECH 2 use
“Diagnostic Trouble Codes” mode.

  1. How to start DTC display:

•

Confirm that the vehicle has come to a
complete stop (with the wheels standing still)
and that the brake pedal is not depressed.
(Unless these two conditions are satisfied, the
DTC display cannot be started.)

•

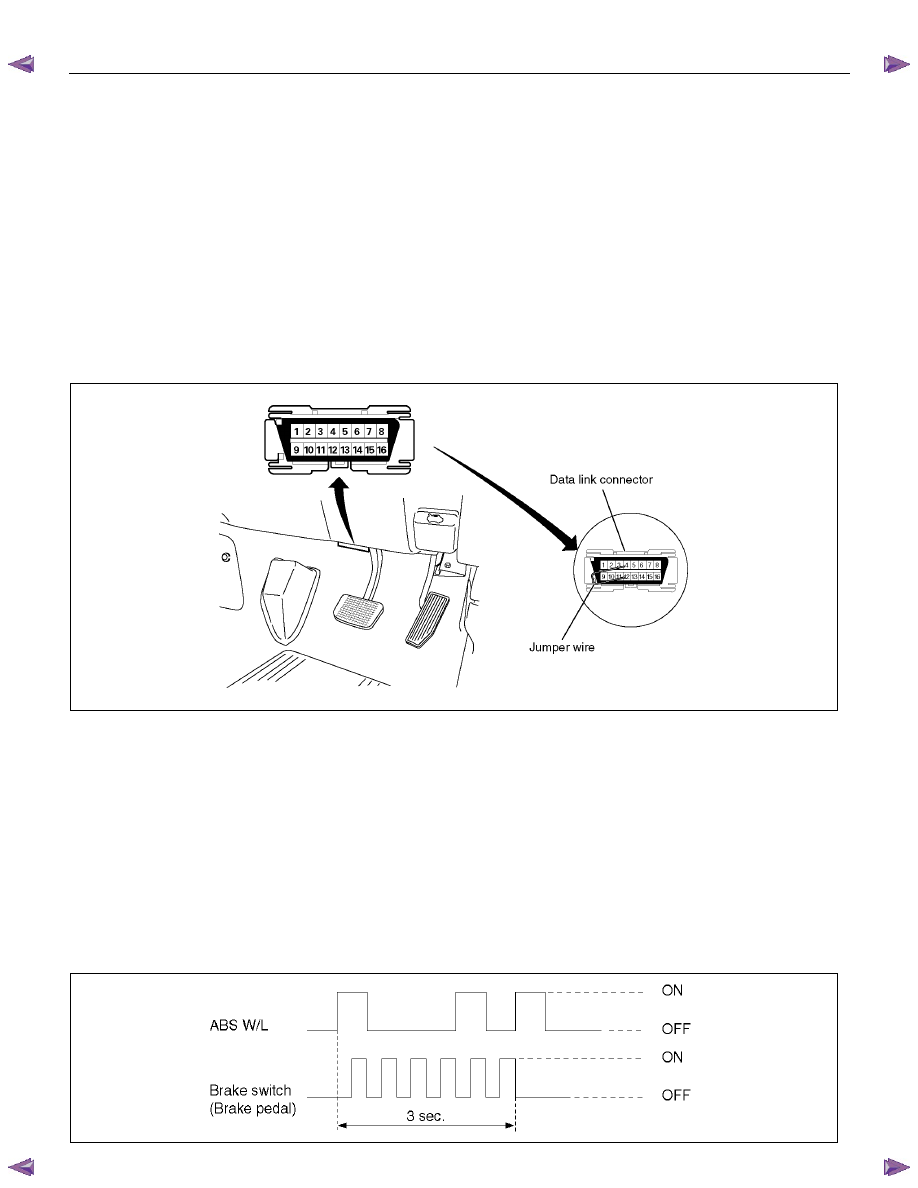

With IGN OFF, connect #12 terminal with #4
terminal or # 5 terminal (GND) . Then turn IGN
ON.







The DLC is located behind the driver side kick panel



















This illustration is based on RHD model



350L300005



•

Keep #12 terminal connected with #4 terminal
or # 5 terminal (GND) during DTC display.  (If
#12 terminal is separated from #4 terminal or #
5 terminal (GND) during display, display will
stop.)

 2. DTC display:

•

DTC is displayed by blinking warning lamp.

• Double-digit

display.

•

First, normal DTC 12 is displayed three times
and then any other DTCs are displayed three
times.  (If no other DTCs have been stored, the
display of DTC 12 will be repeated.)



  3. How to erase code:

•

Conduct brake switch ON/OFF operation 6 or
more times within 3 seconds of self-diagnosis
startup.

•

The code cannot be erased if more than 3
seconds have passed since self-diagnosis
startup, or if self-diagnosis has started with
brake switched on (brake pedal depressed).







B05RW0005

BRAKE CONTROL SYSTEM   5A-37

 4. Notes

•

If the following should occur during Diagnostic
Trouble Code (DTC) display, the display will be
discontinued.  After initial check, the status that
is under the control of ABS will be returned :
–  The vehicle starts (The wheels turn) or the
brake pedal is depressed.

•

Up to 3 different codes can be stored.



•

If the ABS should turn OFF due to an
intermittent defect, the system will be restored
at the next key cycle, if the initial check finds no
abnormality (when IGN is switched from OFF to
ON).

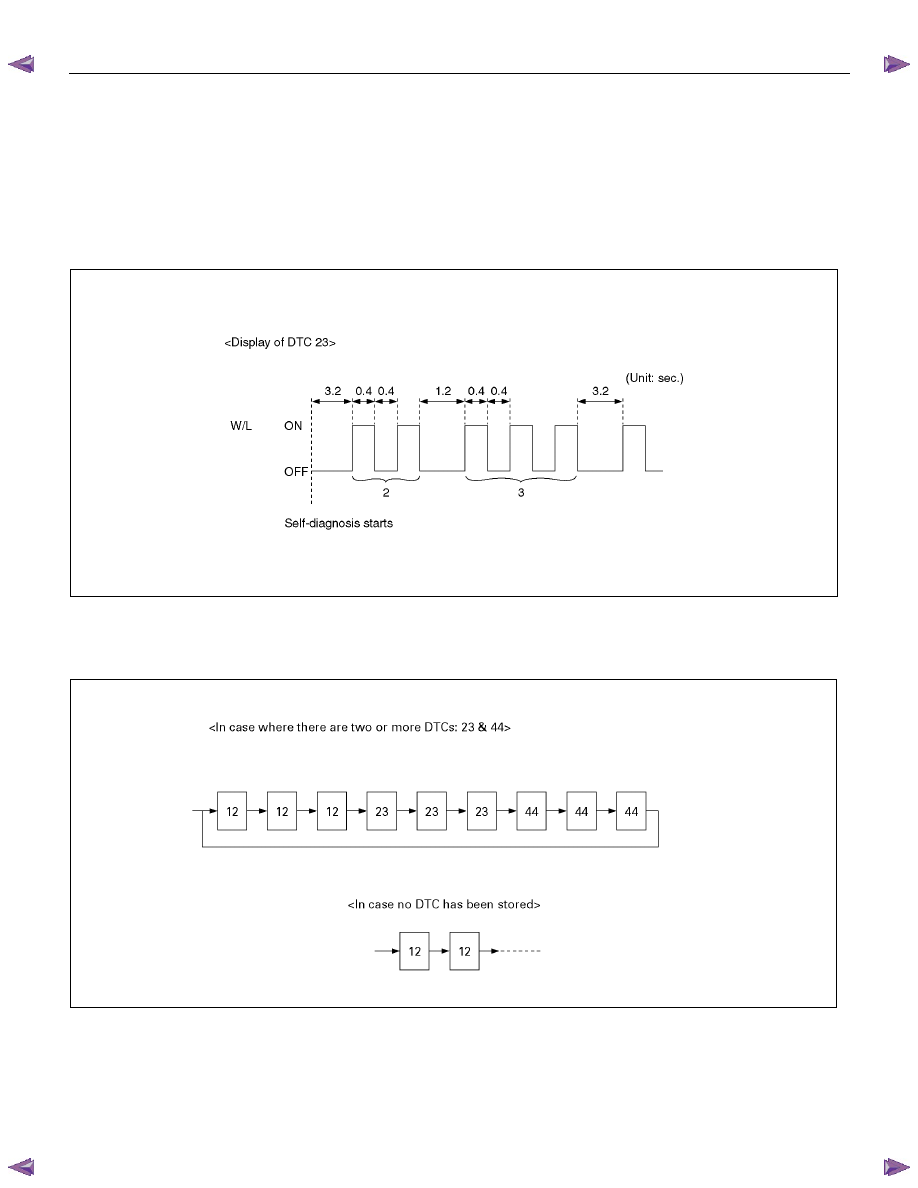

  5. An example of DTC display

Display of DTC 23





B05R100001

After displaying DTC 12 three times, one DTC after
another is displayed. DTC is displayed in numeric
order.







C05L300017

The DTC 12 is displayed repeatedly.








5A-38   BRAKE CONTROL SYSTEM

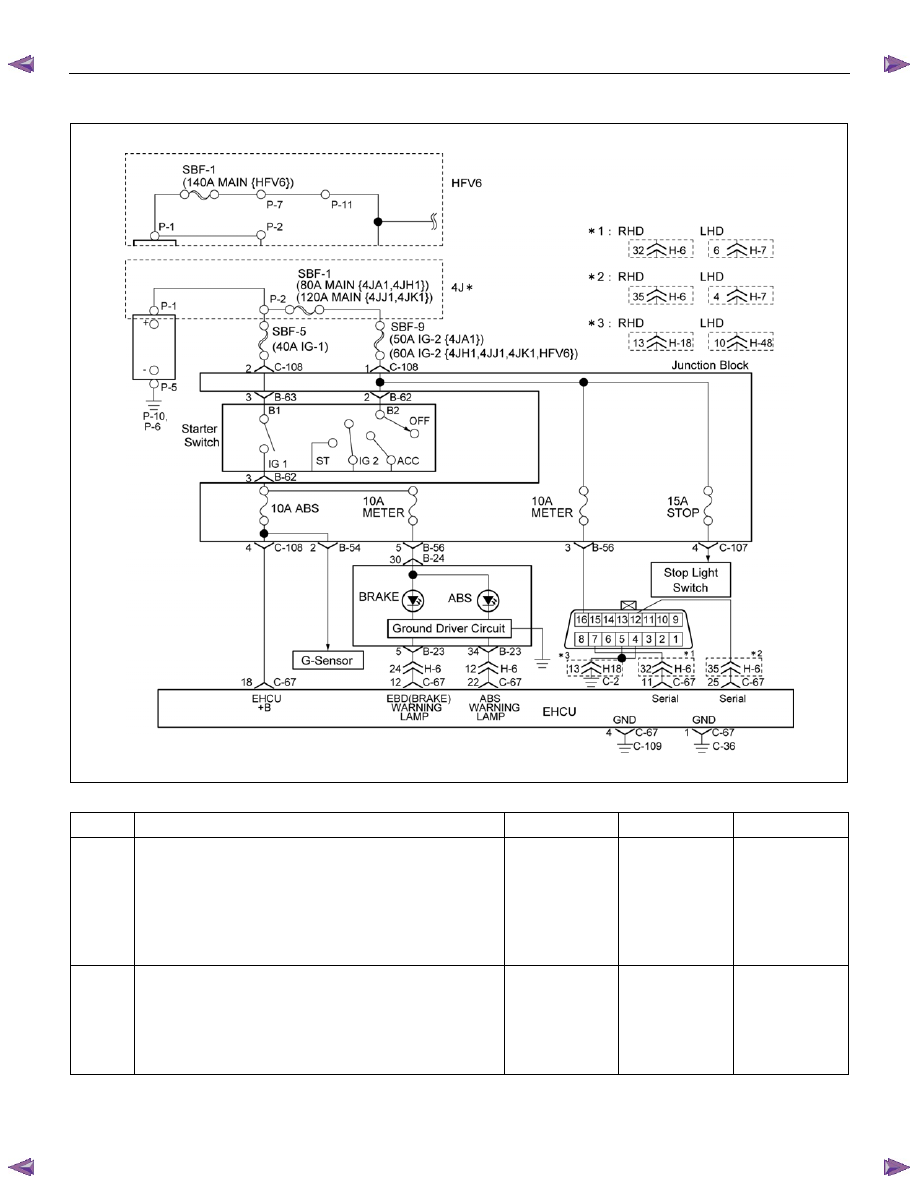

Basic Diagnostic Flow Chart









RTW75ALF000201



Step Action  Value(s)

Yes

No

1

  1. Ignition “ON”, engine “OFF”.

  2. Observe the ABS warning lamp.

Note: If the starter switch is turned ON, the ABS
warning lamp will turn on and then turn off after 3
seconds.

Is the ABS warning lamp “ON”?

-

Go to Step 2

Go to “No

ABS warning

lamp”

2

1.

Ignition

“OFF”.

  2. Install Tech 2.

 3. Ignition “ON”.

  4. Attempt to display ABS data with the Tech 2.

Does the Tech 2 display ABS data?

-

Go to Step 5

Go to Step 3
