IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)   11A-41

a. Connect a scan tool to the terminal that

installed TIS 2000 with the latest software and
the hardware key is plugged into port.

b. Turn ON the scan tool and keep at title screen.

c. Launch the TIS application.

d. Select the Security Access at the main screen.

e. Highlight "Tech 2" on the Diagnostic Tool

Selection screen and click "Next".

f. Click "Close" on the Security Access Enabled

screen.

g. Turn OFF the scan tool.

h. Disconnect the scan tool from the terminal.

5. Reinstall a scan tool to the vehicle.

6. Turn ON the ignition, with the engine OFF.

7. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Immobilizer Link To ECM/ PIM.

8. Select "Immobilizer Replaced" No and select "PIM

or ECM Replaced" Yes.

9. Input four digits of correct security code that

belongs to this vehicle and follow the on-screen
instructions. The on-screen instruction repeats
twice.

Notice:  An incorrect security code input causes a
security wait time.

10. Select "PIM Replaced".

11. Operate the ignition switch by following the on-

screen instructions.

12. The on-screen displays a message "Programming

Successfully!" if PIM programming has been
completed, the press Confirm.

ICU & PIM Programming Procedure

1. Install a scan tool.

2. Turn ON the ignition, with the engine OFF.

3. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Immobilizer Link To ECM/ PIM.

4. In order to get a programming approval, the

onscreen displays a message to user. Get
programming approval from the TIS 2000 using
the following procedure:

a. Connect a scan tool to the terminal that

installed TIS 2000 with the latest software and
the hardware key is plugged into port.

b. Turn ON the scan tool and keep at title screen.

c. Launch the TIS application.

d. Select the Security Access at the main screen.

e. Highlight "Tech 2" on the Diagnostic Tool

Selection screen and click "Next".

f. Click "Close" on the Security Access Enabled

screen.

g. Turn OFF the scan tool.

h. Disconnect the scan tool from the terminal.

5. Reinstall a scan tool to the vehicle.

6. Turn ON the ignition, with the engine OFF.

7. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Immobilizer Link To ECM/ PIM.

8. Select "Immobilizer Replaced" Yes and select "PIM

or ECM Replaced" Yes.

9. Input four digits of correct security code that

belongs to this vehicle and follow the on-screen
instructions. The on-screen instruction repeats
twice.

Notice:  An incorrect security code input causes a
security wait time.

10. Select "PIM Replaced".

11. Input 17 digits of correct VIN that is based on

stamped VIN or affixed VIN plate on this vehicle.

12. Operate the ignition switch by following the

onscreen instructions.

Notice:  Keep away another key, another transponder
key, key number plate or other metal items from the
transponder key that is going to program.

13. The on-screen displays a message "Program more

Transponder Keys?" If all transponder key(s) has
been programmed, press No and go to next step. If
more transponder key(s) need to be programmed,
press Yes and repeat from previous step.

14. The on-screen displays a message "Programming

Successfully!" if ICU, PIM and all transponder
key(s) programming has been completed, the
press Confirm.

15. Turn OFF the ignition for 30 seconds.

16. Verify the engine starts using all programmed

transponder key(s).

ECM & PIM Programming Procedure

1. Install a scan tool.

2. Turn ON the ignition, with the engine OFF.

3. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Immobilizer Link To ECM/ PIM.

4. In order to get a programming approval, the

onscreen displays a message to user. Get
programming approval from the TIS 2000 using
the following procedure:

a. Connect a scan tool to the terminal that

installed TIS 2000 with the latest software and
the hardware key is plugged into port.

b. Turn ON the scan tool and keep at title screen.

c. Launch the TIS application.

d. Select the Security Access at the main screen.

11A-42   IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)

e. Highlight "Tech 2" on the Diagnostic Tool

Selection screen and click "Next".

f. Click "Close" on the Security Access Enabled

screen.

g. Turn OFF the scan tool.

h. Disconnect the scan tool from the terminal.

5. Reinstall a scan tool to the vehicle.

6. Turn ON the ignition, with the engine OFF.

7. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Immobilizer Link To ECM/ PIM.

8. Select "Immobilizer Replaced" No and select "PIM

or ECM Replaced" Yes.

9. Input four digits of correct security code that

belongs to this vehicle and follow the on-screen
instructions. The on-screen instruction repeats
twice.

Notice:  An incorrect security code input causes a
security wait time.

10. Select "PIM and ECM Replaced".

11. Operate the ignition switch by following the on-

screen instructions.

12. The on-screen displays a message "Programming

Successfully!" if ECM and PIM programming has
been completed, the press Confirm.

ICU & ECM Programming Procedure

1. Install a scan tool.

2. Turn ON the ignition, with the engine OFF.

3. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Program Immobilizer Function or Immobilizer
Link To ECM/ PIM.

4. In order to get a programming approval, the on-

screen displays a message to user. Get
programming approval from the TIS 2000 using
the following procedure:

a. Connect a scan tool to the terminal that

installed TIS 2000 with the latest software and
the hardware key is plugged into port.

b. Turn ON the scan tool and keep at title screen.

c. Launch the TIS application.

d. Select the Security Access at the main screen.

e. Highlight "Tech 2" on the Diagnostic Tool

Selection screen and click "Next".

f. Click "Close" on the Security Access Enabled

screen.

g. Turn OFF the scan tool.

h. Disconnect the scan tool from the terminal.

5. Reinstall a scan tool to the vehicle.

6. Turn ON the ignition, with the engine OFF.

7. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Program Immobilizer Function or Immobilizer
Link To ECM/ PIM.

8. The on-screen may display a message "See

Checking Procedure Before Programming!", then
press Confirm.

9. Select "Immobilizer and ECM Installed" or select

"Immobilizer Replaced" Yes.

10. Select "PIM or ECM Replaced" Yes, if displayed.

11. Input four digits of correct security code that

belongs to this vehicle and follow the on-screen
instructions. The on-screen instruction repeats
twice.

Notice: An incorrect security code input causes a
security wait time.

12. Select "ECM Replaced" if displayed.

13. Input 17 digits of correct VIN that is based on

stamped VIN or affixed VIN plate on this vehicle.

14. Operate the ignition switch by following the on-

screen instructions.

Notice: Keep away another key, another transponder
key, key number plate or other metal items from the
transponder key that is going to program.

15. The on-screen displays a message "Program more

Transponder Keys?"  If all transponder key(s) has
been programmed, press No and go to next step. If
more transponder key(s) need to be programmed,
press Yes and repeat from previous step.

16. The on-screen displays a message "Programming

Successfully!" if ICU, ECM and all transponder
key(s) programming has been completed, then
press Confirm.

17. Turn OFF the ignition for 30 seconds.

18. Verify the engine starts using all programmed

transponder key(s).

ICU, ECM & PIM Programming Procedure

1. Install a scan tool.

2. Turn ON the ignition, with the engine OFF.

3. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Immobilizer Link To ECM/ PIM.

4. In order to get a programming approval, the

onscreen displays a message to user. Get
programming approval from the TIS 2000 using
the following procedure:

a. Connect a scan tool to the terminal that

installed TIS 2000 with the latest software and
the hardware key is plugged into port.

b. Turn ON the scan tool and keep at title screen.

c. Launch the TIS application.

d. Select the Security Access at the main screen.

IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)   11A-43

e. Highlight "Tech 2" on the Diagnostic Tool

Selection screen and click "Next".

f. Click "Close" on the Security Access Enabled

screen.

g. Turn OFF the scan tool.

h. Disconnect the scan tool from the terminal.

5. Reinstall a scan tool to the vehicle.

6. Turn ON the ignition, with the engine OFF.

7. Select Diagnostics > Appropriate vehicle

identification > Body > Immobilizer > Programming
> Immobilizer Link To ECM/ PIM.

8. Select "Immobilizer Replaced" Yes and select "PIM

or ECM Replaced" Yes.

9. Input four digits of correct security code that

belongs to this vehicle and follow the on-screen
instructions. The on-screen instruction repeats
twice.

Notice:  An incorrect security code input causes a
security wait time.

10. Select "PIM and ECM Replaced".

11. Input 17 digits of correct VIN that is based on

stamped VIN or affixed VIN plate on this vehicle.

12. Operate the ignition switch by following the

onscreen instructions.

Notice:  Keep away another key, another transponder
key, key number plate or other metal items from the
transponder key that is going to program.

13. The on-screen displays a message "Program more

Transponder Keys?" If all transponder key(s) has
been programmed, press No and go to next step. If
more transponder key(s) need to be programmed,
press Yes and repeat from previous step.

14. The on-screen displays a message "Programming

Successfully!" if ICU, ECM, PIM and all
transponder key(s) programming has been
completed, the press Confirm.

15. Turn OFF the ignition for 30 seconds.

16. Verify the engine starts using all programmed

transponder key(s).

11A-44   IMMOBILIZER CONTROL SYSTEM (4JK1/4JJ1/HFV6)

Repair Instructions

Immobilizer Control Unit (ICU)
Replacement

Resetting ICU

Reset immobilizer security information in the old ICU.
Refer to Resetting and Programming Guidelines in this
section. If the old ICU cannot be communicated with a
scan tool, go to the next procedure.

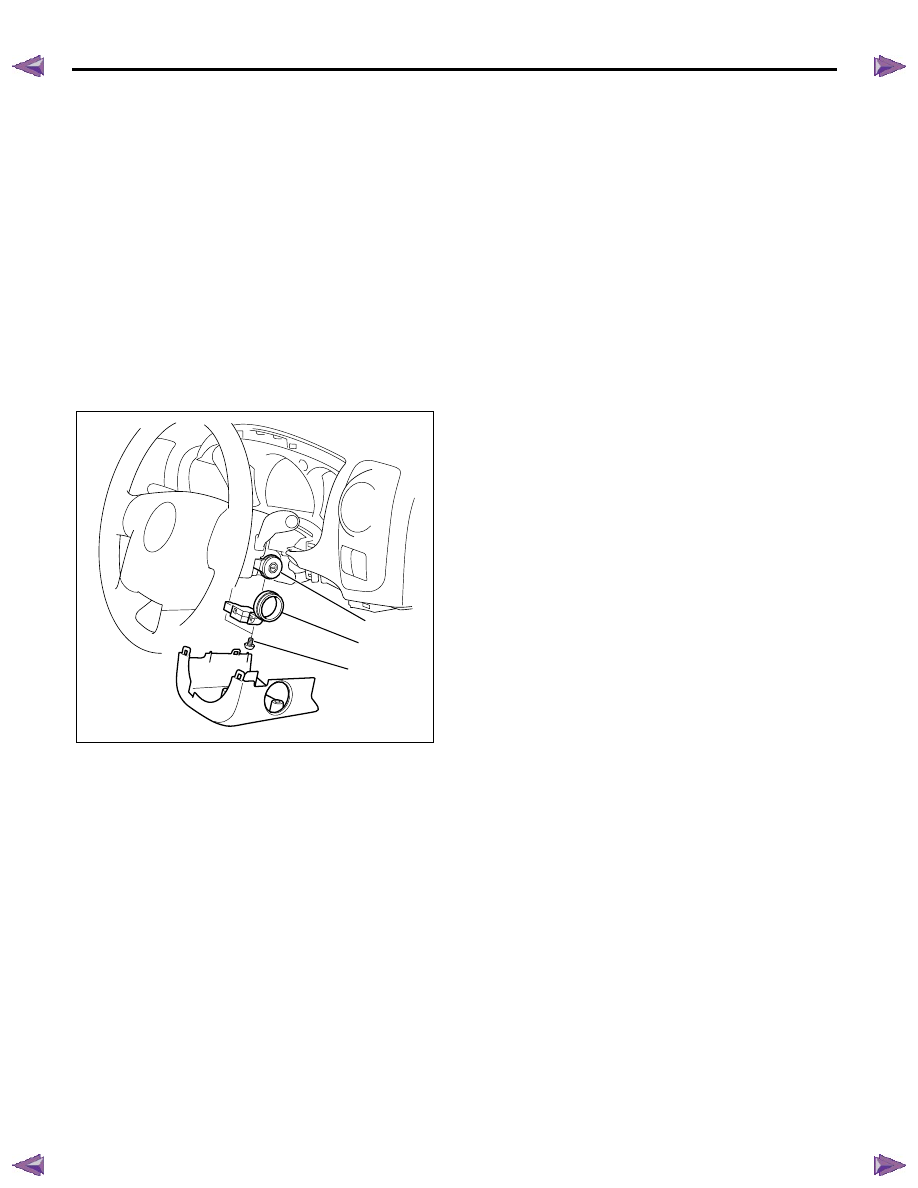

Removal Procedure

1. Disconnect the negative battery cable.

2. Remove the steering column cover.

3. Disconnect the ICU harness connector.

4. Loose screws (1) and remove the ICU (2) from the

steering lock(3).

Installation Procedure

1. Install the ICU (2) to the steering lock (3) and

tighten screws (1).

2. Connect the ICU harness connector.

3. Install the steering column cover.

4. Connect the negative battery cable.

Programming ICU

Program immobilizer security information into the ICU.
Refer to Resetting and Programming Guidelines in this
section.

RTW7BASH000301

3

2

1















Content   ..  1471  1472  1473  1474   ..
