10-70  CAB





Important Operation - Installation

1.  Fuel Filler Lid Cable Assembly

•  Install the cable holder of the cable assembly to the

recess and push the grommet in to the back panel. Fix

the clips to the appointed places.

Note:

To install, follow the removal steps in the reverse order,
noting the following points.
••••  Do not make an extreme curve on the cable.
••••  Install the cable from inside the cab.




CAB  10-71

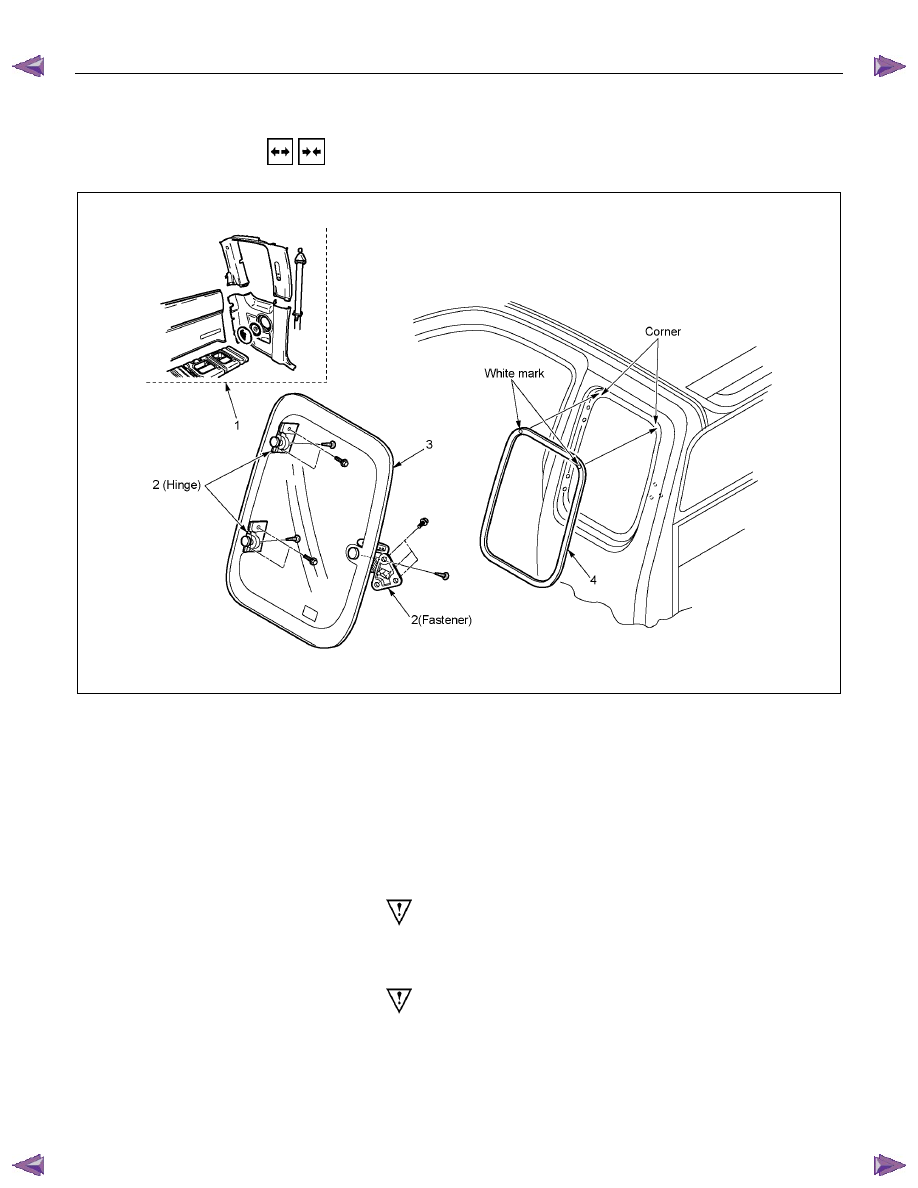

QUARTER GLASS (EXTEND CAB)



  REMOVAL AND INSTALLATION












RTW5A0MF000501



Removal Steps

▲  1. Body side rear trim covers
 2.

Hinge/Fastener



3. Quarter glass



4. Weather strip





Installation Steps

▲  4. Weather strip


3. Quarter glass

 2.

Hinge/Fastener



1. Body side rear trim covers















Important Operation - Removal

1.  Body Side Rear Trim Covers

•  Refer to Interior Trim Panels in this section.



Important Operation – Installation

4. Weather Strip

•  Install the weather strip by aligning the corners with a

white mark to the upper corners on the body panel.



10-72  CAB

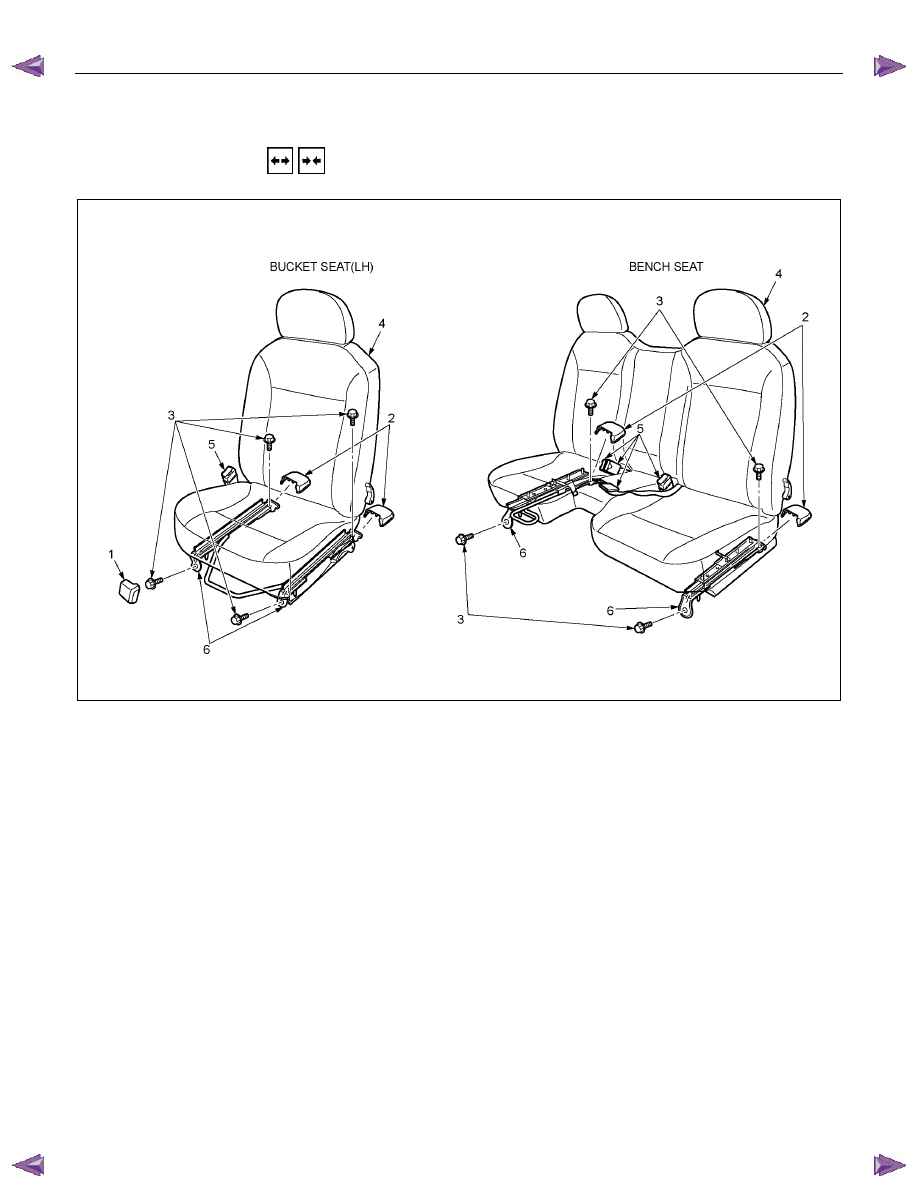

FRONT SEAT



  REMOVAL AND INSTALLATION













RTW3A0MF000301



Removal Steps

▲  1. Front cover


2. Rear cover

 3.

Bolt

▲  4. Seat assembly
▲  5. Buckle side seat belt/center seat belt


6. Seat adjuster





Installation Steps



6. Seat adjuster

▲  5. Buckle side seat belt/center seat belt


4. Seat assembly

▲ 3. Bolt


2. Rear cover



1. Front cover






CAB  10-73





Important Operations - Removal

1. Front Cover

•  While pushing the cover downward, pull it.

4. Seat Assembly

•  Disconnect the seat belt warning harness connector

(Driver’s side only).



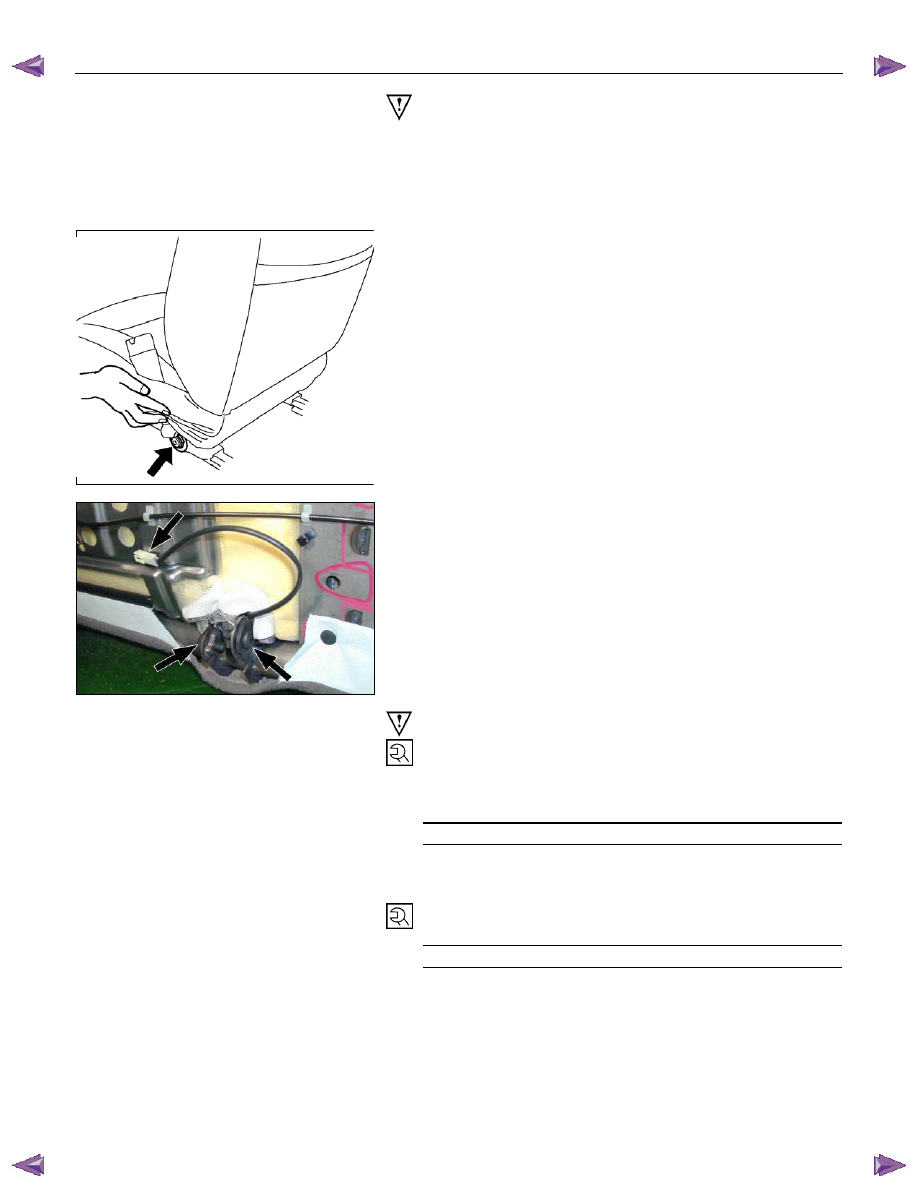

RUW7A0SH000201



5.  Buckle Side Seat Belt/Center Seat Belt

•  Remove the seat belt fixing screw and the warning

harness connector clip (Bucket seat model).





•  Remove the seat belt fixing screws and the warning

harness connector clip (Bench seat model).





Important Operations – Installation

5.  Buckle Side Seat Belt/Center Seat Belt

•  Tighten the seat belt fixing screws to the specified

torque.

Torque N

⋅m (kgf⋅m/lb⋅ft)

40 (4.1 / 30)





3.  Bolt: Seat Assembly to Floor Panel

Torque N

⋅m (kgf⋅m/lb⋅ft)

40 (4.1 / 30)
