4C2-2 SHIFT ON THE FLY SYSTEM SHIFT ON THE FLY SYSTEM Outline of Shift on The Fly System The shift on the fly system switches between 2 wheel This system controls below operations. 1. Shifting the transfer front output gear (Connecting to, and disconnecting from, front propeller shaft by motor actuator).

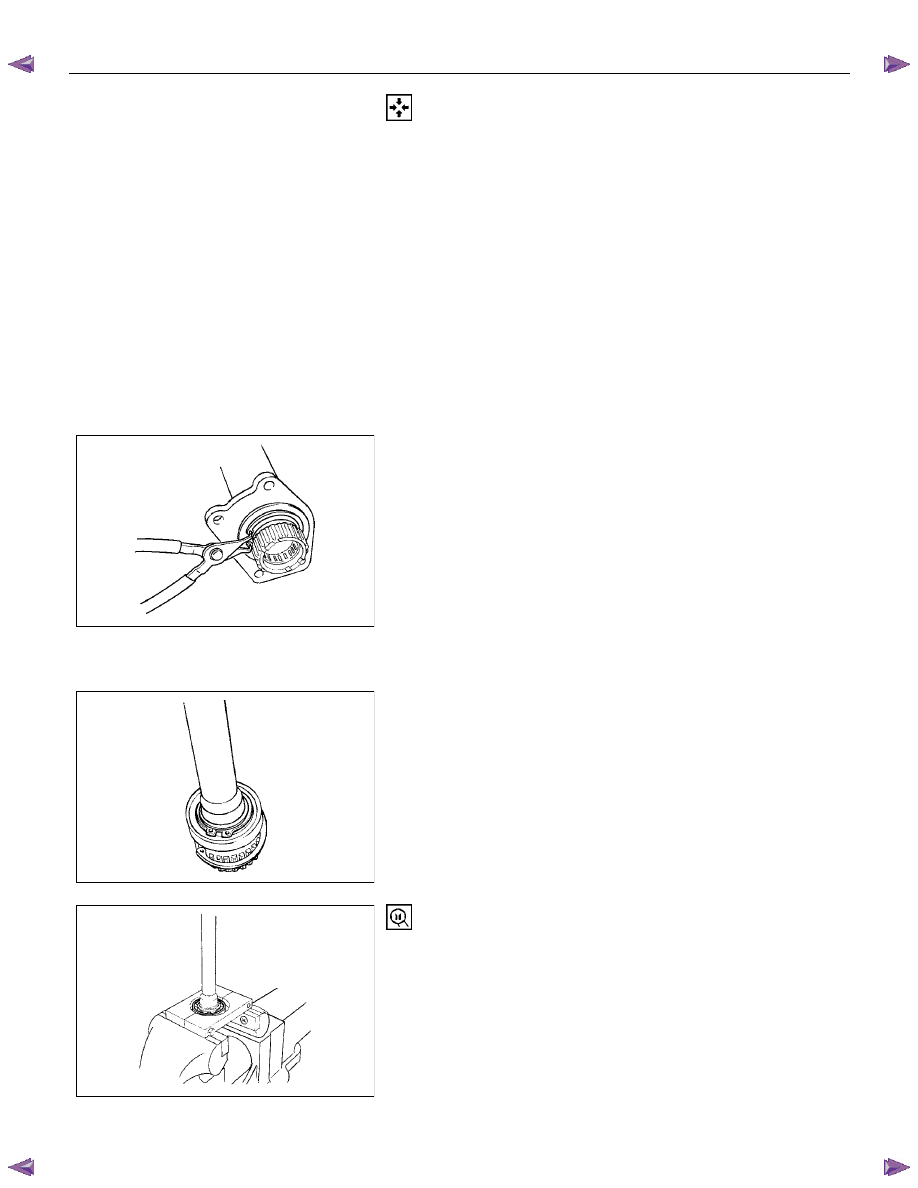

2. Retrial of shifting the transfer front output gear. 3. Connecting front wheels to, and disconnecting them from, the front axles by axle motor actuator. 4. Indicator on instrument panel. 5. 4WD out signal to other Electronic Hydraulic Control Unit.

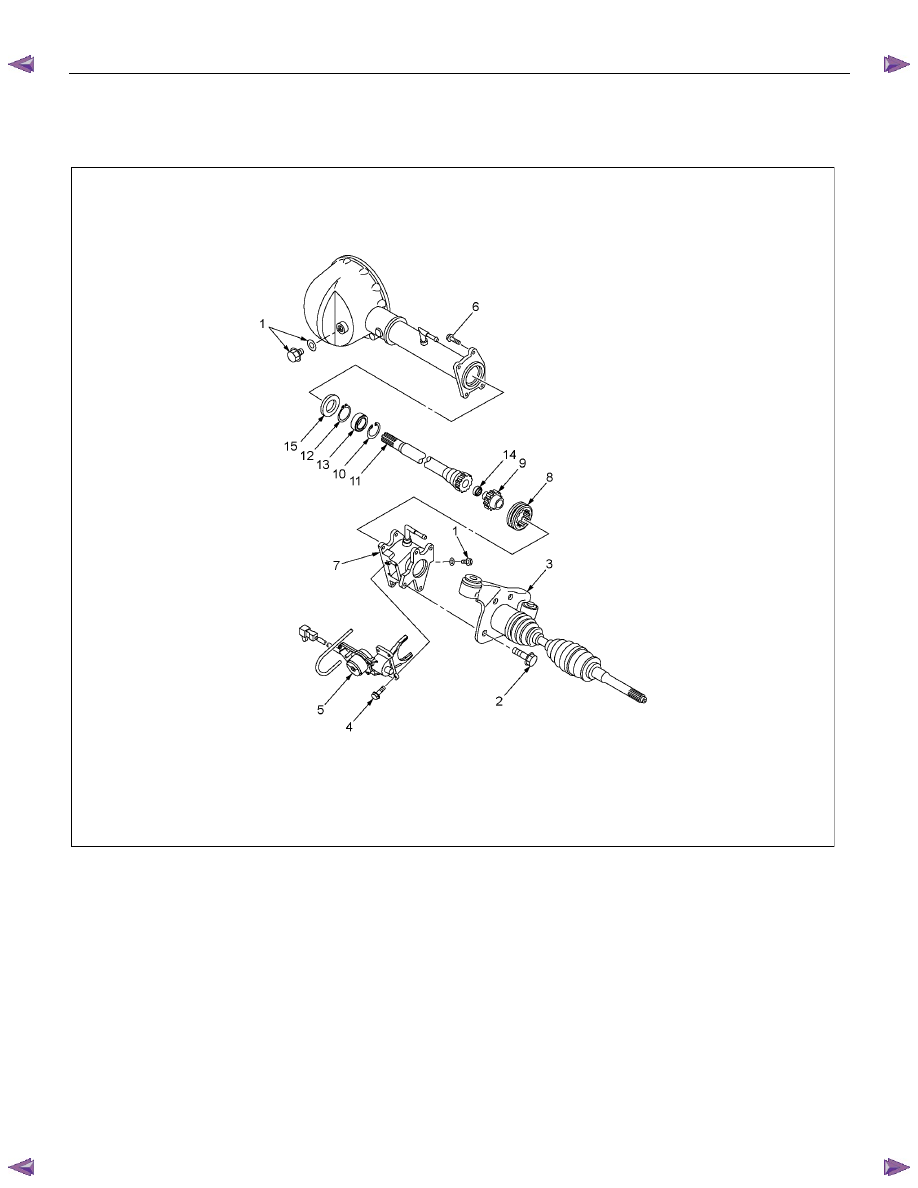

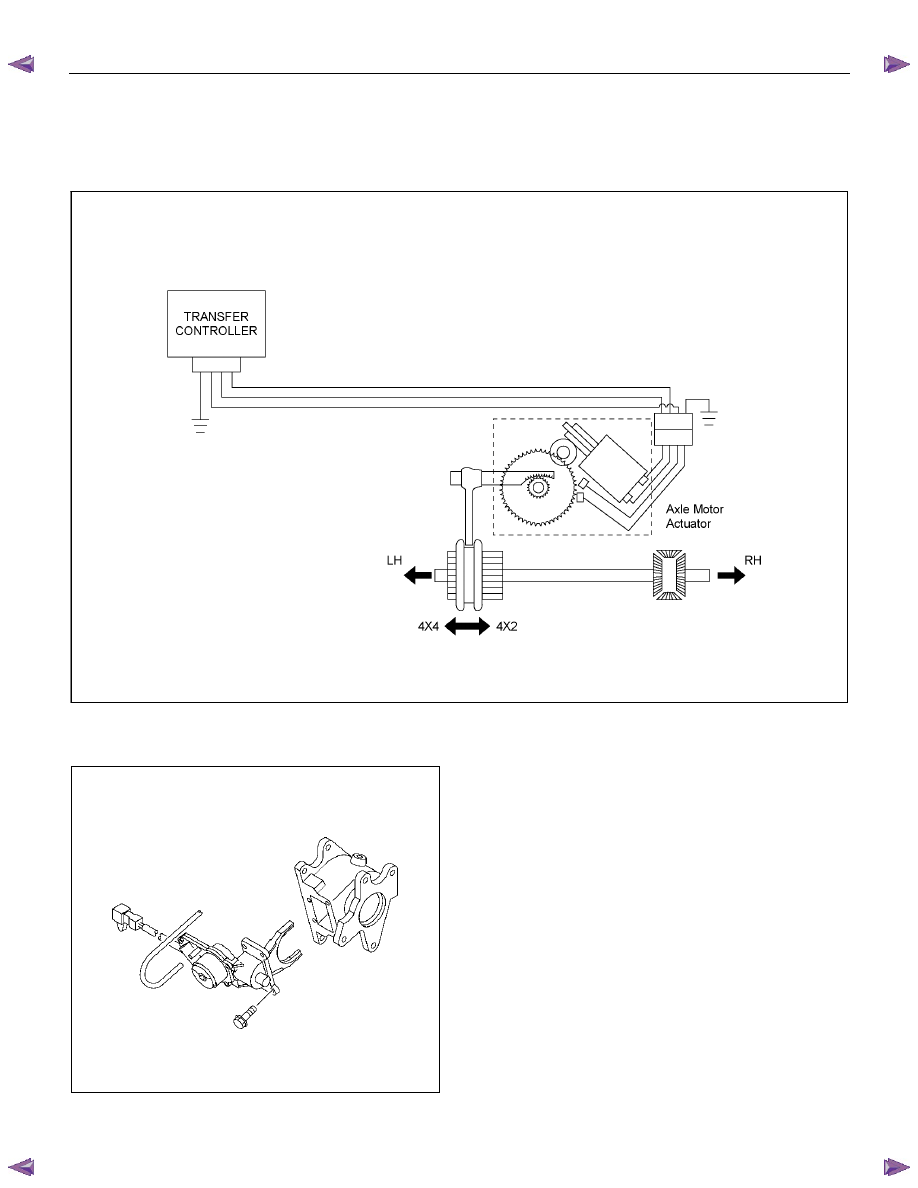

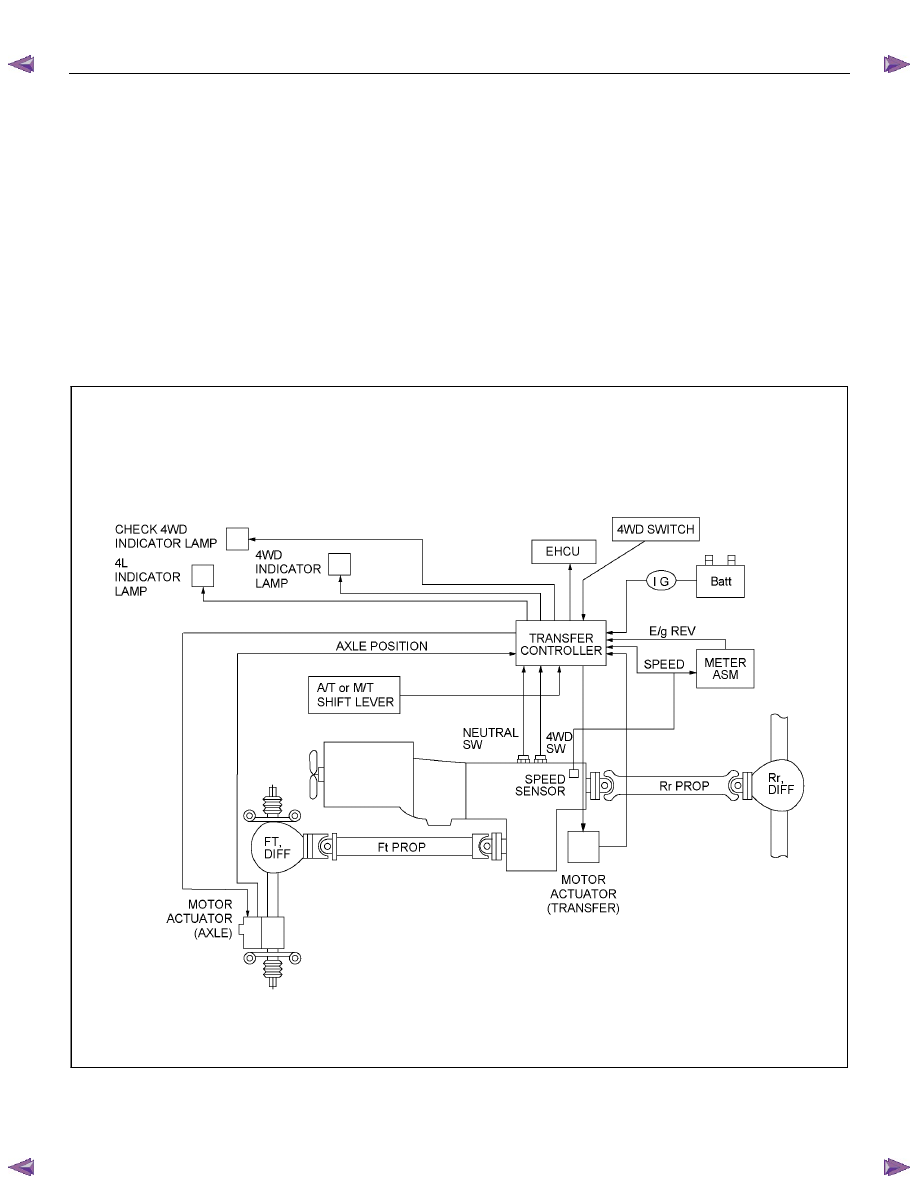

System Diagrams
